Combination Meter: Notes

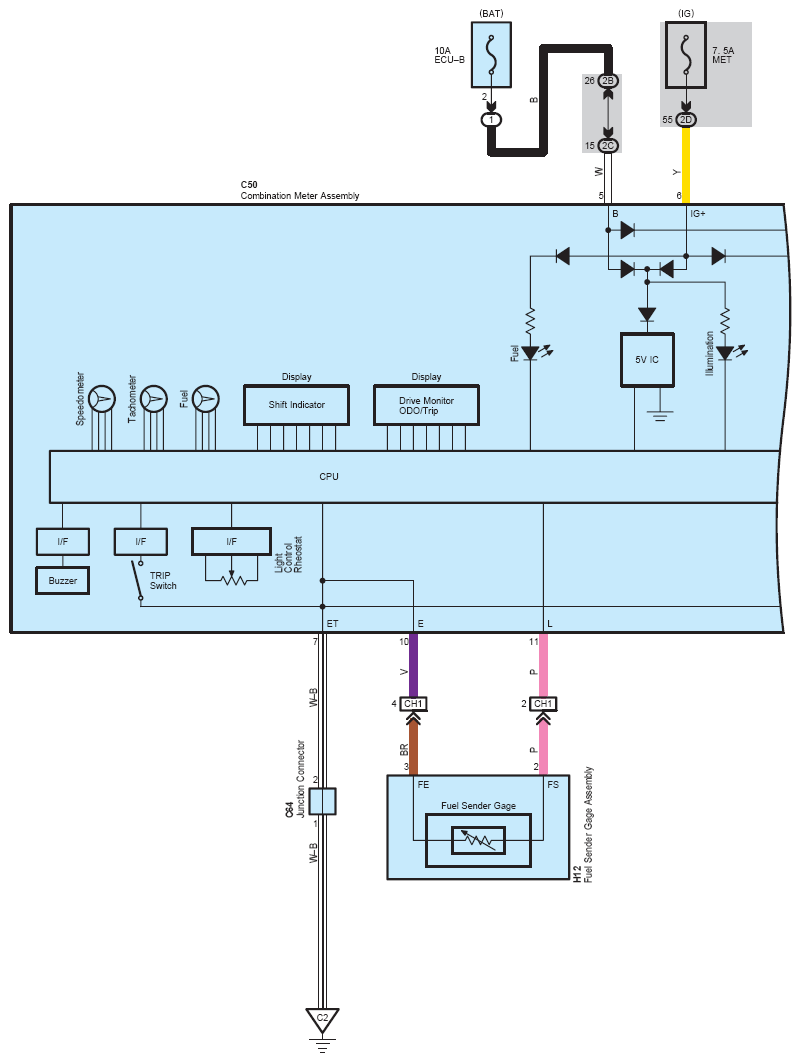

Fig 1: Combination Meter System Wiring Diagram (1 Of 7)
G08760313Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

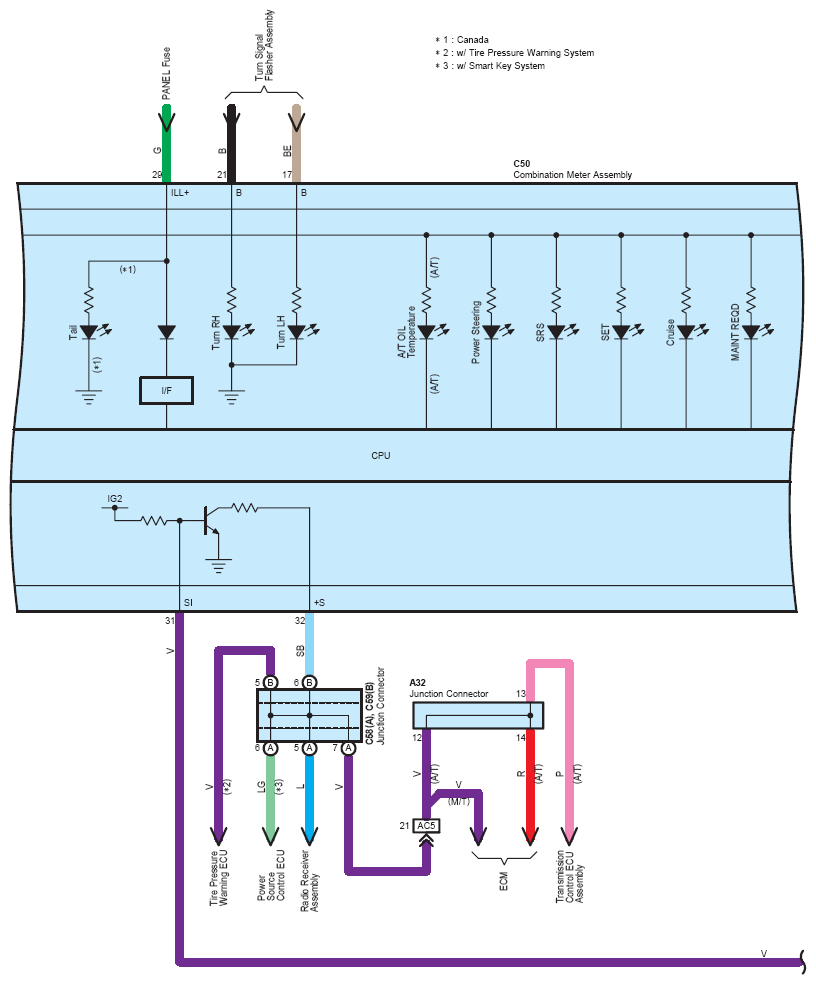

Fig 2: Combination Meter System Wiring Diagram (2 Of 7)
G08760314Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

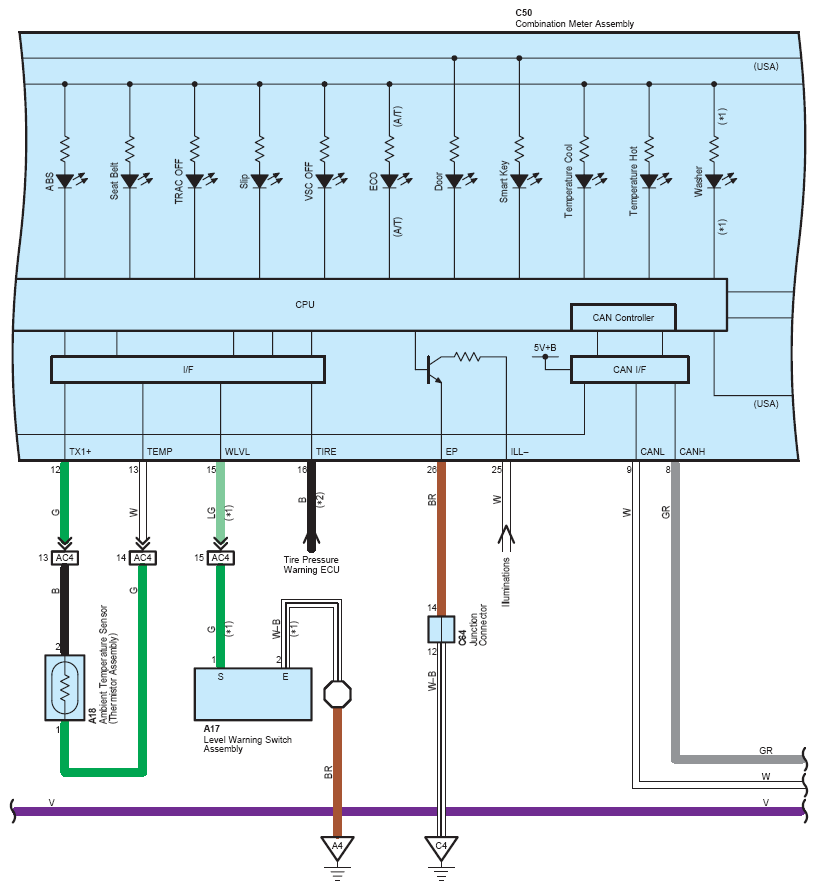

Fig 3: Combination Meter System Wiring Diagram (3 Of 7)
G08760315Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

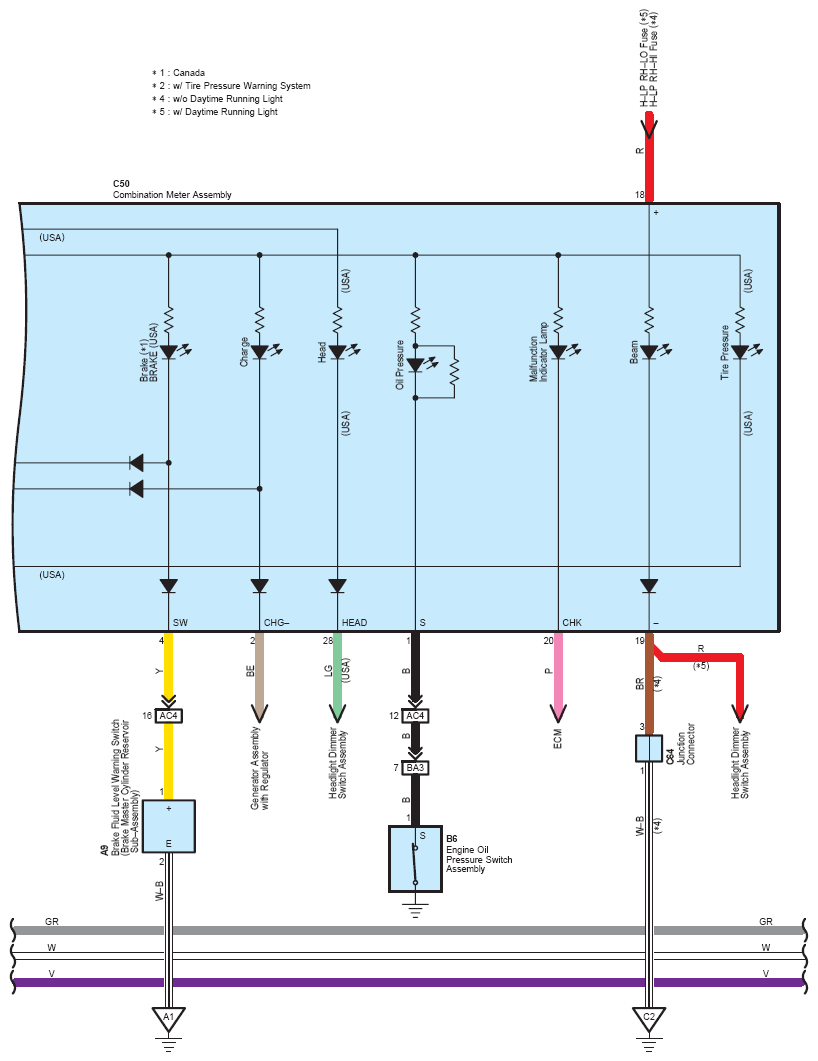

Fig 4: Combination Meter System Wiring Diagram (4 Of 7)
G08760316Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

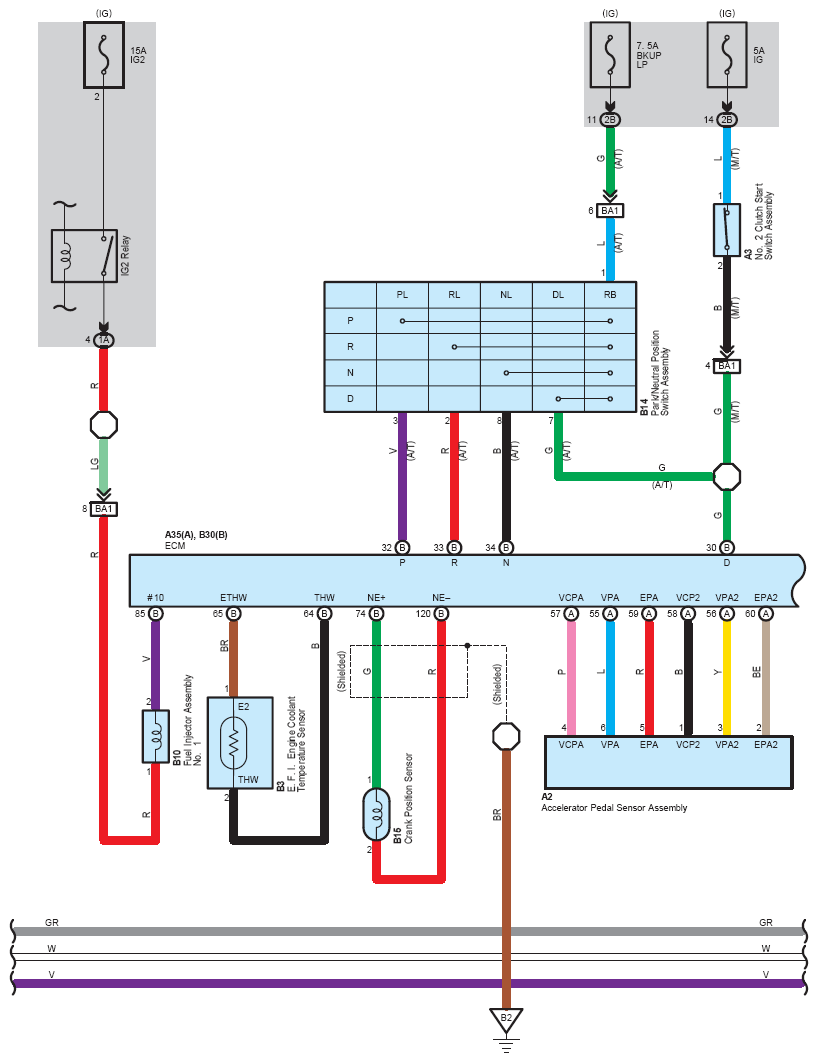

Fig 5: Combination Meter System Wiring Diagram (5 Of 7)
G08760317Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

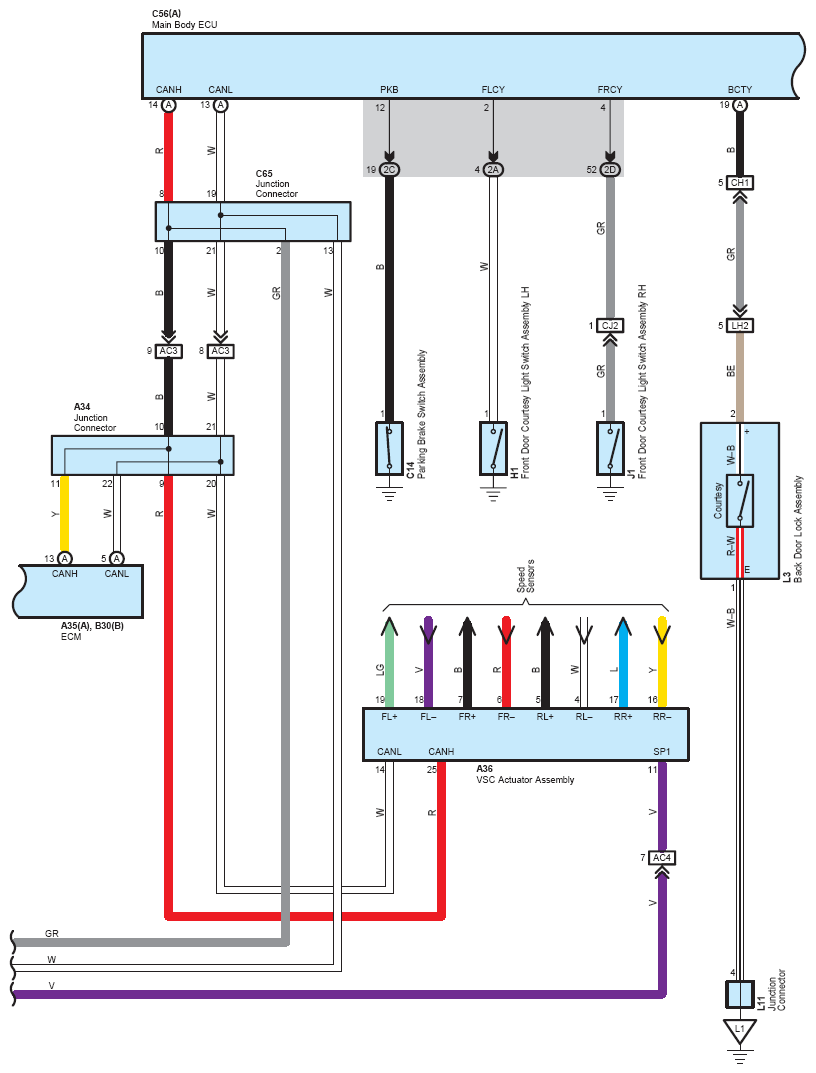

Fig 6: Combination Meter System Wiring Diagram (6 Of 7)
G08760318Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

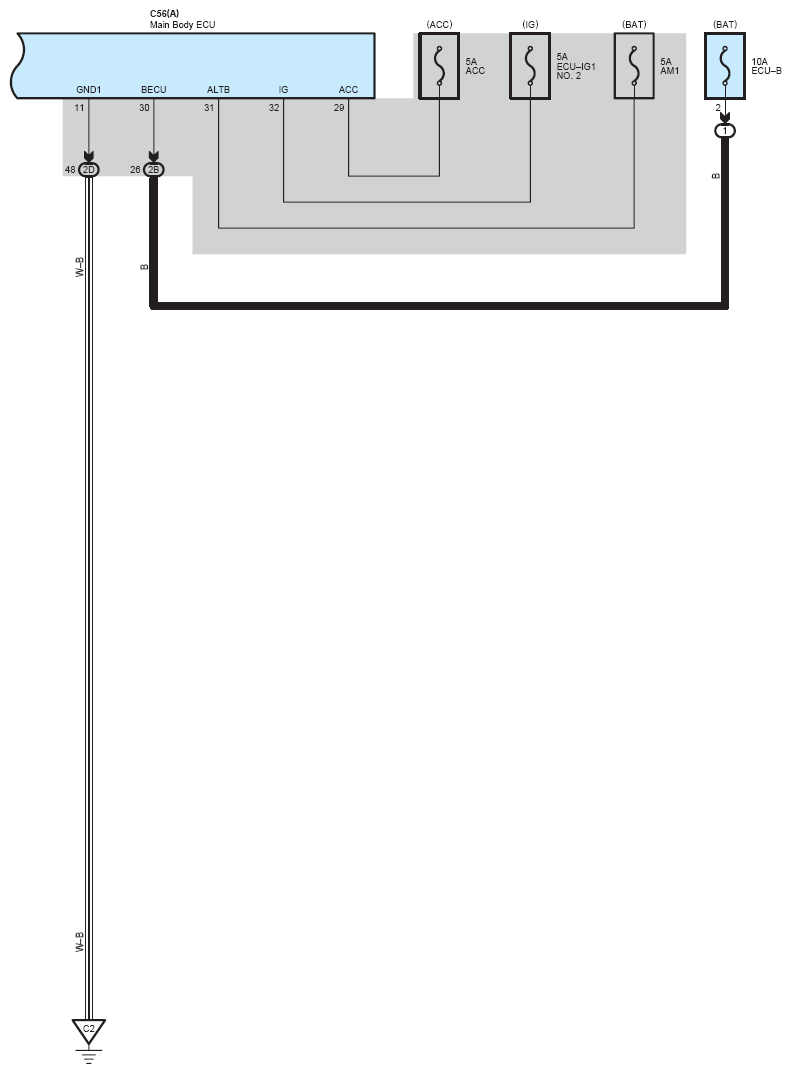

Fig 7: Combination Meter System Wiring Diagram (7 Of 7)
G08760319Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
