Door Lock Control: Notes

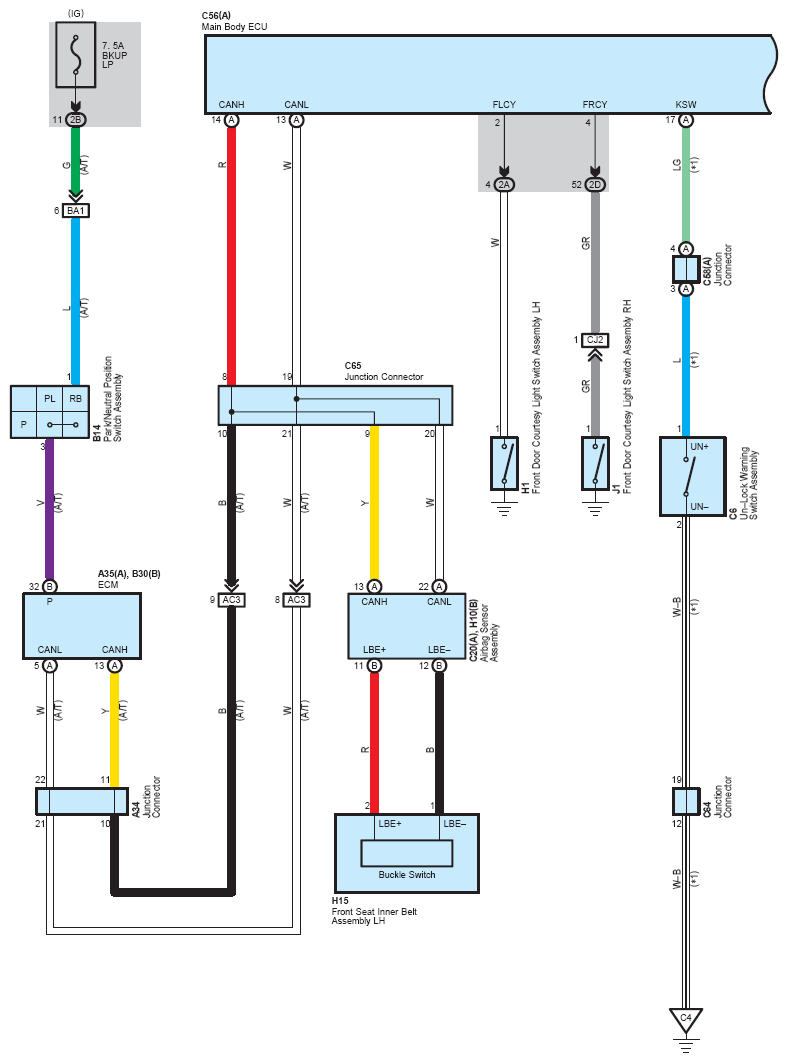

Fig 1: Door Lock Control System Wiring Diagram (1 Of 4)
G08760263Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

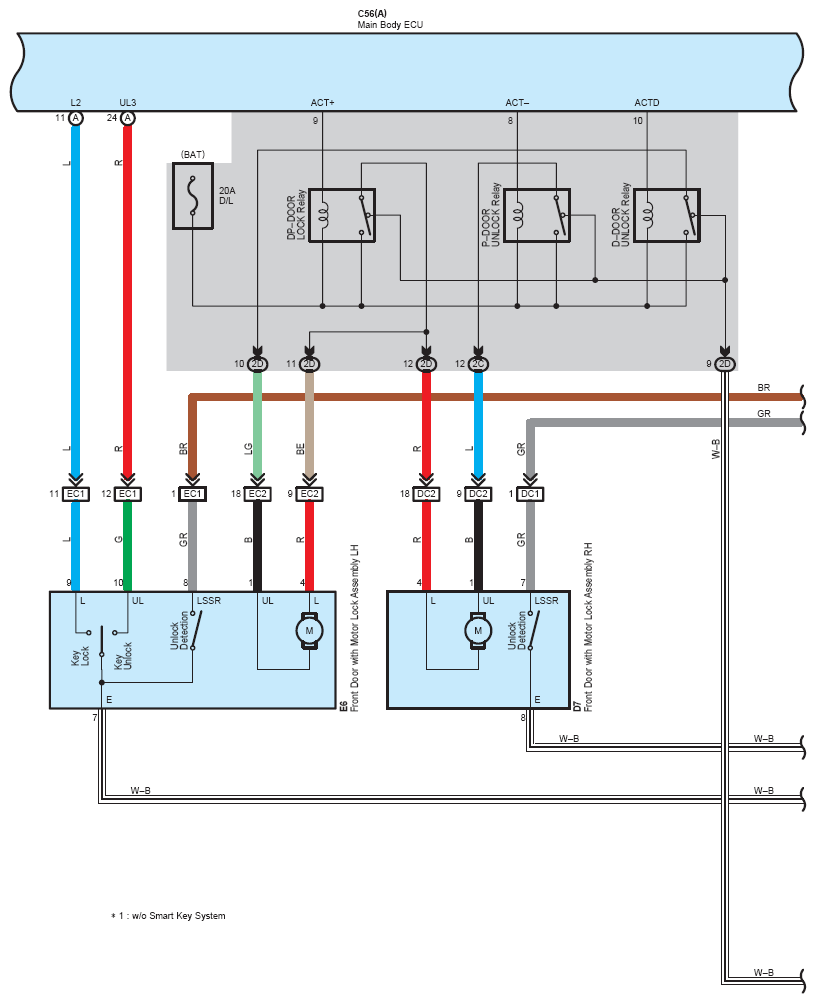

Fig 2: Door Lock Control System Wiring Diagram (2 Of 4)
G08760264Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

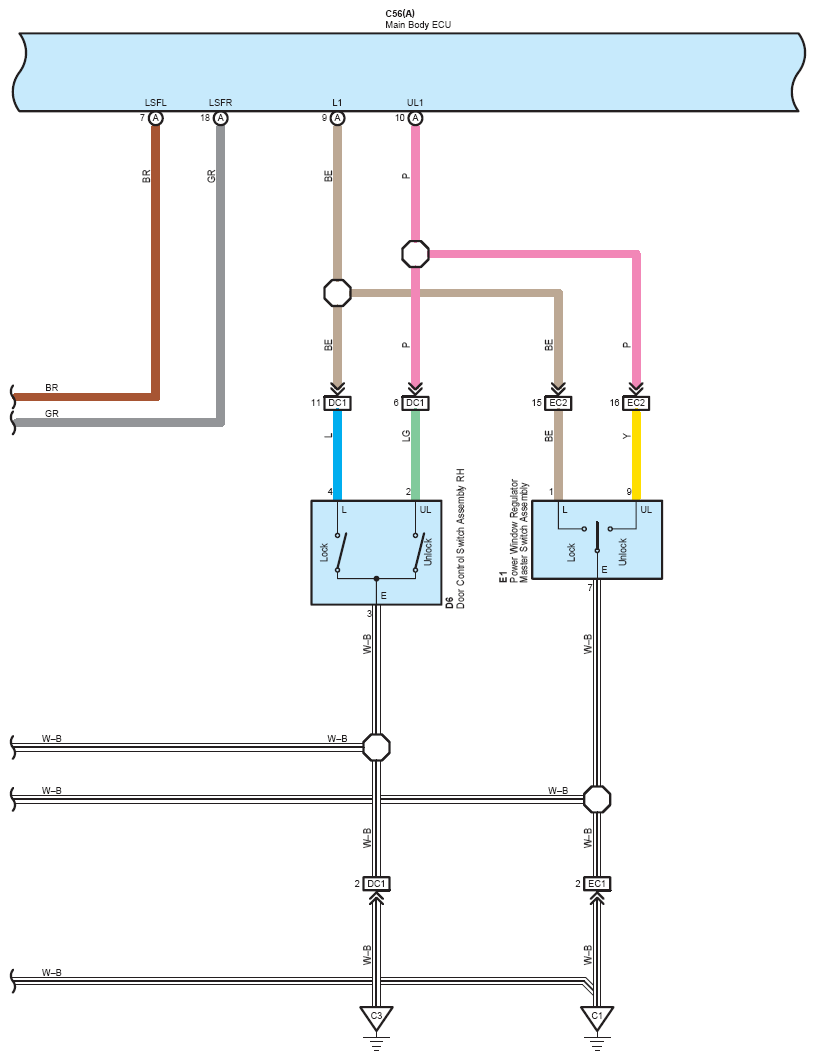

Fig 3: Door Lock Control System Wiring Diagram (3 Of 4)
G08760265Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

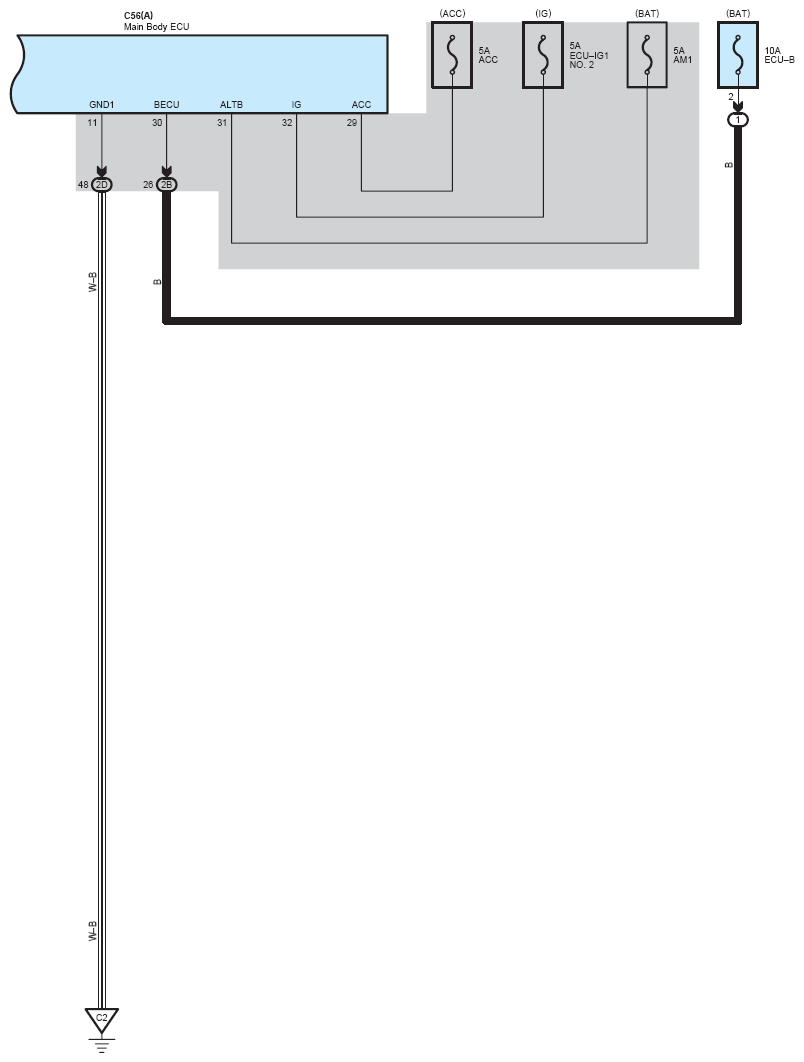

Fig 4: Door Lock Control System Wiring Diagram (4 Of 4)
G08760266Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
