OEM System Circuits: EPS: Notes

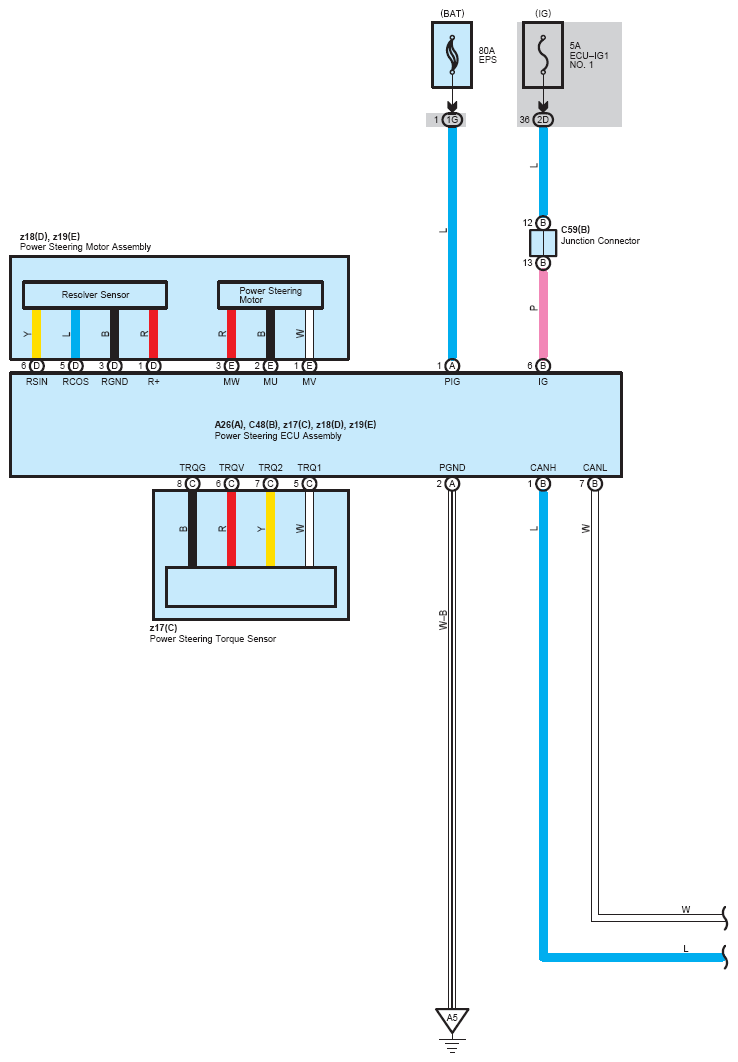

Fig 1: EPS System Wiring Diagram (1 Of 2)
G08760297Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

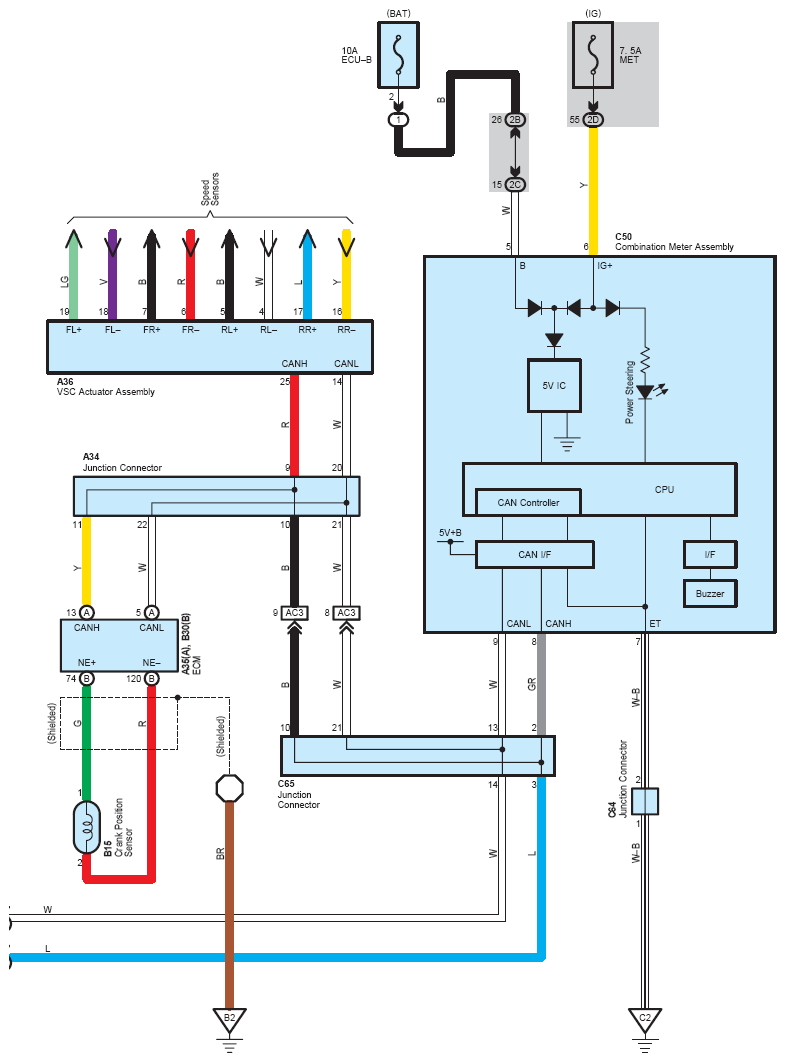

Fig 2: EPS System Wiring Diagram (2 Of 2)
G08760298Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
