Interior Light: Notes

Fig 1: Interior Light System Wiring Diagram (1 Of 4)
G08760256Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

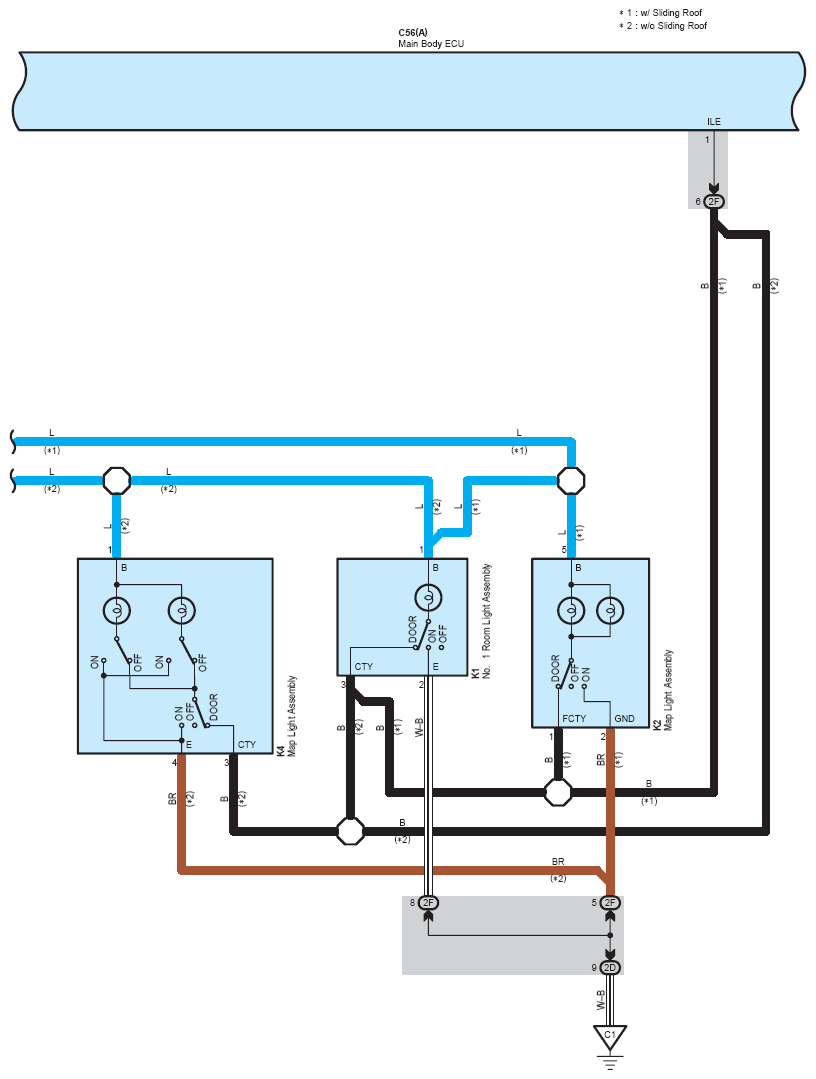

Fig 2: Interior Light System Wiring Diagram (2 Of 4)
G08760257Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

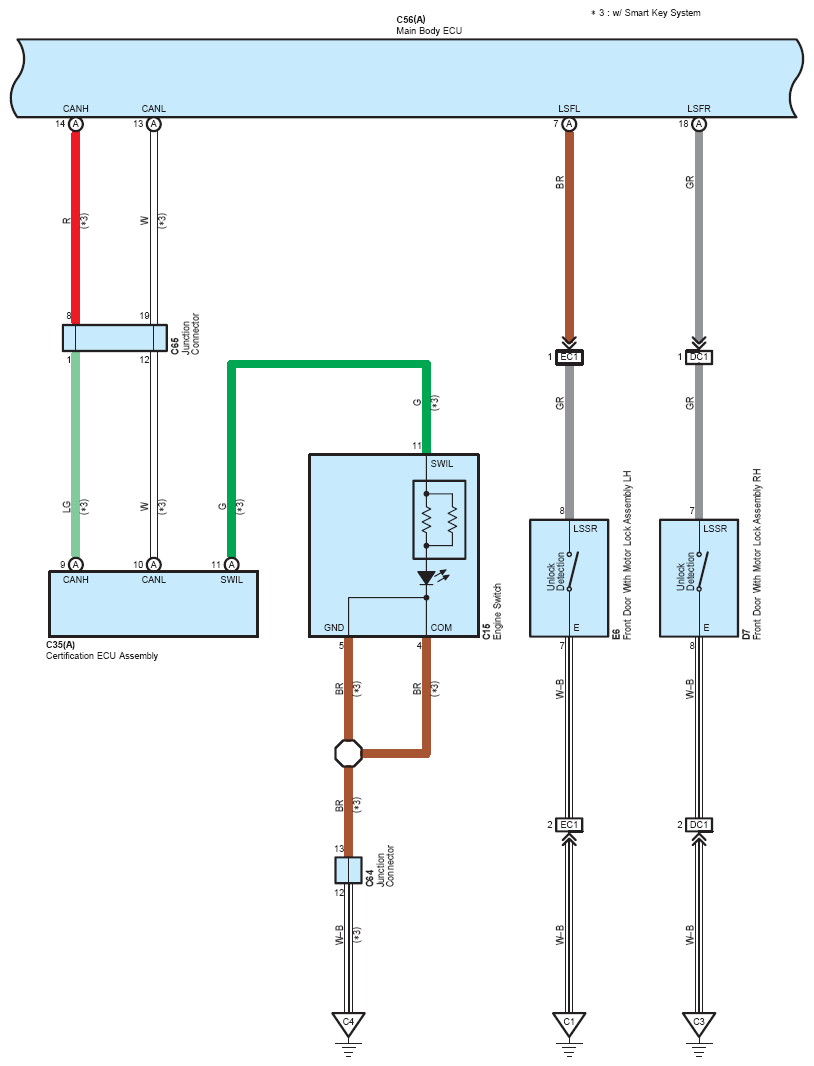

Fig 3: Interior Light System Wiring Diagram (3 Of 4)
G08760258Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

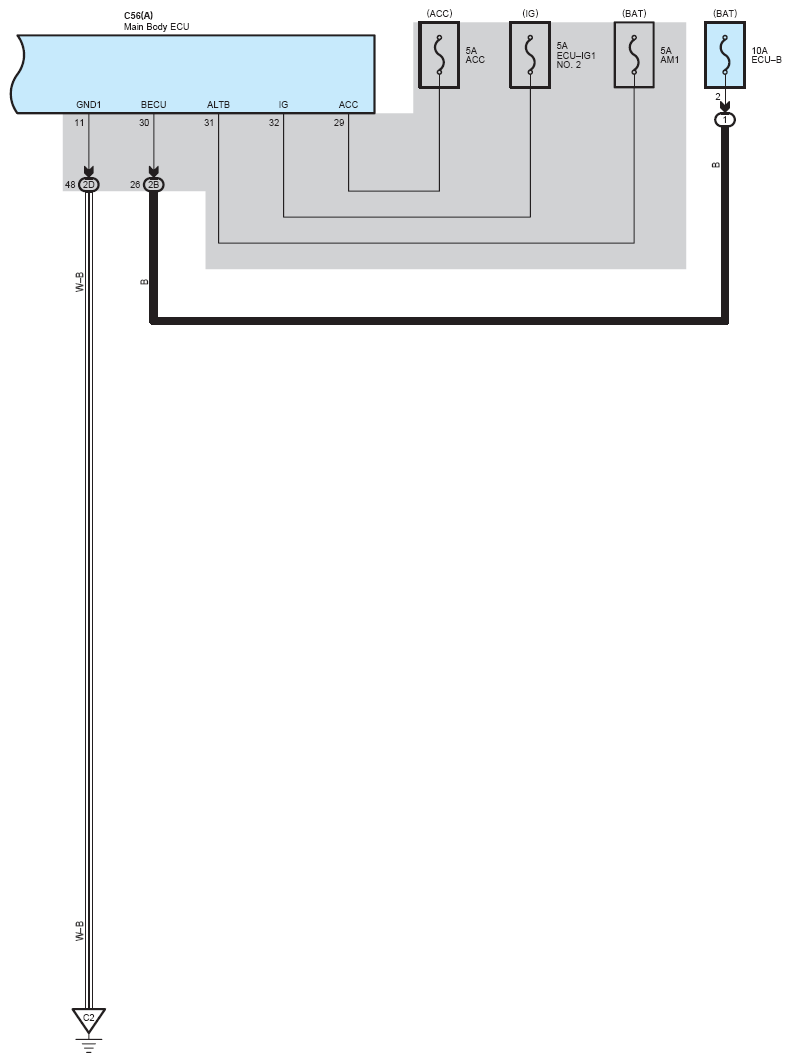

Fig 4: Interior Light System Wiring Diagram (4 Of 4)
G08760259Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
