Key Reminder (w/o Smart Key System) and Light Reminder: Notes

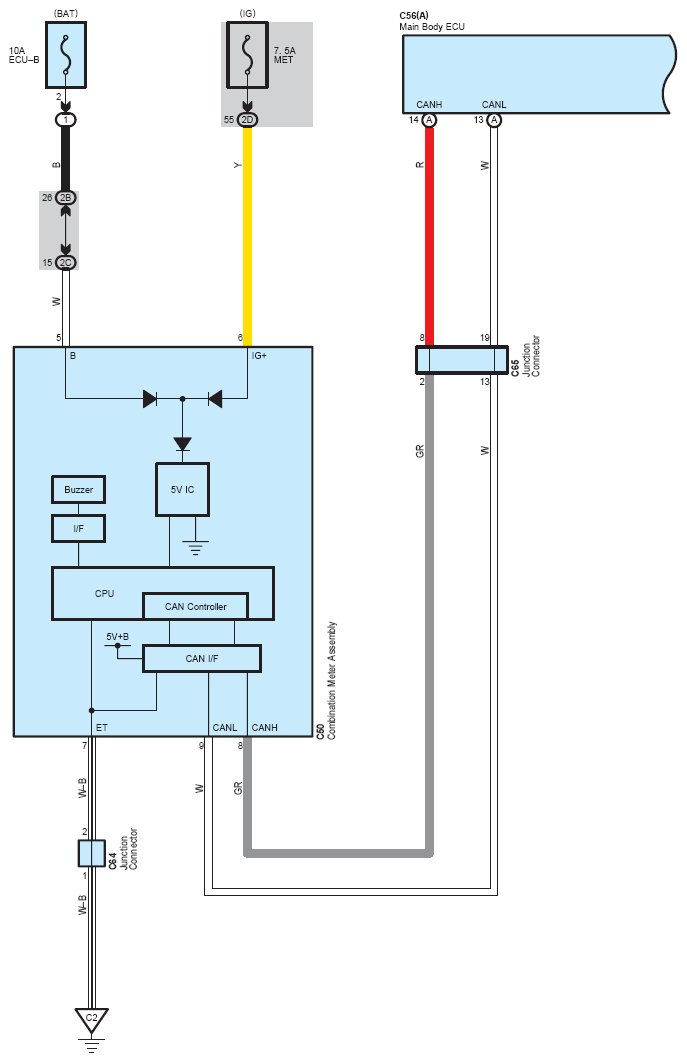

Fig 1: Key Reminder (w/o Smart Key System) And Light Reminder System Wiring Diagram (1 Of 3)
G08760253Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

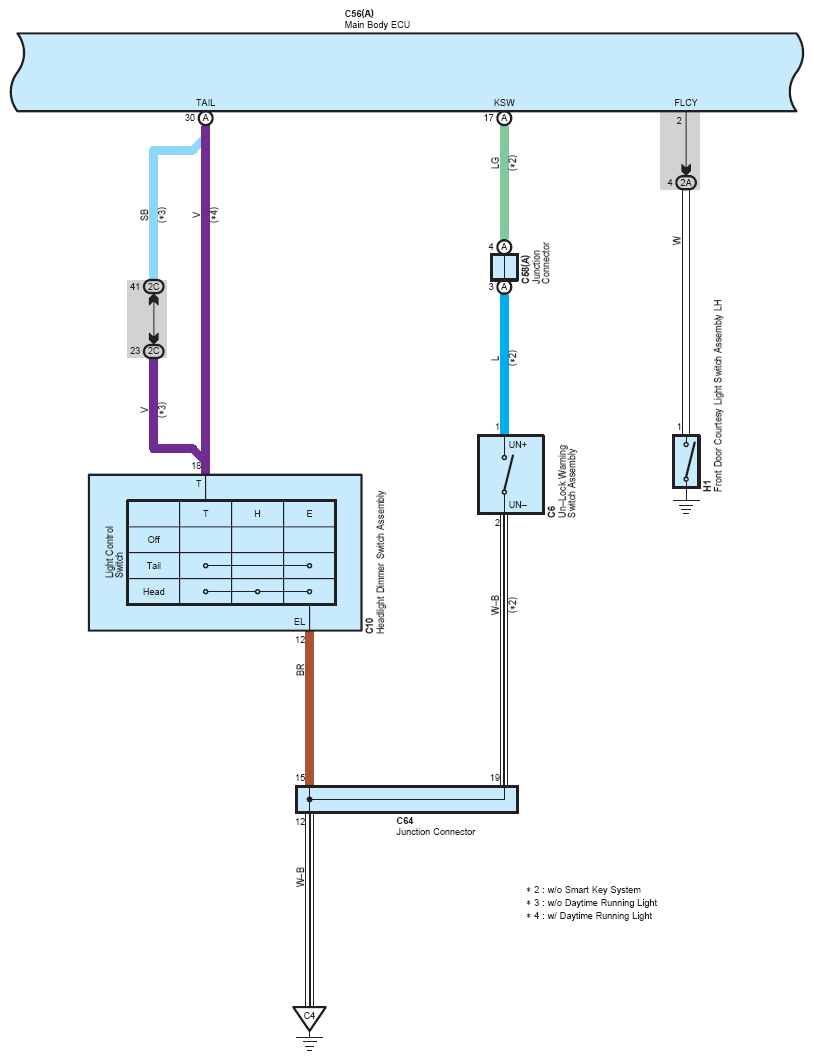

Fig 2: Key Reminder (w/o Smart Key System) And Light Reminder System Wiring Diagram (2 Of 3)
G08760254Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

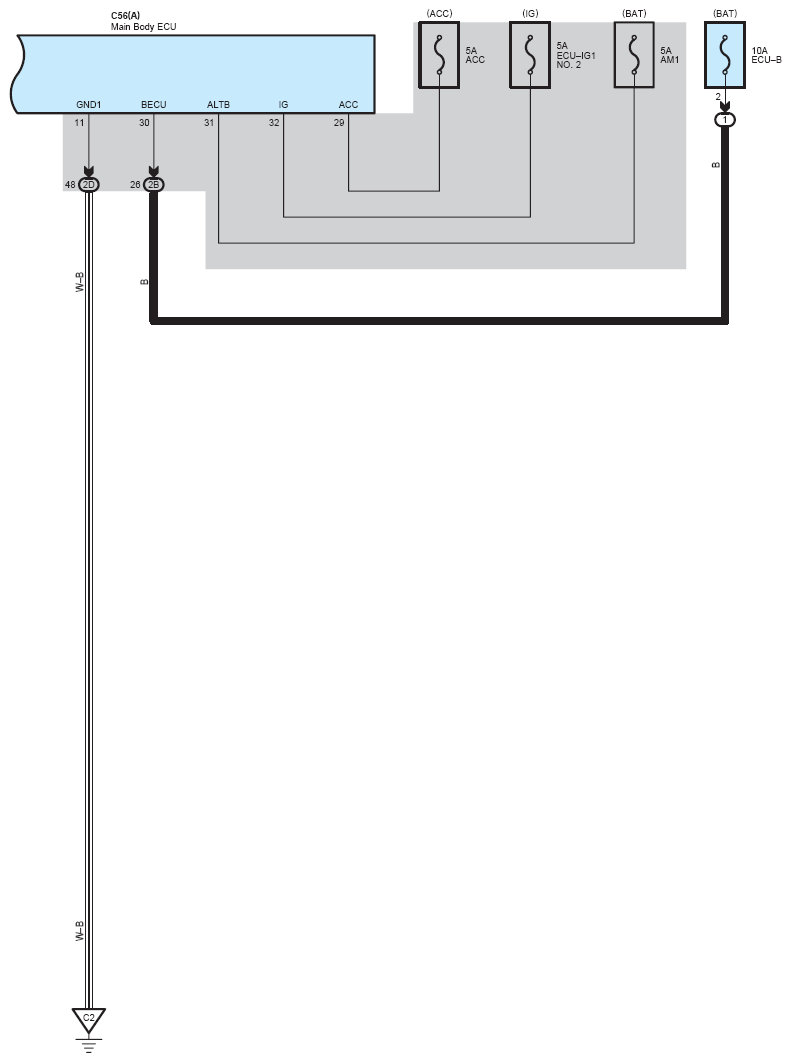

Fig 3: Key Reminder (w/o Smart Key System) And Light Reminder System Wiring Diagram (3 Of 3)
G08760255Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
