Wireless Door Lock Control (w/o Smart Key System): Notes

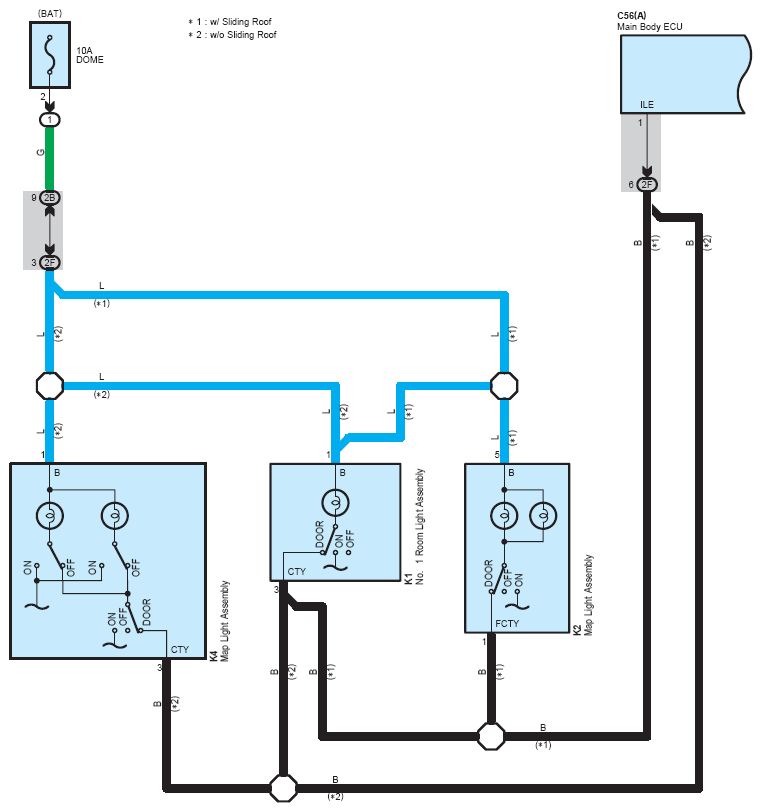

Fig 1: Wireless Door Lock Control System (w/o Smart Key System) Wiring Diagram (1 Of 4)
G08760270Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

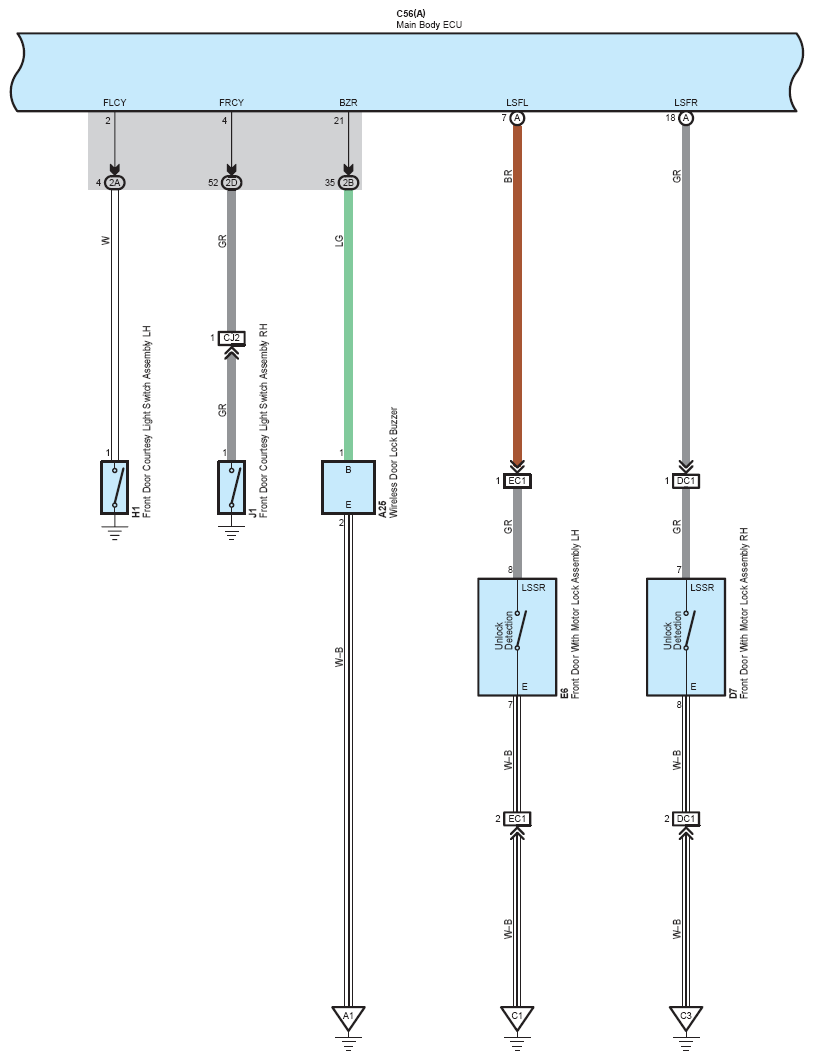

Fig 2: Wireless Door Lock Control System (w/o Smart Key System) Wiring Diagram (2 Of 4)
G08760271Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

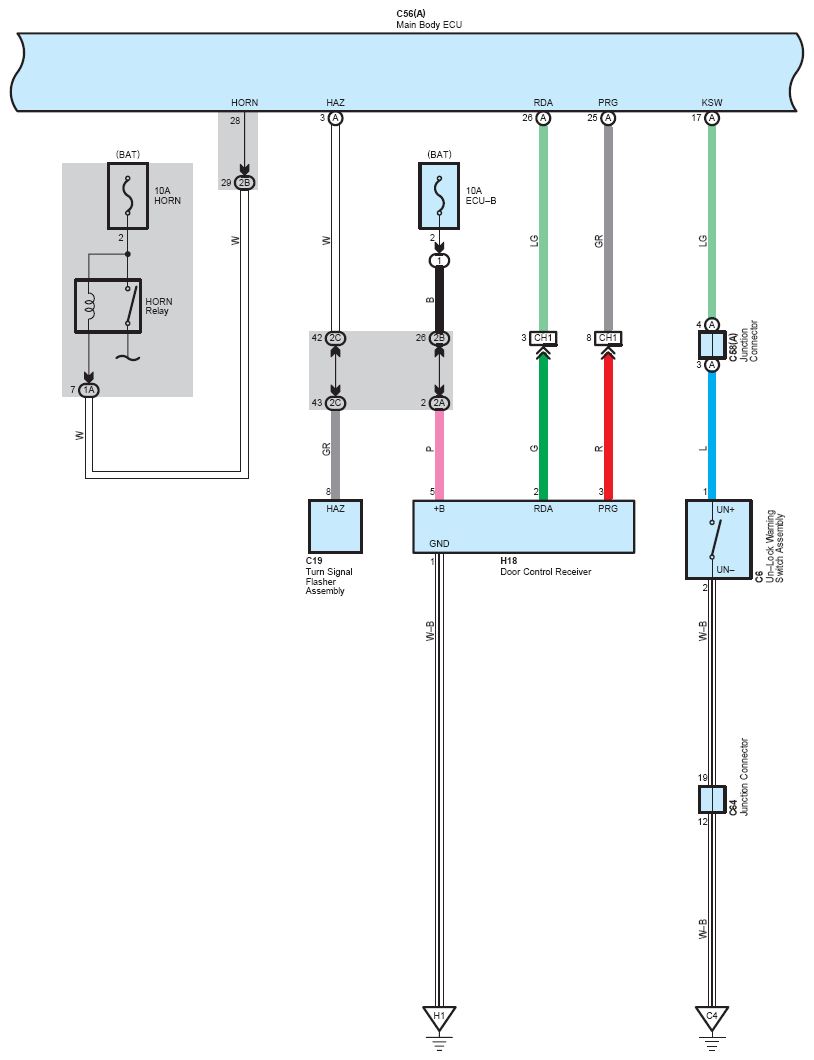

Fig 3: Wireless Door Lock Control System (w/o Smart Key System) Wiring Diagram (3 Of 4)
G08760272Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

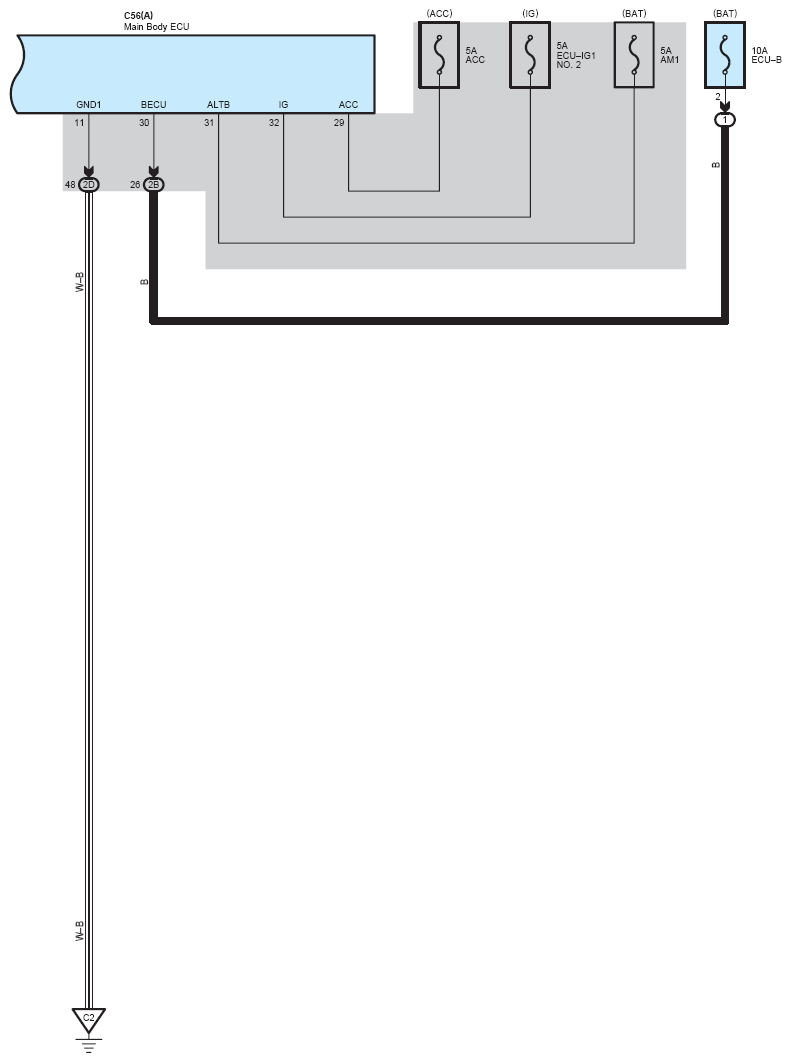

Fig 4: Wireless Door Lock Control System (w/o Smart Key System) Wiring Diagram (4 Of 4)
G08760273Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
