Throttle Body: Components: Illustration

Fig 1: Identifying Throttle Body Replacement Components (1 of 2)
GTY313928Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

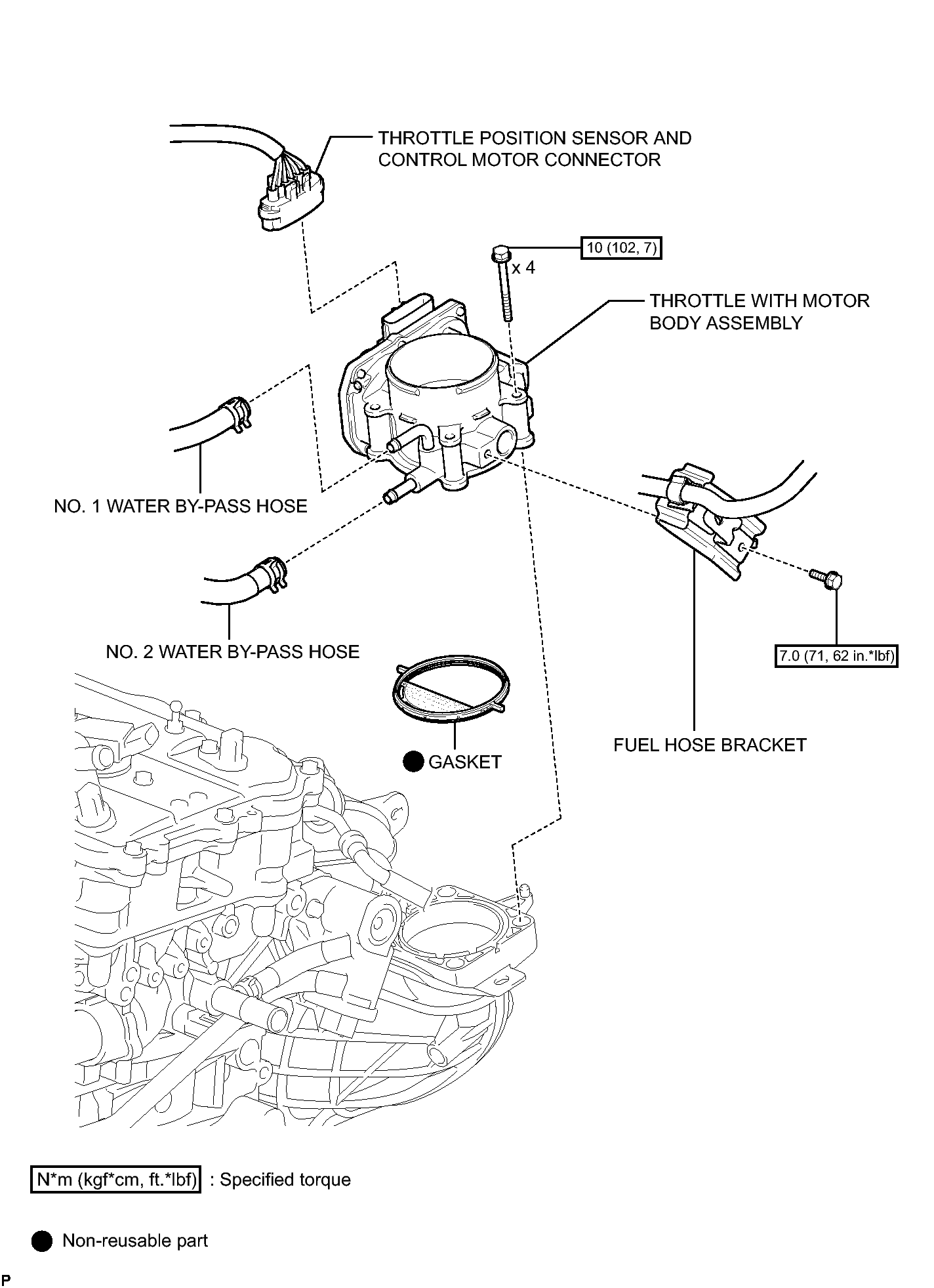

Fig 1: Identifying Throttle Body Replacement Components With Torque Specifications (2 of 2)
GTY311972Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
