System Diagram

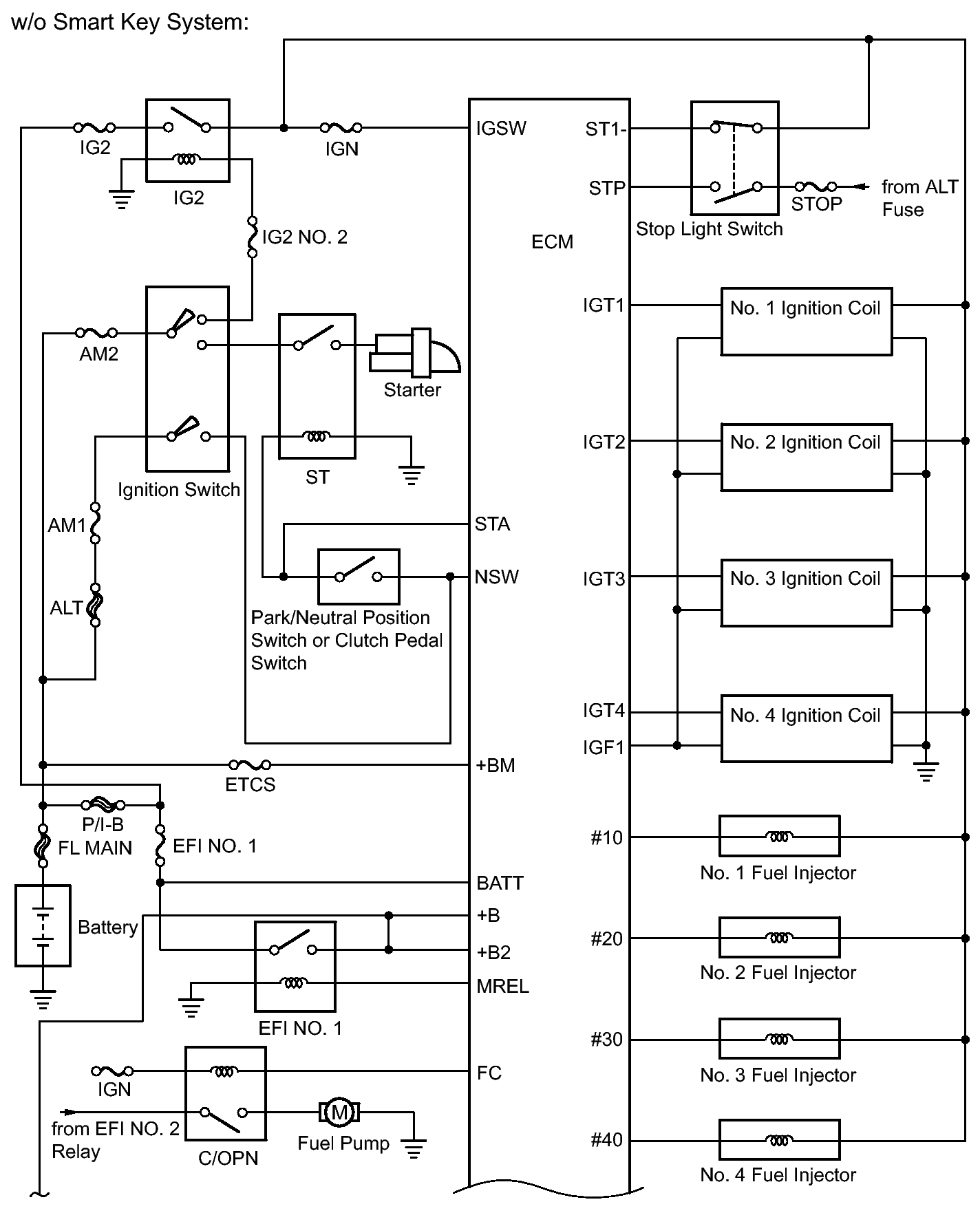

Fig 1: SFI System Circuit Diagram (1 Of 5)
GTY314093Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

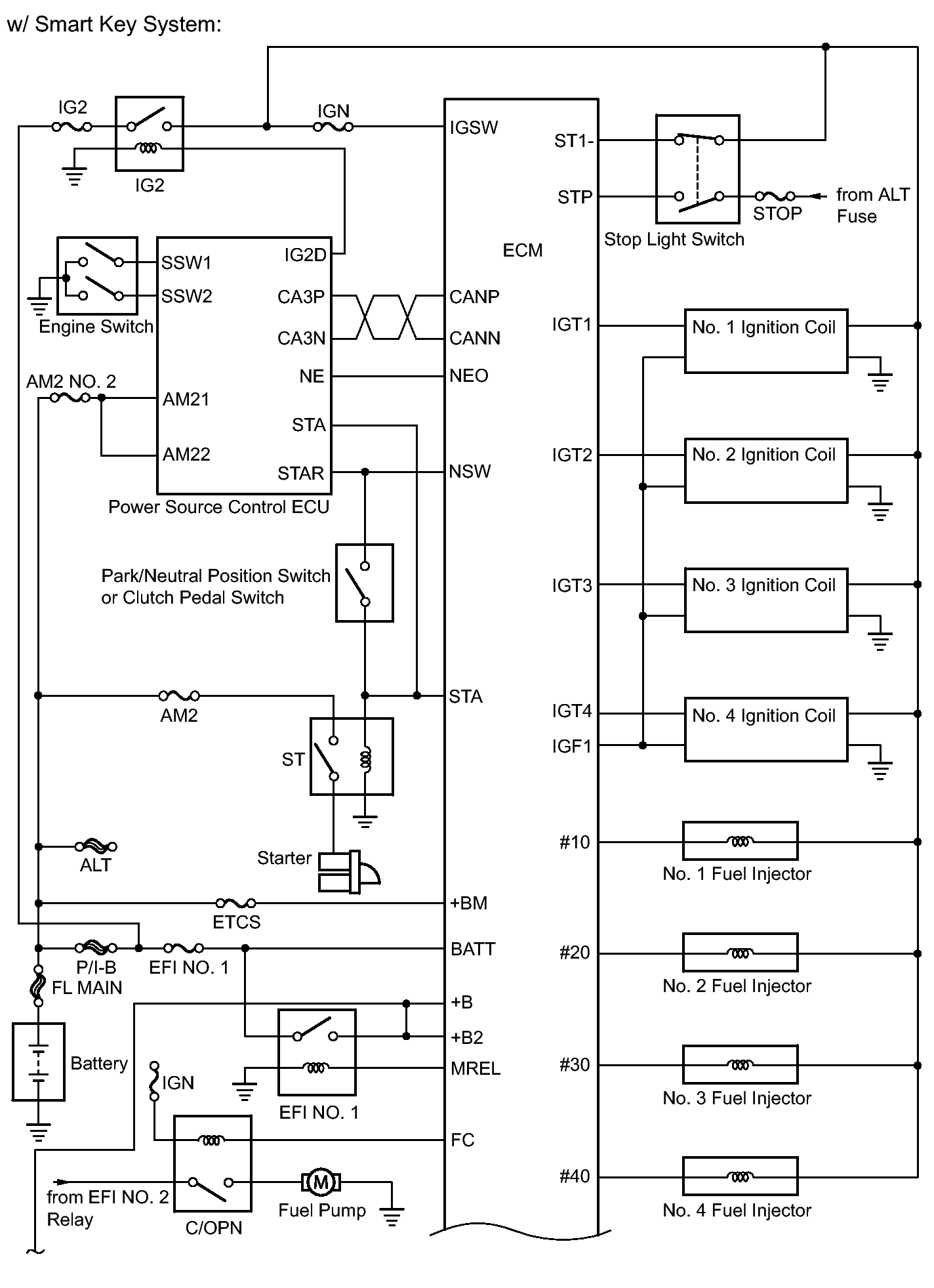

Fig 2: SFI System Circuit Diagram (2 Of 5)
GTY345291Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

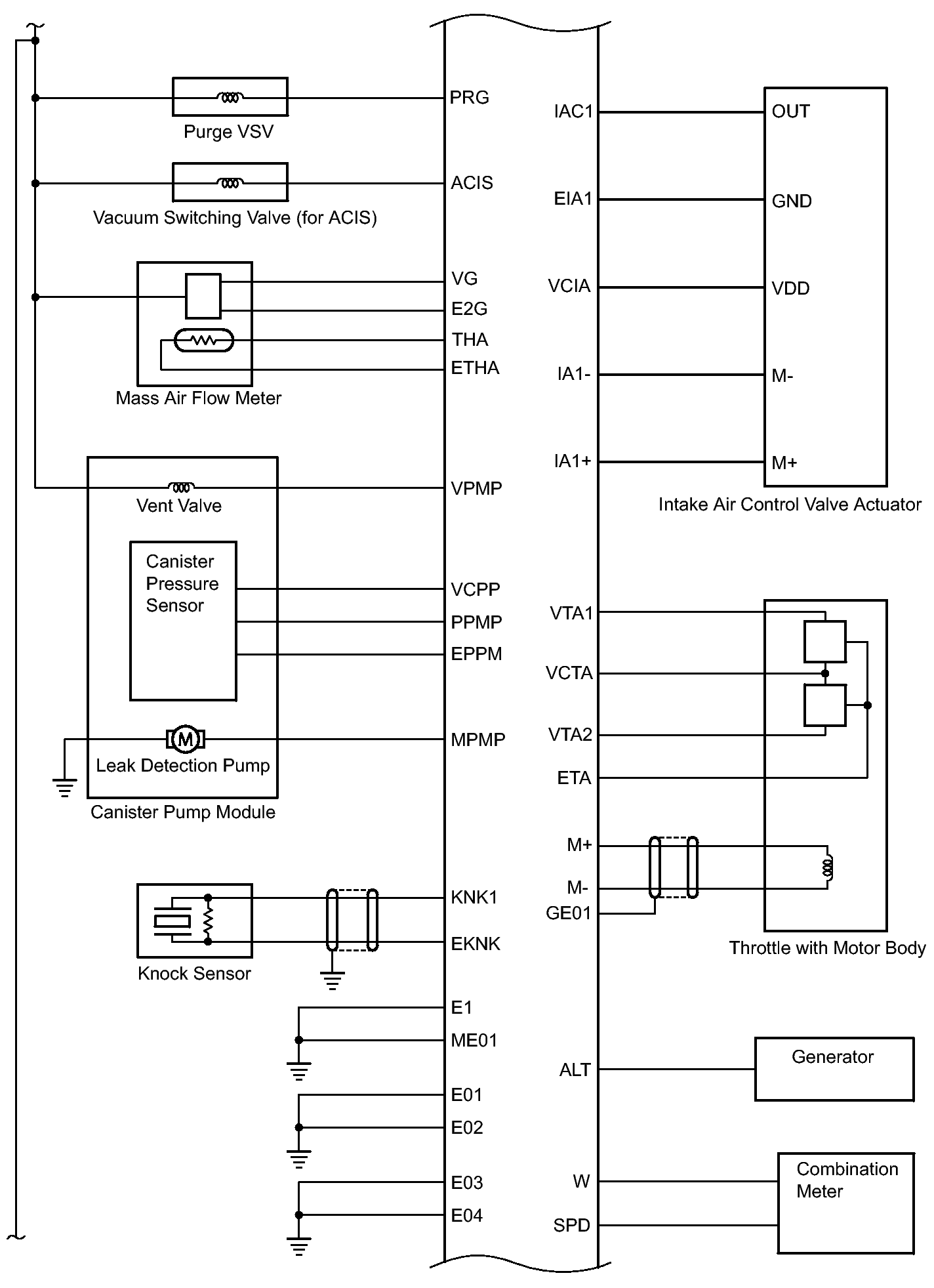

Fig 3: SFI System Circuit Diagram (3 Of 5)
GTY311747Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

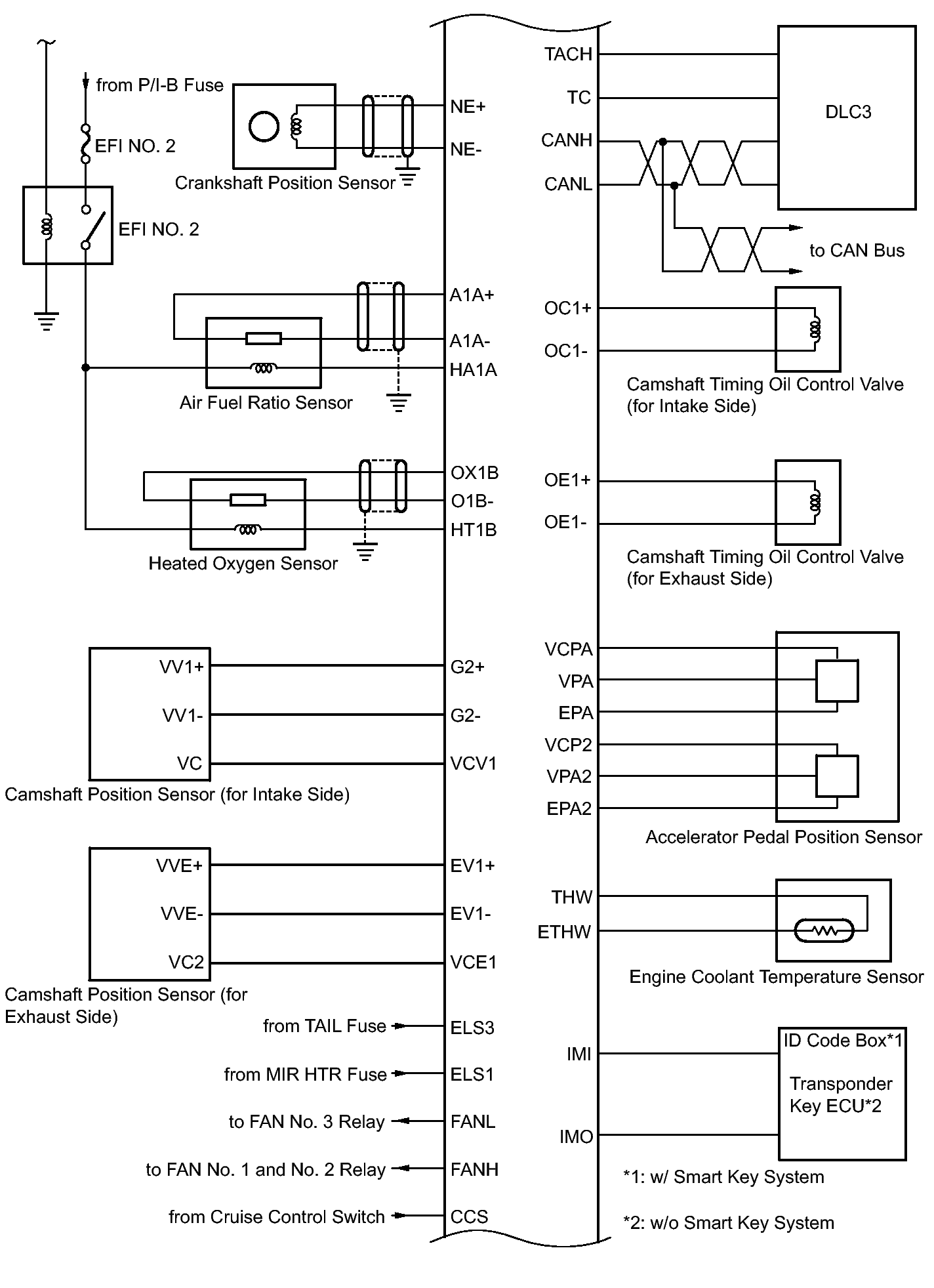

Fig 4: SFI System Circuit Diagram (4 Of 5)
GTY312311Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

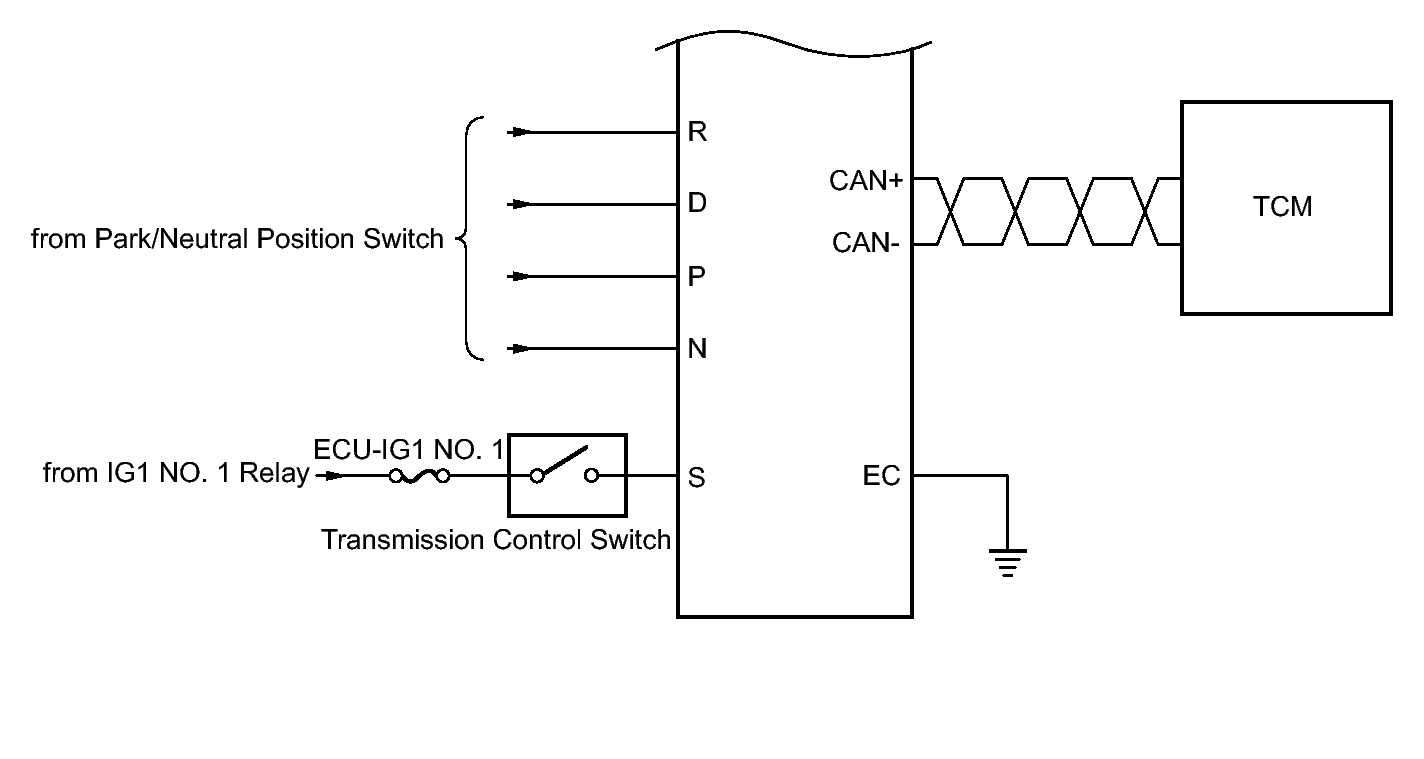

Fig 5: SFI System Circuit Diagram (5 Of 5)
GTY313314Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
