Front Speed Sensor: Removal: Removal

REMOVE FRONT WHEEL
REMOVE FRONT SIDE MUDGUARD . Refer to REMOVAL - Step 1
REMOVE FRONT FENDER LINER . Refer to REMOVAL - Step 2
REMOVE FRONT SPEED SENSOR

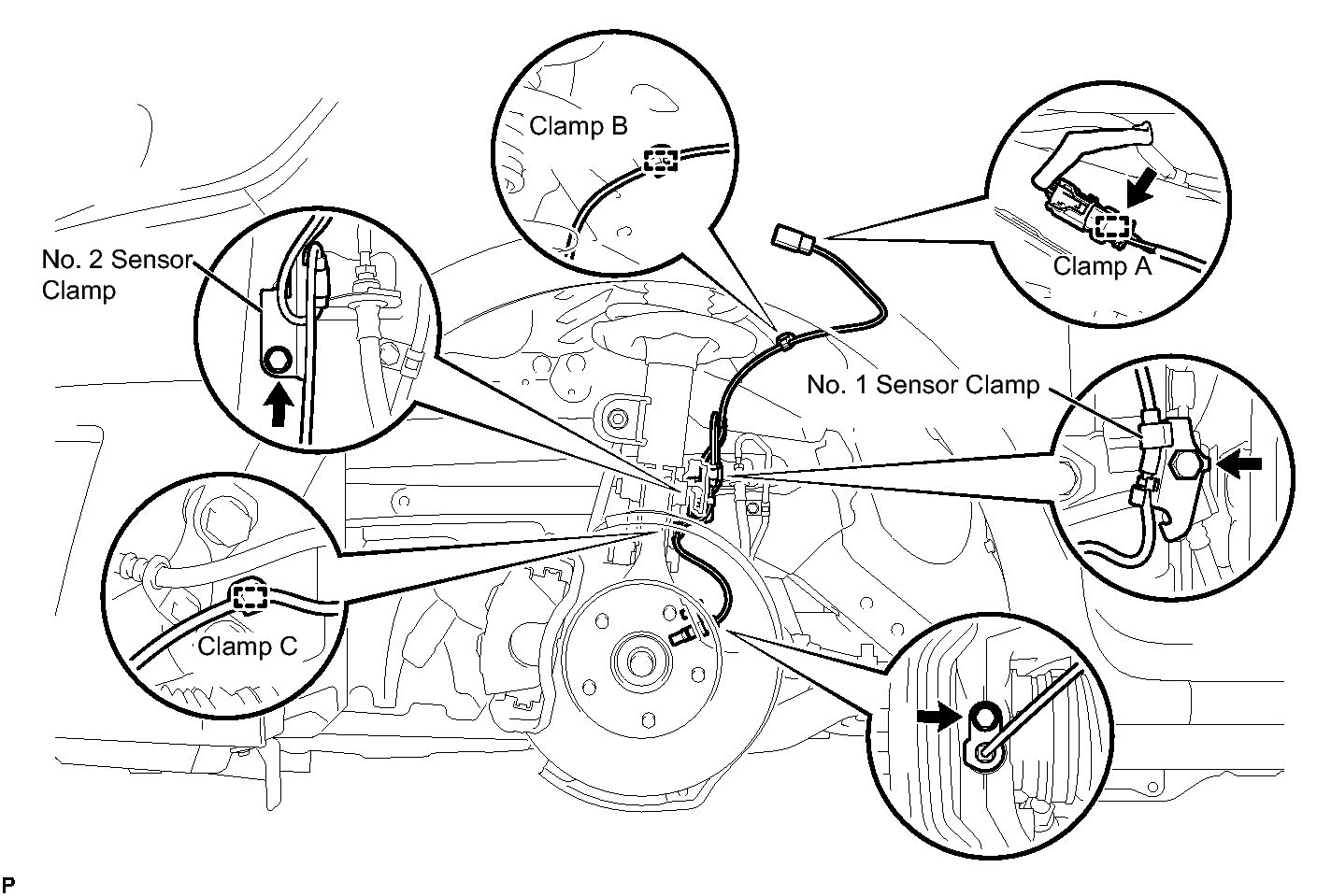

Fig 1: Identifying Front Speed Sensor Clamps And Bolts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Disengage clamp A from the body.
2. Disconnect the speed sensor connector.
3. Disengage clamp B from the body.
4. Remove the bolt and No. 2 sensor clamp from the body.
5. Remove the bolt and No. 1 sensor clamp from the shock absorber.
6. Disengage clamp C from the shock absorber.
7. Remove the bolt and speed sensor from the steering knuckle.
  NOTE:
  - Keep the speed sensor tip and installation portion free of foreign matter.
  - Remove the speed sensor without turning it from its original installation angle.
