Combination Meter: Notes

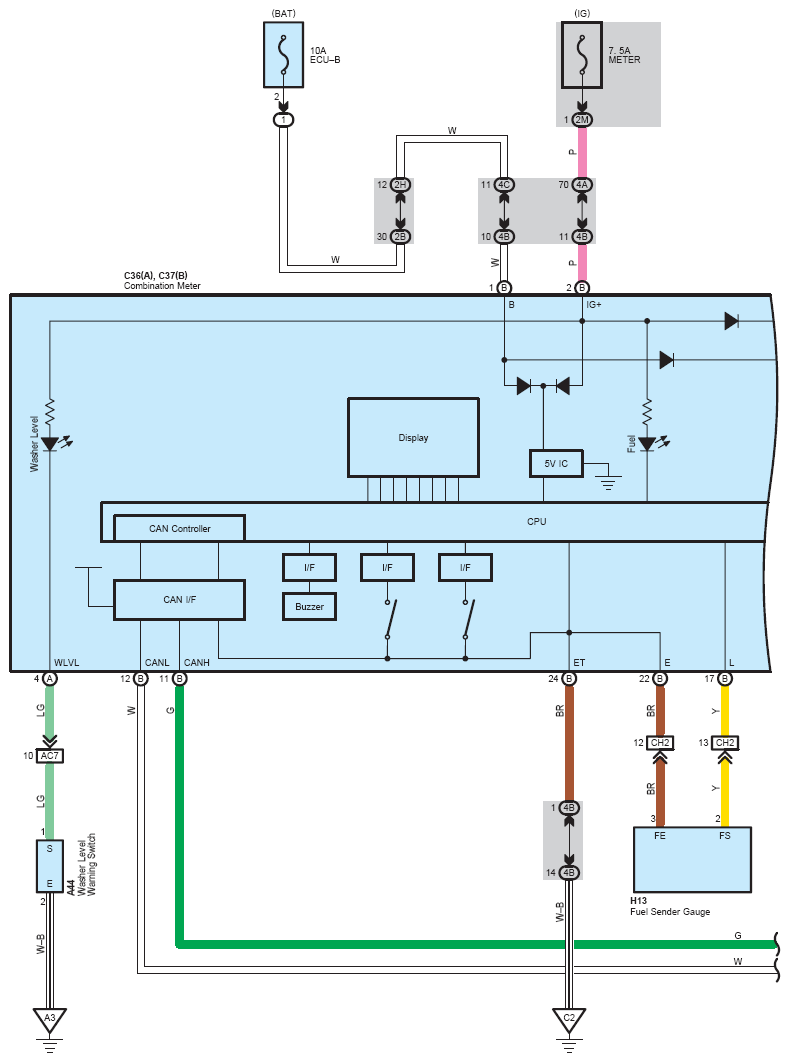

Fig 1: Combination Meter Wiring Diagram (1 Of 5)
G08760798Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

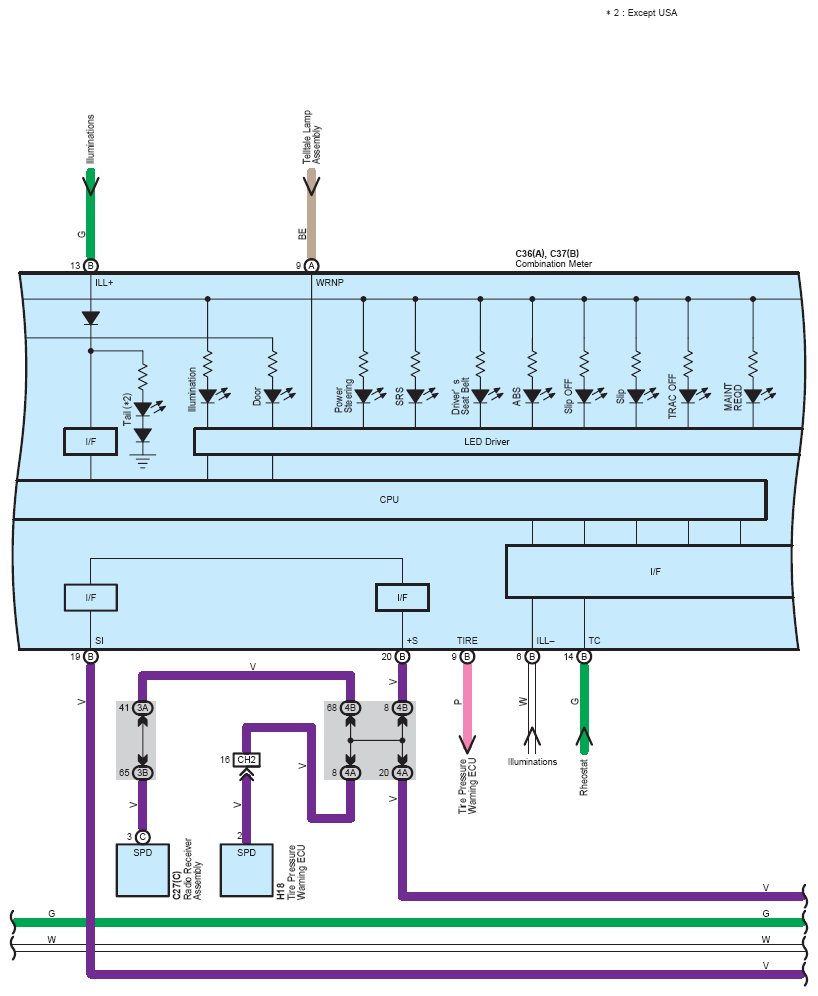

Fig 2: Combination Meter Wiring Diagram (2 Of 5)
G08760799Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

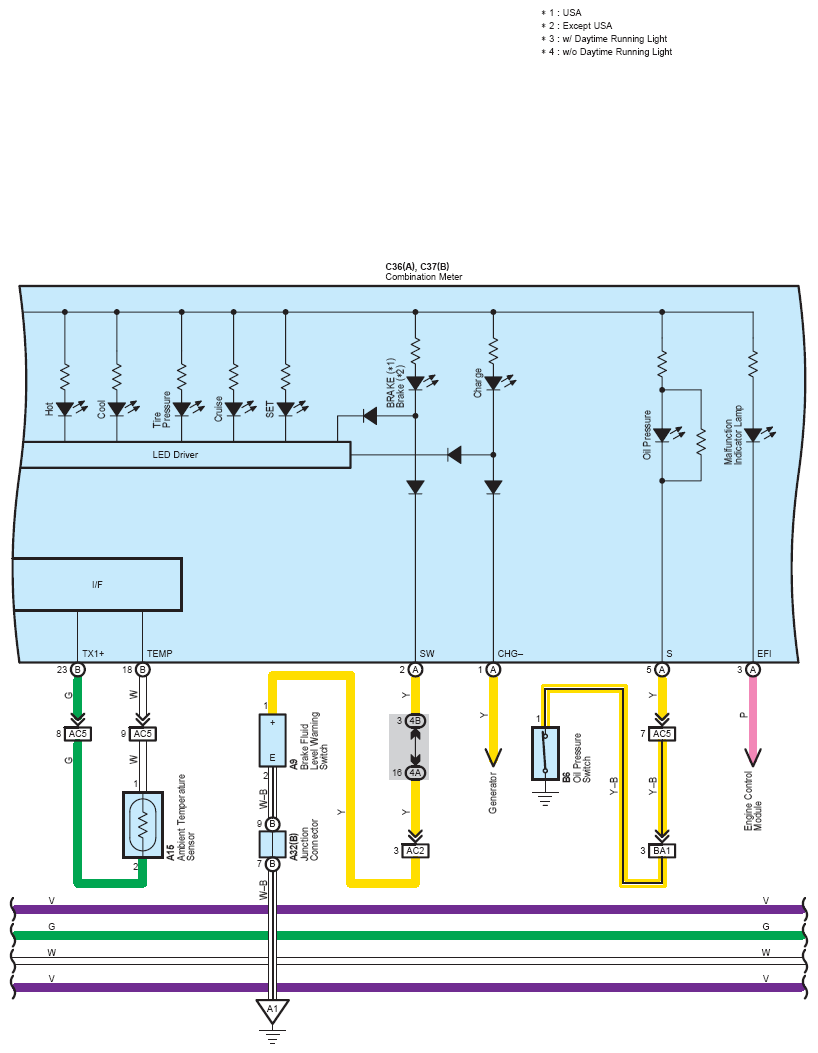

Fig 3: Combination Meter Wiring Diagram (3 Of 5)
G08760800Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

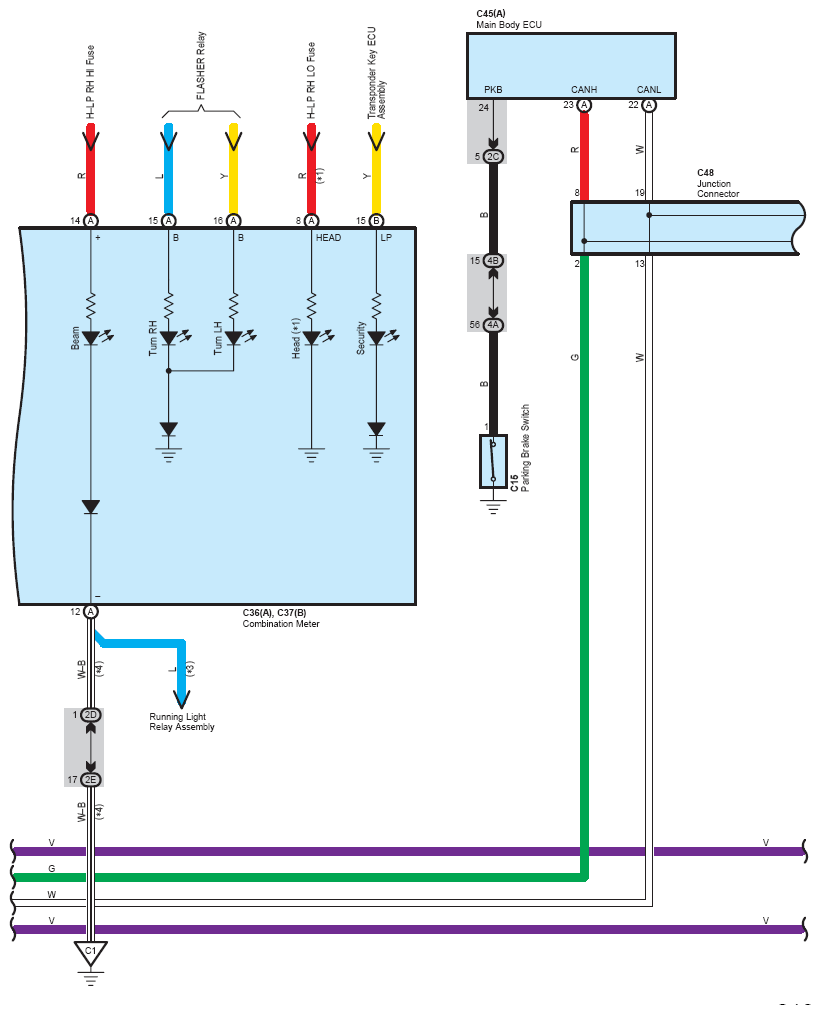

Fig 4: Combination Meter Wiring Diagram (4 Of 5)
G08760801Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

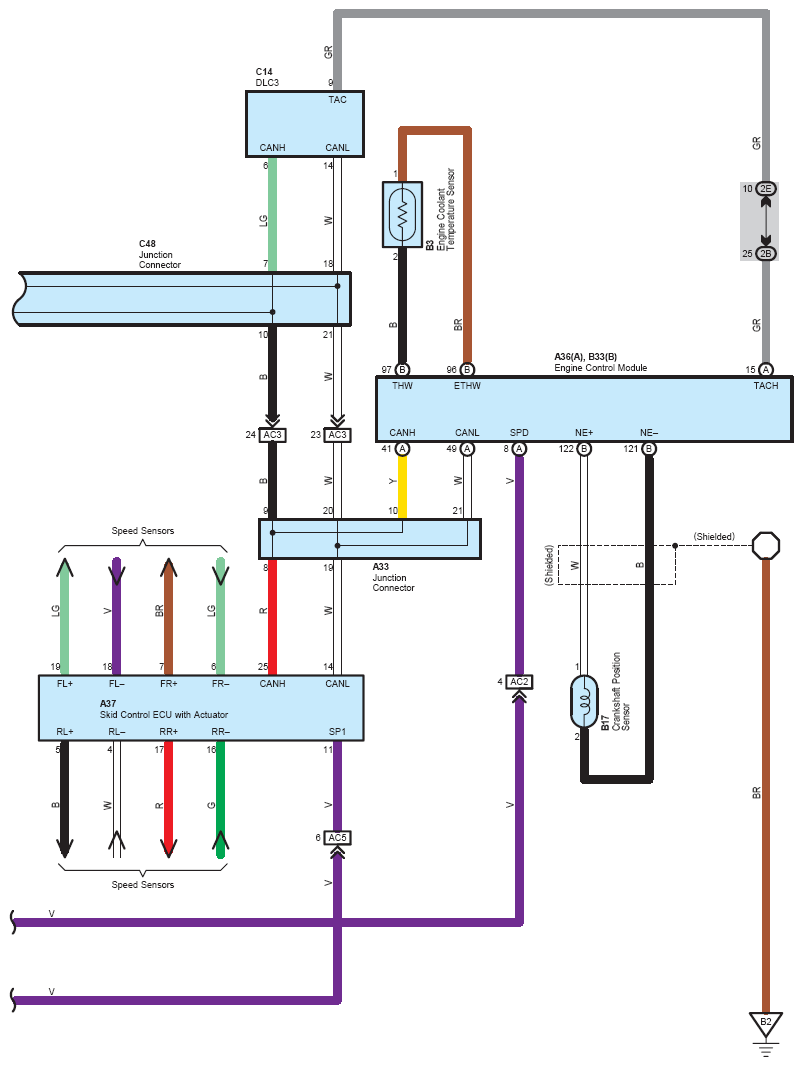

Fig 5: Combination Meter Wiring Diagram (5 Of 5)
G08760802Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
