Cooling Fan: Notes

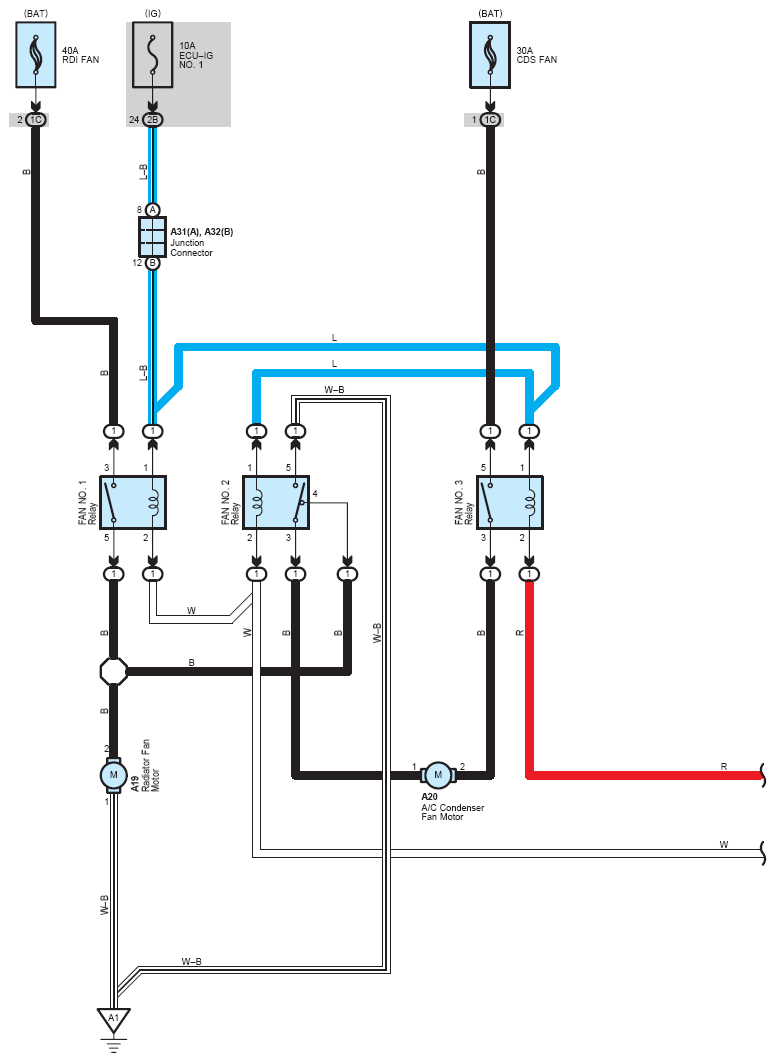

Fig 1: Cooling Fan Wiring Diagram (1 Of 2)
G08760803Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

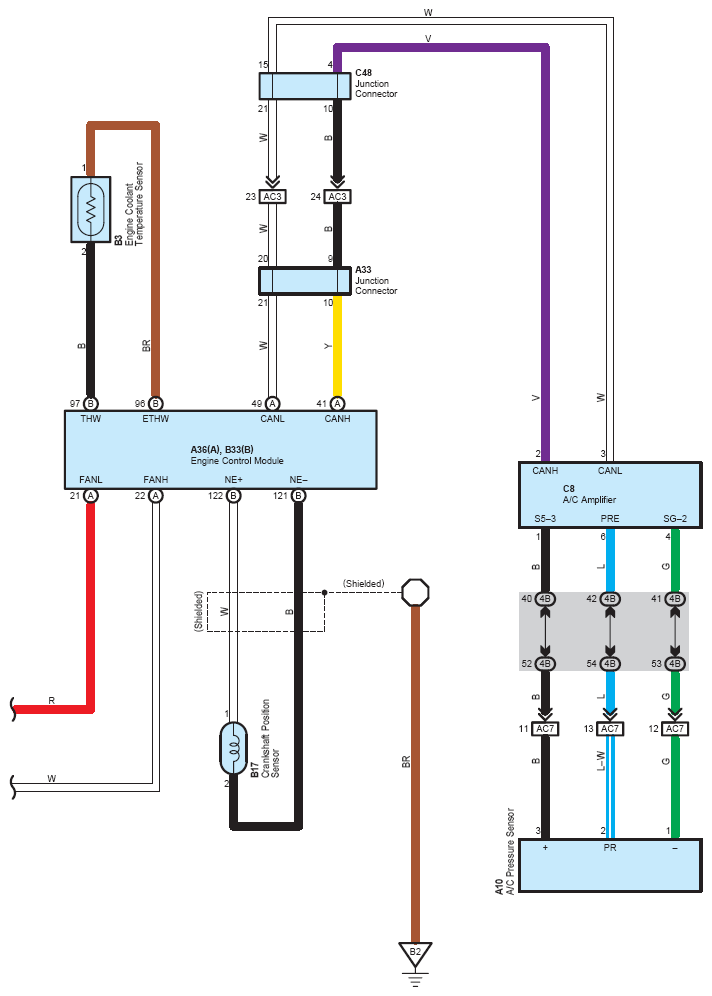

Fig 2: Cooling Fan Wiring Diagram (2 Of 2)
G08760804Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
