Fuel Tank: Components: Illustration

Fig 1: Identifying Fuel Tank Replacement Components With Torque Specifications (1 Of 3)
GTY312711Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

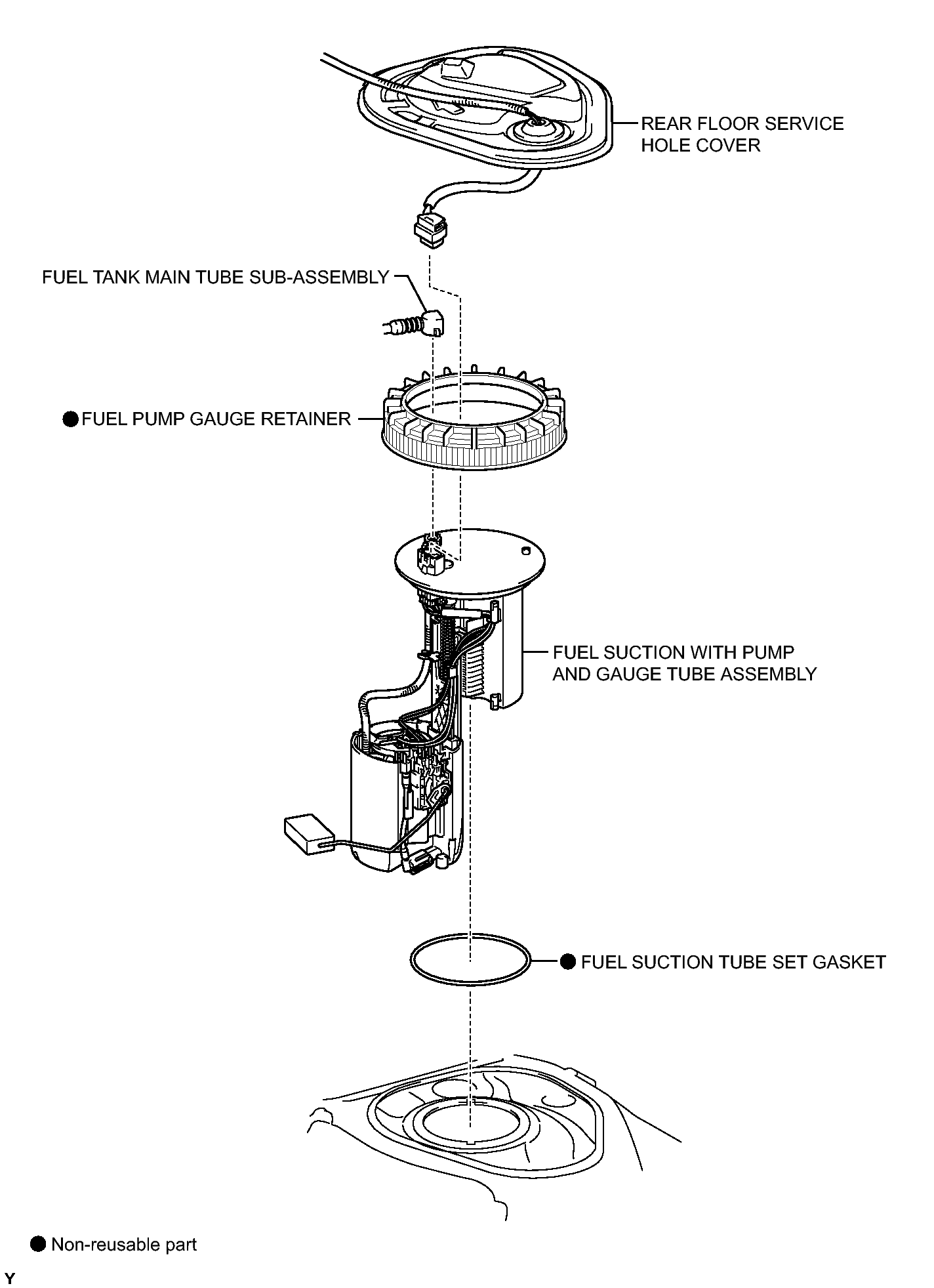

Fig 2: Identifying Fuel Tank Replacement Components (2 Of 3)
GTY160853Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

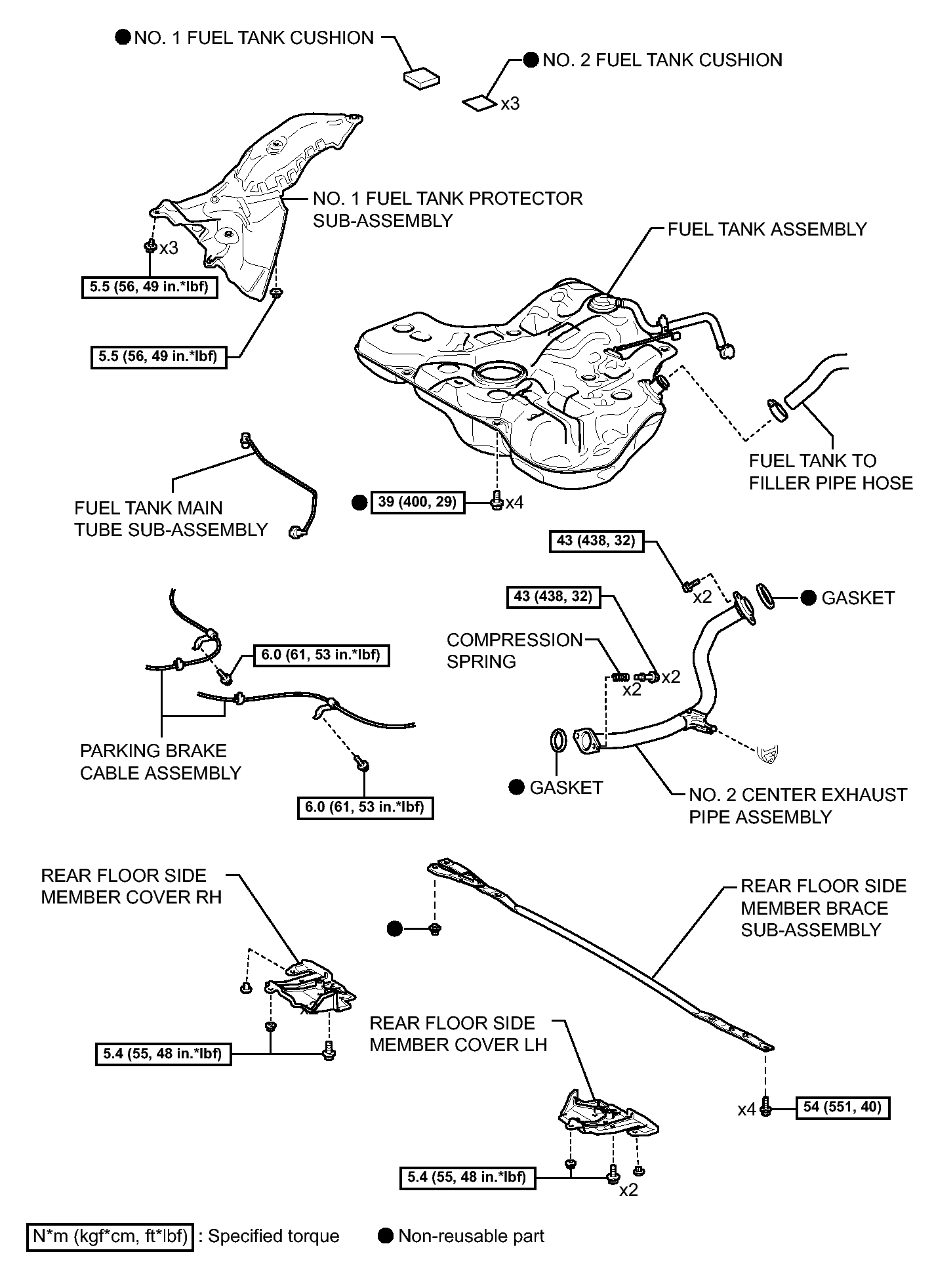

Fig 3: Identifying Fuel Tank Replacement Components With Torque Specifications (3 Of 3)
GTY312045Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
