Accelerator Pedal Rod: Removal: Removal

  1. REMOVE ACCELERATOR PEDAL ASSEMBLY

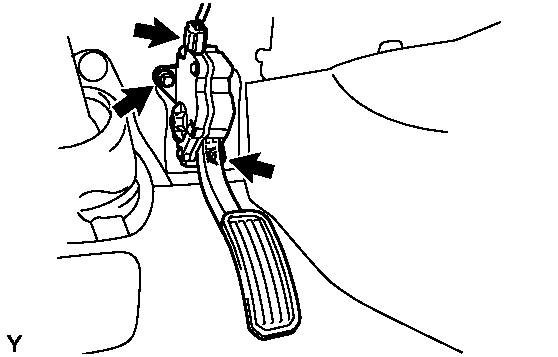

    Fig 1: Locating Accelerator Pedal Assembly Bolts
    GTY165638Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the accelerator pedal assembly connector.
    2. Remove the 2 bolts and accelerator pedal assembly.
