INSPECT ENGINE COOLANT TEMPERATURE SENSOR

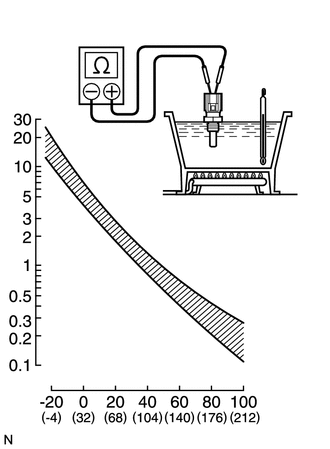

Fig 1: Measuring Resistance Between Engine Coolant Temperature Sensor Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Measure the resistance.

Using an ohmmeter, measure the resistance between the terminals.

Standard resistance

Tester Connection	Condition	Specified Condition
1 - 2	20 °C (68°F)	2.32 k to 2.59 k Ω
1 - 2	80 °C (176°F)	0.310 k to 0.326 k Ω

NOTE:

When checking the engine coolant temperature sensor in the water, keep the terminals dry. After the check, wipe the sensor dry.

If the resistance is not as specified, replace the engine coolant temperature sensor.
