Camshaft Position Sensor: Inspection: Inspection

INSPECT CAMSHAFT POSITION SENSOR

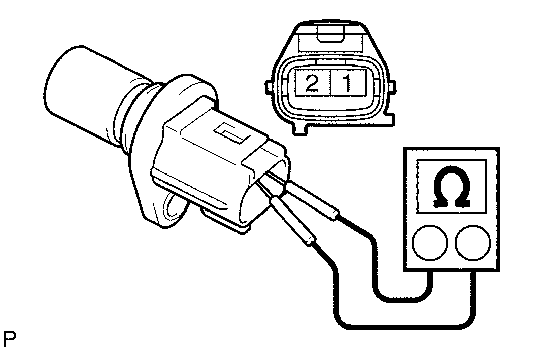

Fig 1: Inspecting Camshaft Position Sensor

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Measure the resistance.

Standard resistance

Tester Connection	Condition	Specified Condition
1 - 2	Cold	835 to 1, 400 Ω
1 - 2	Hot	1, 060 to 1, 645 Ω

HINT:

In the table above, the terms Cold and Hot refer to the temperature of the coils. Cold means approximately -10 to 50 °C (14 to 122 °F). Hot means approximately 50 to 100 °C (122 to 212 °F).

If the resistance is not as specified, replace the camshaft position sensor.
