Engine Control System (Service Information): ECM: Installation: Installation

1. Install the bracket onto the ECM with the 4 screws.

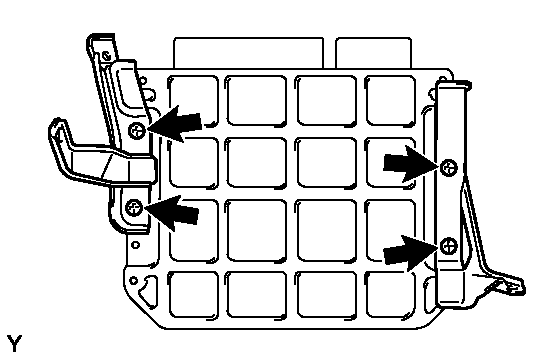

   Fig 1: Locating ECM Bracket Screws

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the ECM with the 2 bolts.

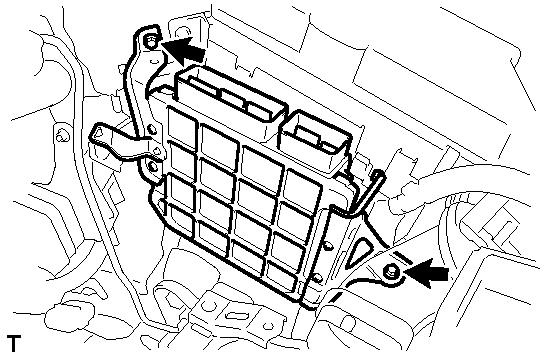

   Fig 2: Locating ECM Bolts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)

3. Connect the 2 ECM connectors.
   Fig 3: Connecting ECM Connectors

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Install the 2 lock knobs and harness clamp.
5. Install the wire harness clamp.

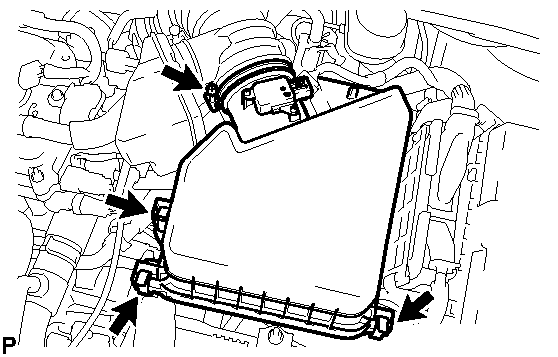

Fig 4: Locating Air Cleaner Case Sub-Assembly Bolts

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the air cleaner case sub-assembly with the 3 bolts

   Torque: 7.0 N*m (71 kgf*cm, 62 in.*lbf)

2. Install the wire harness.
3. Install the air cleaner filter element sub-assembly.
4. Install and lock the air cleaner cap sub-assembly and air cleaner hose and then tighten the No. 1 air cleaner hose clamp.

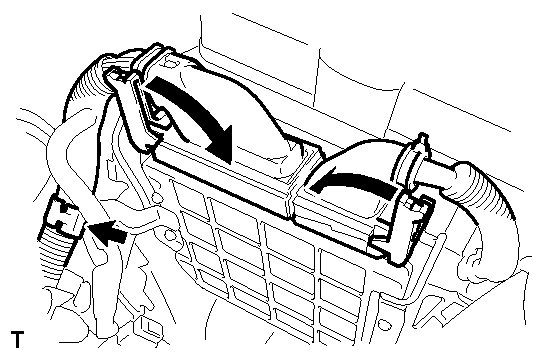

   Fig 5: Locating Air Cleaner Assembly Clamps

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Connect the mass air flow meter connector.

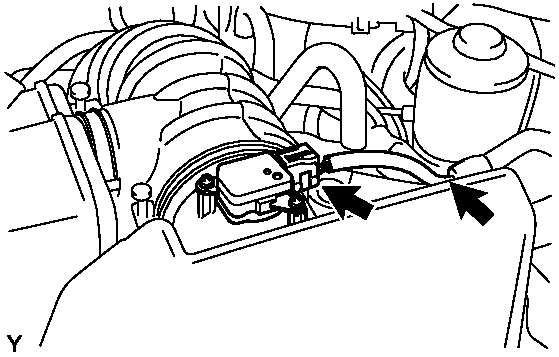

   Fig 6: Locating Mass Air Flow Meter Connector And Wire Harness

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. Install the wire harness.

Refer to PRECAUTION
