Transmission Control Cable Assembly: Installation: Installation

  1. INSTALL TRANSMISSION CONTROL CABLE ASSEMBLY
    1. Install the transmission control cable assembly onto the control shaft lever with the nut.

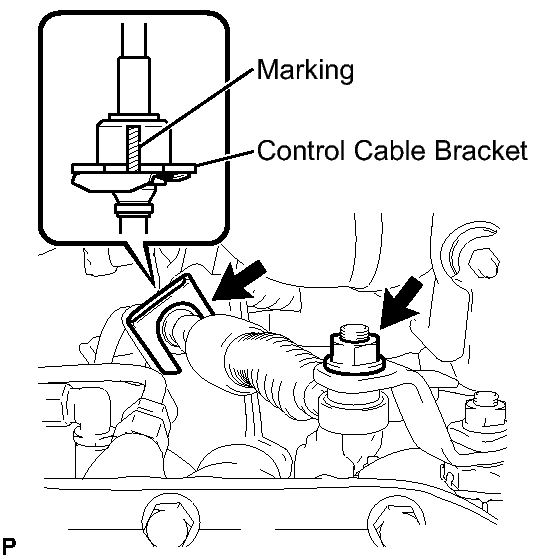

      Fig 1: Locating Transmission Control Cable Assembly Nut
      GTY162605Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 12 N*m (122 kgf*cm, 9 ft.*lbf)

    2. Fix the transmission control cable assembly onto the control cable bracket with a new clip.
      NOTE:

      Make sure that the marking on the cable is aligned with the slit in the transmission control cable bracket before installing the cable.

    3. Connect the transmission control cable assembly to the transmission control cable support.

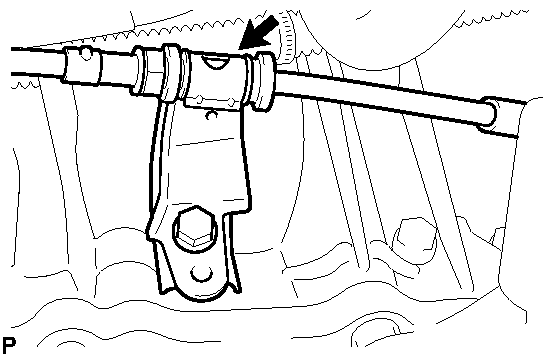

      Fig 2: Locating Control Cable
      GTY163863Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Run the transmission control cable between the transmission control cable support and vehicle body.
    5. Install the transmission control cable assembly with the 3 nuts.

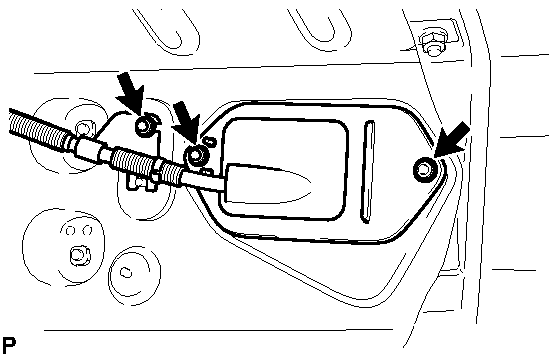

      Fig 3: Identifying Nuts And Control Cable
      GTY158847Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf)

    6. Turn the nut on the transmission control cable assembly and push in the lock.

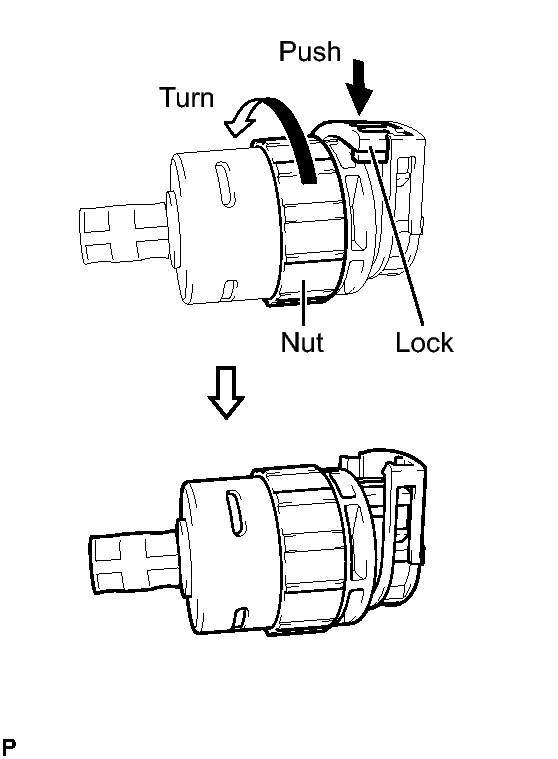

      Fig 4: Identifying Control Cable Nut
      GTY165473Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    7. Install the transmission control cable assembly onto the shift lever retainer.

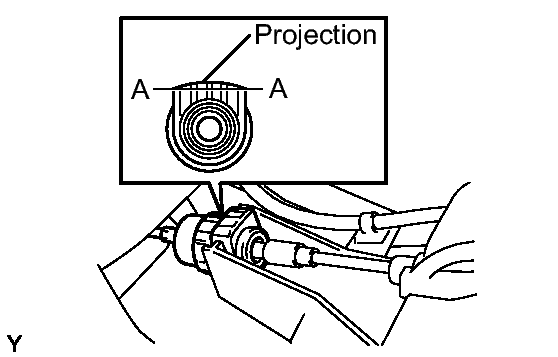

      Fig 5: Identifying Shift Lever Retainer
      GTY163243Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • Install the cable with the protruding portion of the cable outer facing upward.
      • After installing, check that the lock of the cable outer is protruding beyond portion A-A, as shown in the illustration.
    8. Connect the transmission control cable assembly to the transmission floor shift assembly.

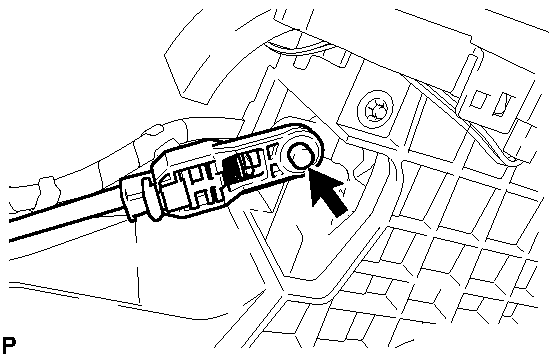

      Fig 6: Identifying Control Cable
      GTY162341Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Connect the control cable so that the adjusting mechanism lock of the control cable is installed on the left side of the vehicle.

  2. INSTALL FRONT NO. 1 FLOOR HEAT INSULATOR
    1. Install the front No. 1 floor heat insulator with the 2 bolts and the nut.

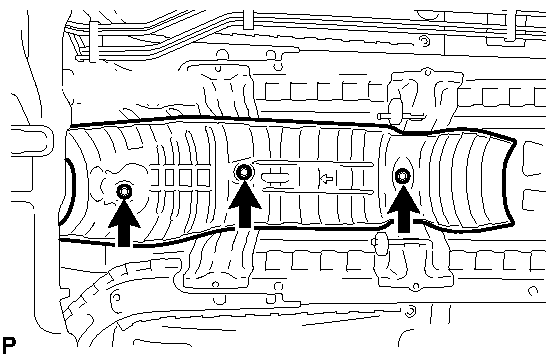

      Fig 7: Locating Floor Heat Insulator Bolts
      GTY158846Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 5.5 N*m (56 kgf*cm, 49 in.*lbf)

  3. INSTALL FRONT EXHAUST PIPE ASSEMBLY  . Refer to INSTALLATION - Step 38
  4. INSTALL AIR CLEANER BRACKET  . Refer to INSTALLATION - Step 74
  5. INSTALL AIR CLEANER ASSEMBLY  . Refer to INSTALLATION - Step 75
  6. REMOVE BATTERY TRAY
  7. INSTALL BATTERY  . Refer to INSTALLATION - Step 86
  8. INSPECT SHIFT LEVER POSITION  See step  1
  9. ADJUST SHIFT LEVER POSITION  See step  4
  10. INSTALL FRONT CONSOLE BOX  . Refer to INSTALLATION - Step 16
  11. INSTALL REAR CONSOLE BOX SUB-ASSEMBLY  . Refer to INSTALLATION - Step 1
  12. INSTALL CONSOLE BOX CARPET  . Refer to INSTALLATION - Step 2
  13. INSTALL REAR CONSOLE BOX COVER  . Refer to INSTALLATION - Step 3
  14. INSTALL UPPER CONSOLE PANEL  . Refer to INSTALLATION - Step 4
  15. INSPECT FOR EXHAUST GAS LEAK
