Air Conditioning: Notes

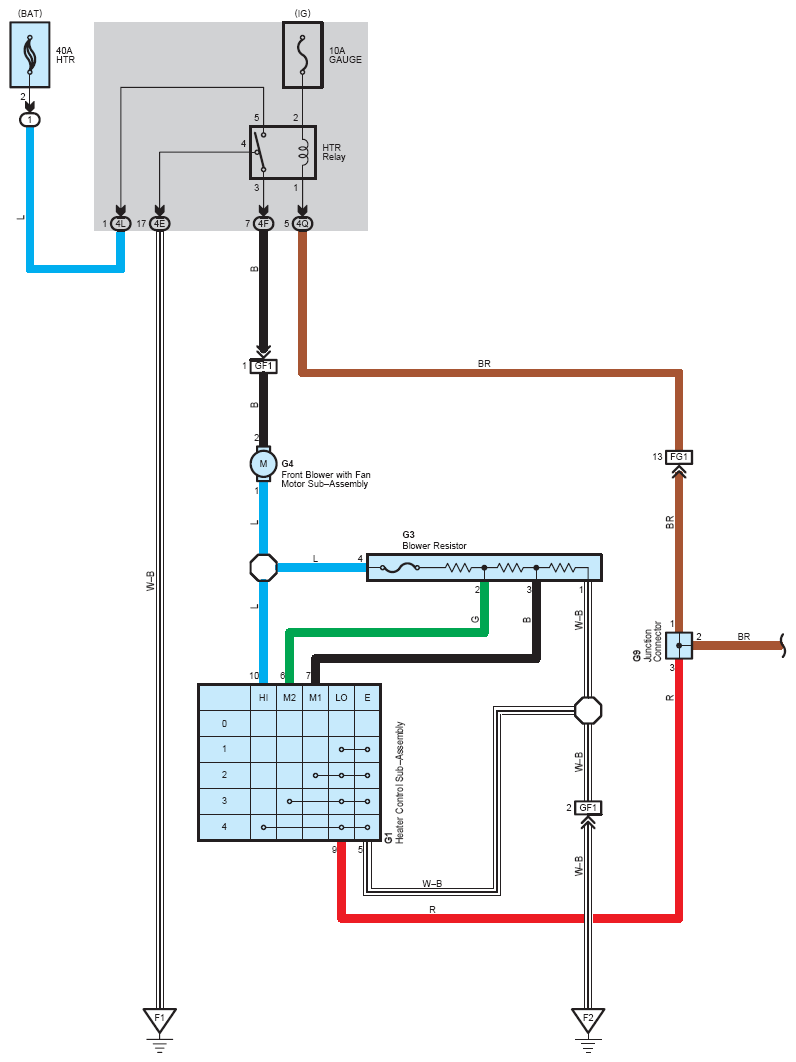

Fig 1: Air Conditioning System Wiring Diagram (1 Of 4)
G08761249Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

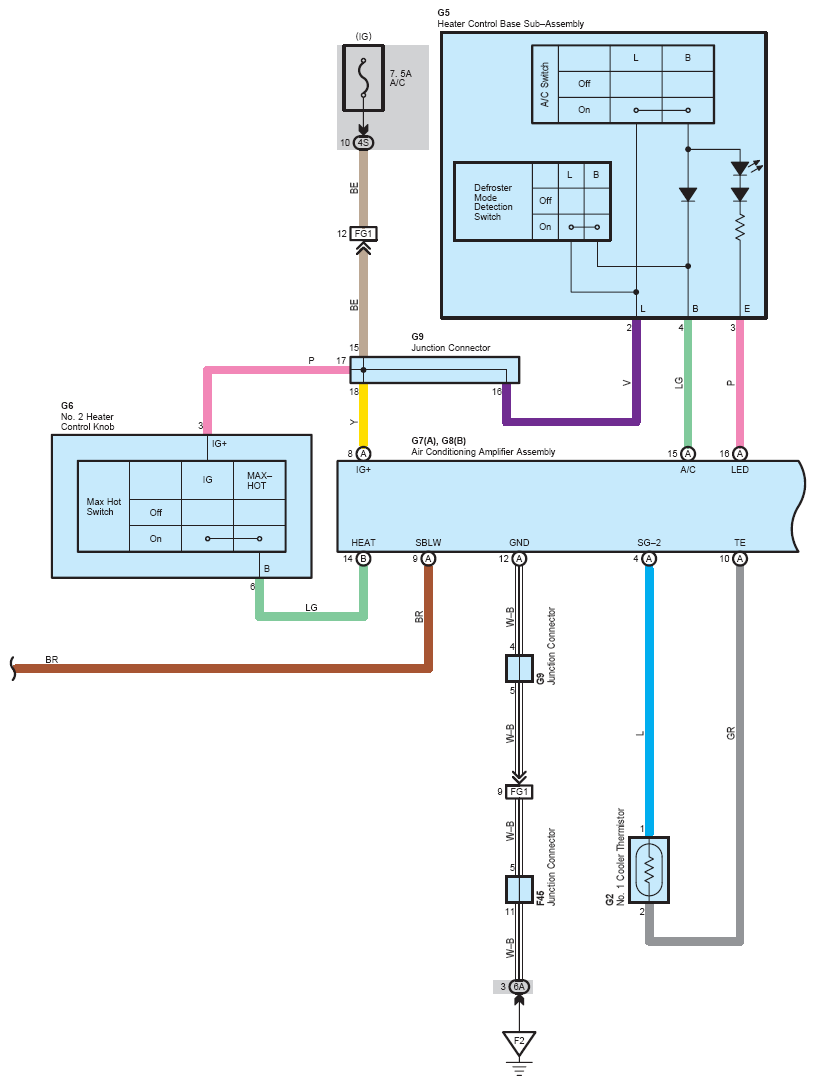

Fig 2: Air Conditioning System Wiring Diagram (2 Of 4)
G08761250Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

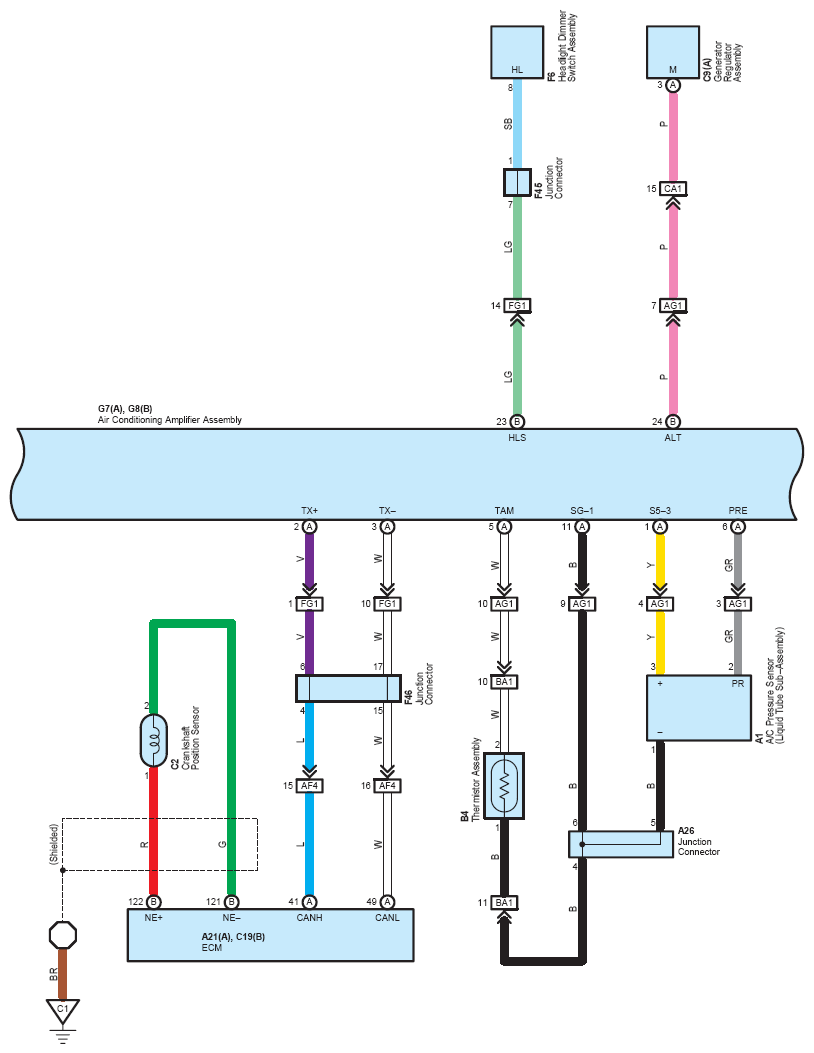

Fig 3: Air Conditioning System Wiring Diagram (3 Of 4)
G08761251Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

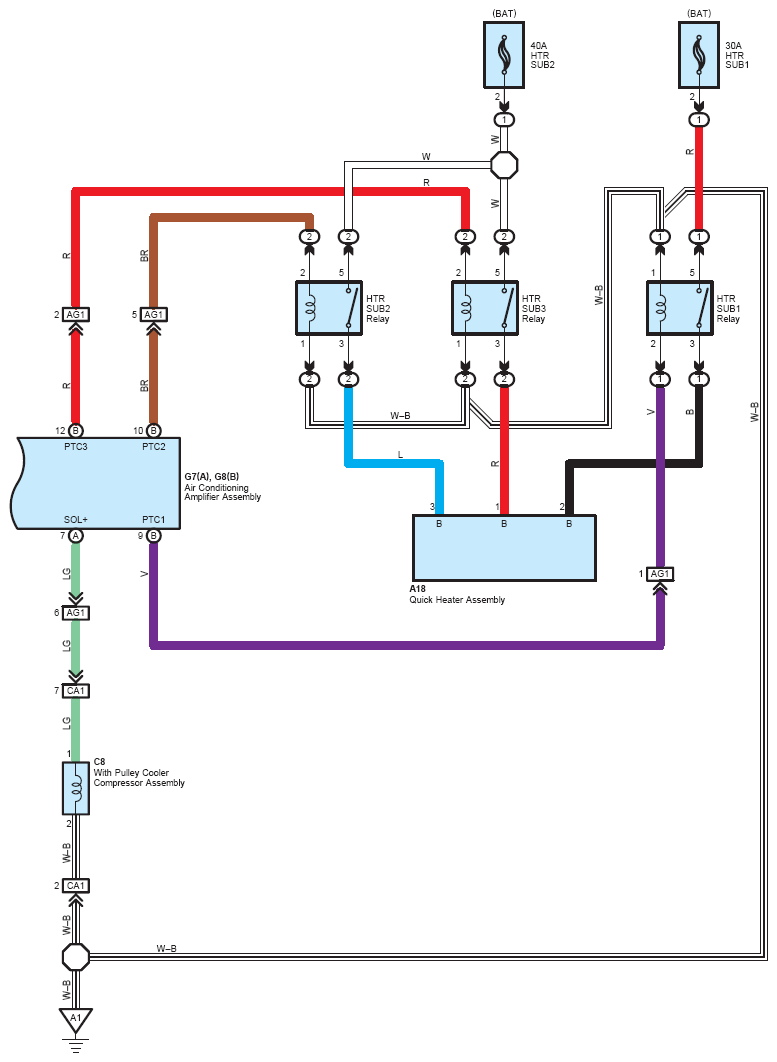

Fig 4: Air Conditioning System Wiring Diagram (4 Of 4)
G08761252Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
