Back Door Opener: Notes

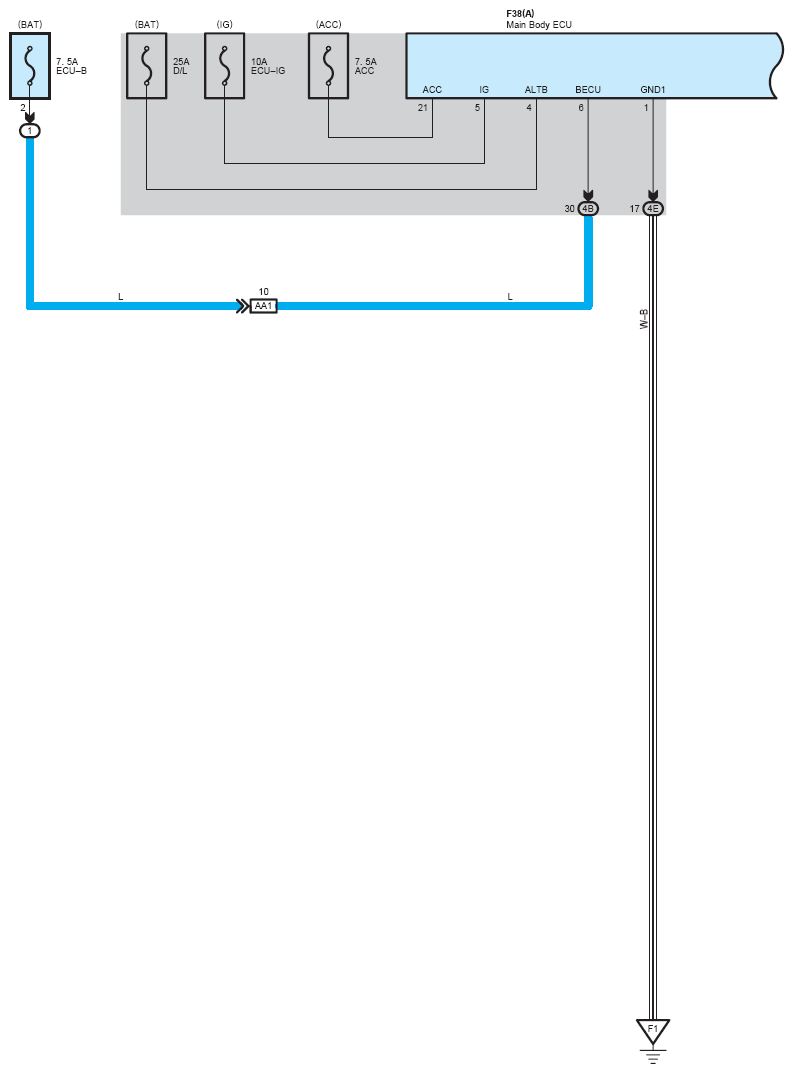

Fig 1: Back Door Opener System Wiring Diagram (1 Of 3)
G08761221Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

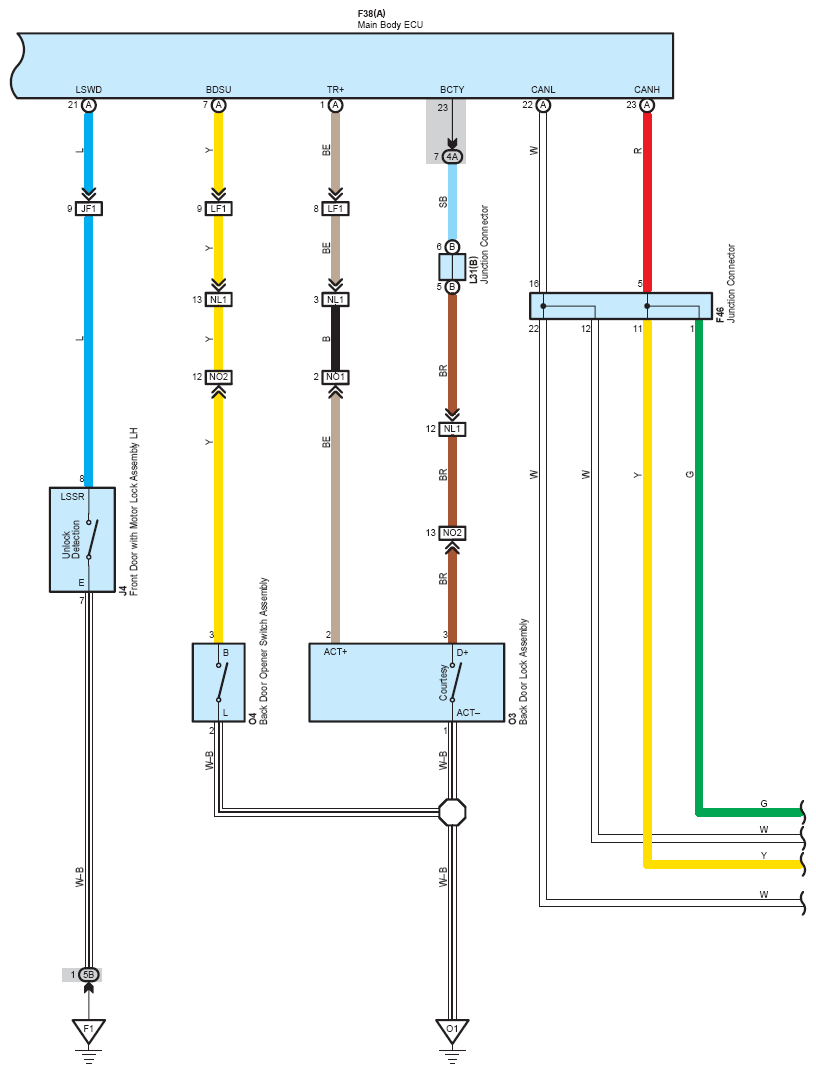

Fig 2: Back Door Opener System Wiring Diagram (2 Of 3)
G08761222Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

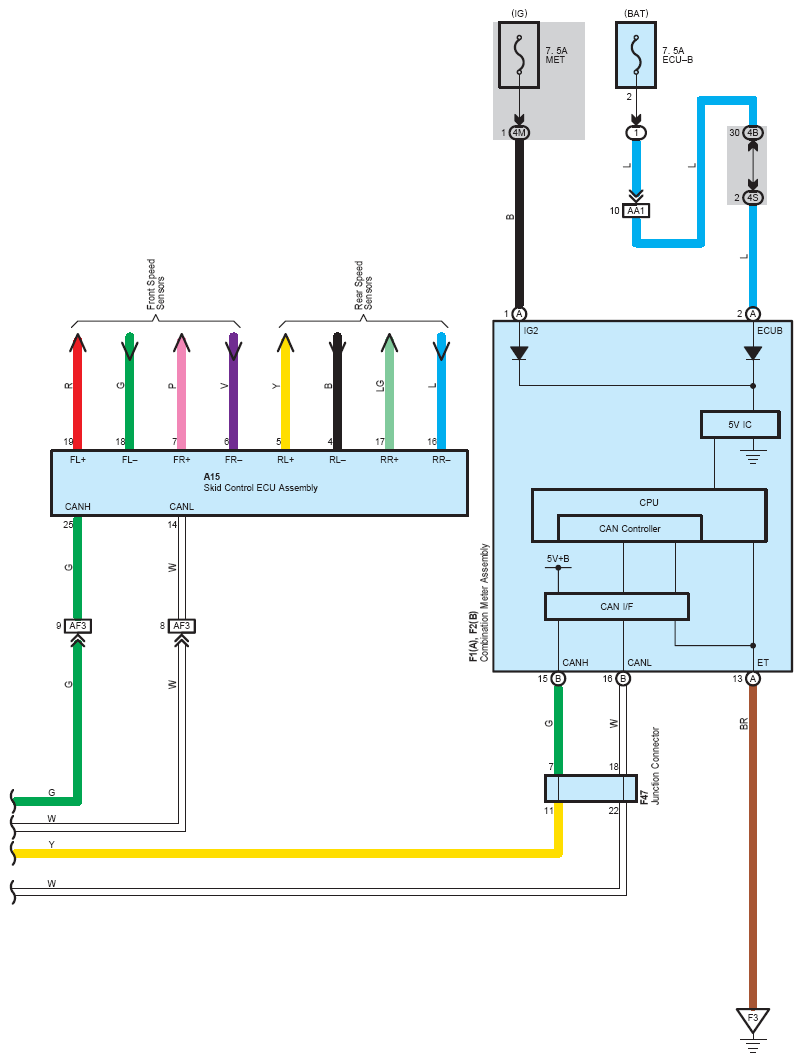

Fig 3: Back Door Opener System Wiring Diagram (3 Of 3)
G08761223Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
