Combination Meter: Notes

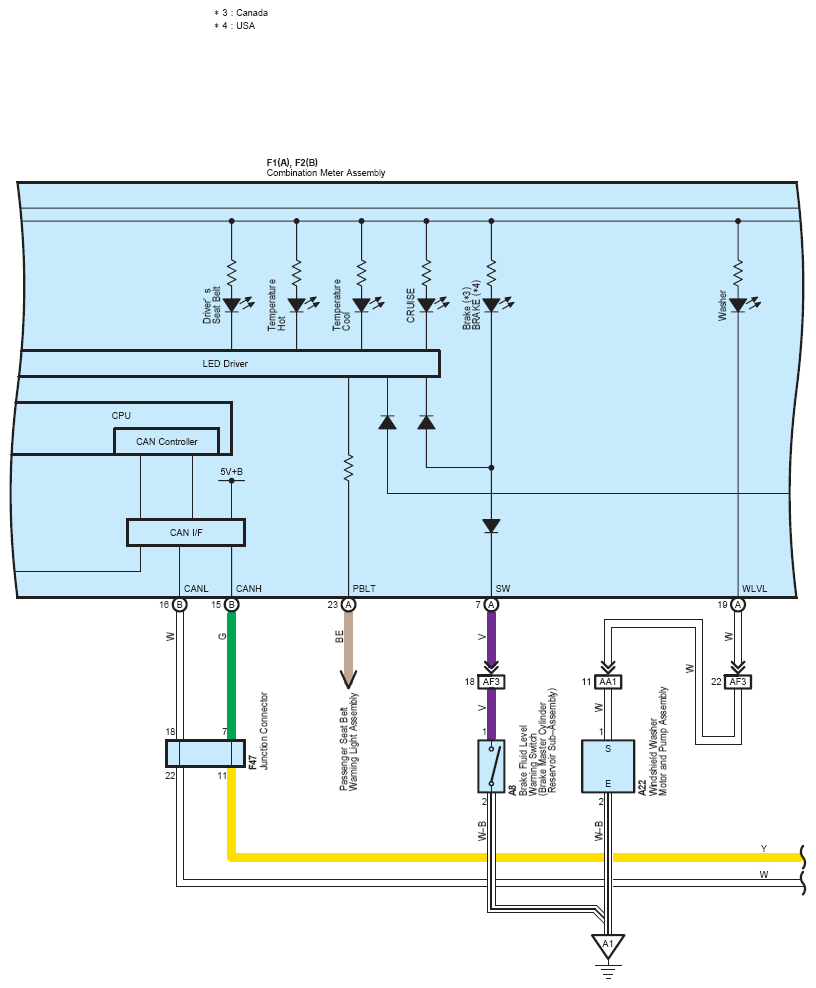

Fig 1: Combination Meter System Wiring Diagram (3 Of 6)
G08761243Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

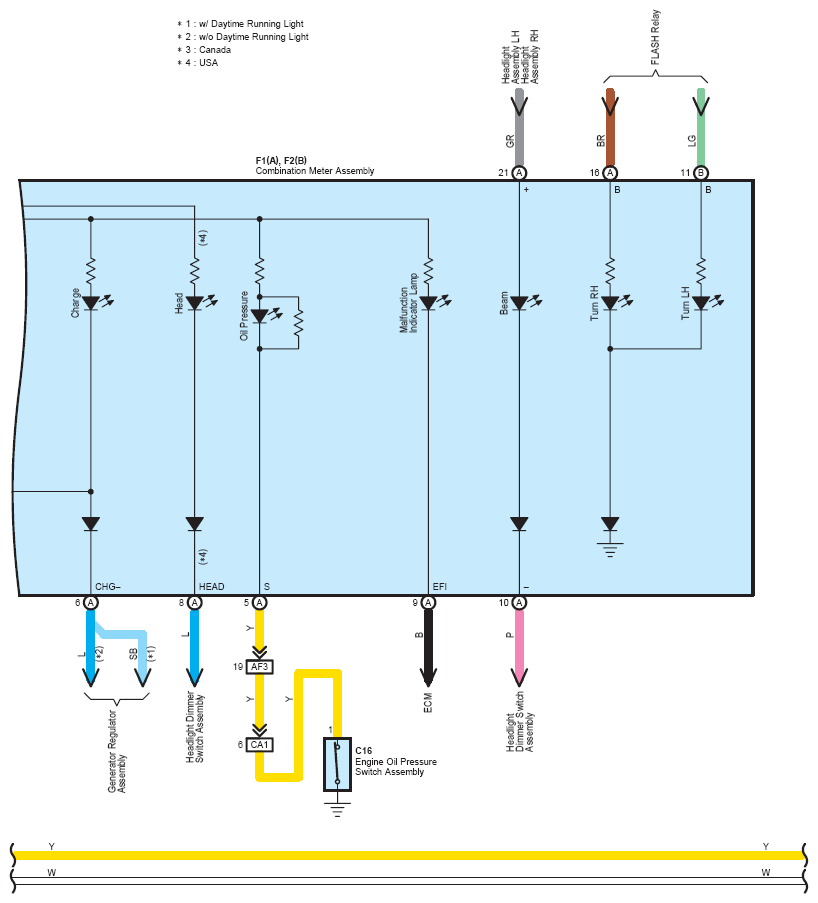

Fig 2: Combination Meter System Wiring Diagram (4 Of 6)
G08761244Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

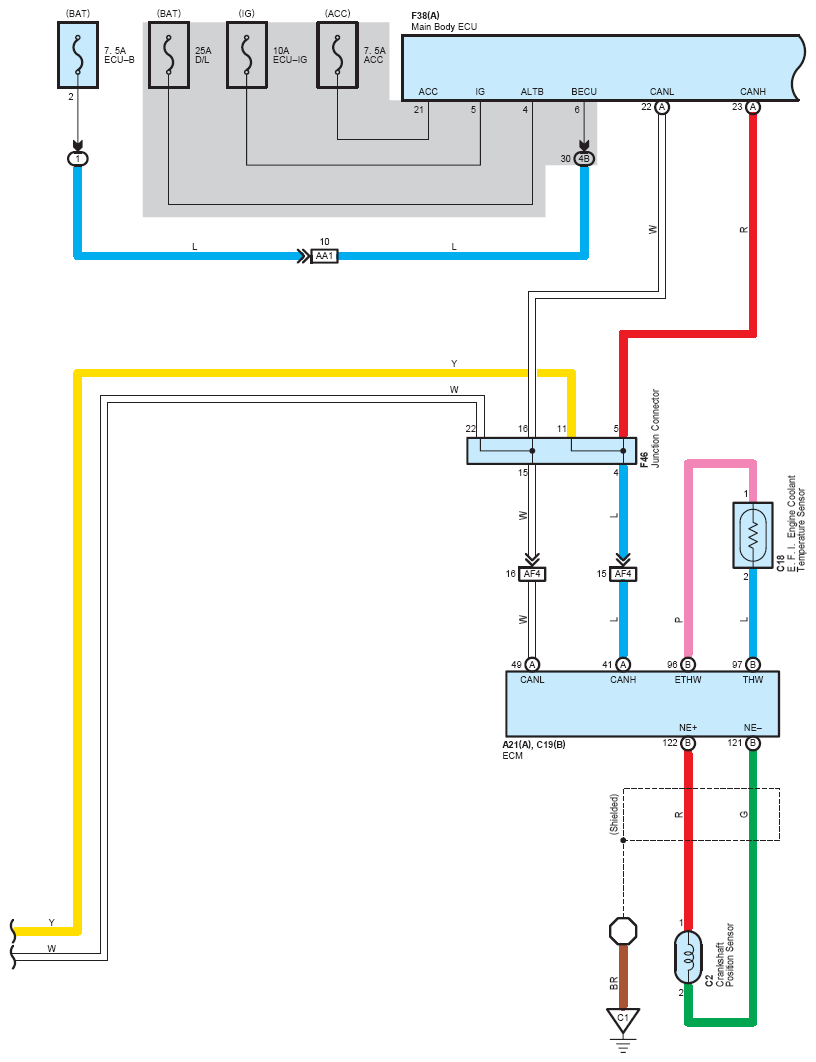

Fig 3: Combination Meter System Wiring Diagram (5 Of 6)
G08761245Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

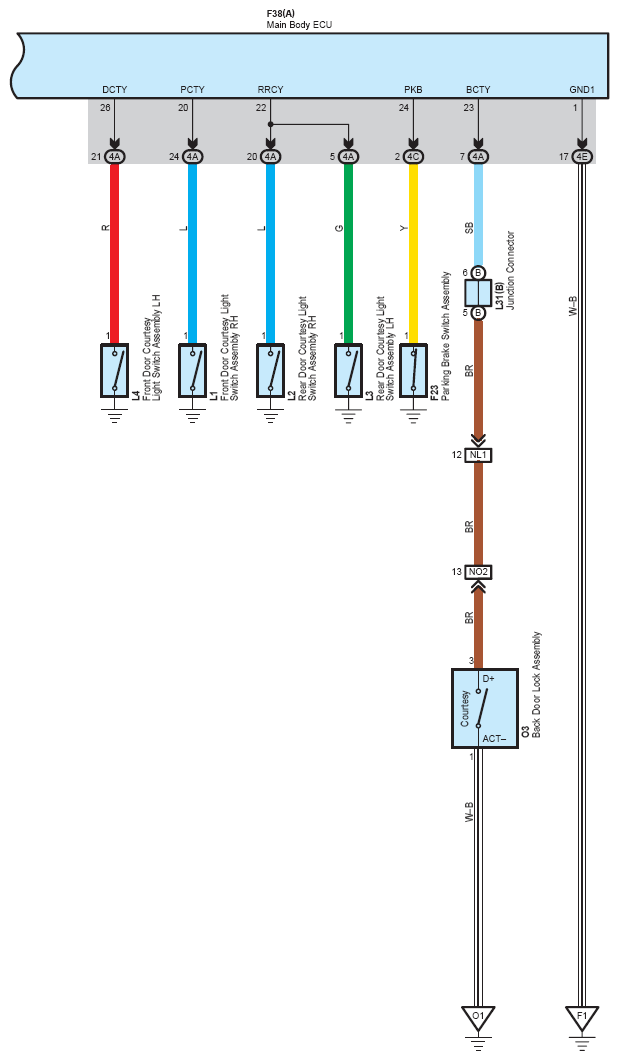

Fig 4: Combination Meter System Wiring Diagram (6 Of 6)
G08761246Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
