Illumination and Taillight: Notes

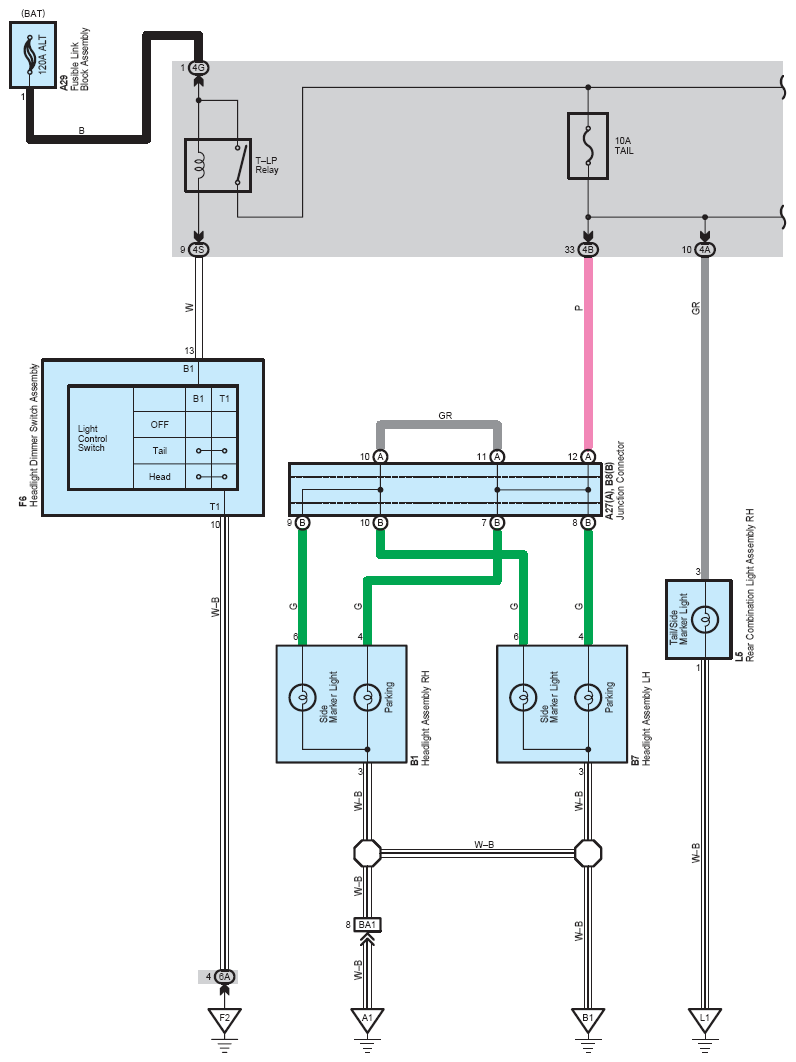

Fig 1: Illumination And Taillight System Wiring Diagram (1 Of 4)
G08761179Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

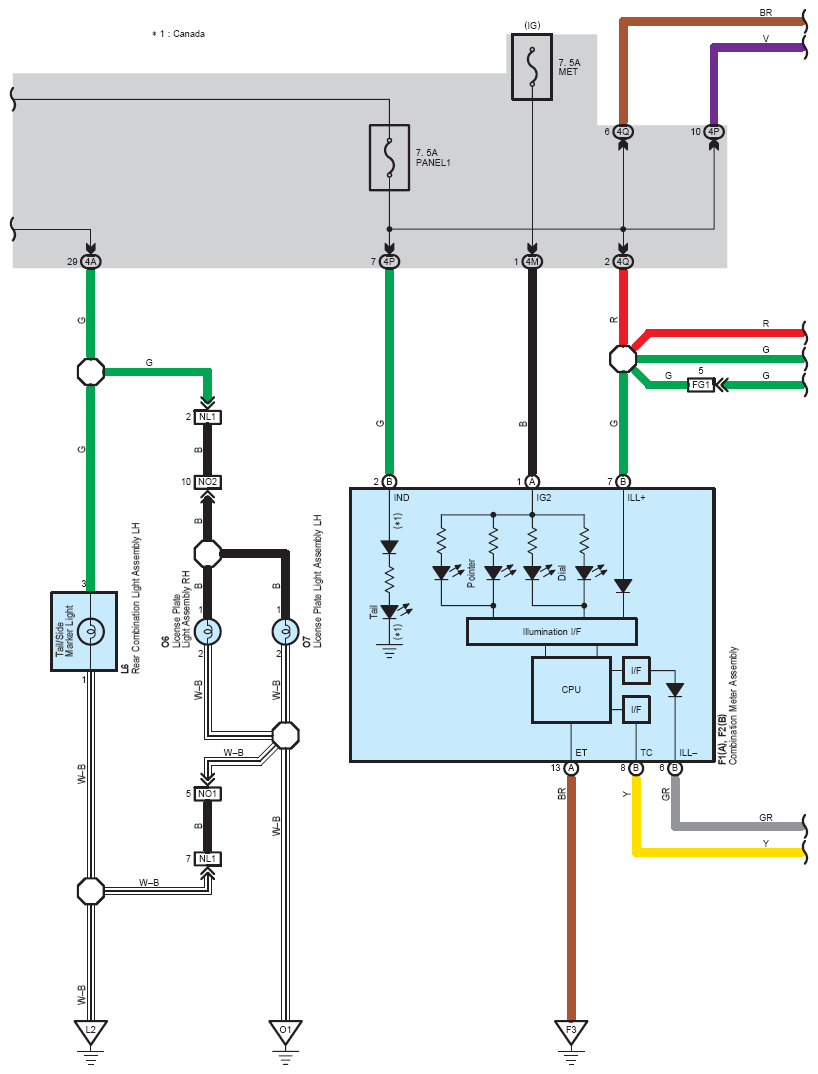

Fig 2: Illumination And Taillight System Wiring Diagram (2 Of 4)
G08761180Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

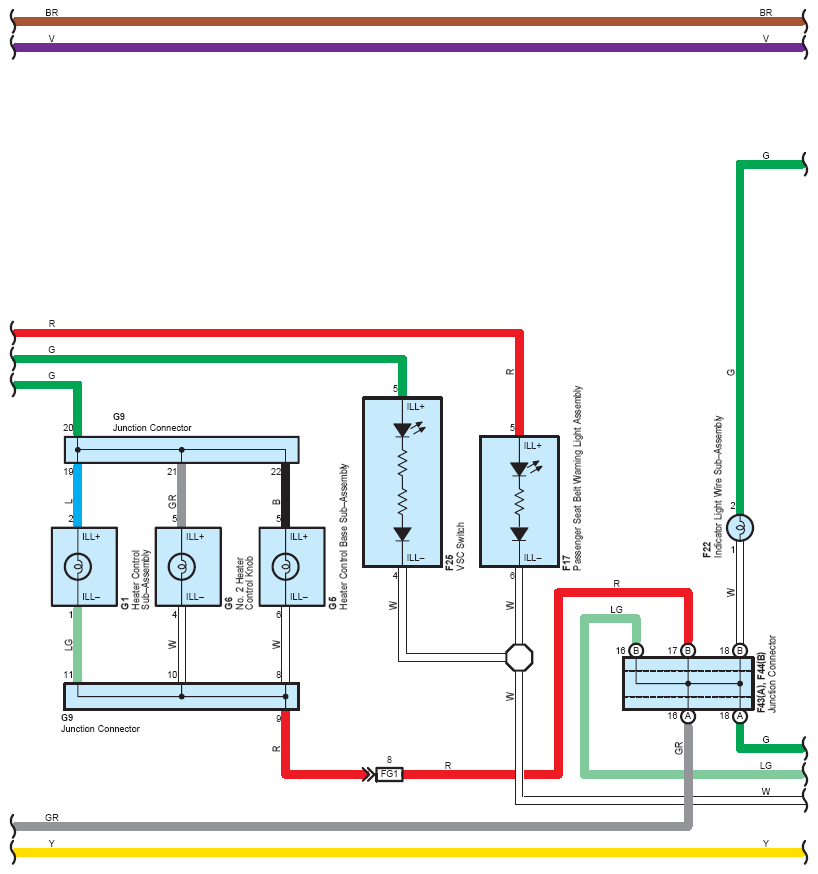

Fig 3: Illumination And Taillight System Wiring Diagram (3 Of 4)
G08761181Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

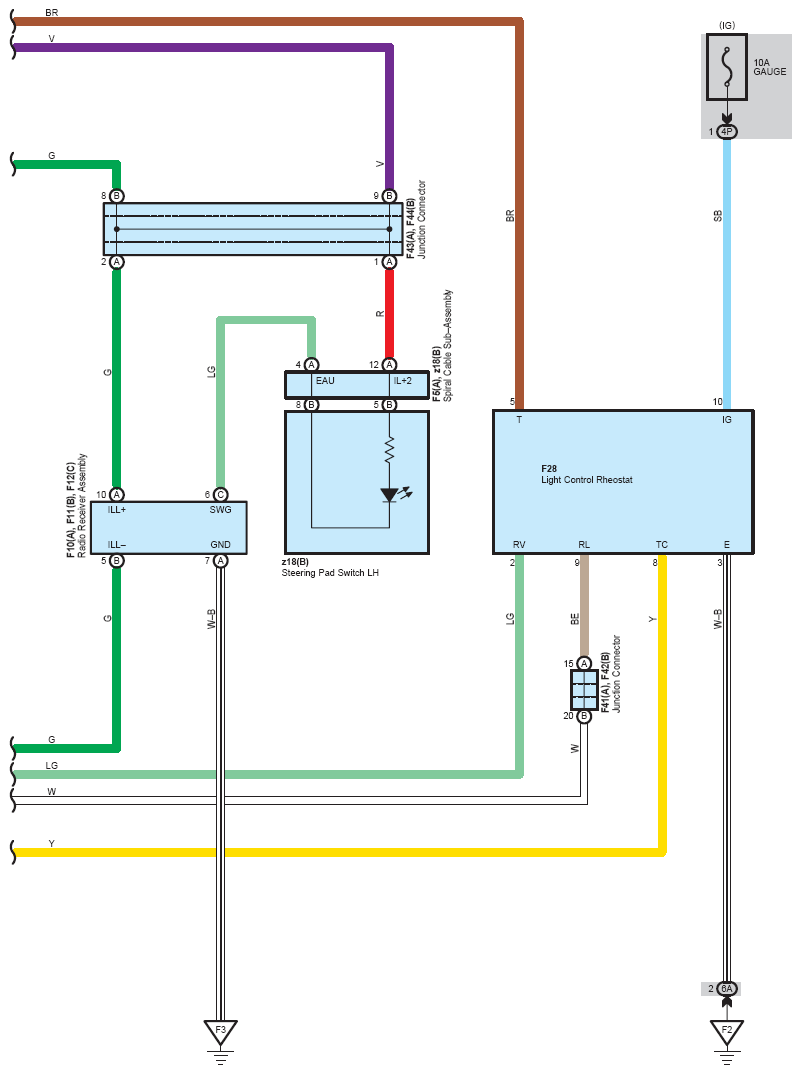

Fig 4: Illumination And Taillight System Wiring Diagram (4 Of 4)
G08761182Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
