Fuel Pressure Regulator: Components: Illustration

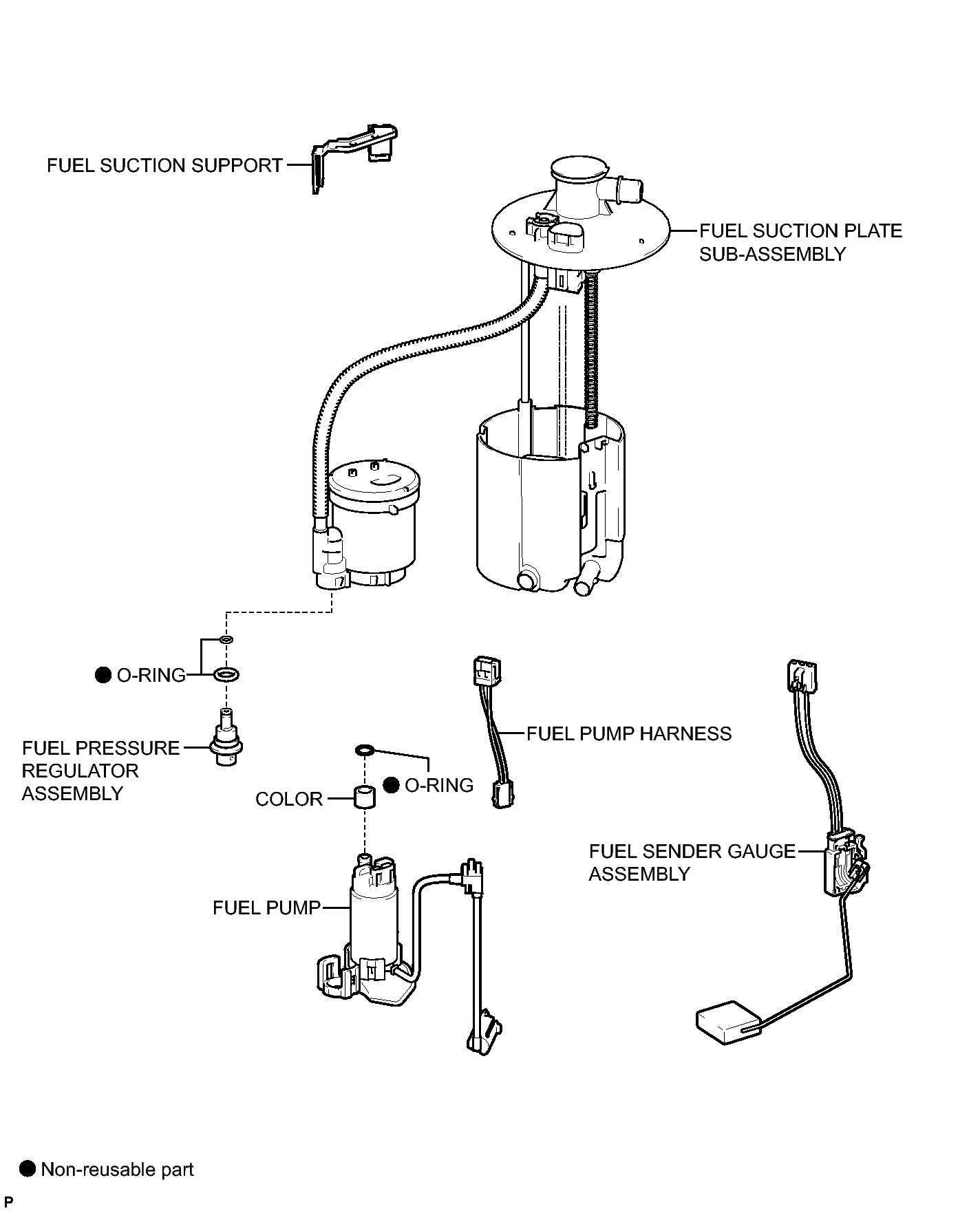

Fig 1: Identifying Fuel Pressure Regulator Replacement Components
GTY162478Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
