Parts Location: Illustration

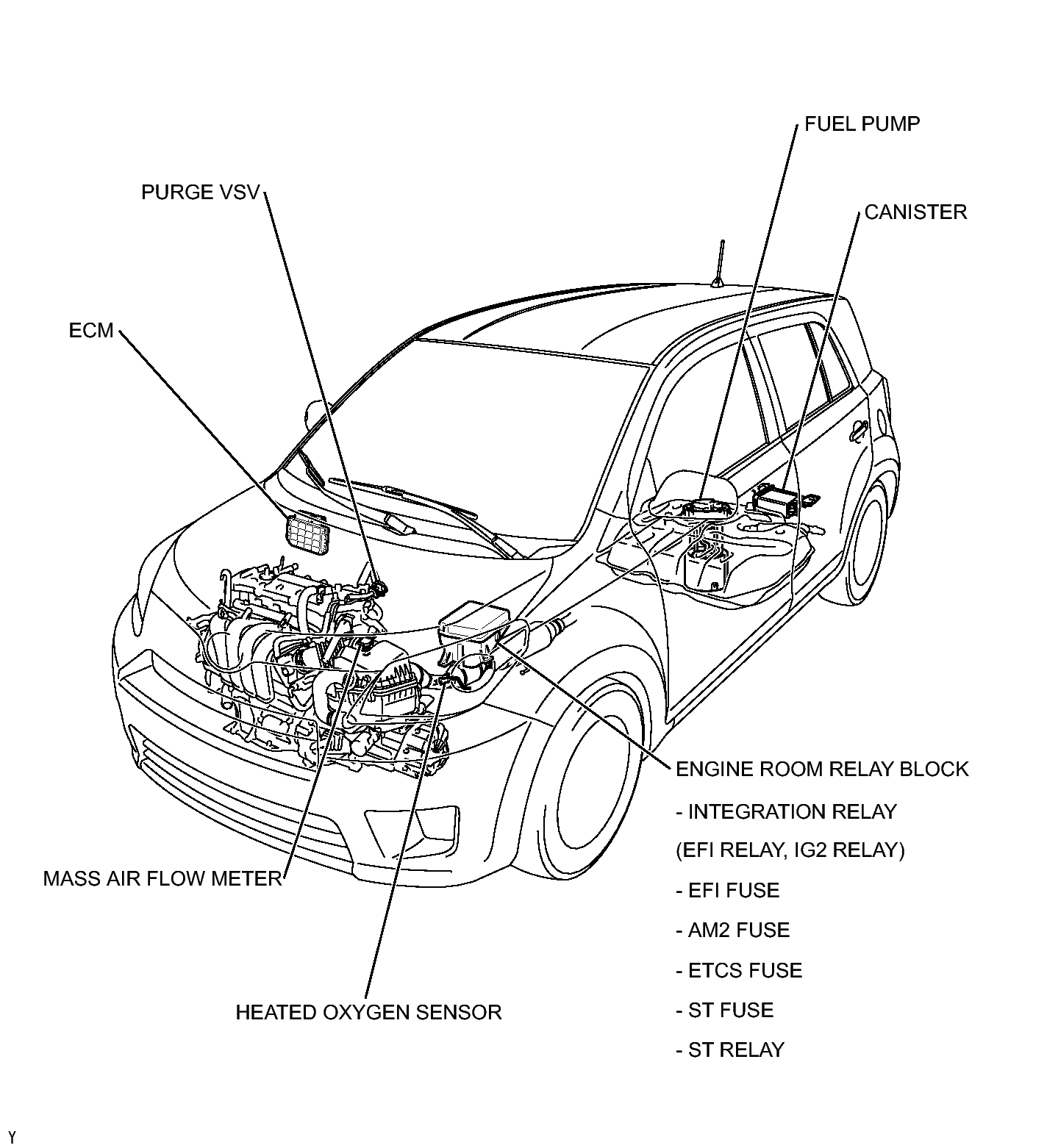

Fig 1: Identifying Engine Control System Components Location (1 Of 3)
GTY346594Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

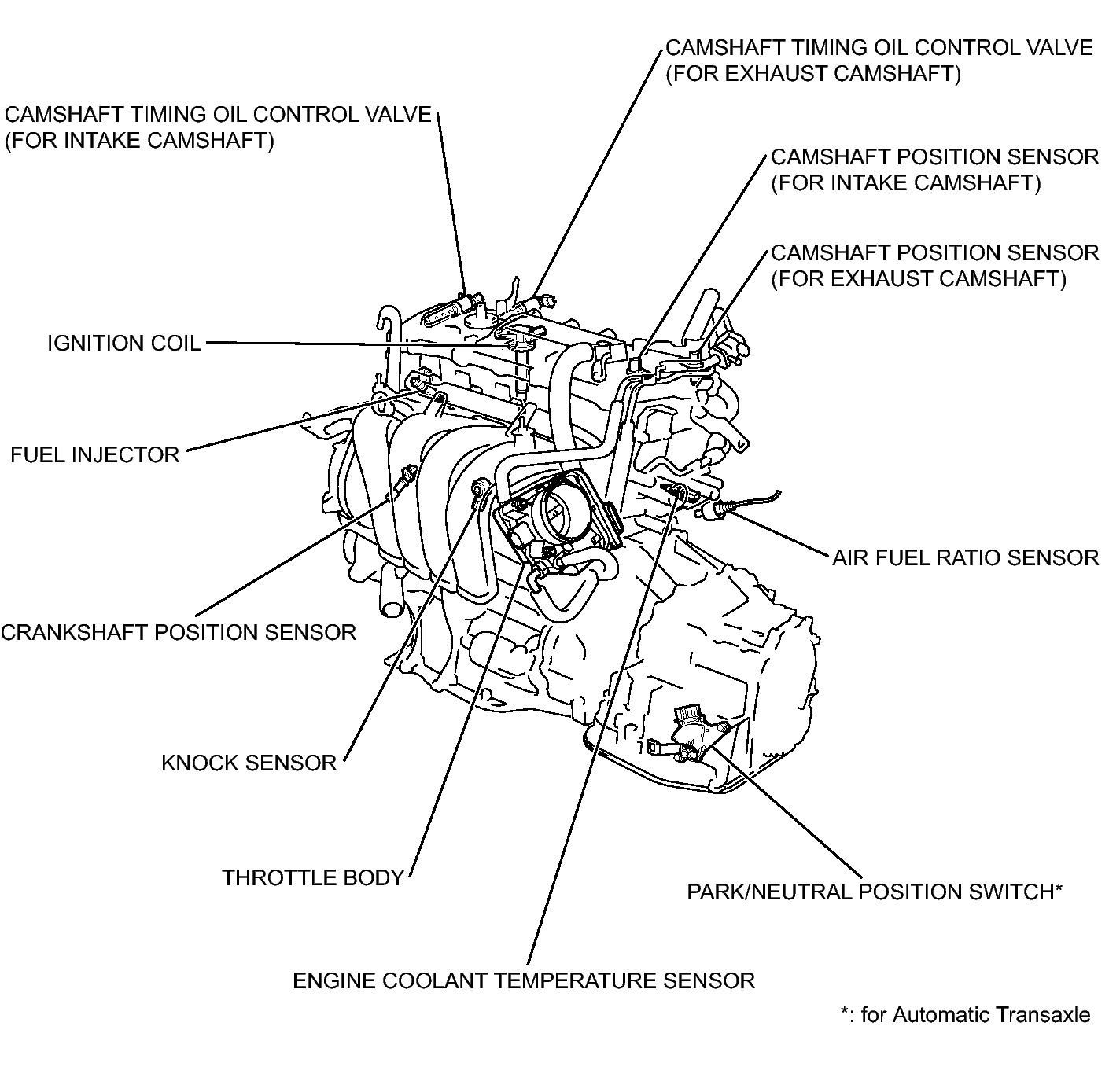

Fig 1: Identifying Engine Control System Components Location (2 Of 3)
GTY344189Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

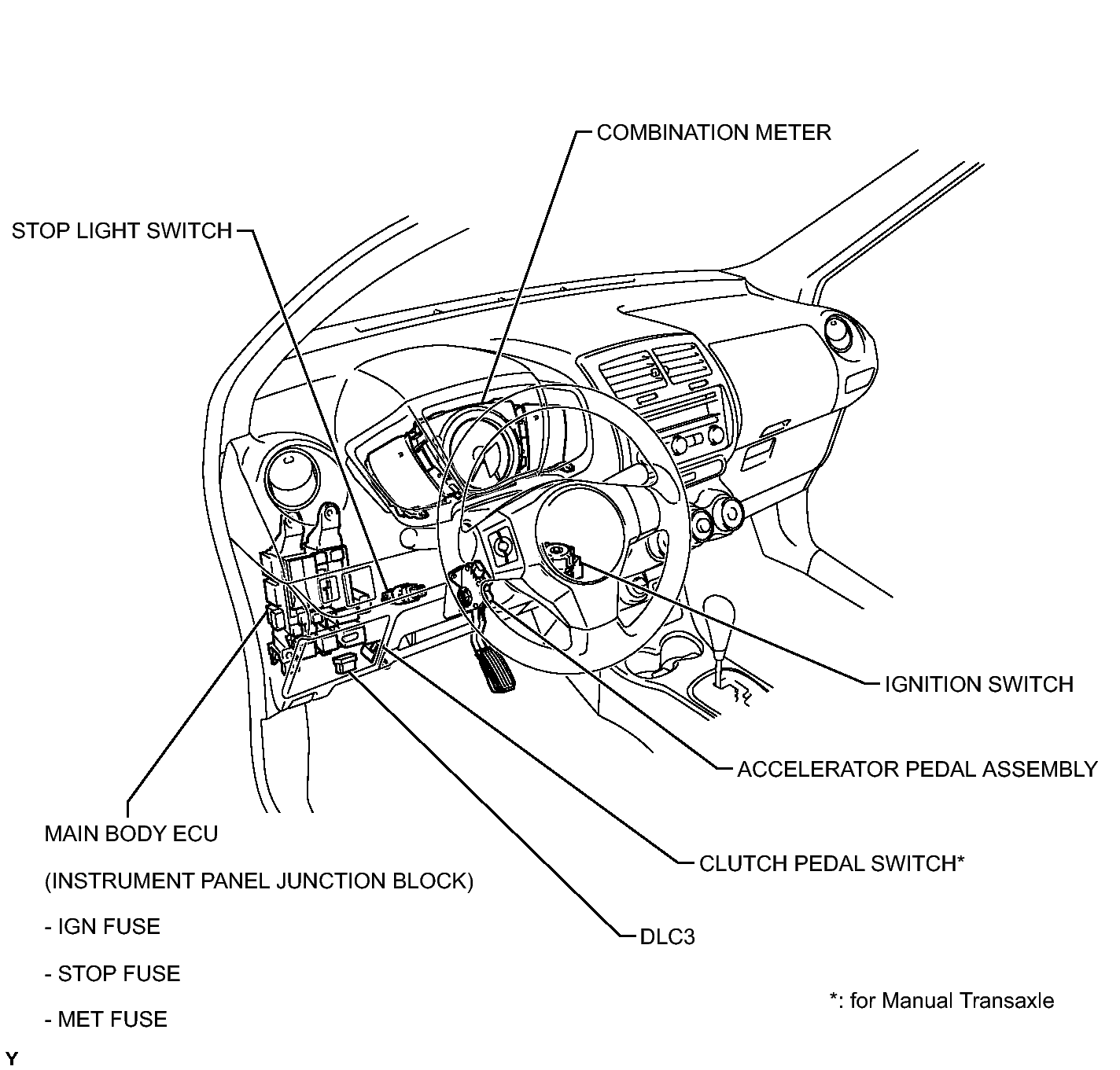

Fig 1: Identifying Engine Control System Components Location (1 Of 3)
GTY347225Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
