Camshaft Oil Control Valve: Components: Illustration

Fig 1: Identifying Camshaft Oil Control Valve Replacement Components (1 Of 2)
GTY160845Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

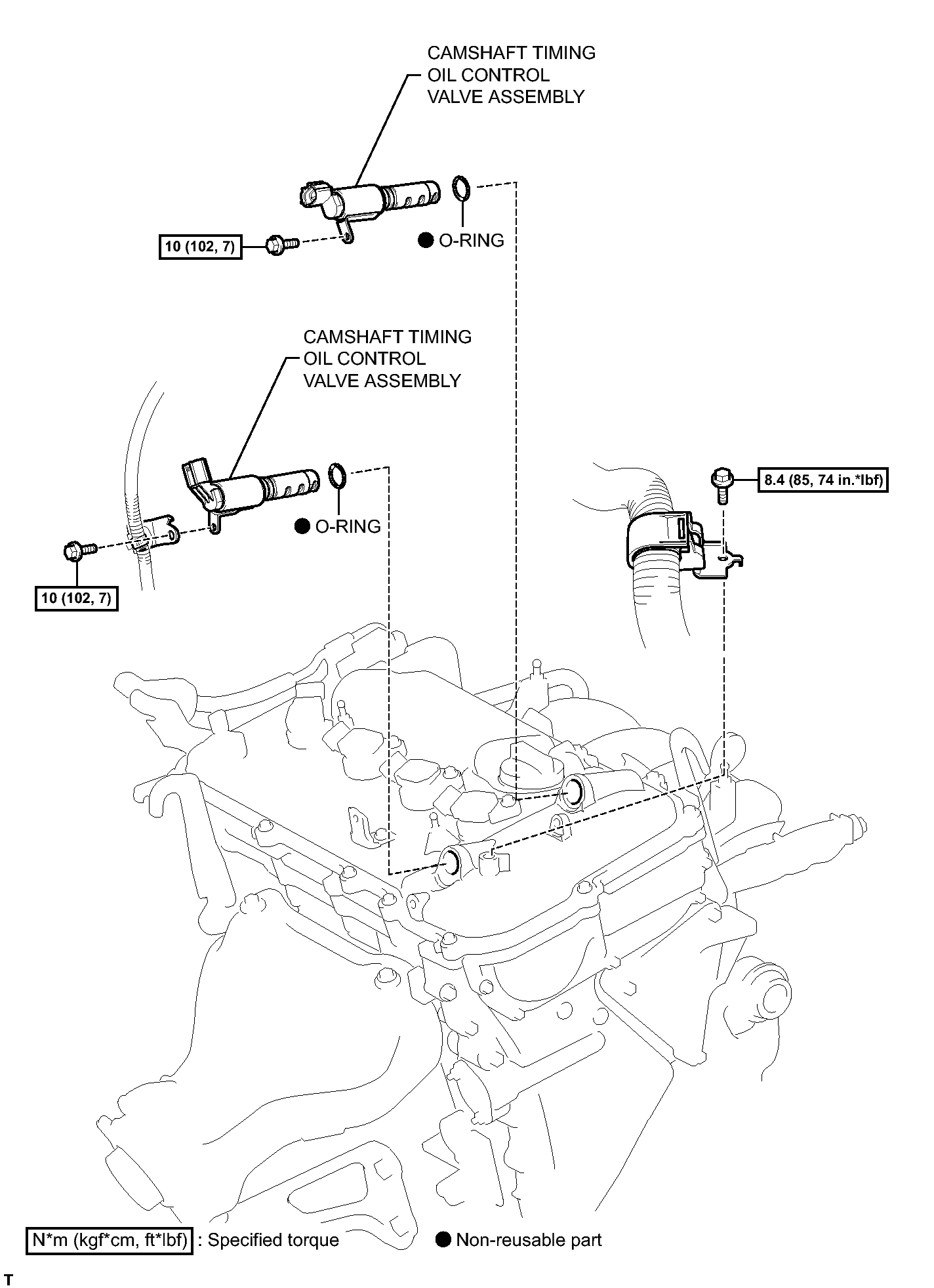

Fig 1: Identifying Camshaft Oil Control Valve Replacement Components With Torque Specifications (2 Of 2)
GTY161155Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
