Camshaft Position Sensor: Removal: Removal

REMOVE NO. 2 CYLINDER HEAD COVER . Refer to REMOVAL - Step 1
REMOVE CAMSHAFT POSITION SENSOR
1. Disconnect the duty vacuum switching valve connector and 3 engine wire harness clamps (for exhaust camshaft side).

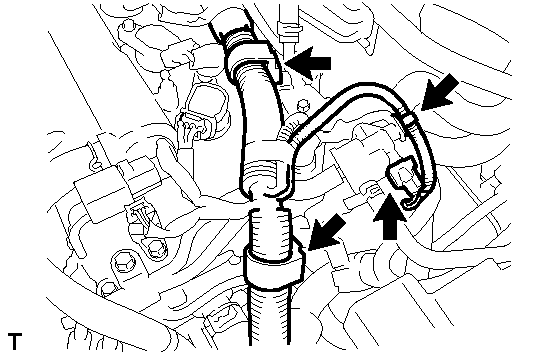

  Fig 1: Locating Engine Wire Harness Clamps
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the bolt and remove the camshaft position sensor (for exhaust camshaft side).

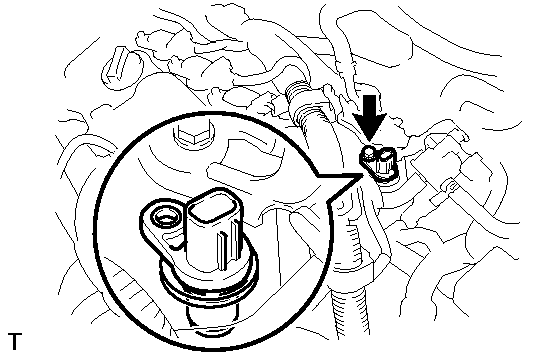

  Fig 2: Locating Camshaft Position Sensor Bolt (For Exhaust Camshaft Side)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the bolt and remove the camshaft position sensor (for intake camshaft side).

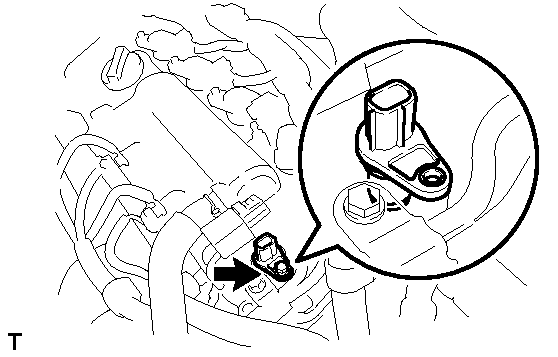

  Fig 3: Locating Camshaft Position Sensor Bolt (For Intake Camshaft Side)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
