Mass Air Flow Meter: Installation: Installation

  1. INSTALL MASS AIR FLOW METER
    1. Install the mass air flow meter with the 2 screws.

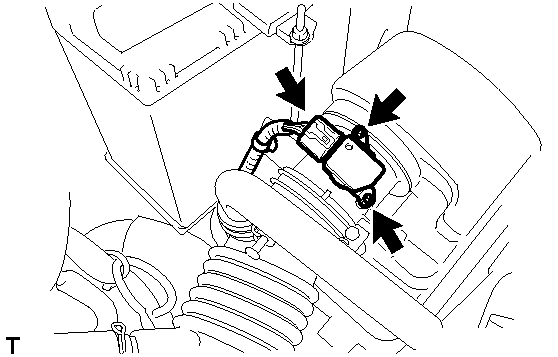

      Fig 1: Locating Mass Air Flow Meter Screws And Mass Air Flow Meter Connector
      GTY161149Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Make sure that the O-ring is not cracked or jammed when installing.

    2. Connect the mass air flow meter connector.
