ABS, TRAC and VSC: Notes

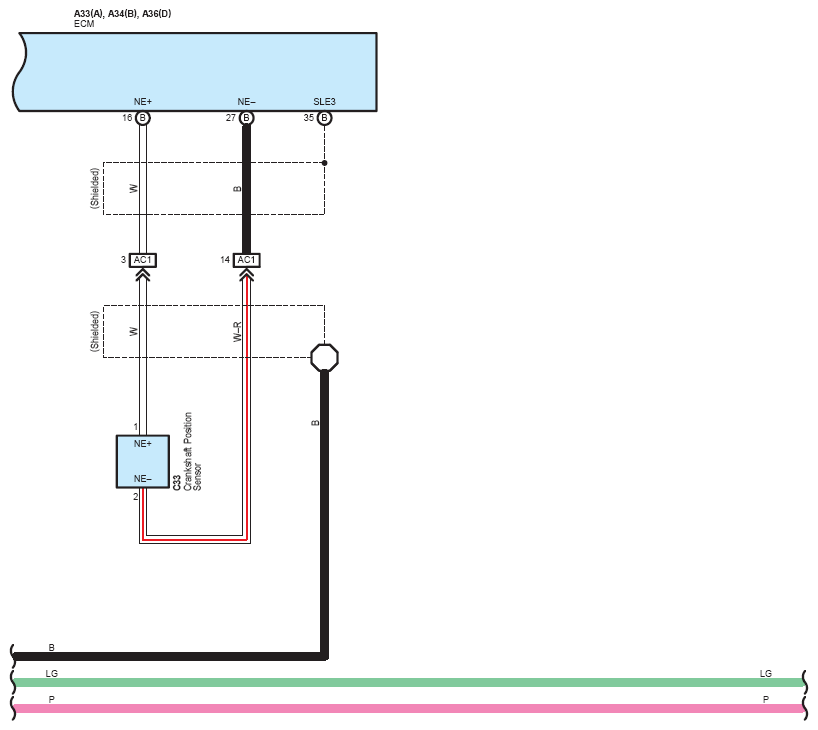

Fig 1: ABS, TRAC And VSC - Wiring Diagram (1 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

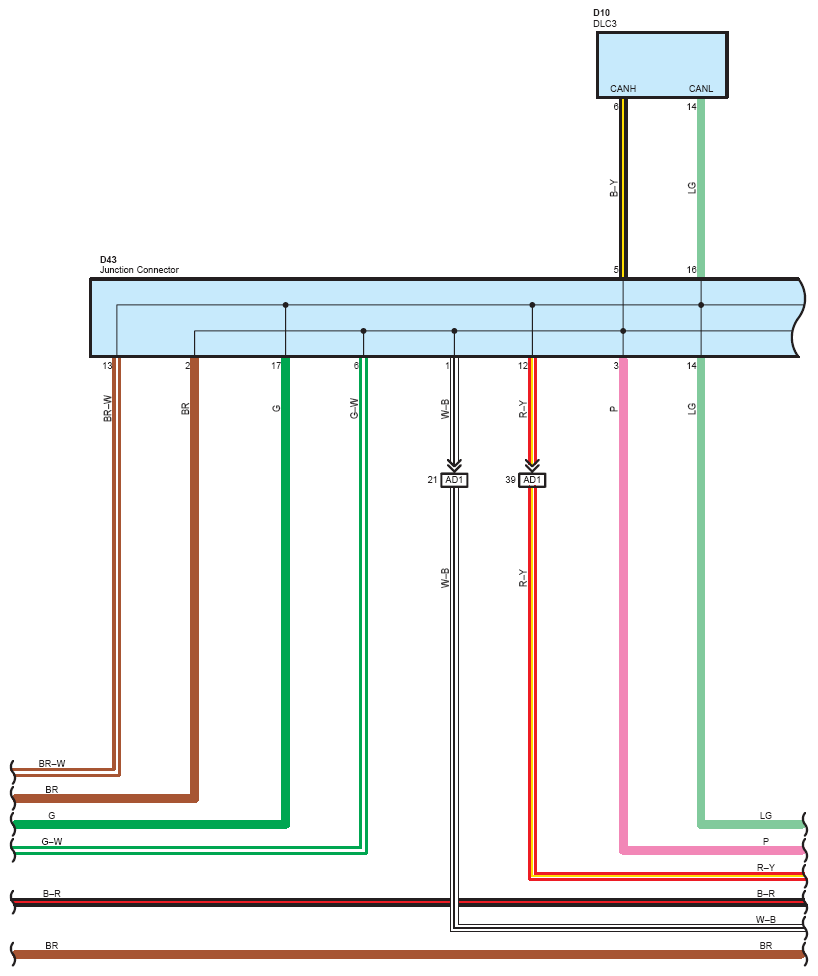

Fig 2: ABS, TRAC And VSC - Wiring Diagram (2 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

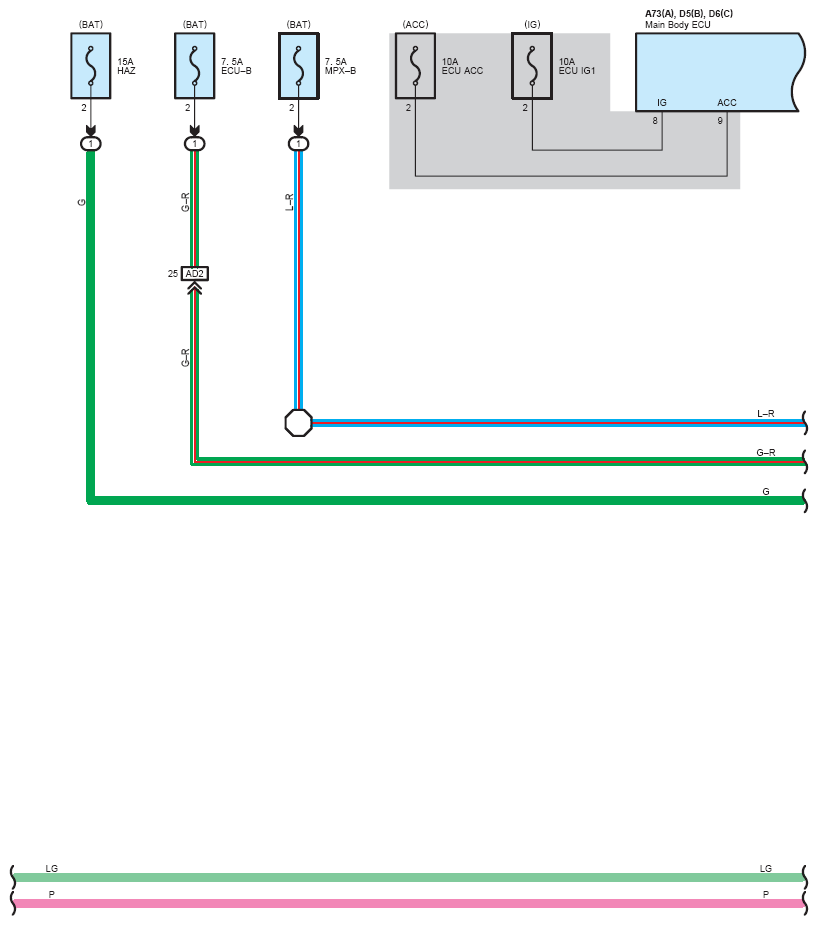

Fig 3: ABS, TRAC And VSC - Wiring Diagram (3 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

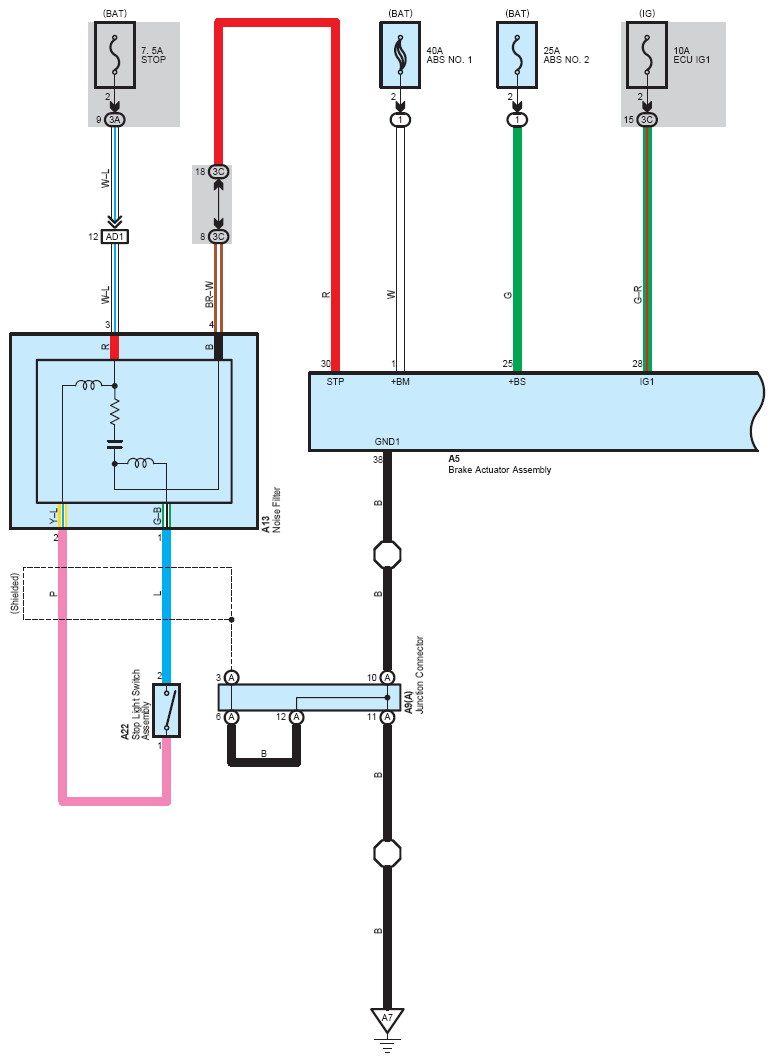

Fig 4: ABS, TRAC And VSC - Wiring Diagram (4 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

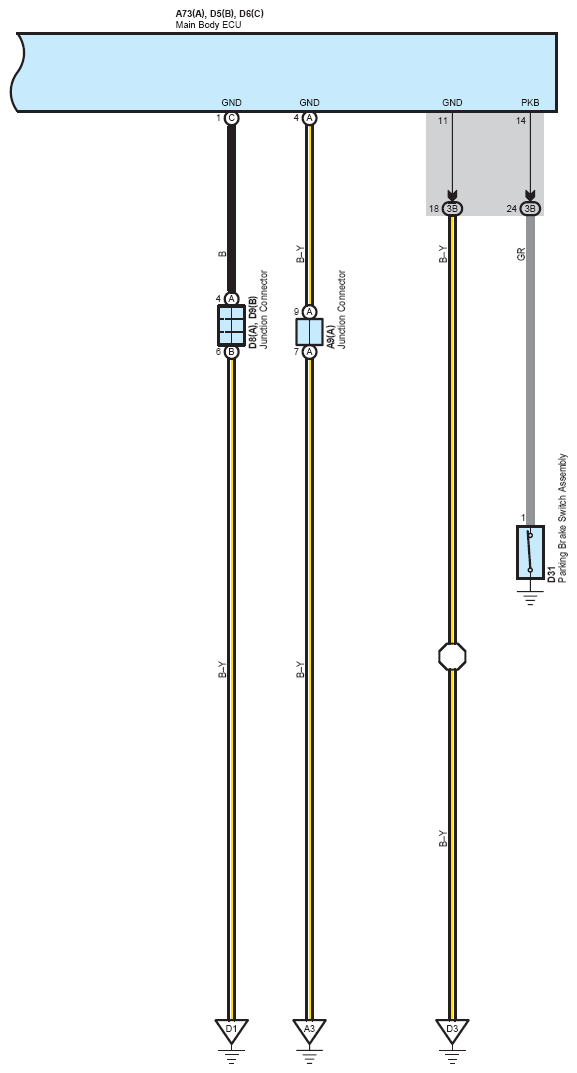

Fig 5: ABS, TRAC And VSC - Wiring Diagram (5 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

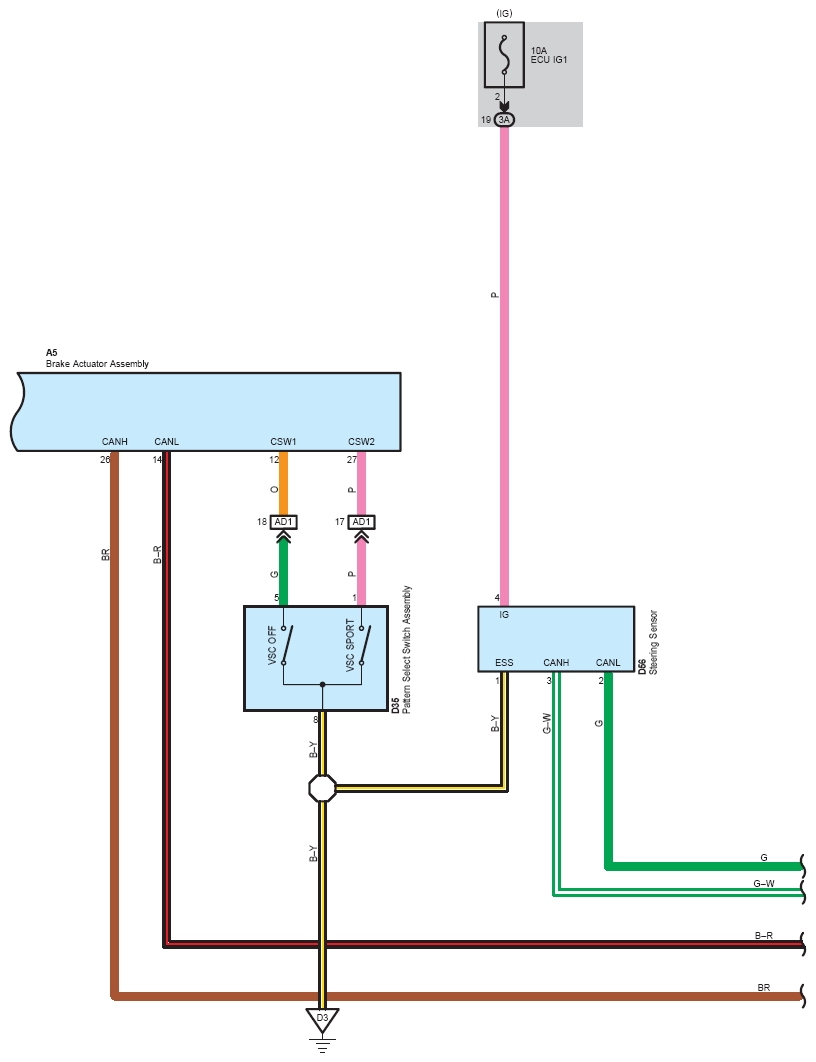

Fig 6: ABS, TRAC And VSC - Wiring Diagram (6 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

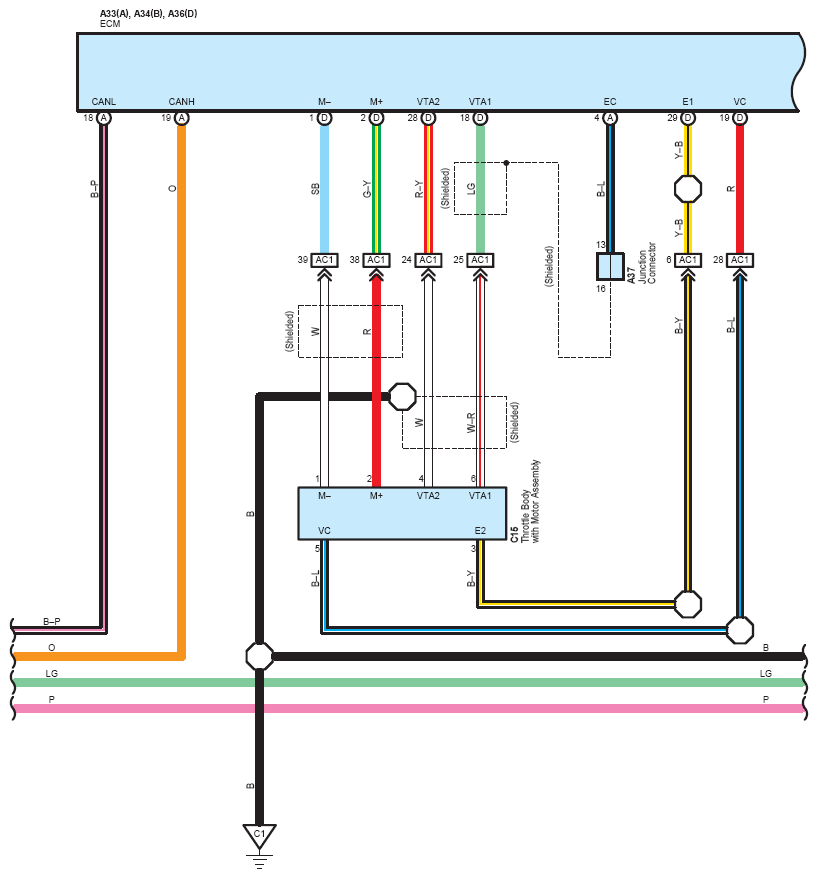

Fig 7: ABS, TRAC And VSC - Wiring Diagram (7 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

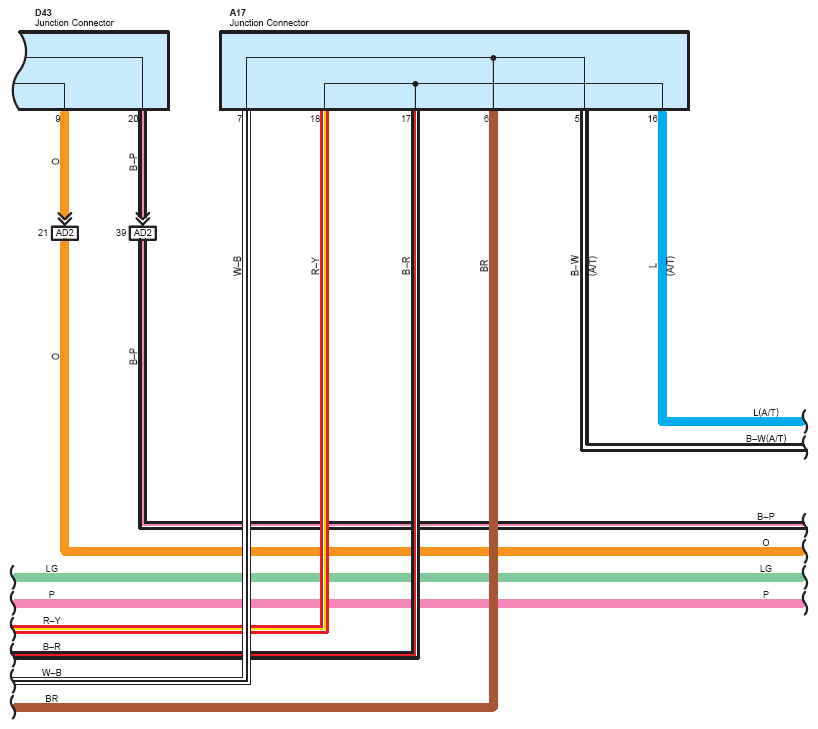

Fig 8: ABS, TRAC And VSC - Wiring Diagram (8 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

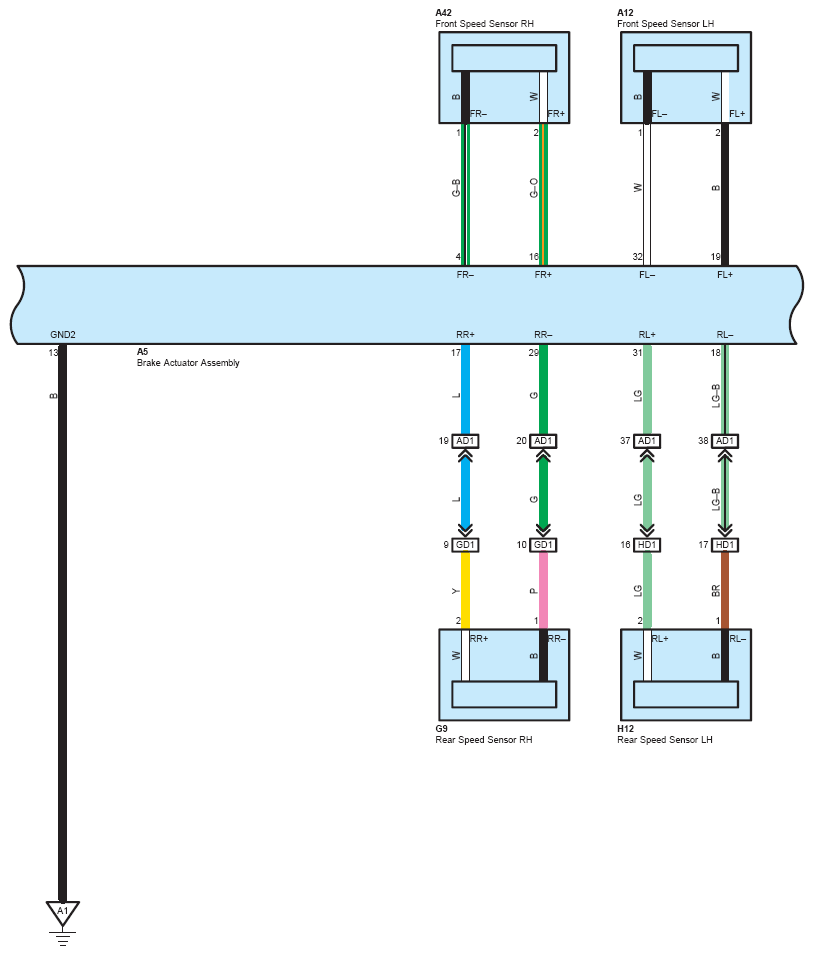

Fig 9: ABS, TRAC And VSC - Wiring Diagram (9 Of 12)

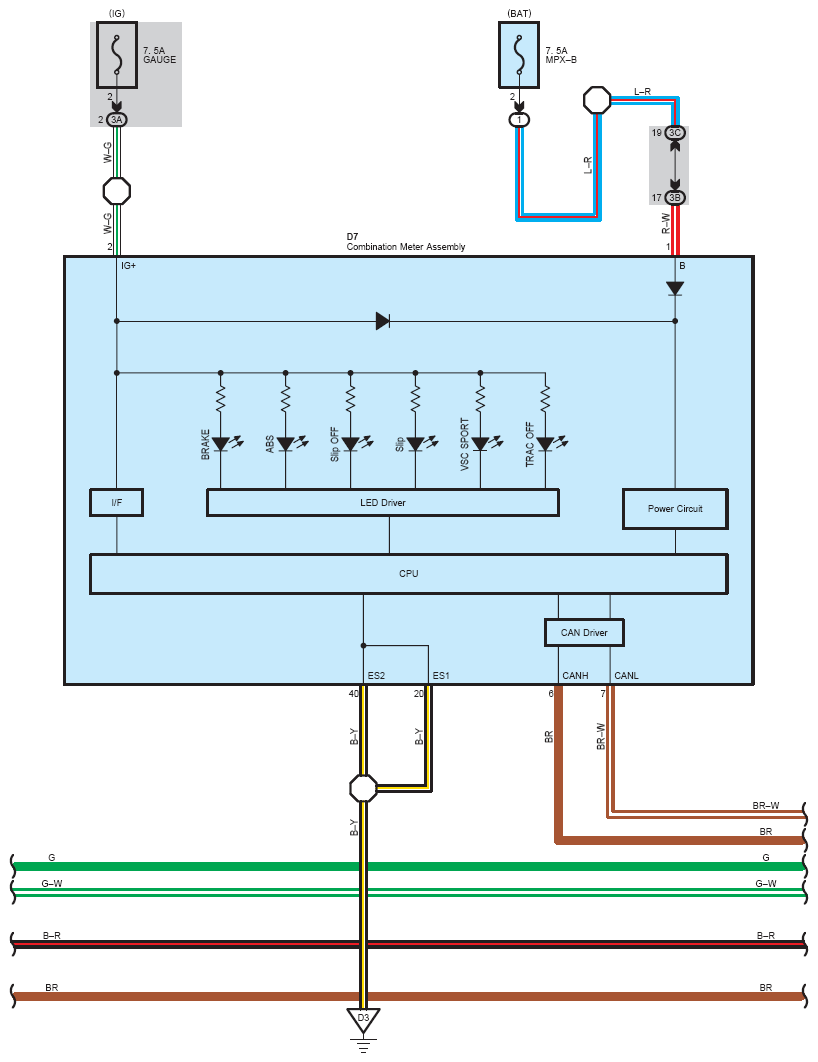

Fig 10: ABS, TRAC And VSC - Wiring Diagram (10 Of 12)

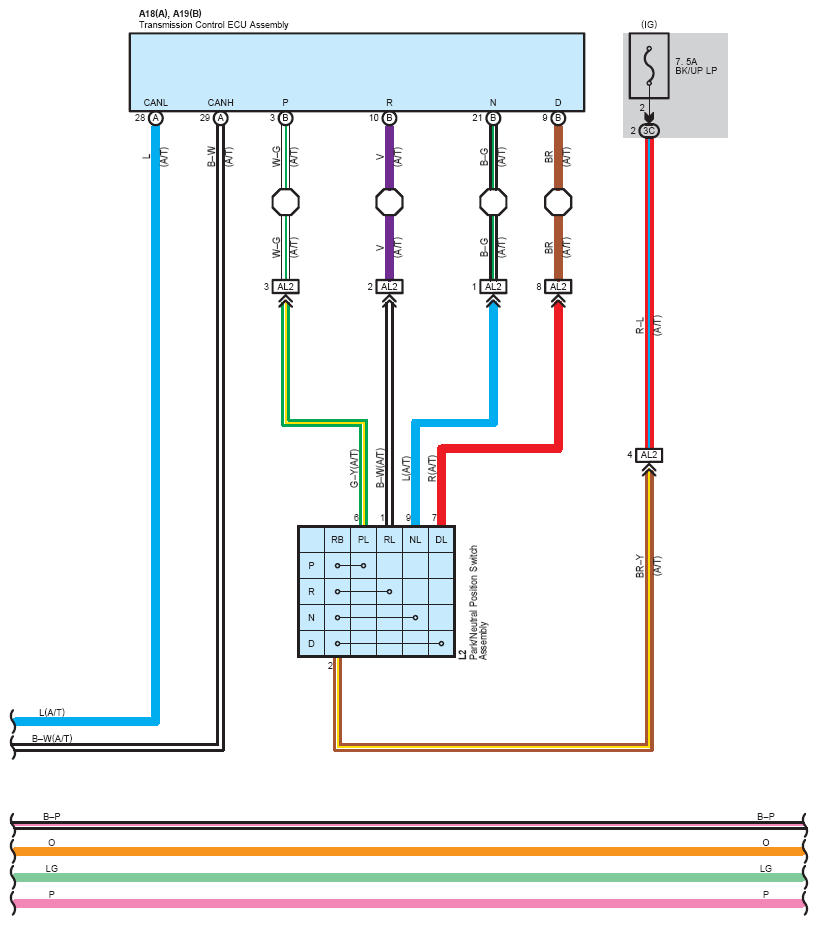

Fig 11: ABS, TRAC And VSC - Wiring Diagram (11 Of 12)

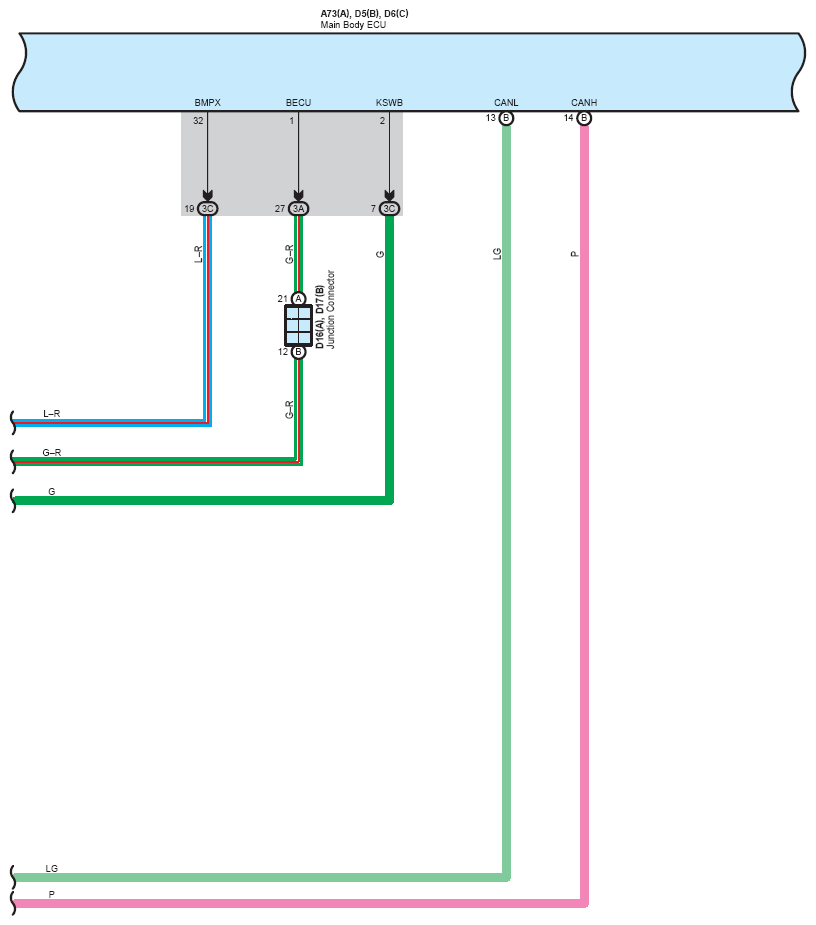

Fig 12: ABS, TRAC And VSC - Wiring Diagram (12 Of 12)
