Audio System: Notes

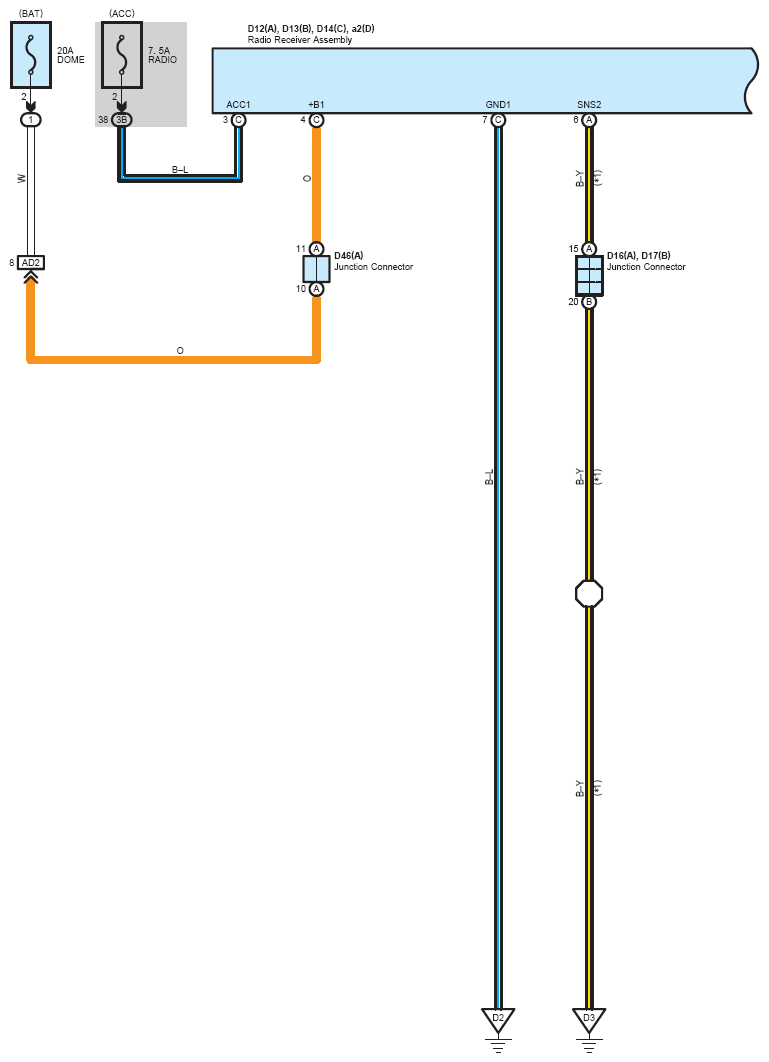

Fig 1: Audio System - Wiring Diagram (1 Of 7)
G08774214Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

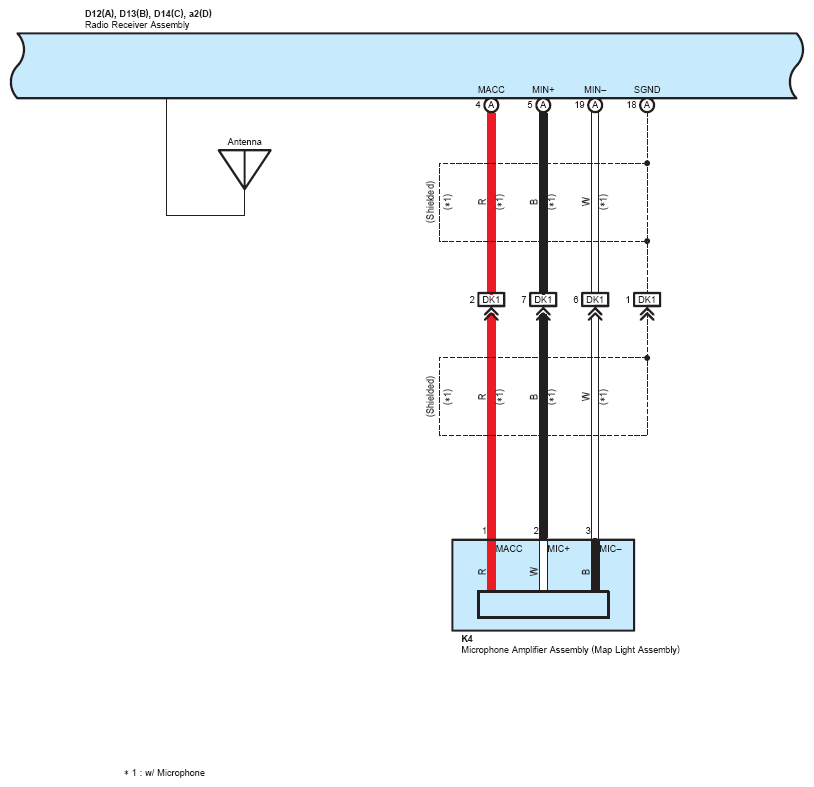

Fig 2: Audio System - Wiring Diagram (2 Of 7)
G08774215Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

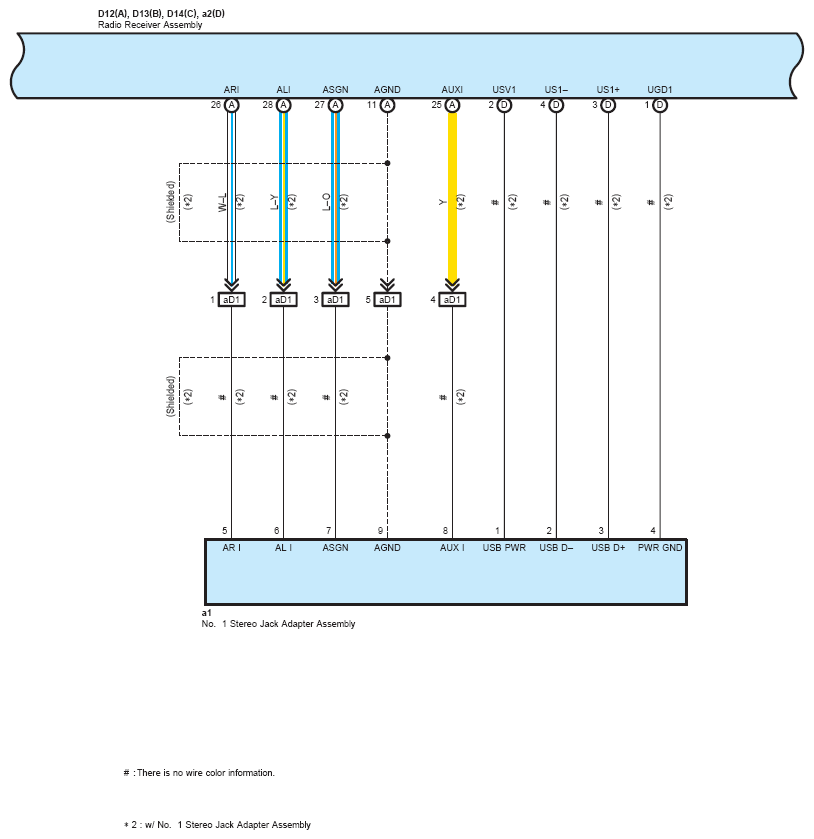

Fig 3: Audio System - Wiring Diagram (3 Of 7)
G08774216Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

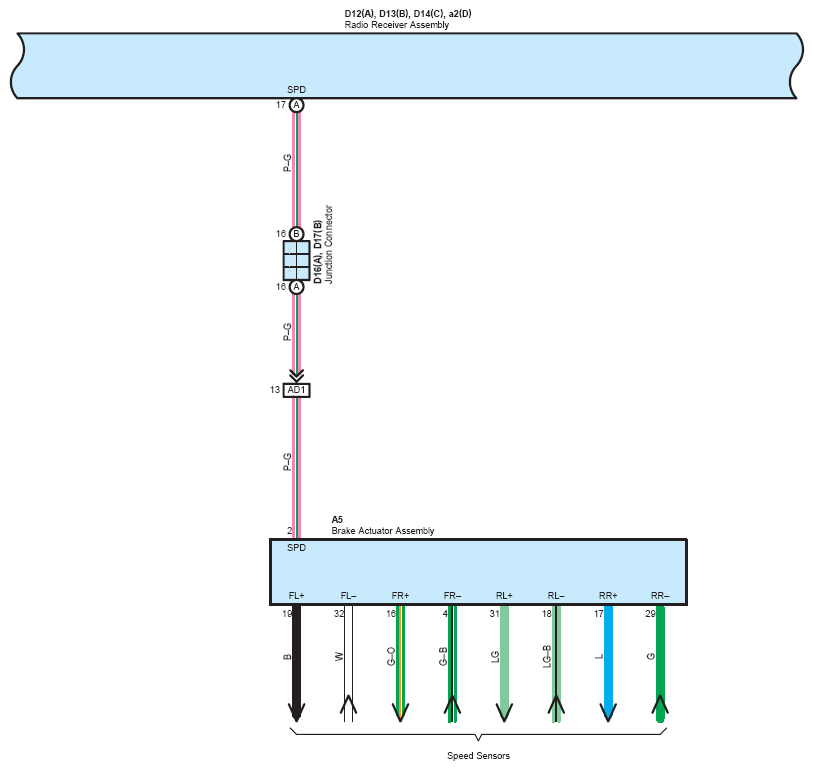

Fig 4: Audio System - Wiring Diagram (4 Of 7)
G08774217Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

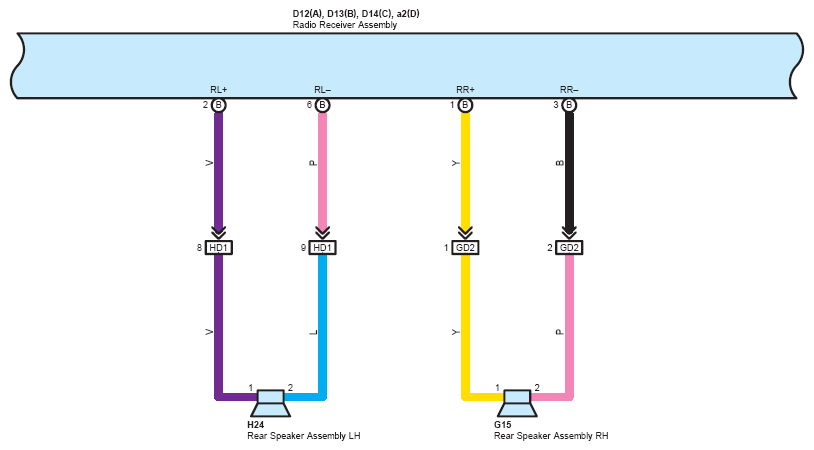

Fig 5: Audio System - Wiring Diagram (5 Of 7)
G08774218Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

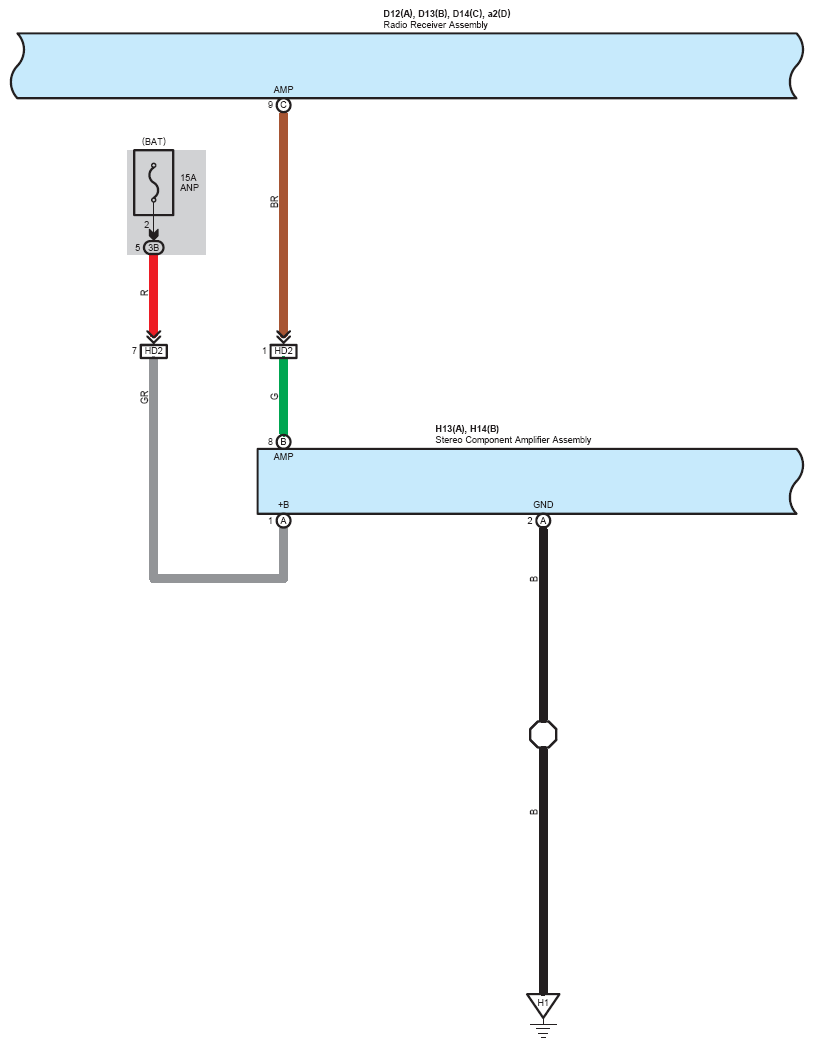

Fig 6: Audio System - Wiring Diagram (6 Of 7)
G08774219Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

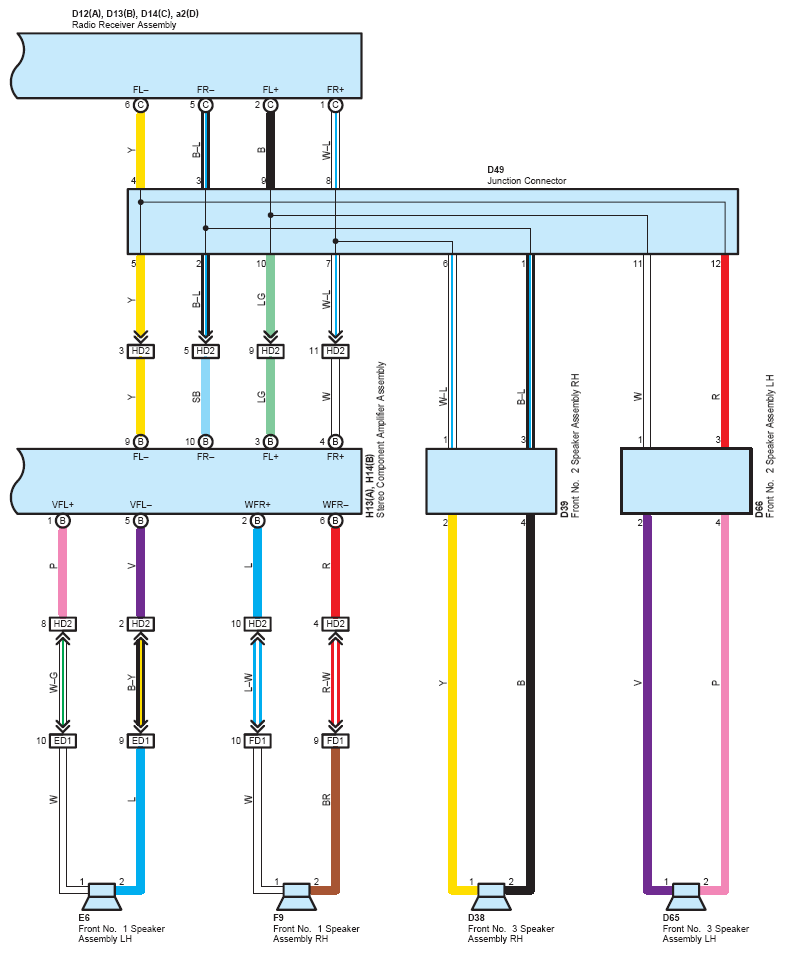

Fig 7: Audio System - Wiring Diagram (7 Of 7)
G08774220Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
