Engine Immobilizer System: Notes

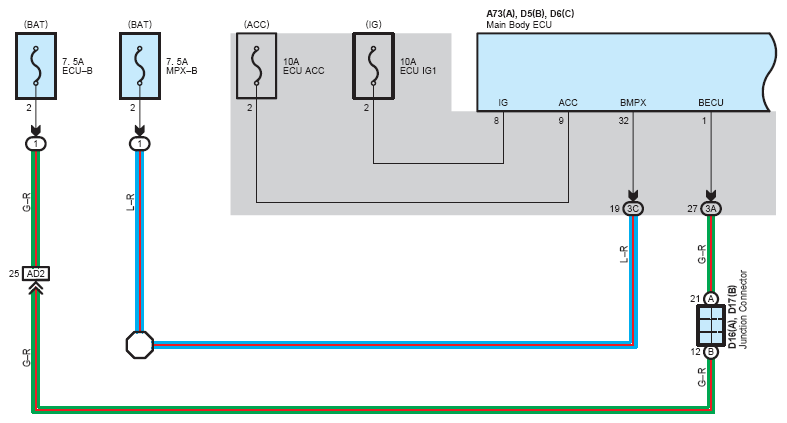

Fig 1: Engine Immobilizer System - Wiring Diagram (1 Of 5)
G08774110Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

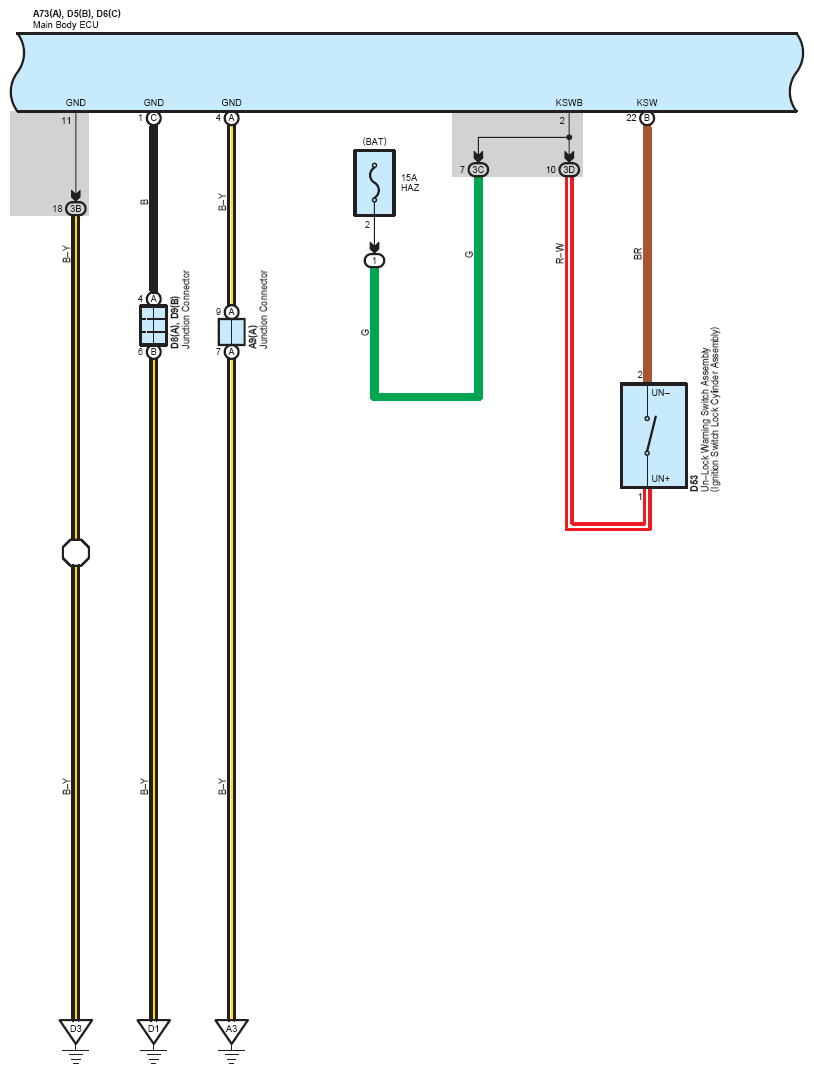

Fig 2: Engine Immobilizer System - Wiring Diagram (2 Of 5)
G08774111Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

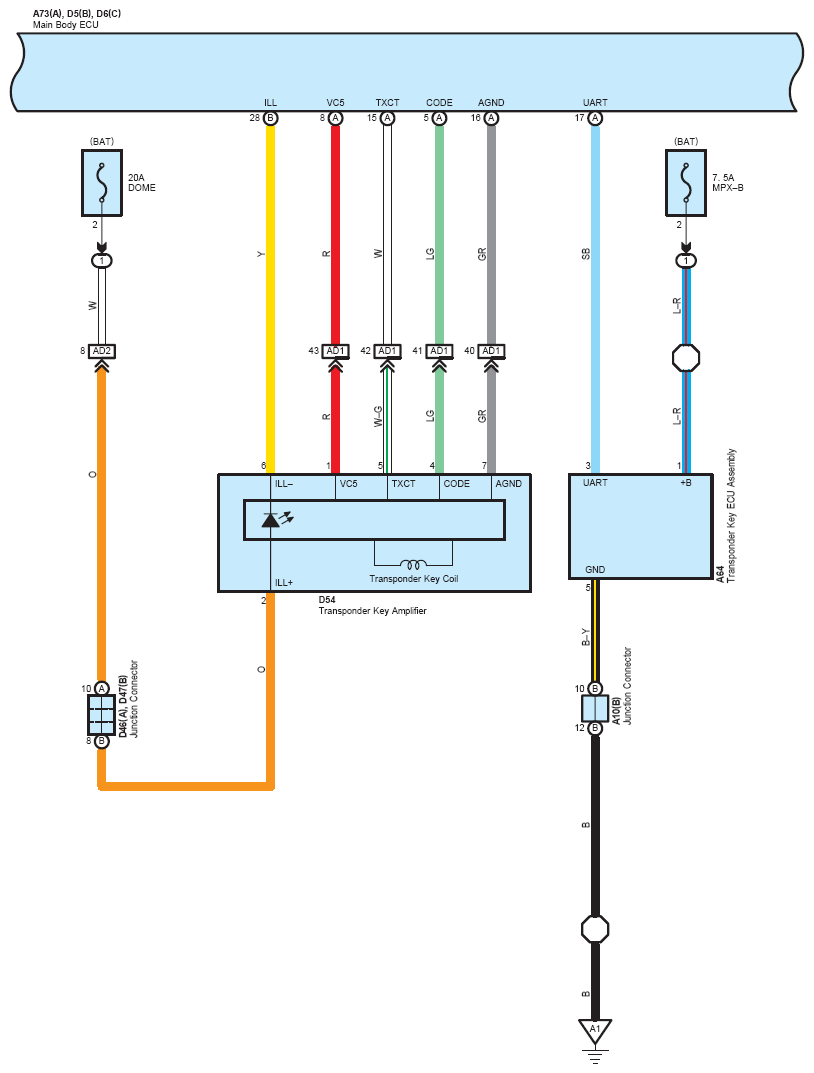

Fig 3: Engine Immobilizer System - Wiring Diagram (3 Of 5)
G08774112Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

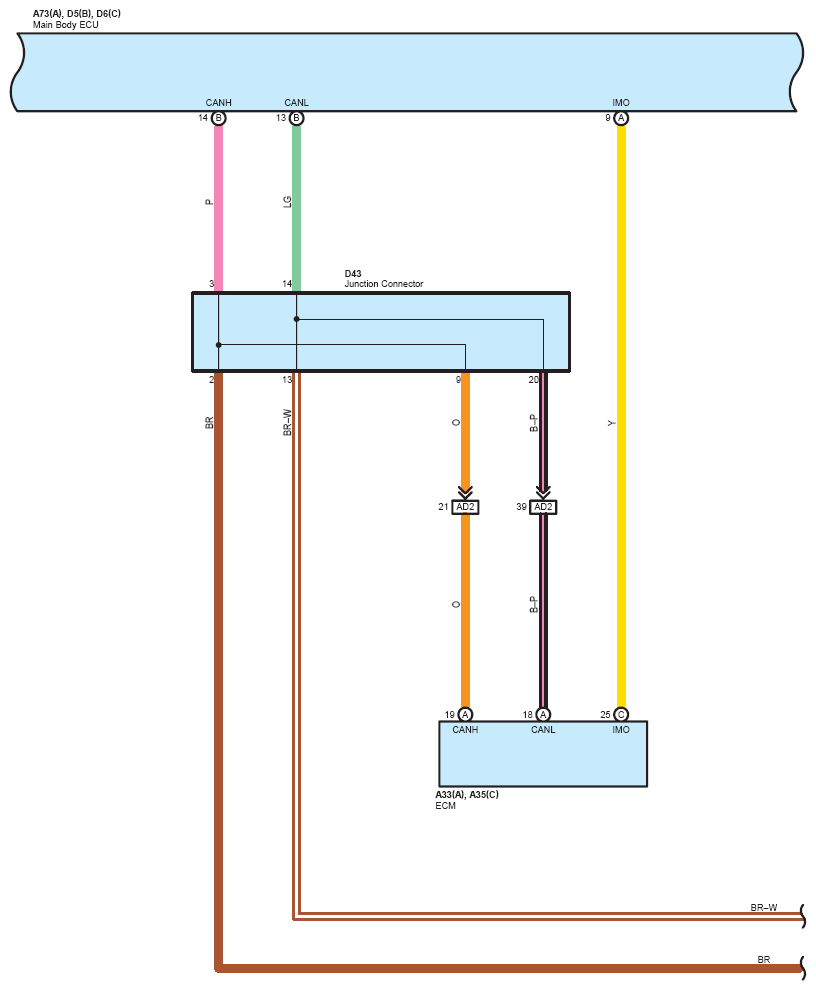

Fig 4: Engine Immobilizer System - Wiring Diagram (4 Of 5)
G08774113Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

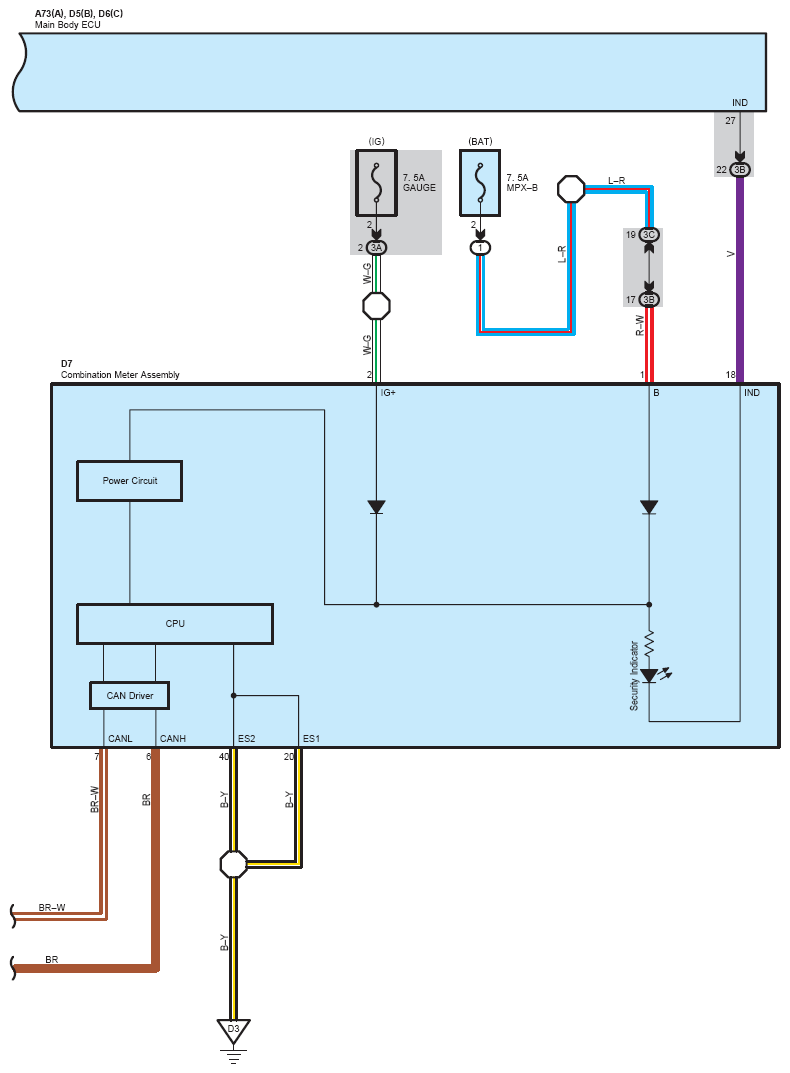

Fig 5: Engine Immobilizer System - Wiring Diagram (5 Of 5)
G08774114Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
