Interior Light: Notes

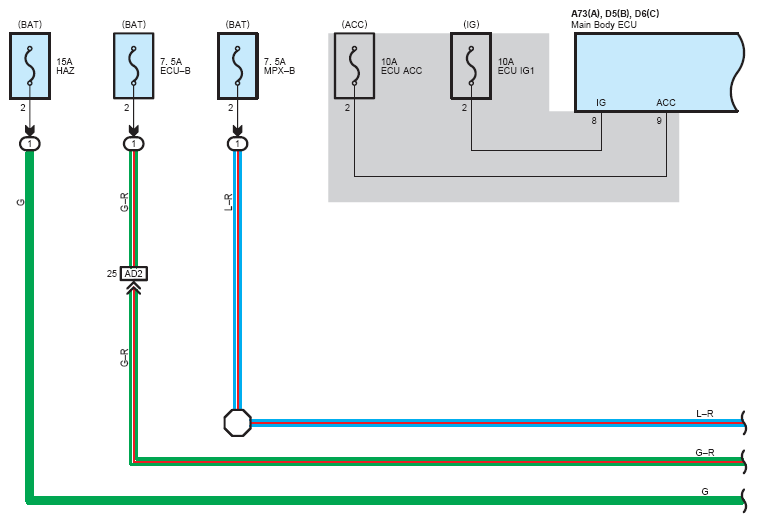

Fig 1: Interior Light - Wiring Diagram (1 Of 4)
G08774143Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

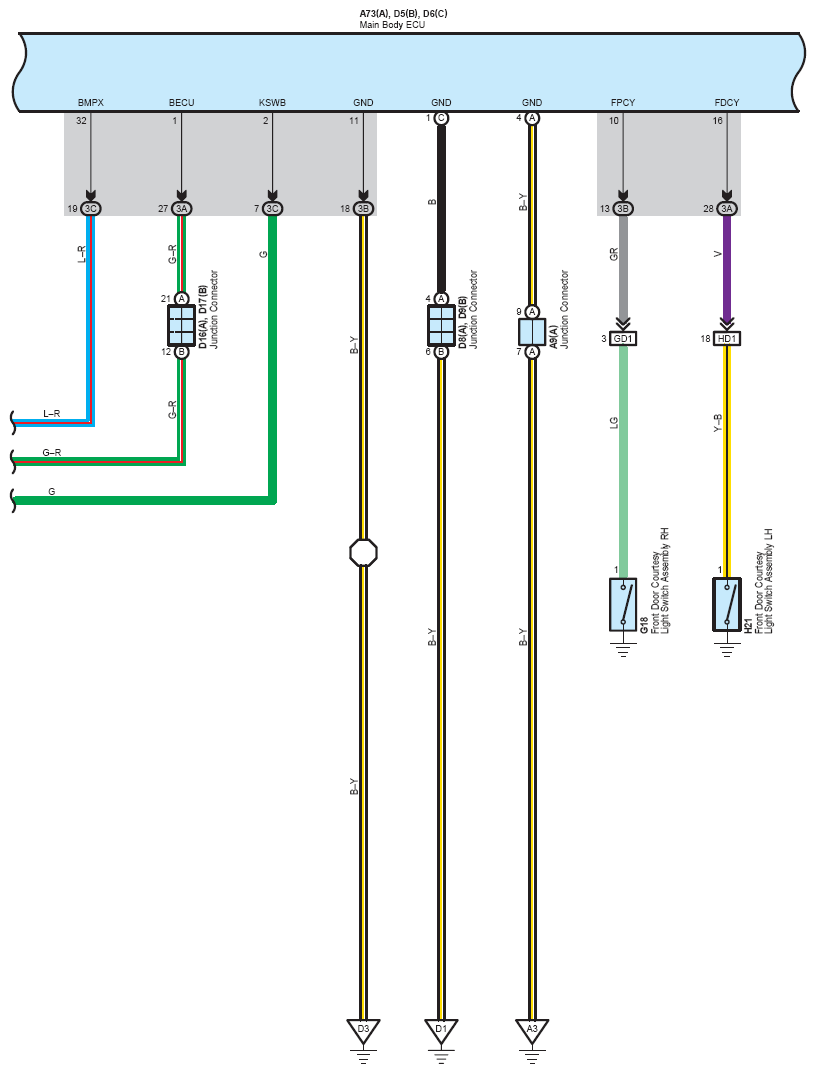

Fig 2: Interior Light - Wiring Diagram (2 Of 4)
G08774144Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

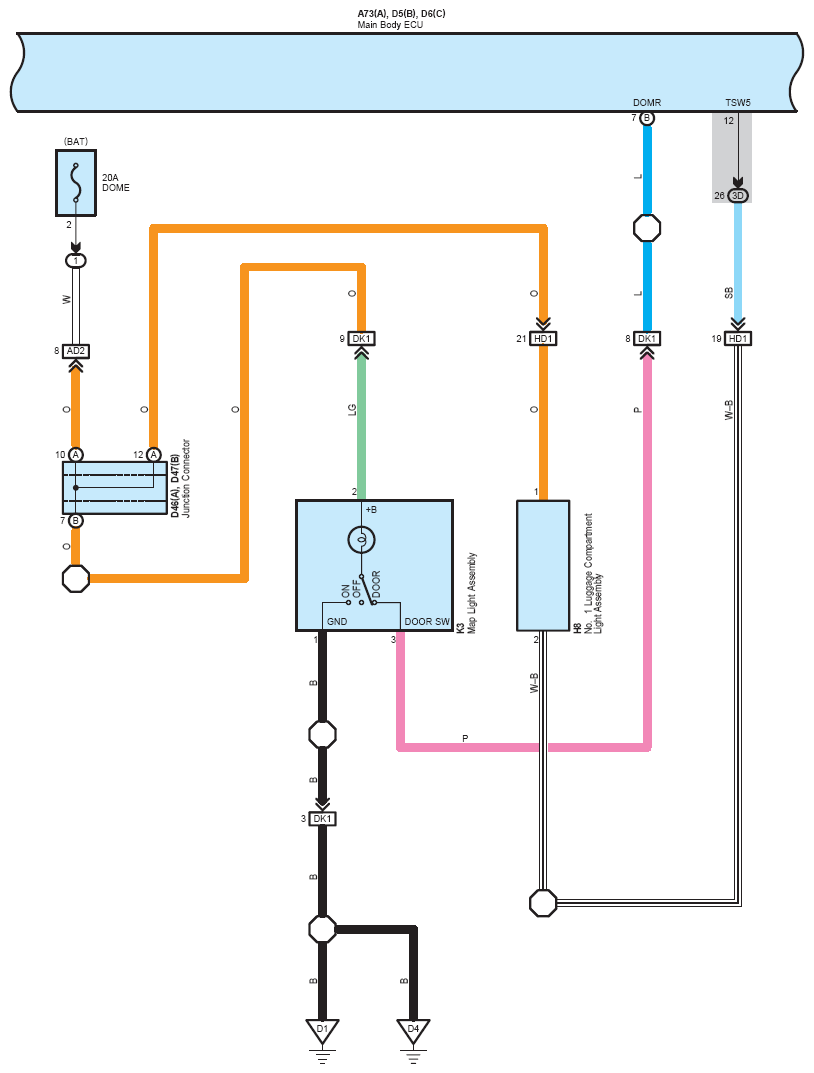

Fig 3: Interior Light - Wiring Diagram (3 Of 4)
G08774145Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

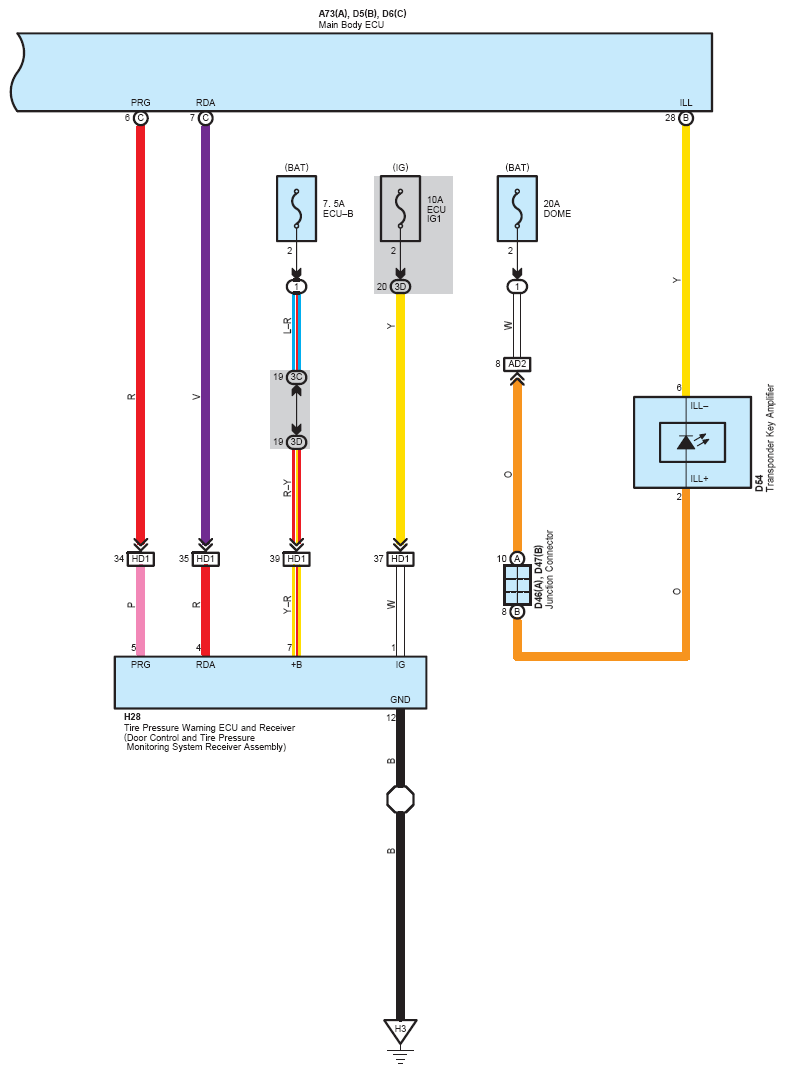

Fig 4: Interior Light - Wiring Diagram (4 Of 4)
G08774146Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
