Power Window: Notes

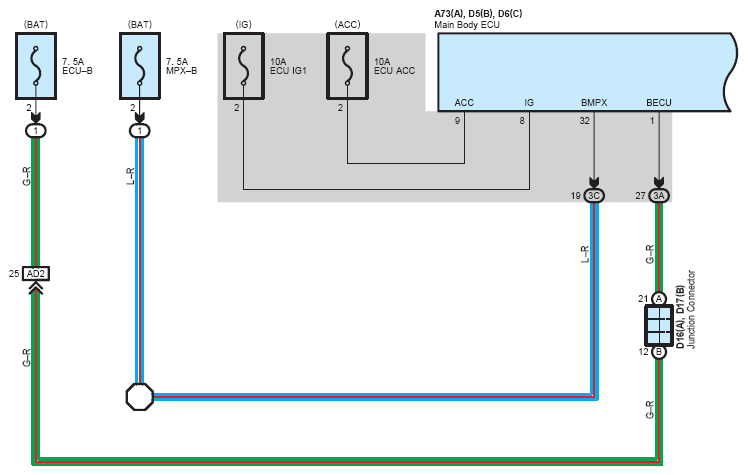

Fig 1: Power Window - Wiring Diagram (1 Of 5)
G08774183Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

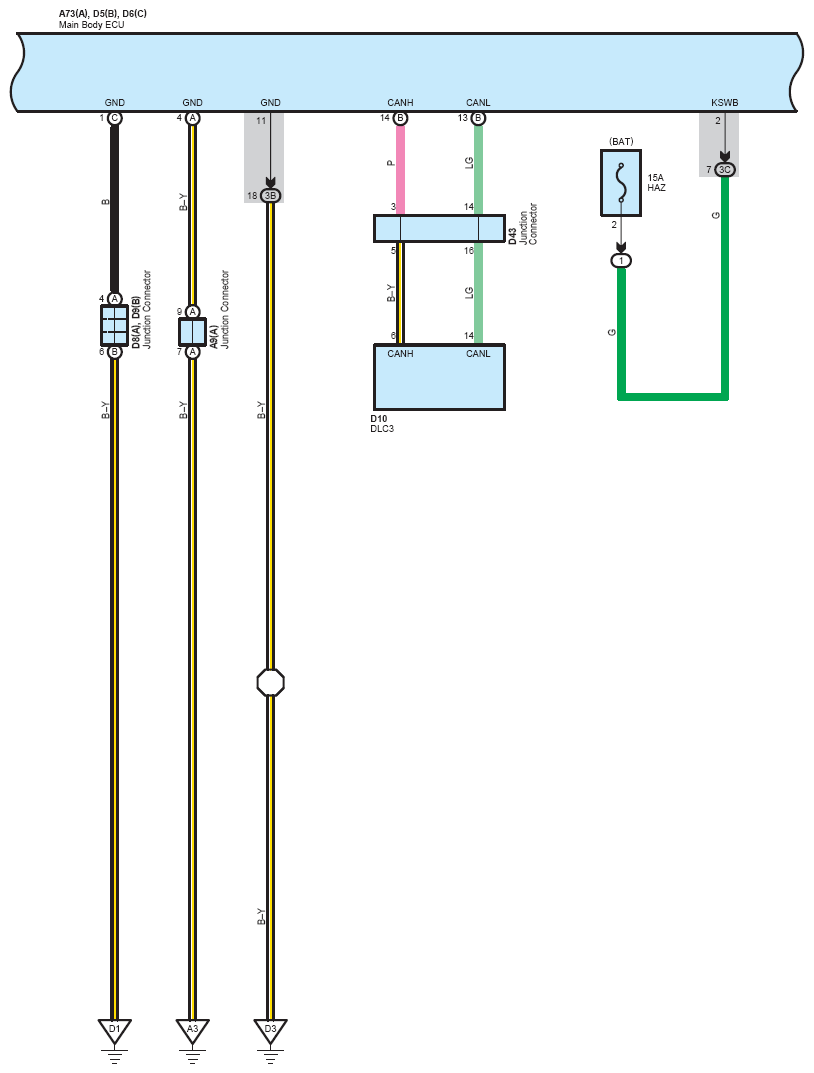

Fig 2: Power Window - Wiring Diagram (2 Of 5)
G08774184Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

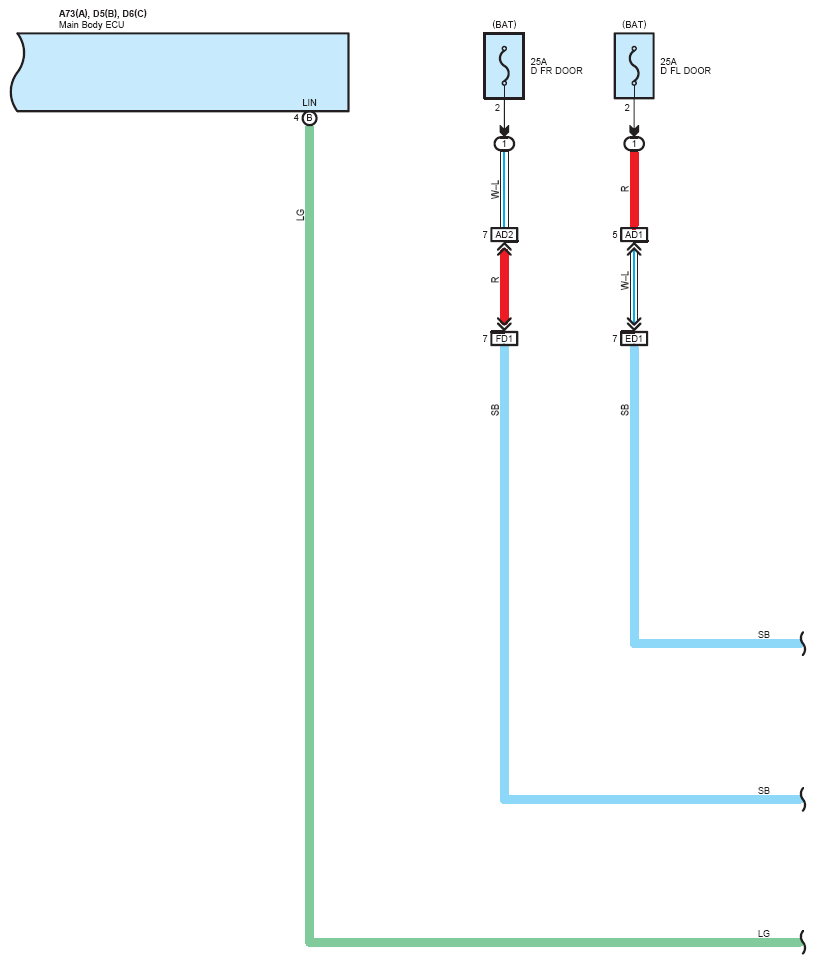

Fig 3: Power Window - Wiring Diagram (3 Of 5)
G08774185Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

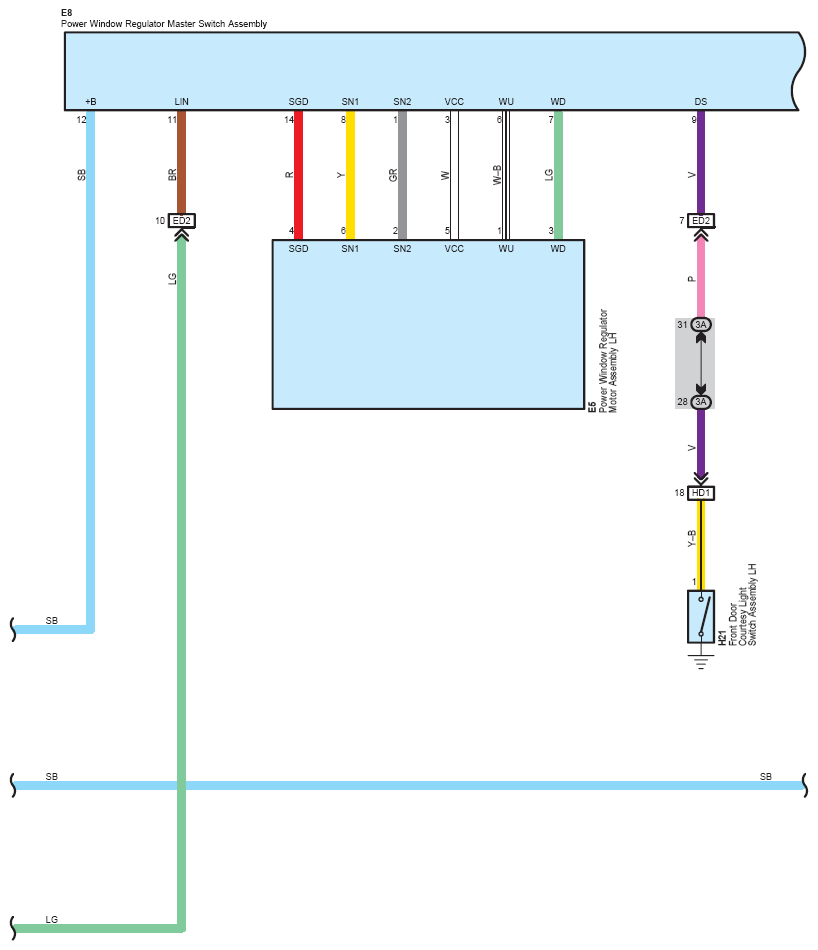

Fig 4: Power Window - Wiring Diagram (4 Of 5)
G08774186Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

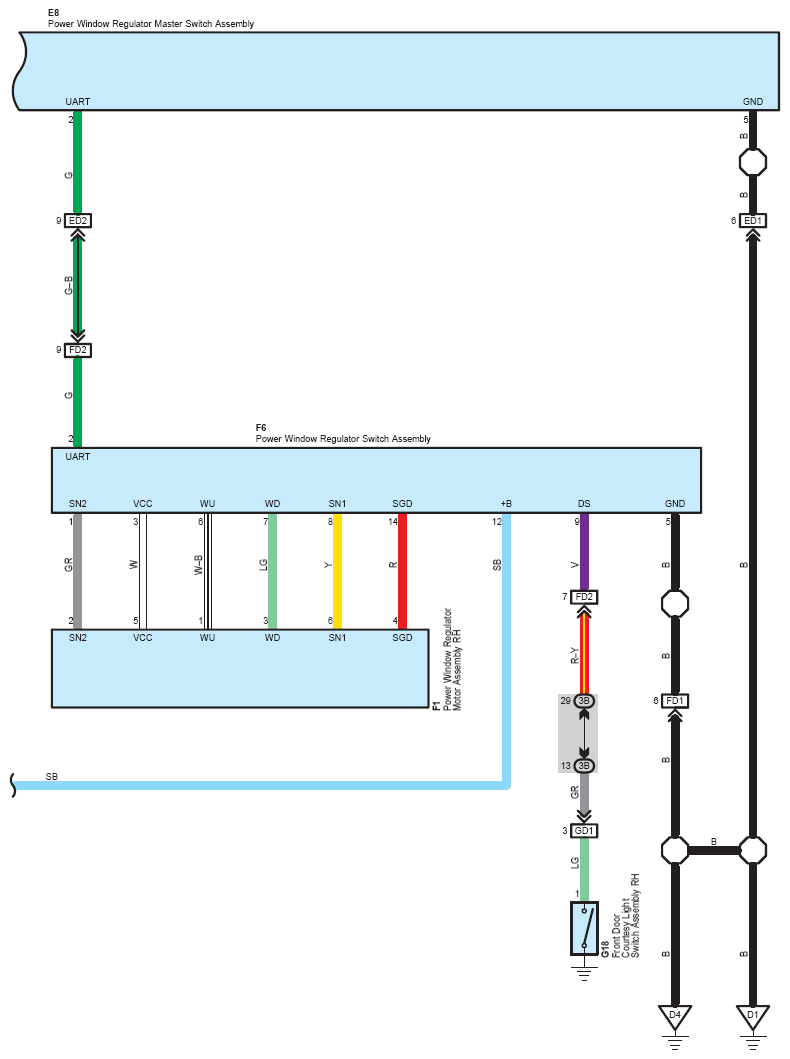

Fig 5: Power Window - Wiring Diagram (5 Of 5)
G08774187Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
