CVT, Engine Control and Shift Indicator: Notes

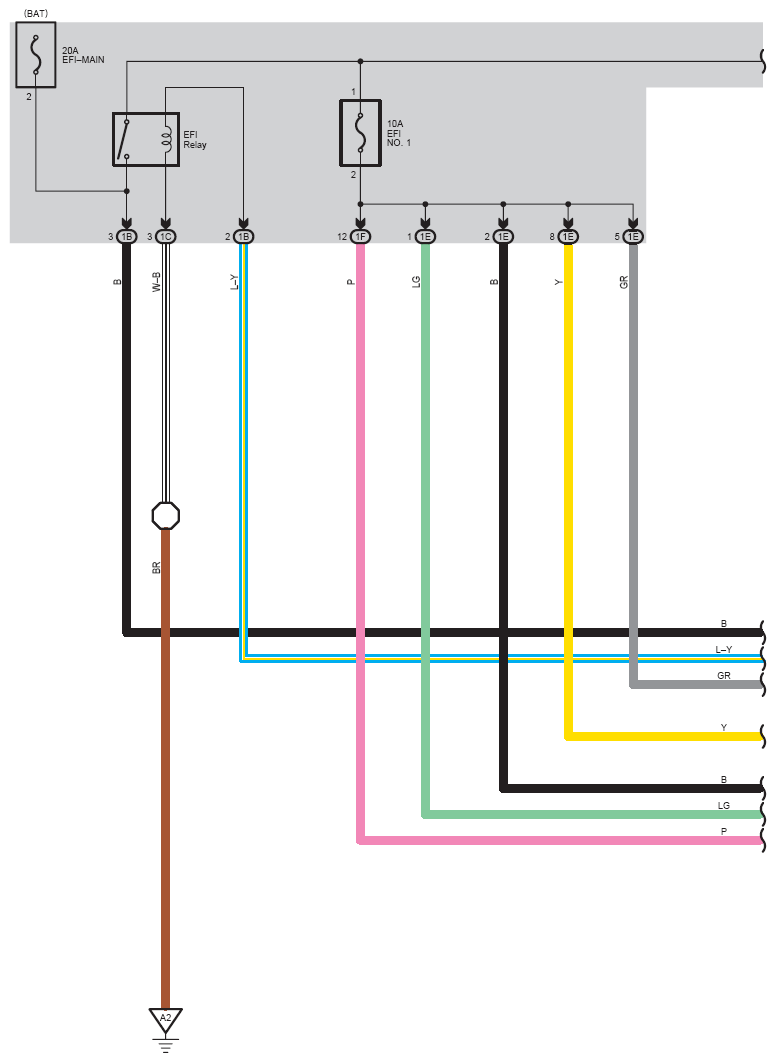

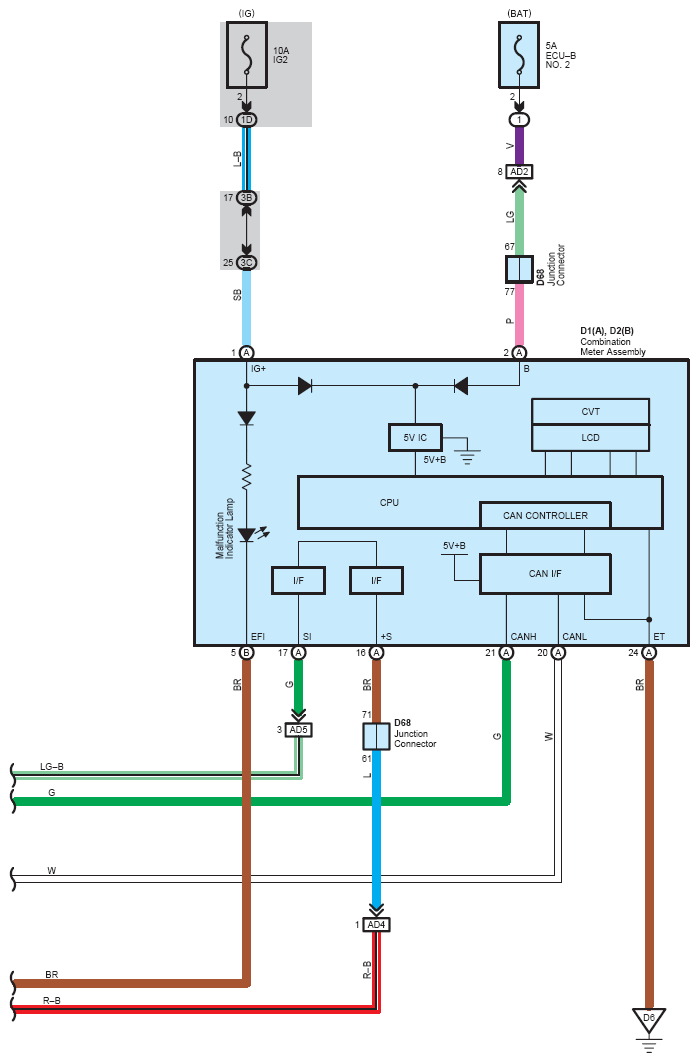

Fig 1: CVT, Engine Control And Shift Indicator - Wiring Diagram (1 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

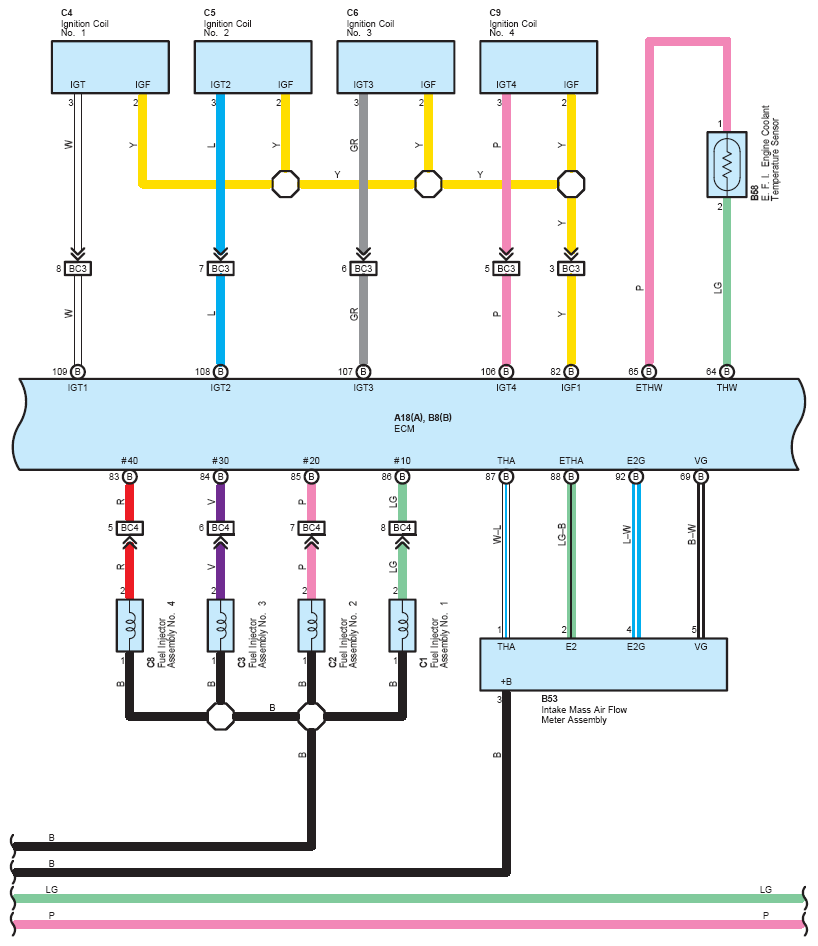

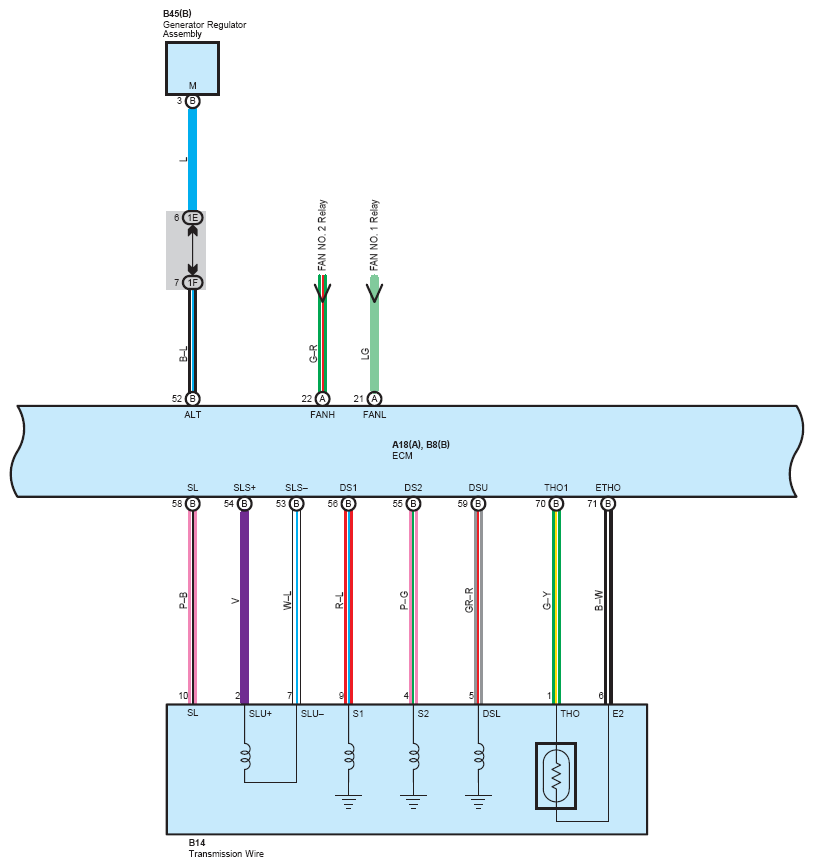

Fig 2: CVT, Engine Control And Shift Indicator - Wiring Diagram (2 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

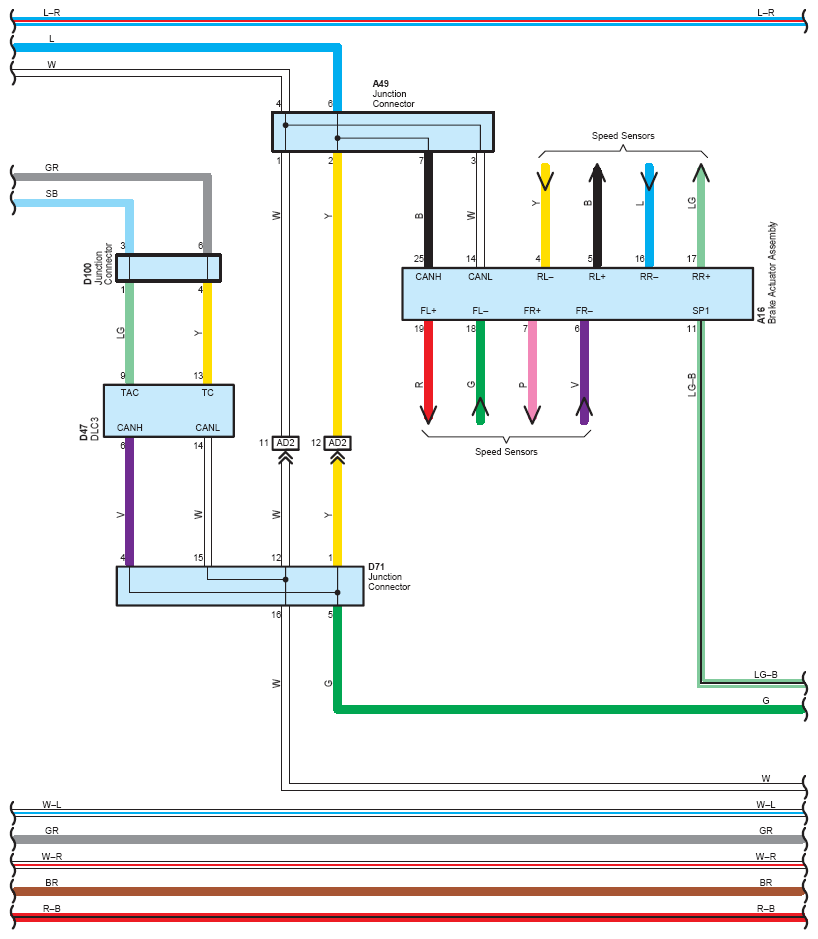

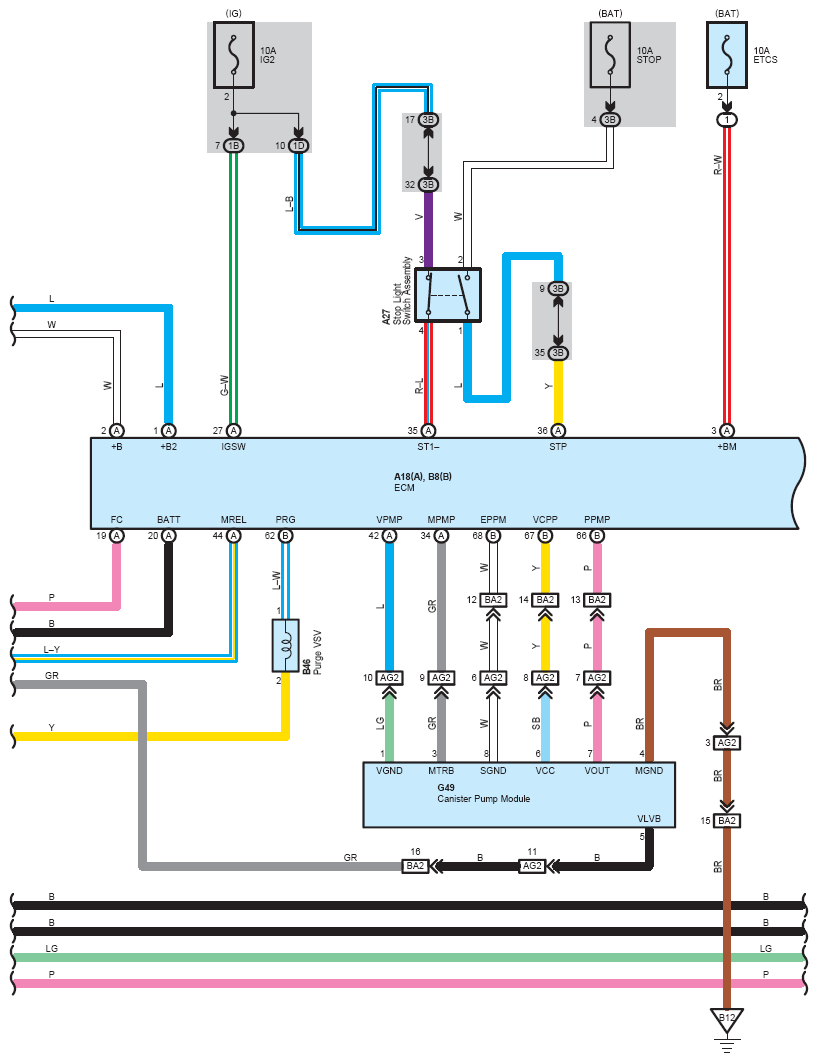

Fig 3: CVT, Engine Control And Shift Indicator - Wiring Diagram (3 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

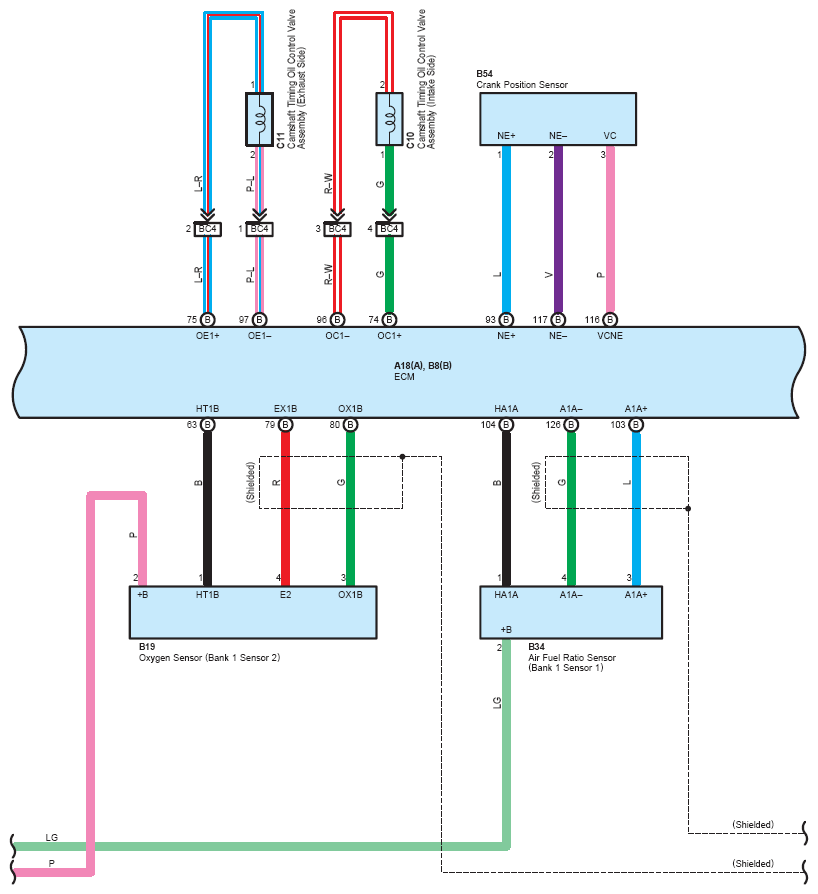

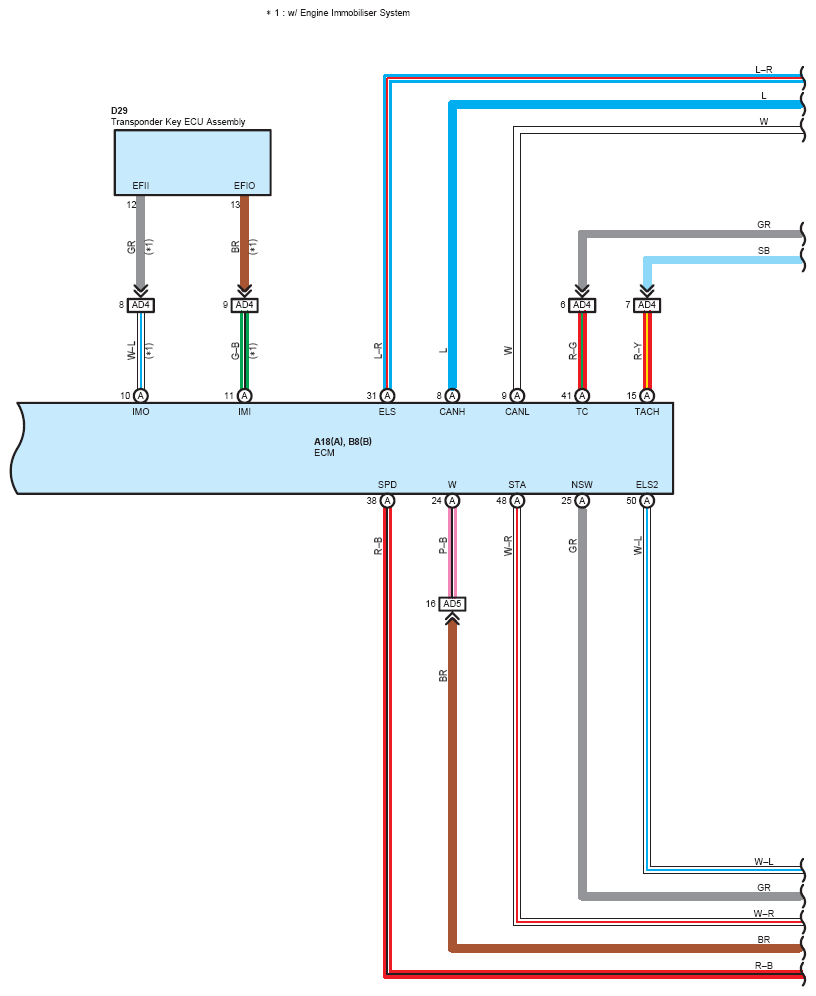

Fig 4: CVT, Engine Control And Shift Indicator - Wiring Diagram (4 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

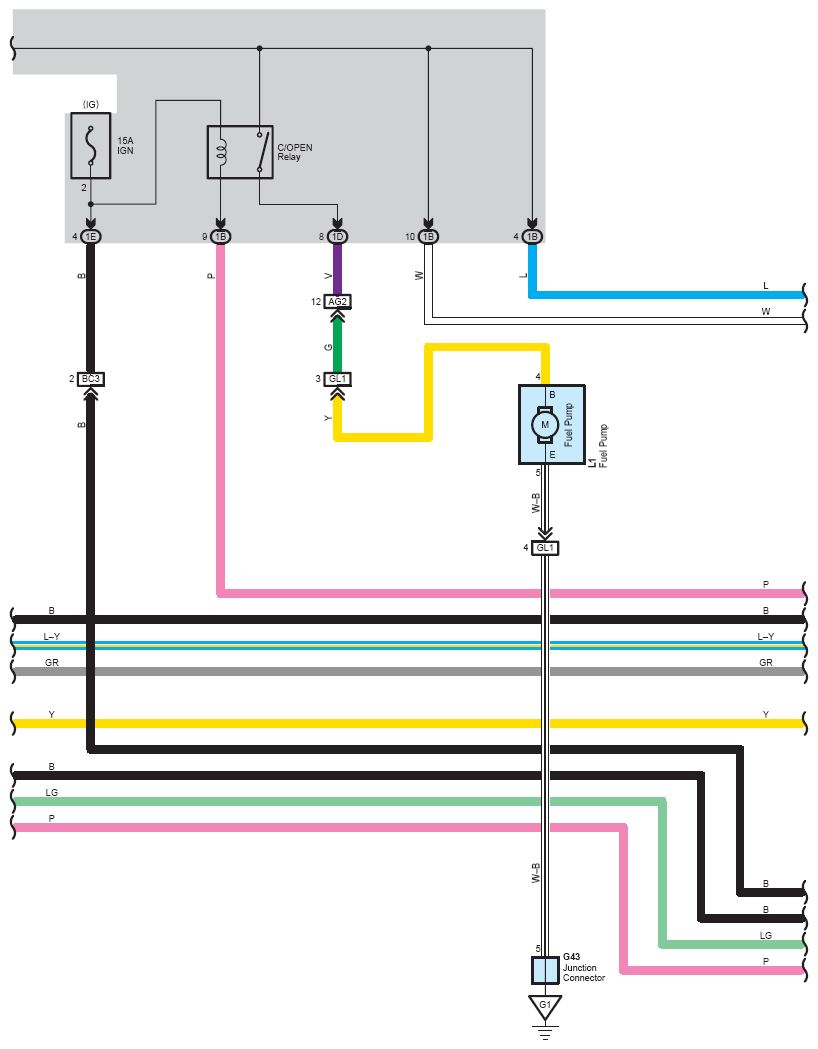

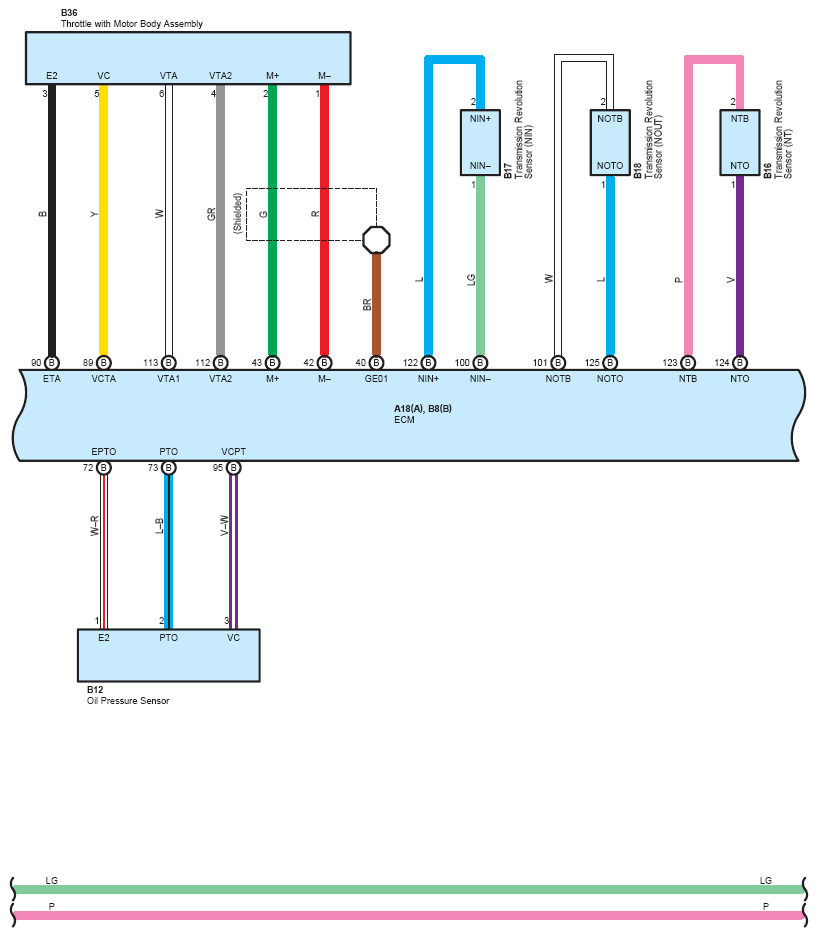

Fig 5: CVT, Engine Control And Shift Indicator - Wiring Diagram (5 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

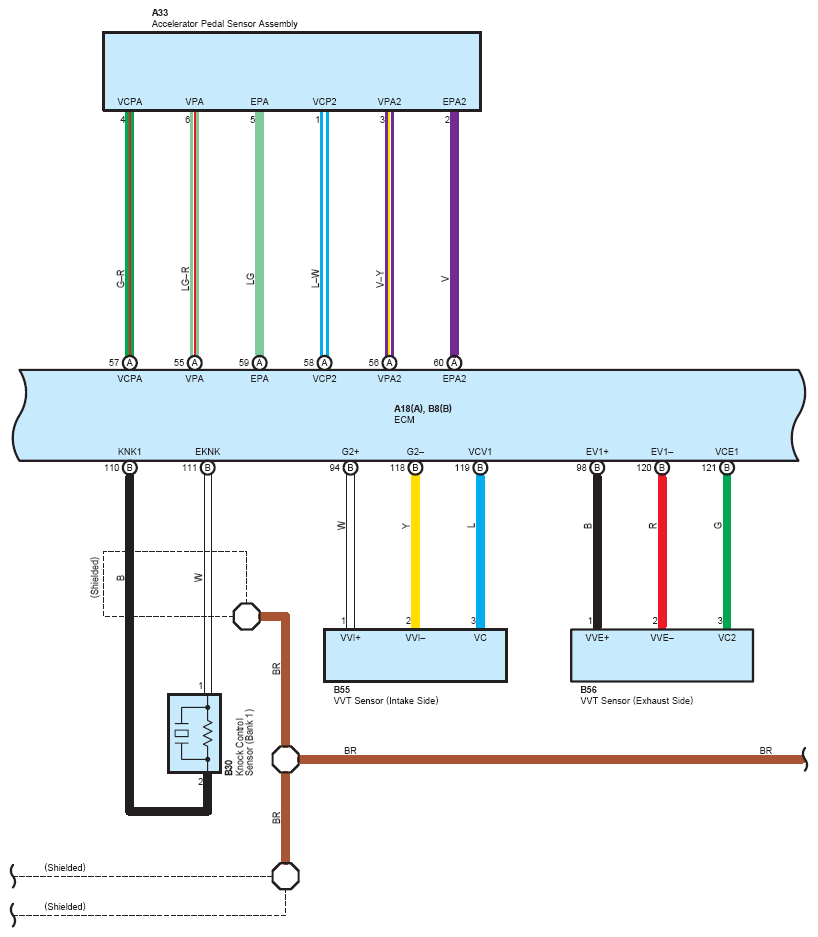

Fig 6: CVT, Engine Control And Shift Indicator - Wiring Diagram (6 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

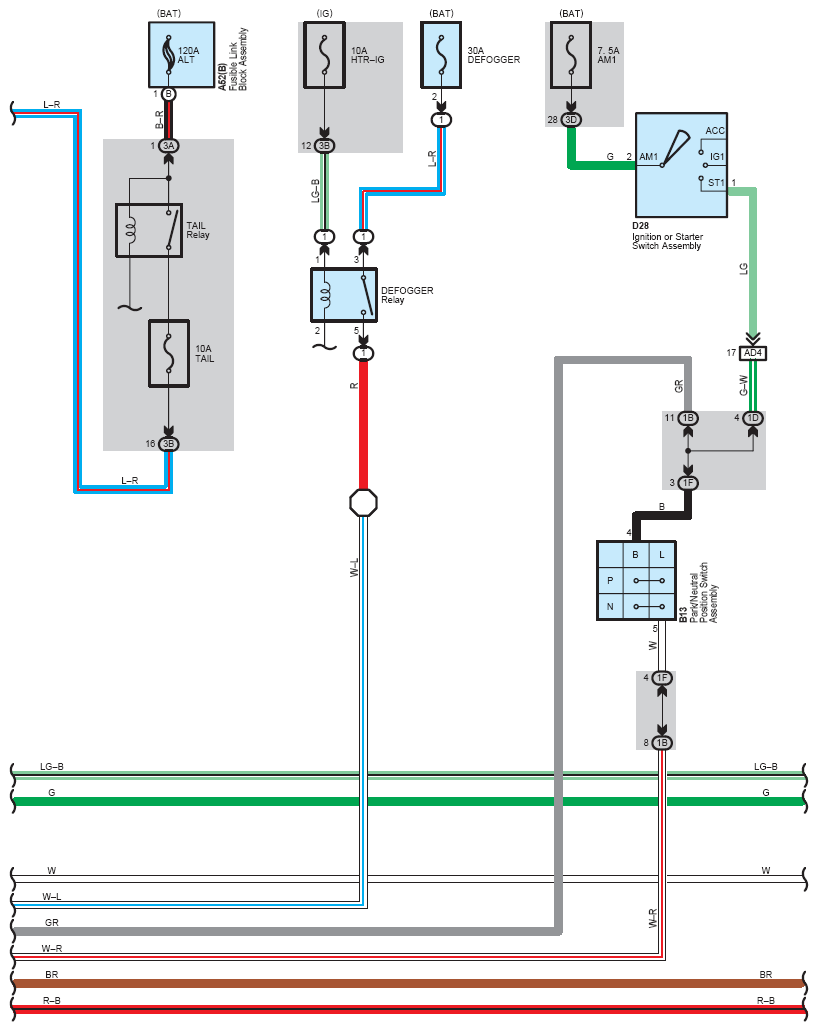

Fig 7: CVT, Engine Control And Shift Indicator - Wiring Diagram (7 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

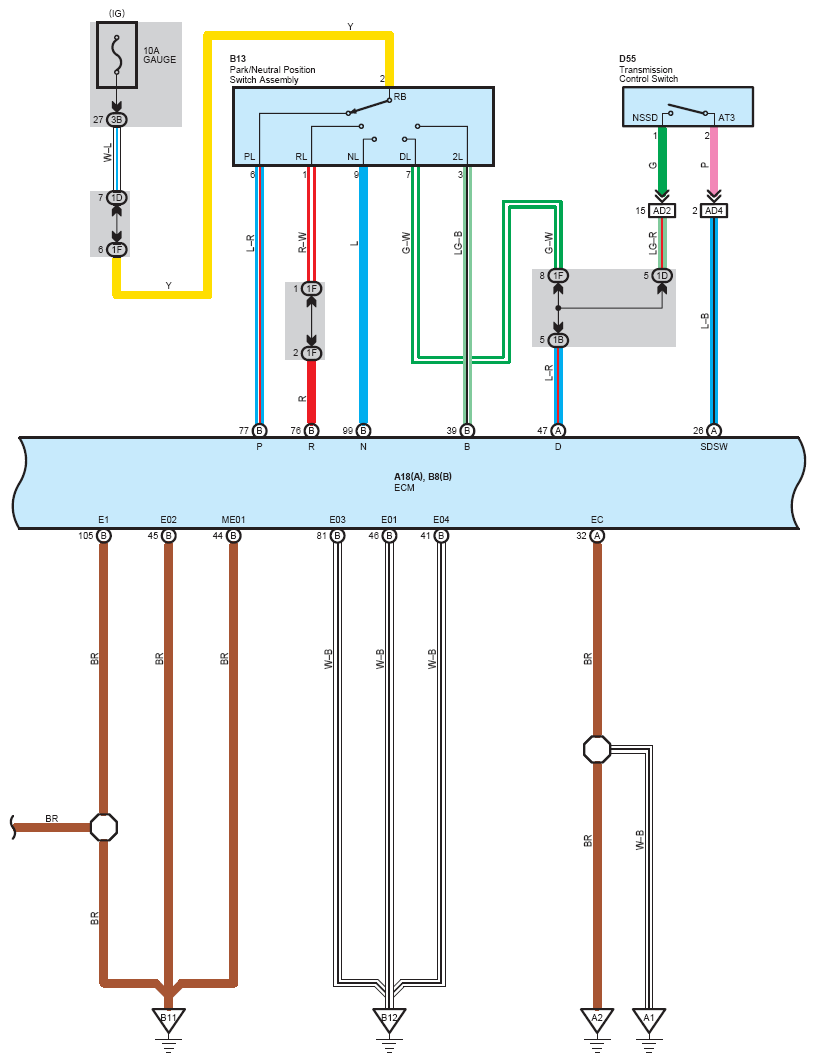

Fig 8: CVT, Engine Control And Shift Indicator - Wiring Diagram (8 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: CVT, Engine Control And Shift Indicator - Wiring Diagram (9 Of 13)

Fig 10: CVT, Engine Control And Shift Indicator - Wiring Diagram (10 Of 13)

Fig 11: CVT, Engine Control And Shift Indicator - Wiring Diagram (11 Of 13)

Fig 12: CVT, Engine Control And Shift Indicator - Wiring Diagram (12 Of 13)

Fig 13: CVT, Engine Control And Shift Indicator - Wiring Diagram (13 Of 13)
