Combination Meter: Notes

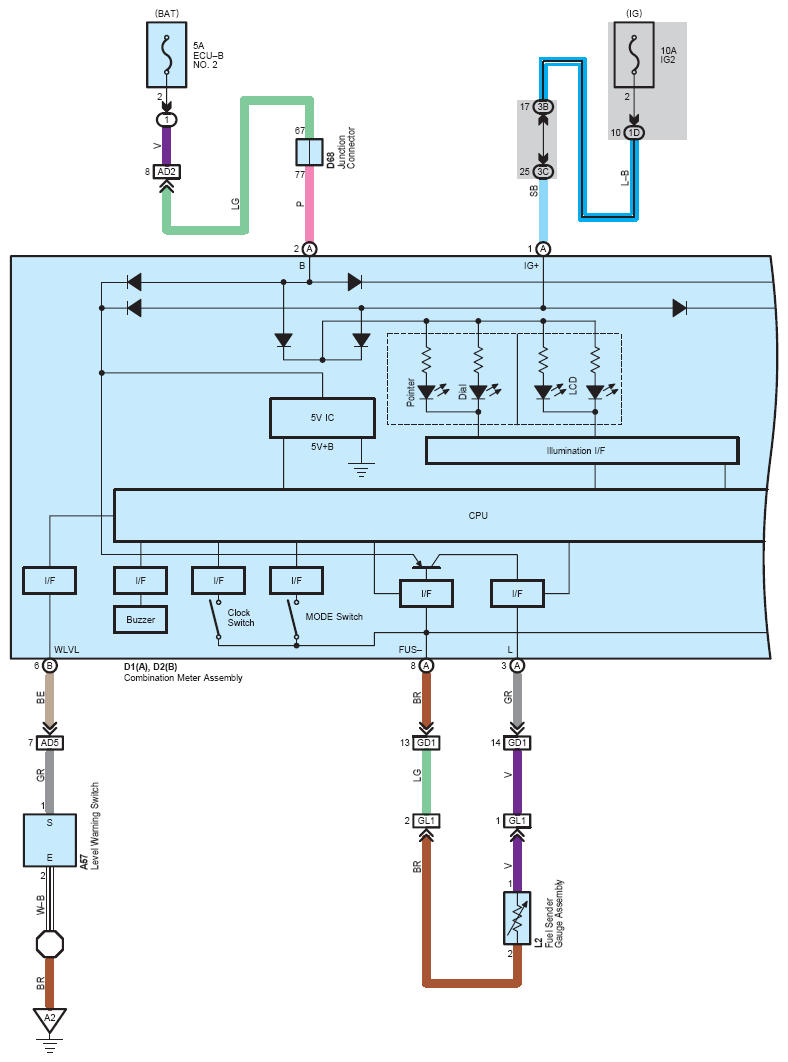

Fig 1: Combination Meter - Wiring Diagram (1 Of 6)
G08774724Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

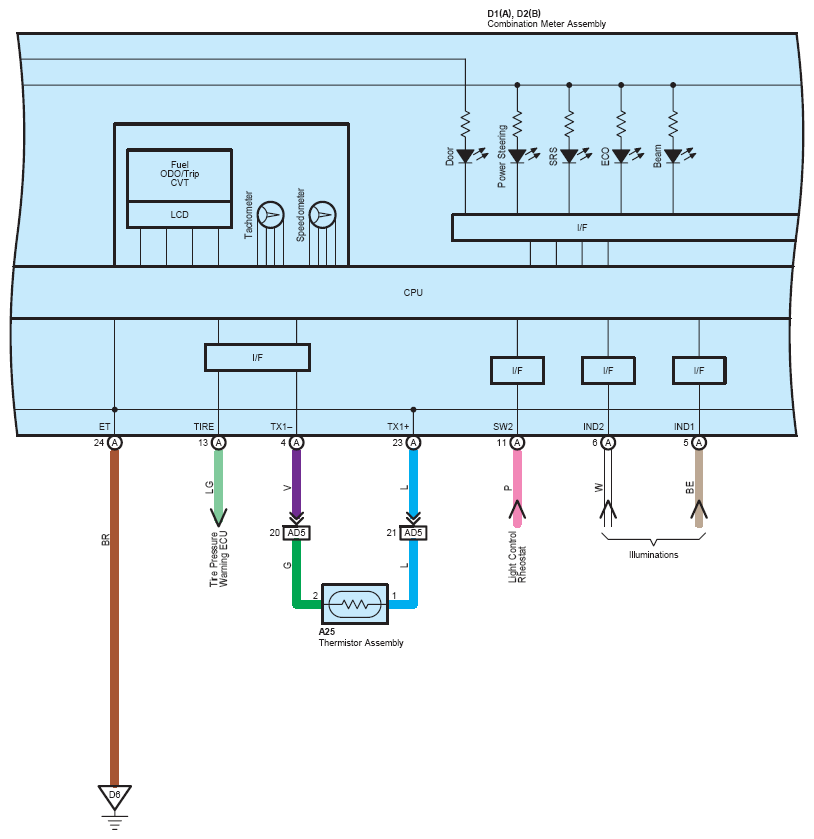

Fig 2: Combination Meter - Wiring Diagram (2 Of 6)
G08774725Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

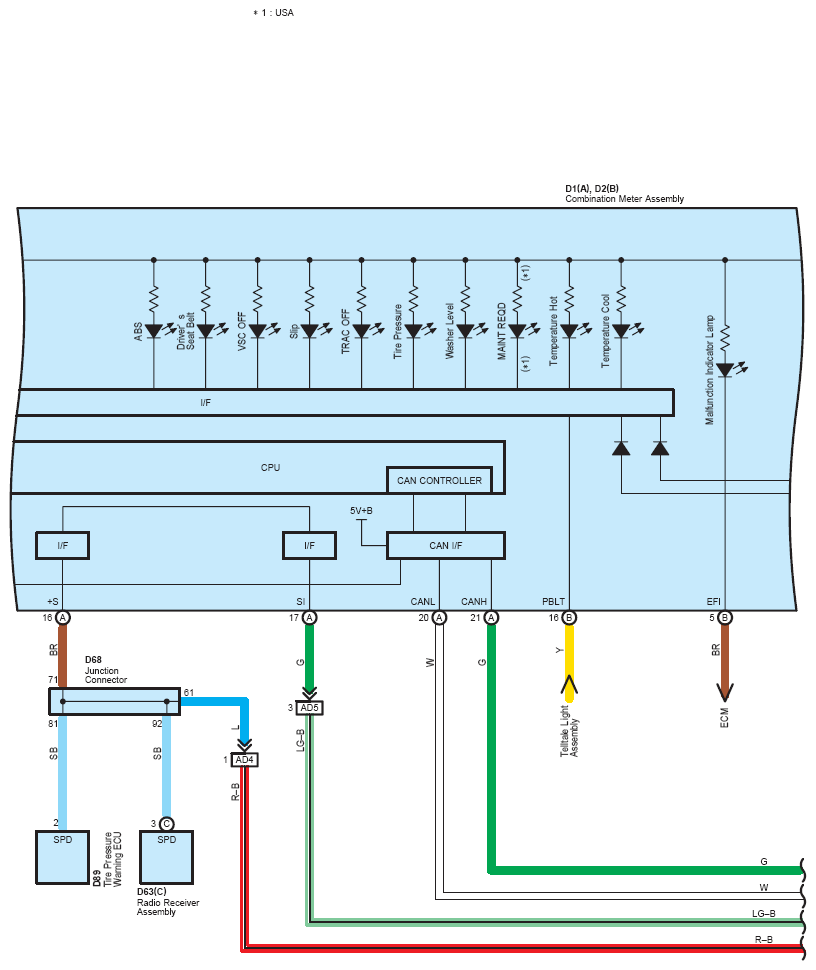

Fig 3: Combination Meter - Wiring Diagram (3 Of 6)
G08774726Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

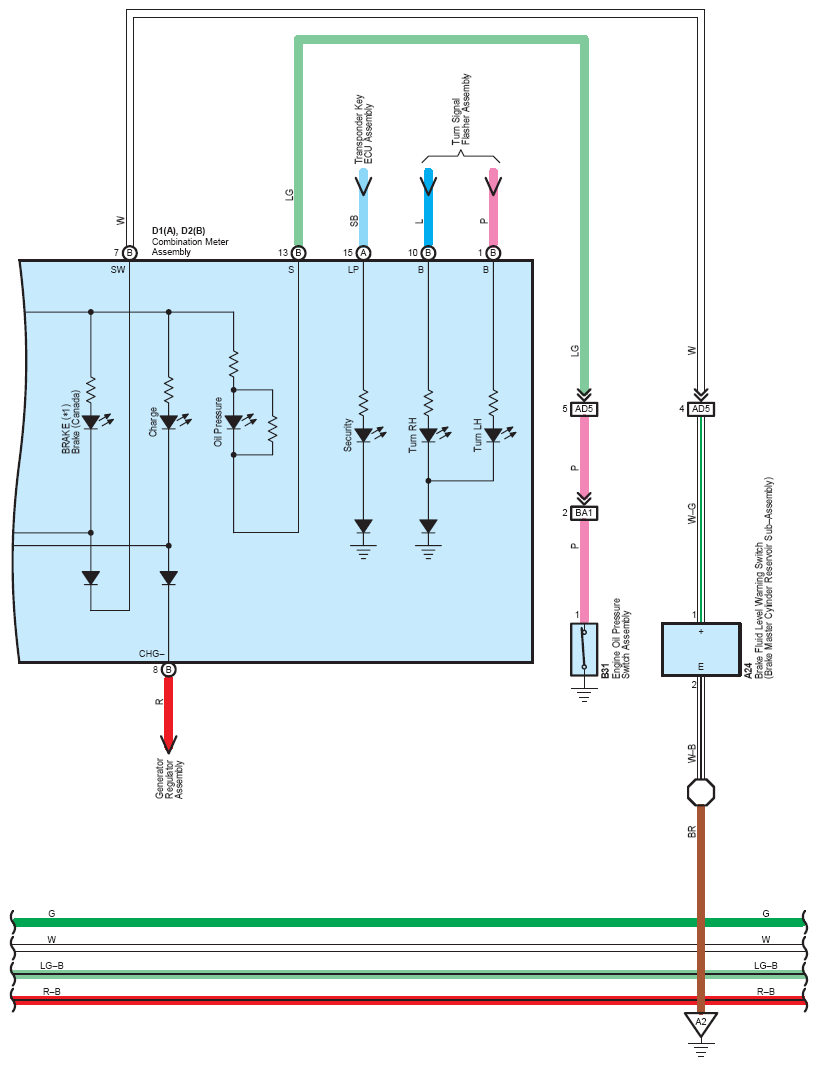

Fig 4: Combination Meter - Wiring Diagram (4 Of 6)
G08774727Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

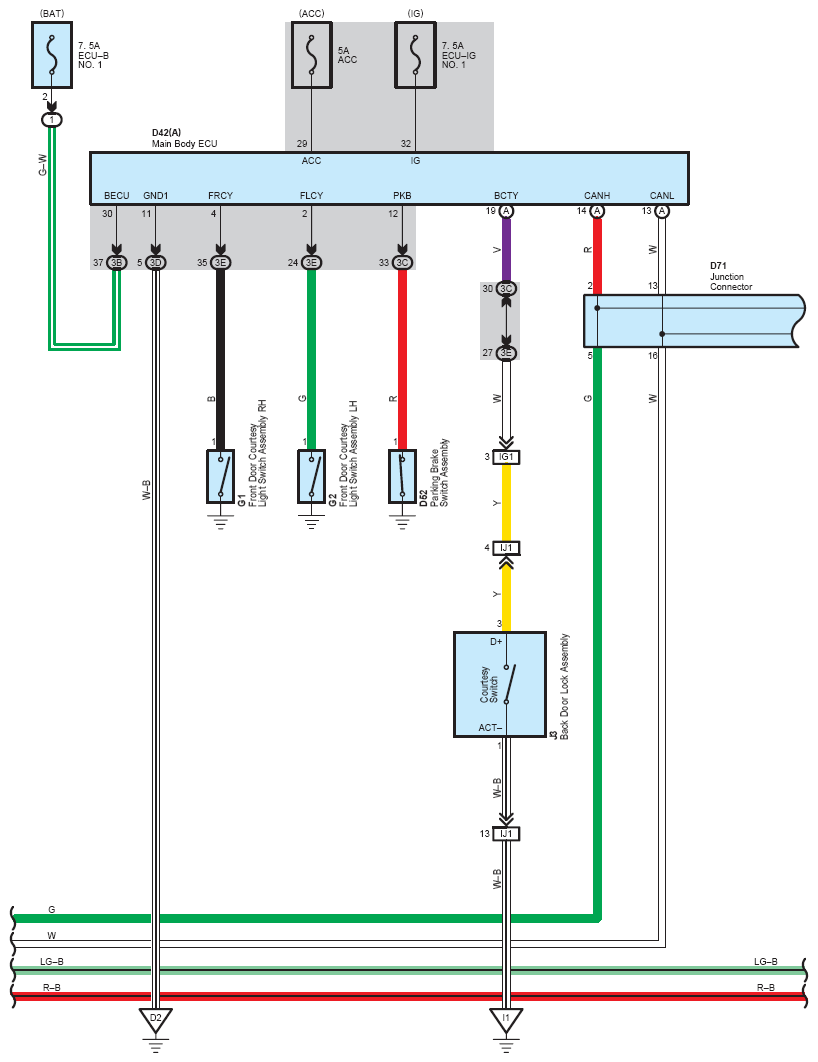

Fig 5: Combination Meter - Wiring Diagram (5 Of 6)
G08774728Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

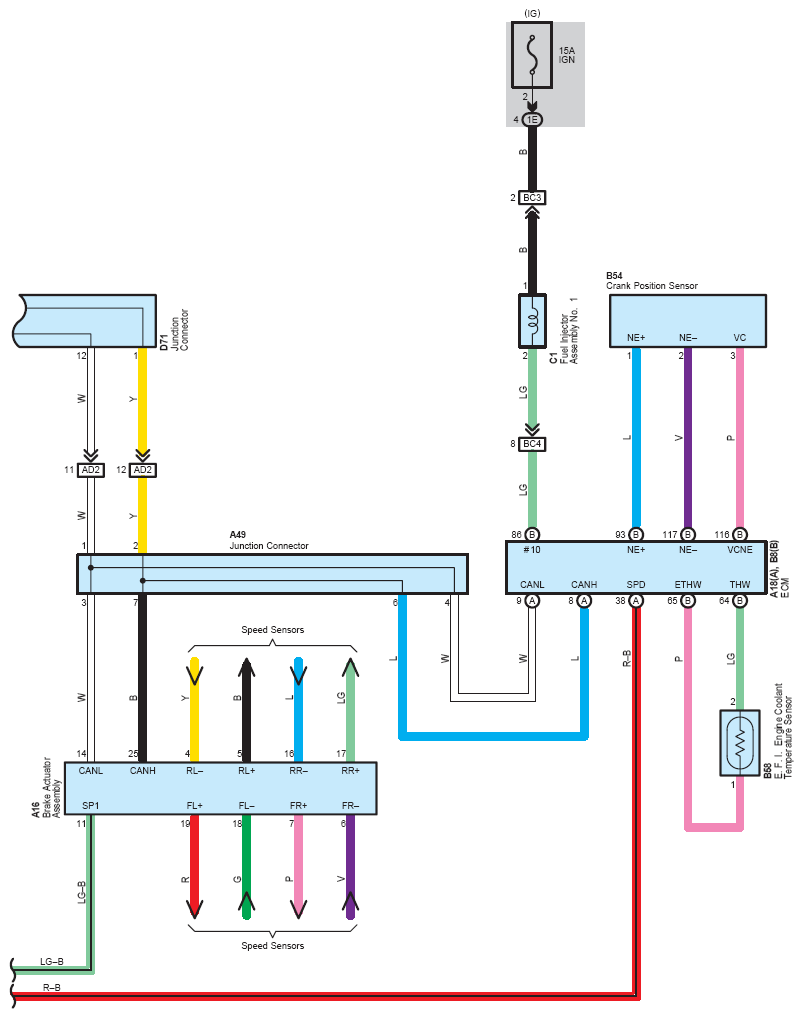

Fig 6: Combination Meter - Wiring Diagram (6 Of 6)
G08774729Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
