Door Lock Control: Notes

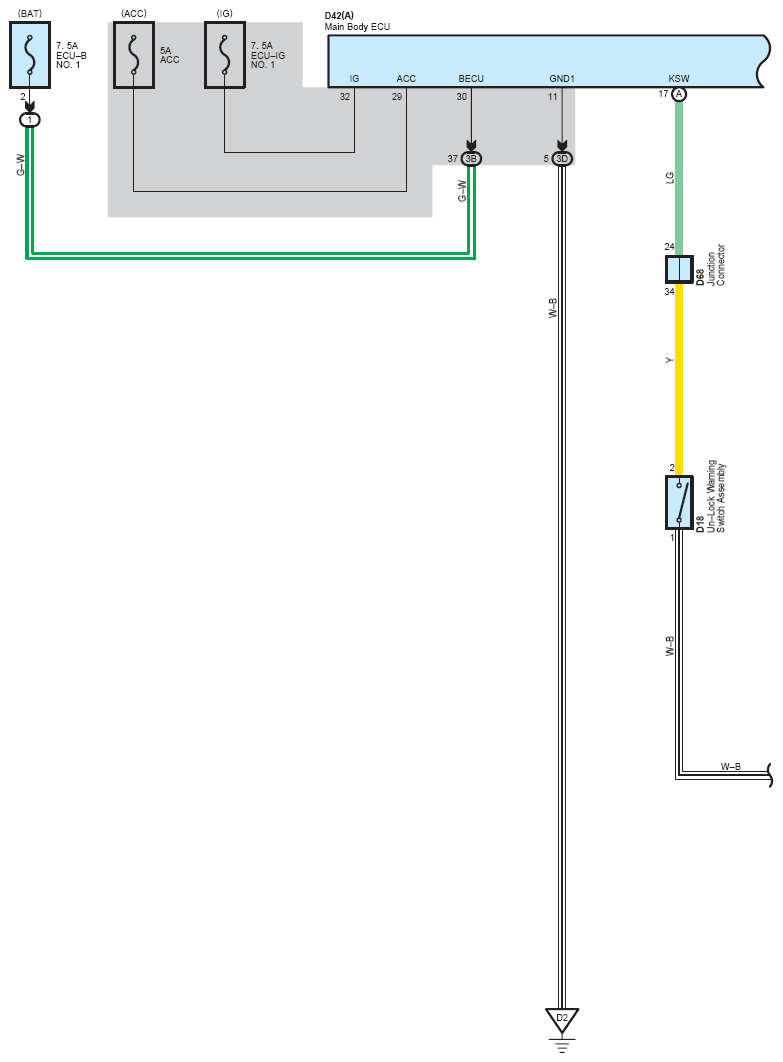

Fig 1: Door Lock Control - Wiring Diagram (1 Of 4)
G08774703Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

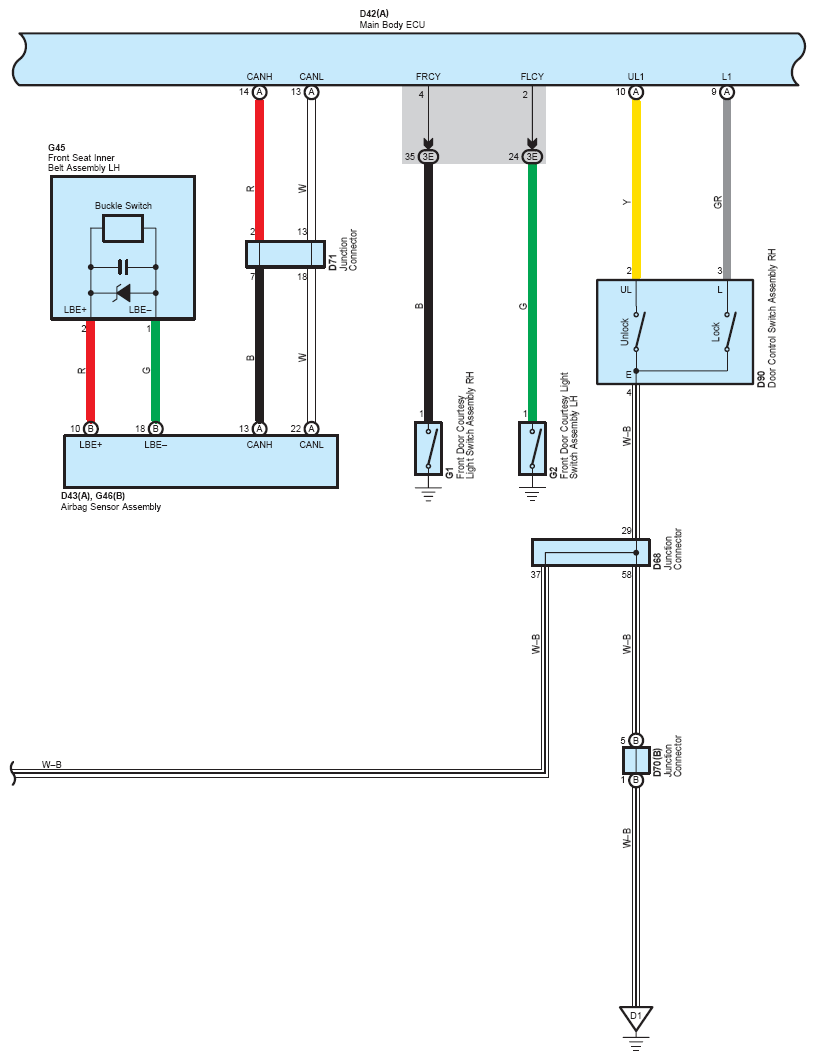

Fig 2: Door Lock Control - Wiring Diagram (2 Of 4)
G08774704Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

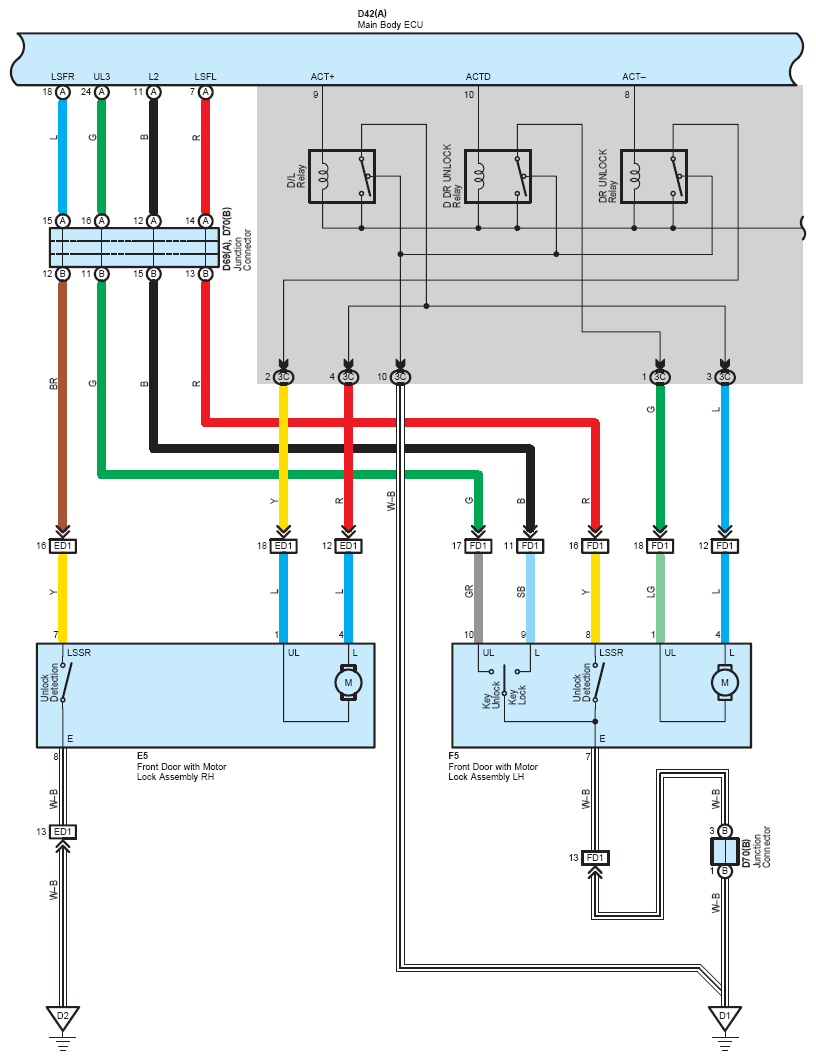

Fig 3: Door Lock Control - Wiring Diagram (3 Of 4)
G08774705Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

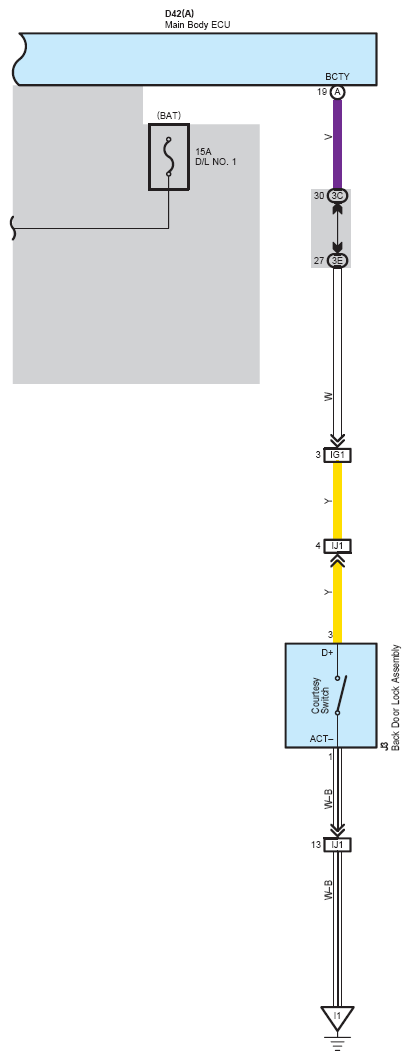

Fig 4: Door Lock Control - Wiring Diagram (4 Of 4)
G08774706Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
