Parts Location: Illustration

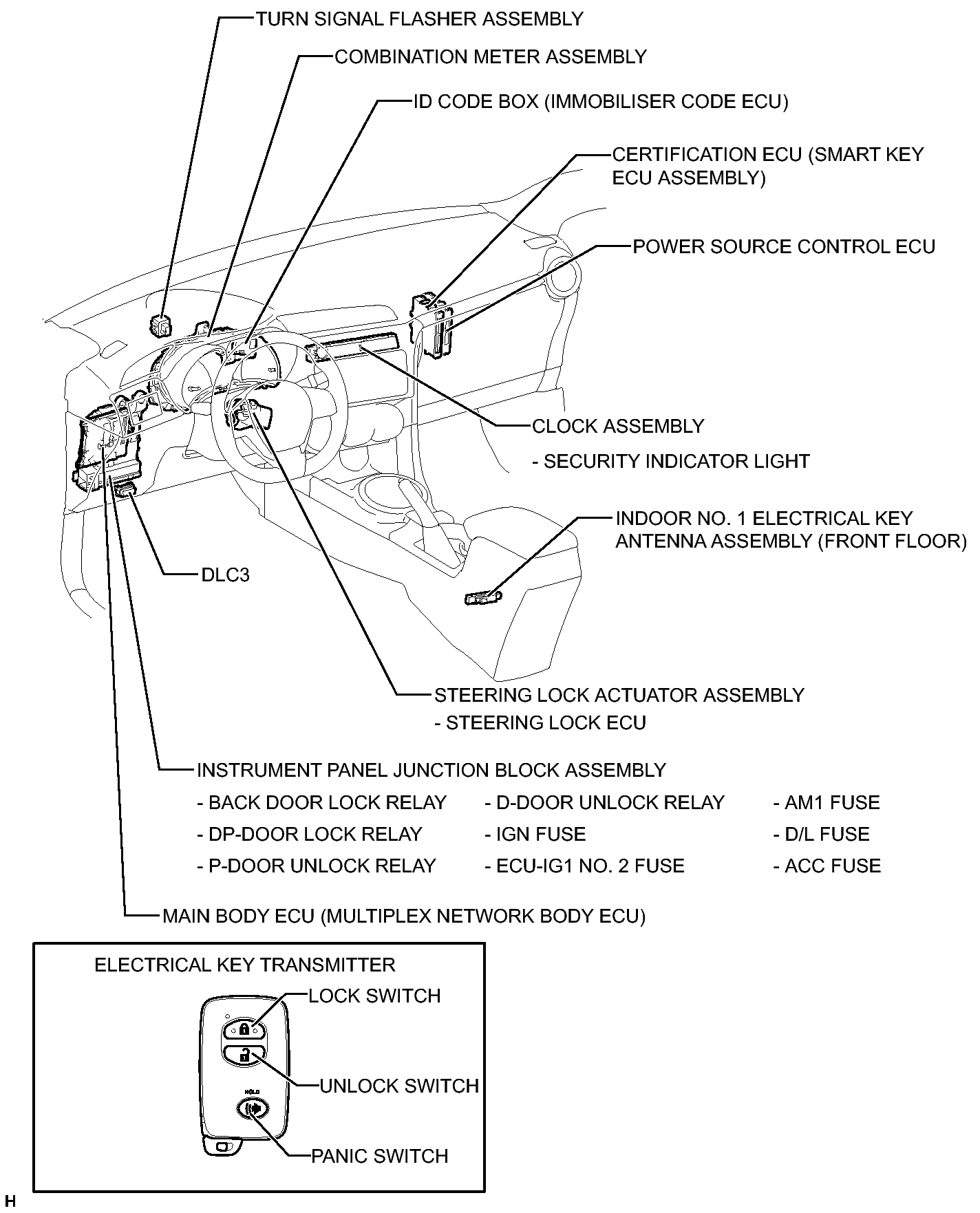

Fig 1: Identifying Smart Key System Components Location (1 Of 3)
GTY310337Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

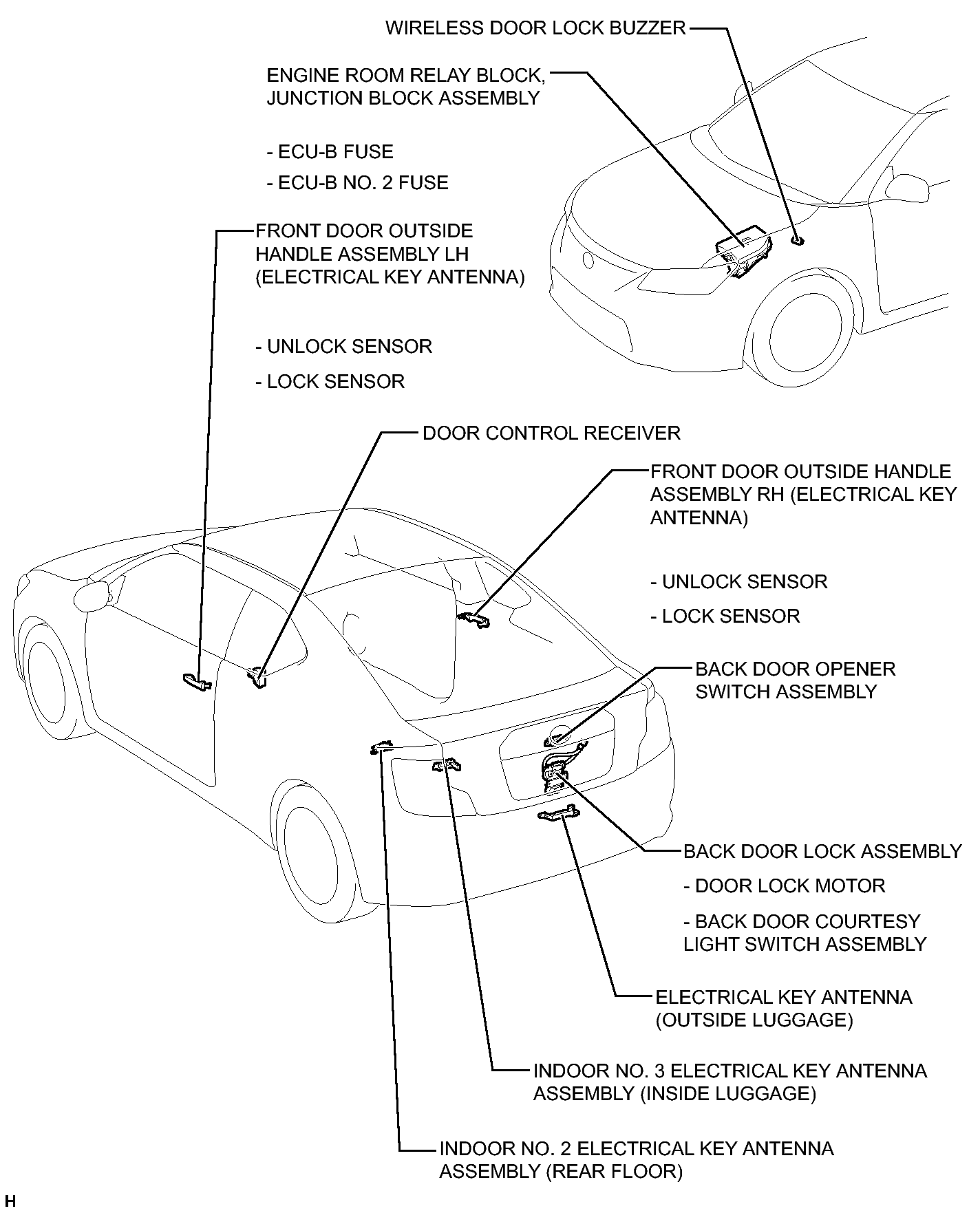

Fig 1: Identifying Smart Key System Components Location (2 Of 3)
GTY387928Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

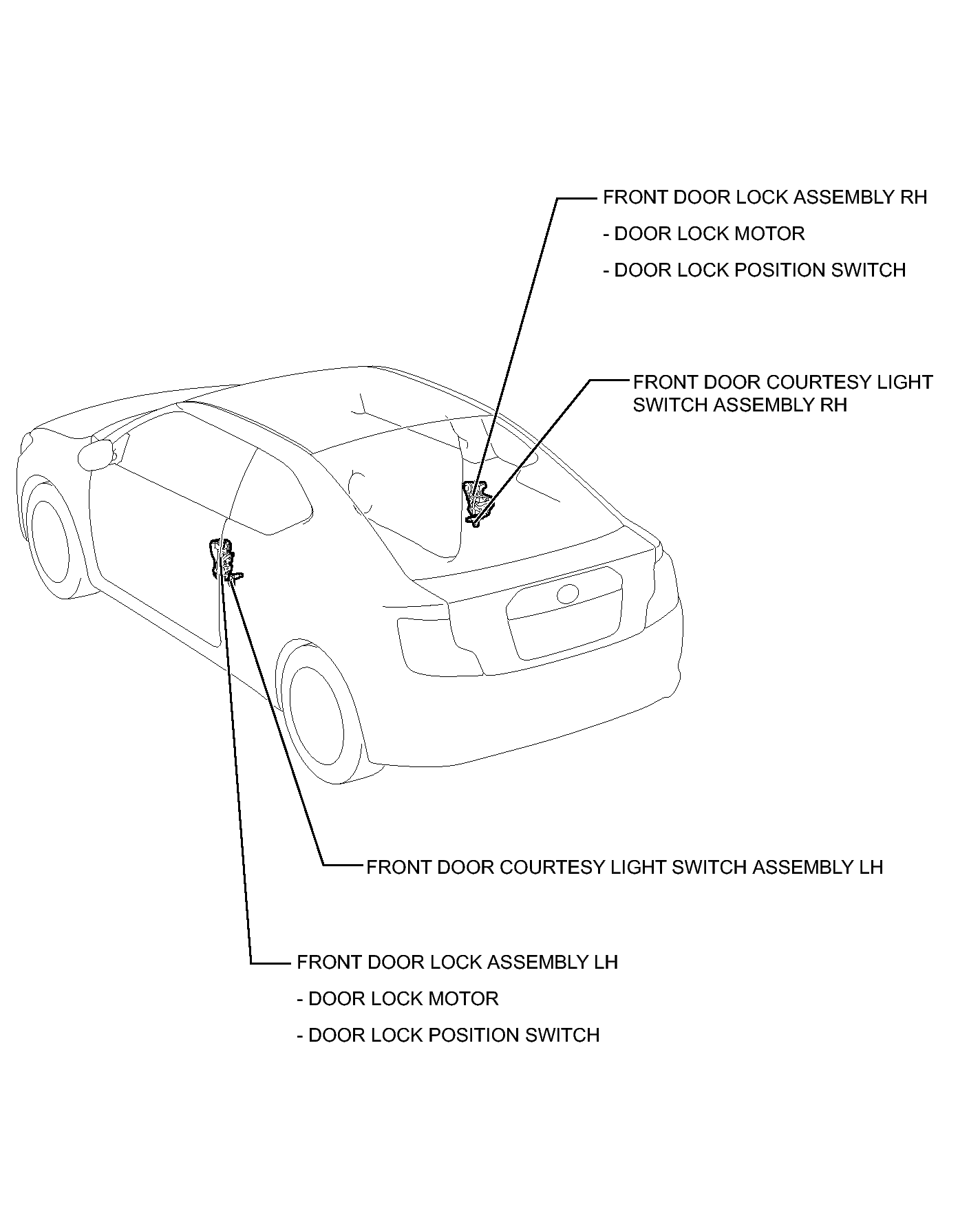

Fig 1: Identifying Smart Key System Components Location (3 Of 3)
GTY313371Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
