Air Conditioning: Notes

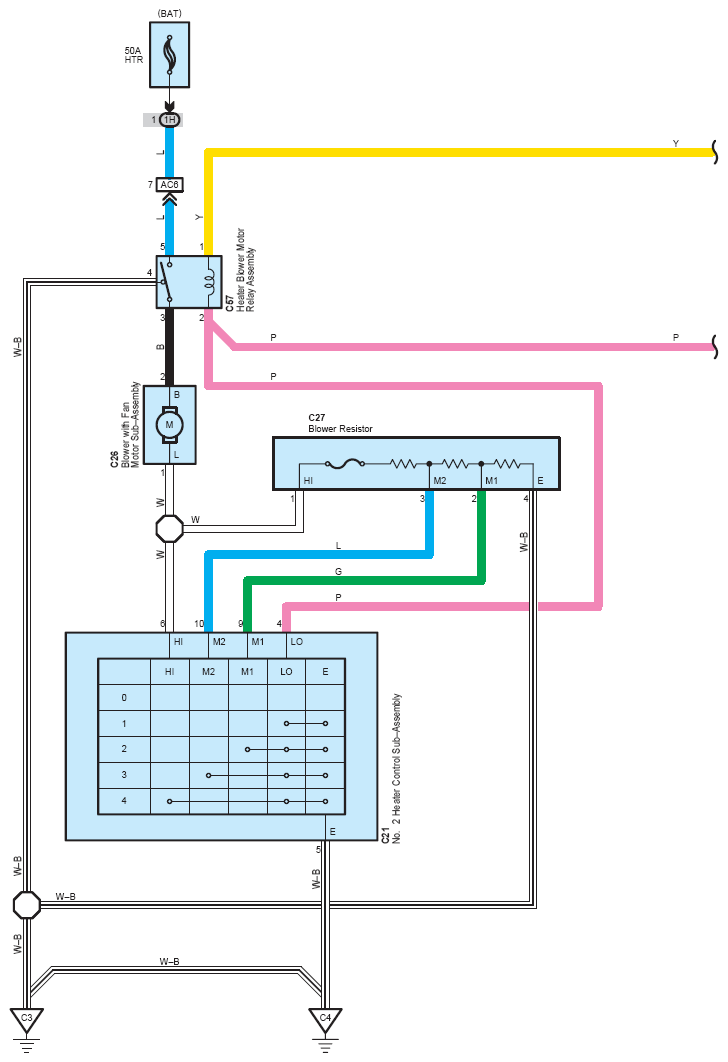

Fig 1: Air Conditioning - Wiring Diagram (1 Of 4)
G08775180Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

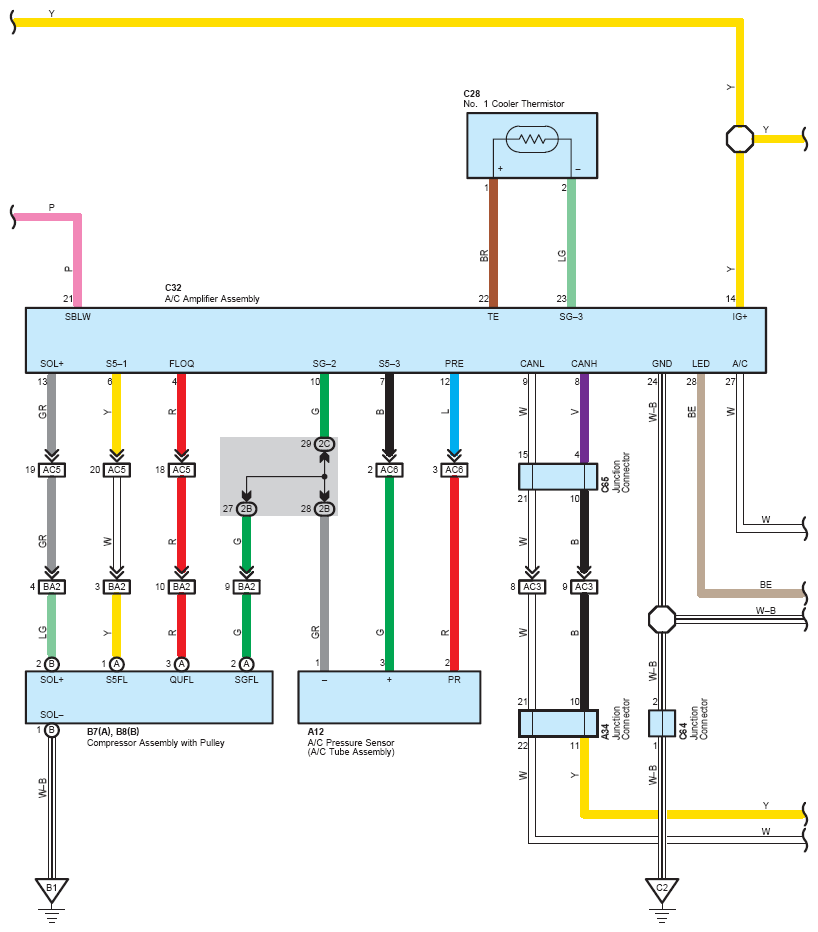

Fig 2: Air Conditioning - Wiring Diagram (2 Of 4)
G08775181Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

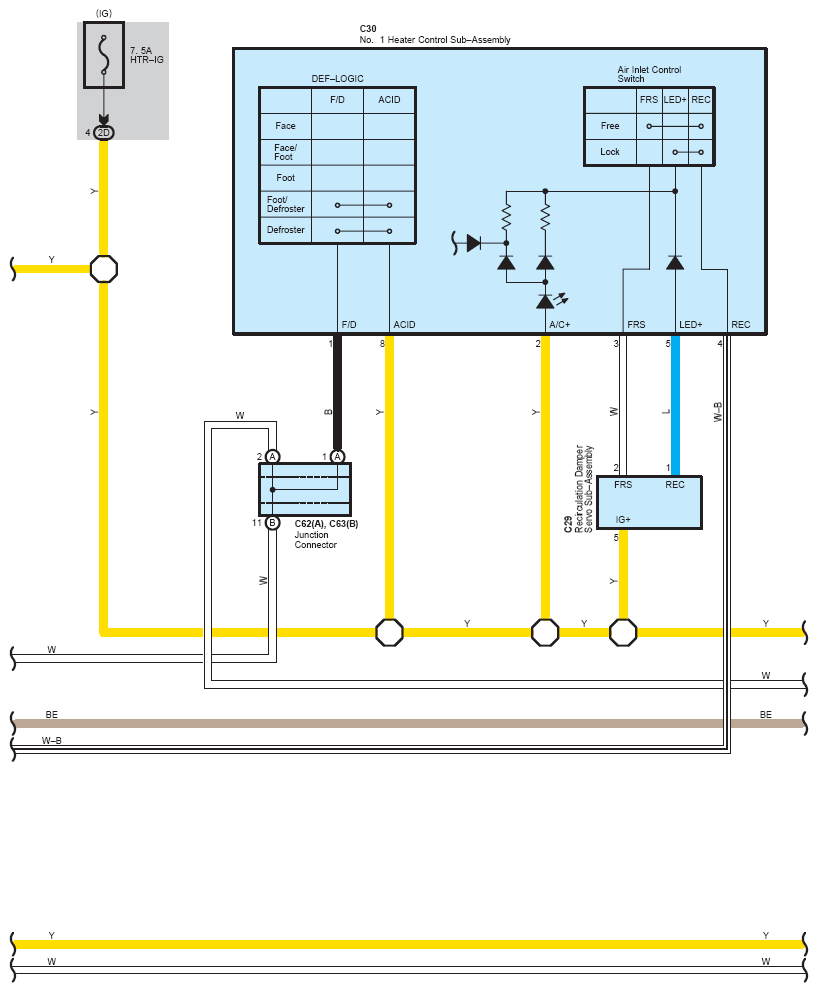

Fig 3: Air Conditioning - Wiring Diagram (3 Of 4)
G08775182Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

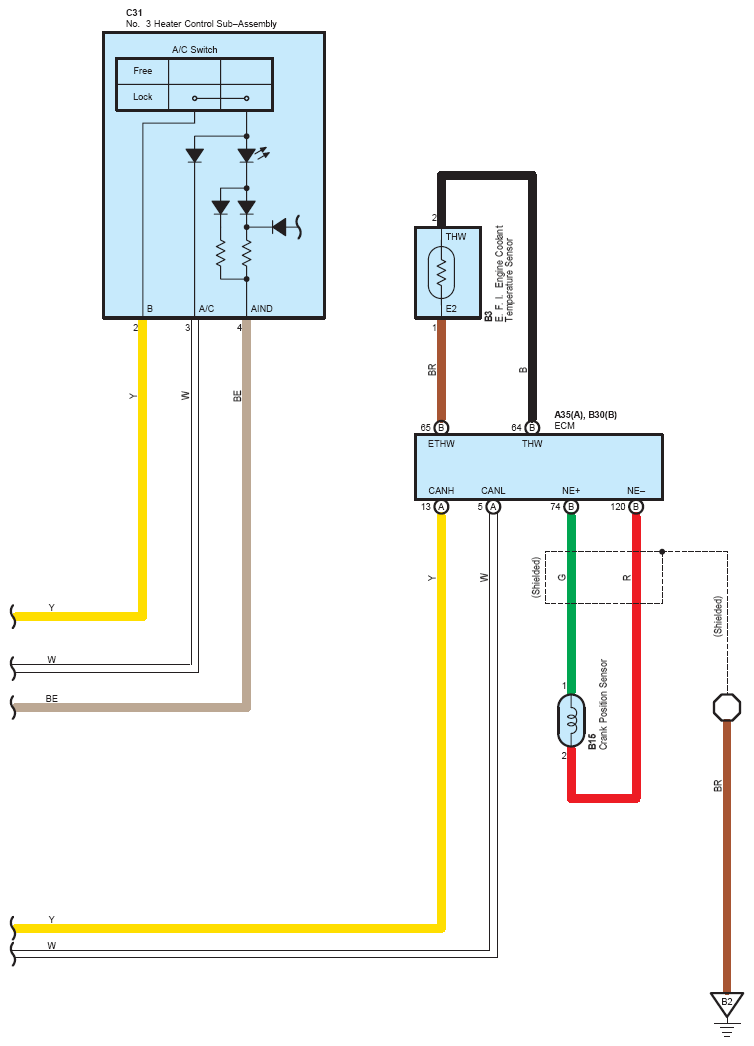

Fig 4: Air Conditioning - Wiring Diagram (4 Of 4)
G08775183Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
