OEM System Circuits: Back-Up-Light: Notes

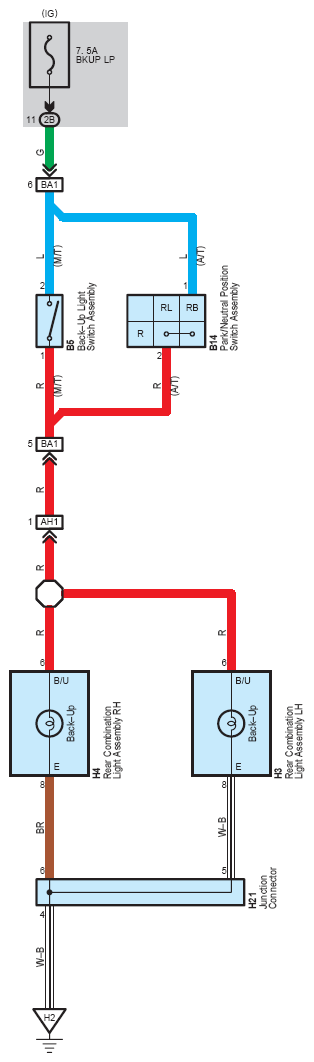

Fig 1: Back-Up-Light - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
