Engine Immobilizer System (w/o Smart Key System): Notes

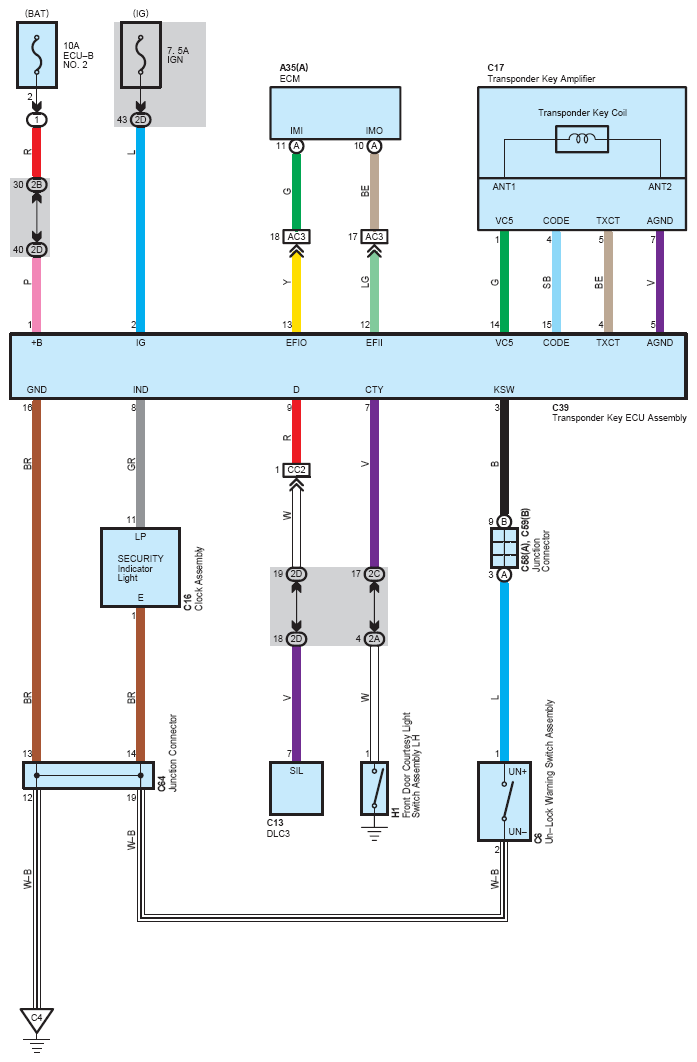

Fig 1: Engine Immobilizer System (W/O Smart Key System) - Wiring Diagram
G08775091Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
