Headlight (w/Daytime Running Light): Notes

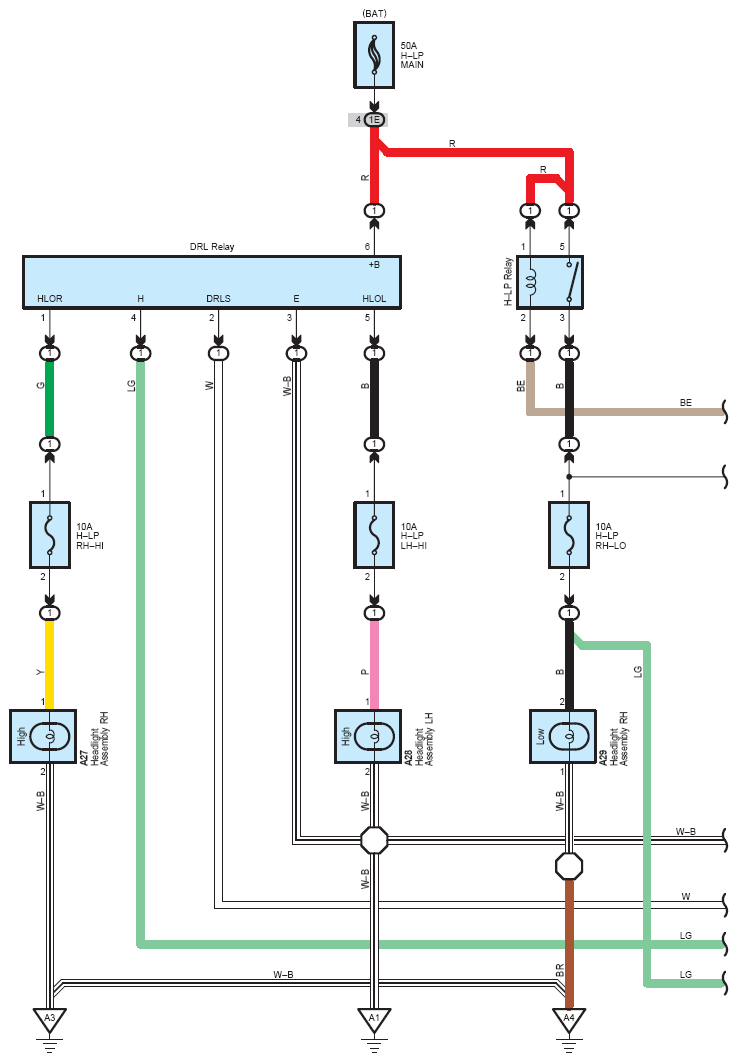

Fig 1: Headlight (W/Daytime Running Light) - Wiring Diagram (1 Of 3)
G08775095Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

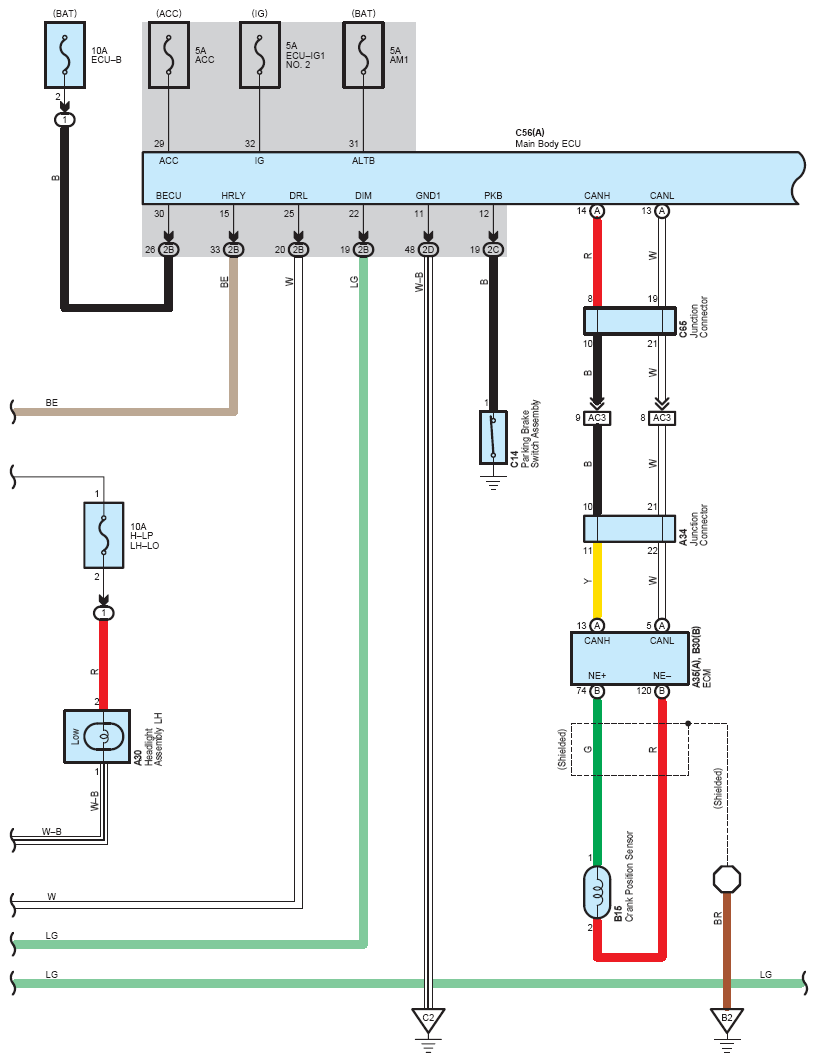

Fig 2: Headlight (W/Daytime Running Light) - Wiring Diagram (2 Of 3)
G08775096Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

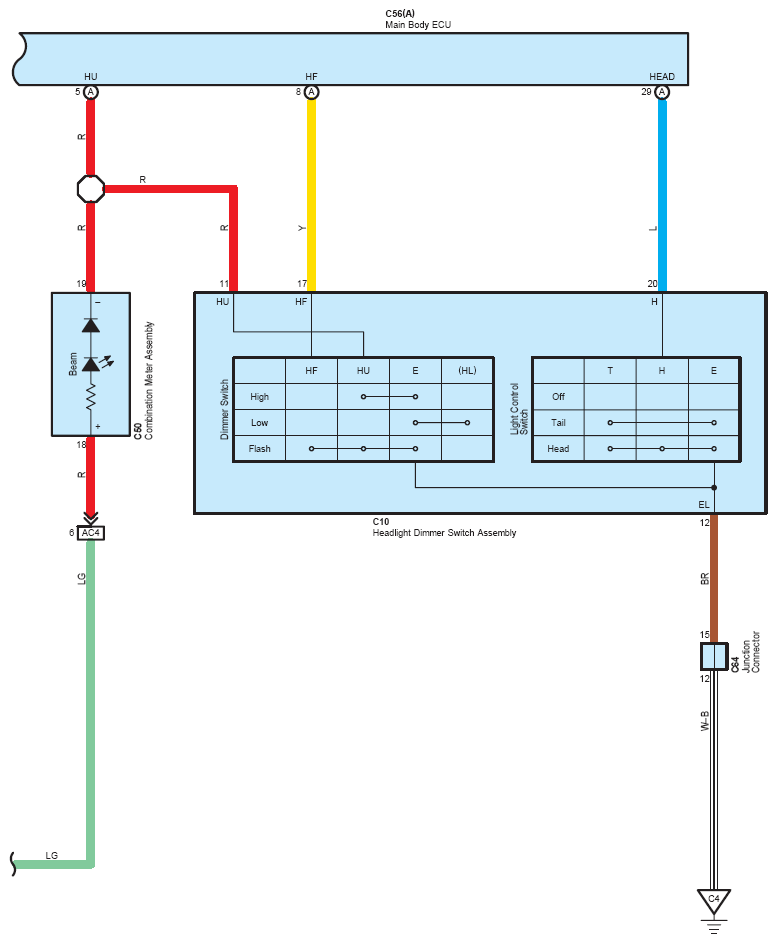

Fig 3: Headlight (W/Daytime Running Light) - Wiring Diagram (3 Of 3)
G08775097Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
