Key Reminder (w/o Smart Key System) and Light Reminder: Notes

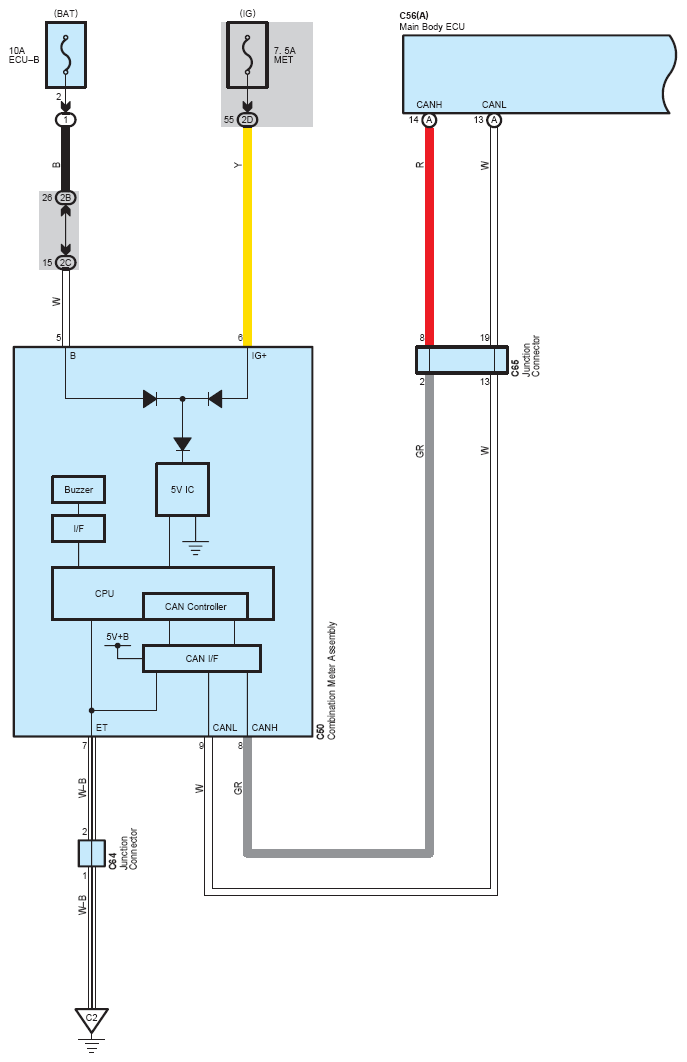

Fig 1: Key Reminder (W/O Smart Key System) And Light Reminder - Wiring Diagram (1 Of 3)
G08775111Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

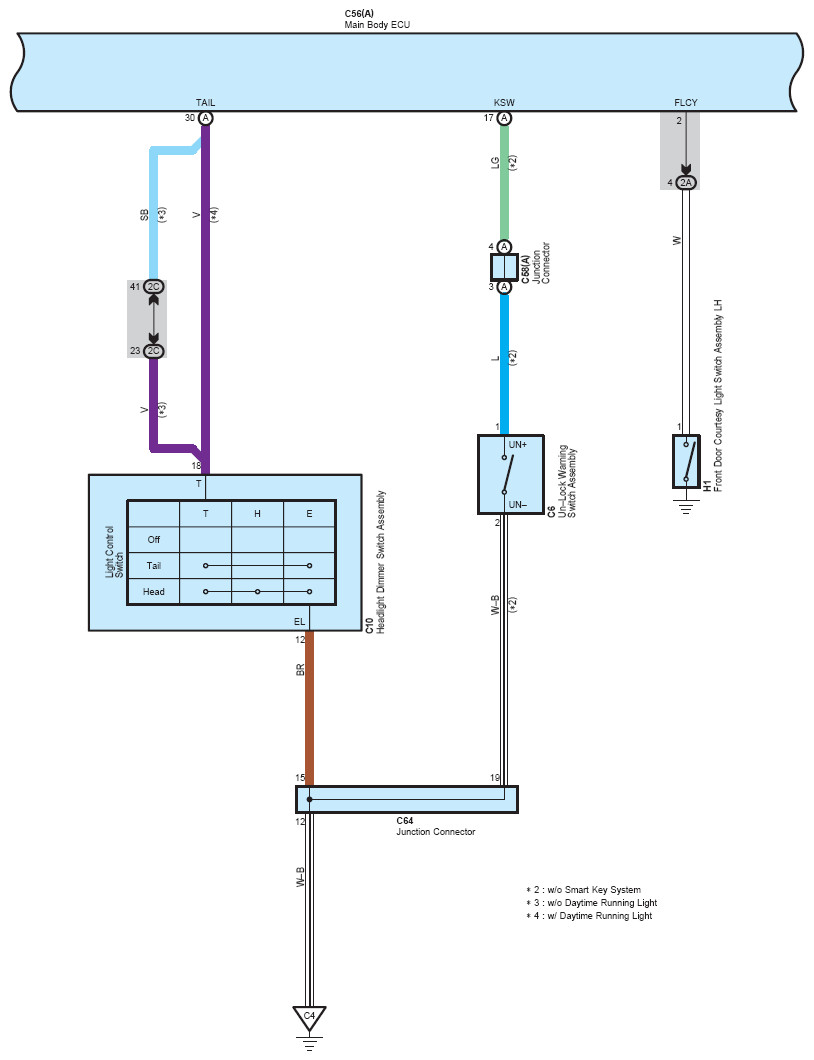

Fig 2: Key Reminder (W/O Smart Key System) And Light Reminder - Wiring Diagram (2 Of 3)
G08775112Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

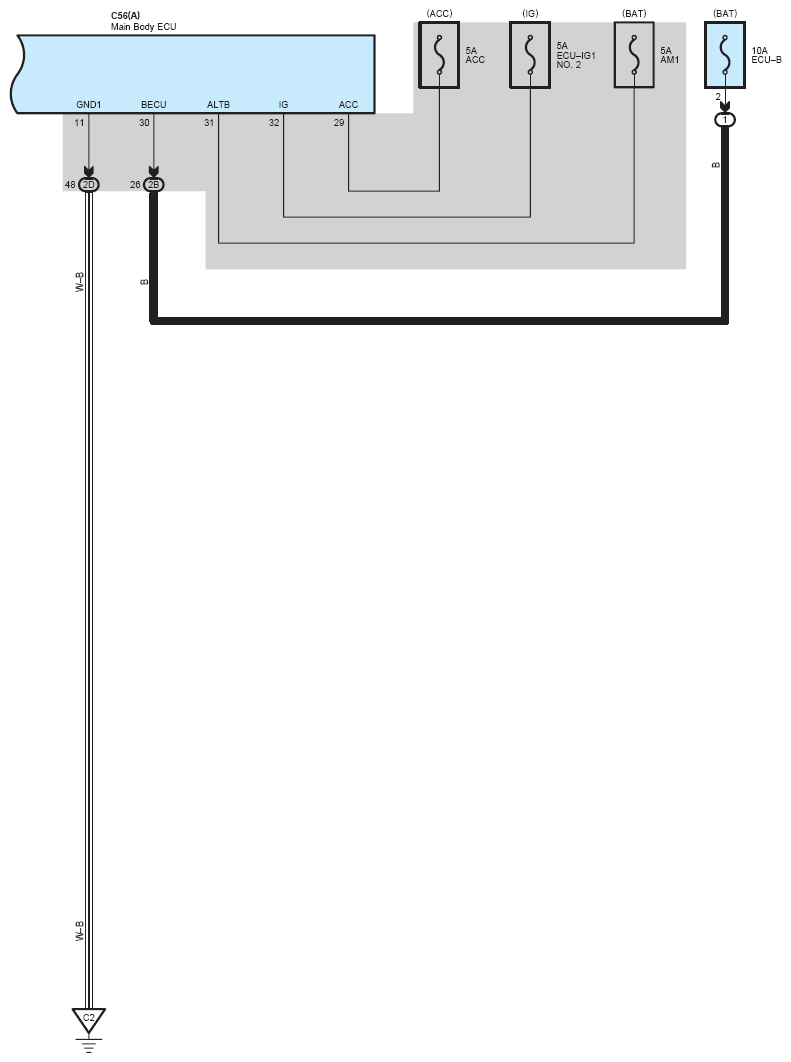

Fig 3: Key Reminder (W/O Smart Key System) And Light Reminder - Wiring Diagram (3 Of 3)
G08775113Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
