Back Door Opener: Notes

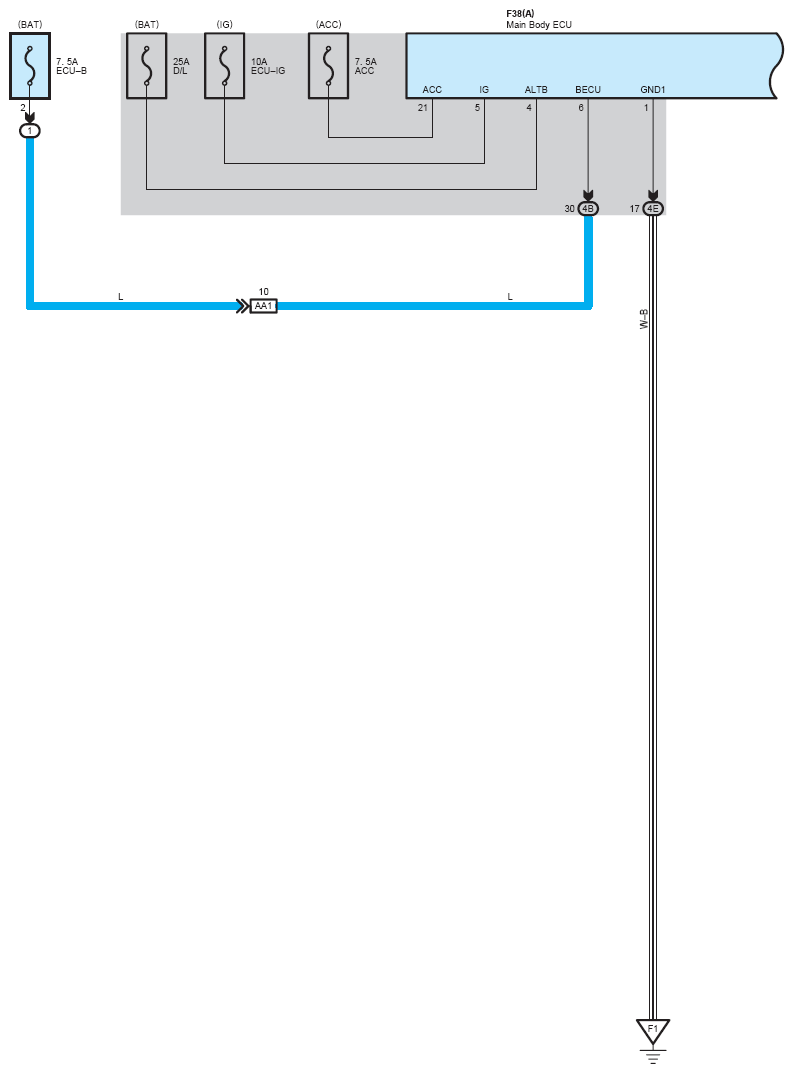

Fig 1: Back Door Opener - Circuit Diagram (1 Of 3)
G08777351Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

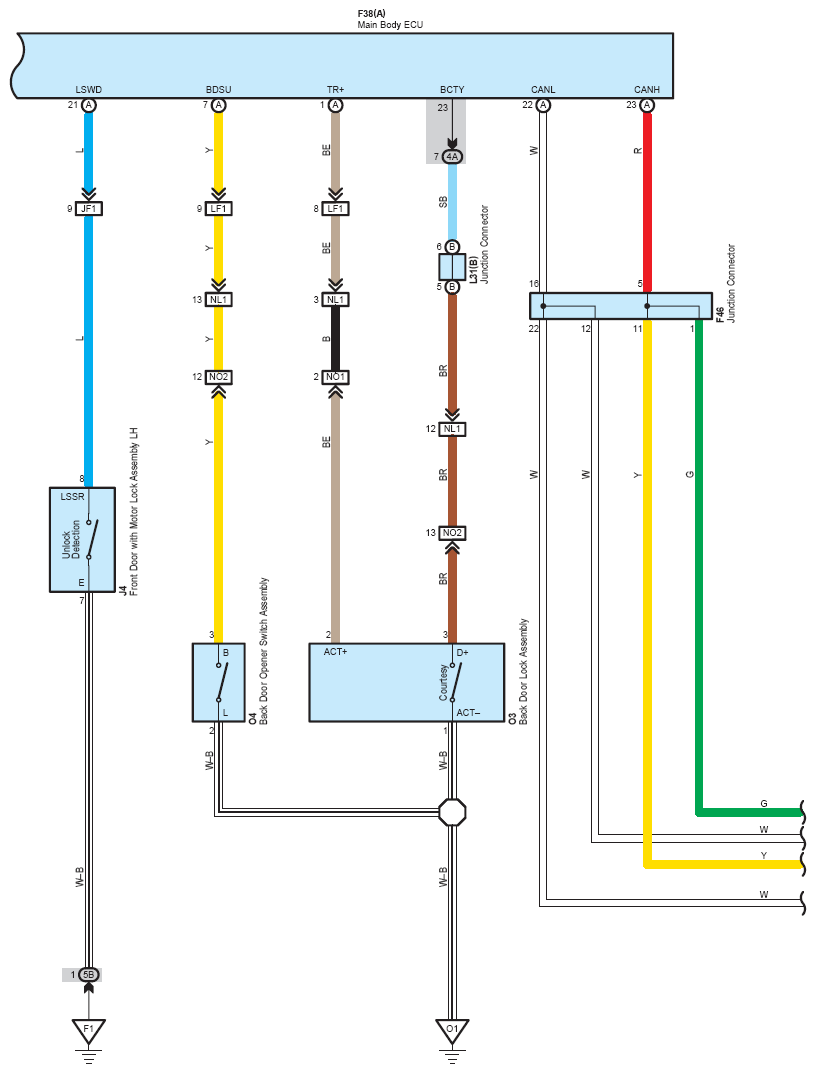

Fig 2: Back Door Opener - Circuit Diagram (2 Of 3)
G08777352Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

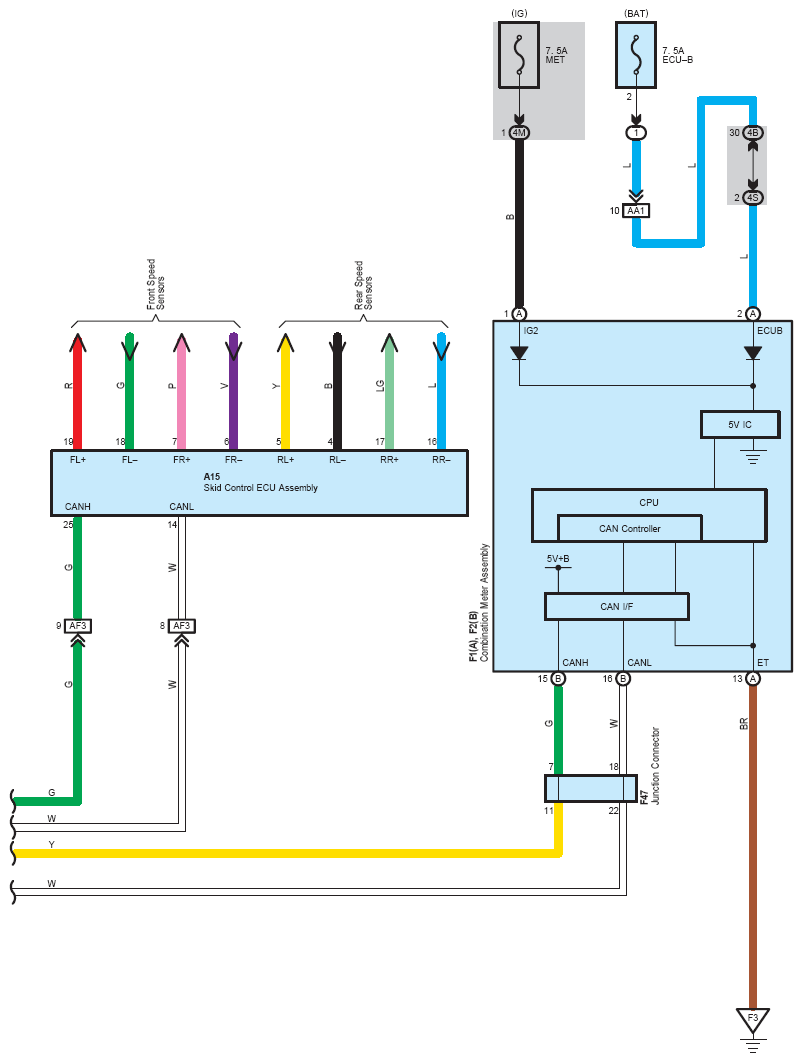

Fig 3: Back Door Opener - Circuit Diagram (3 Of 3)
G08777353Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
