Cruise Control: Notes

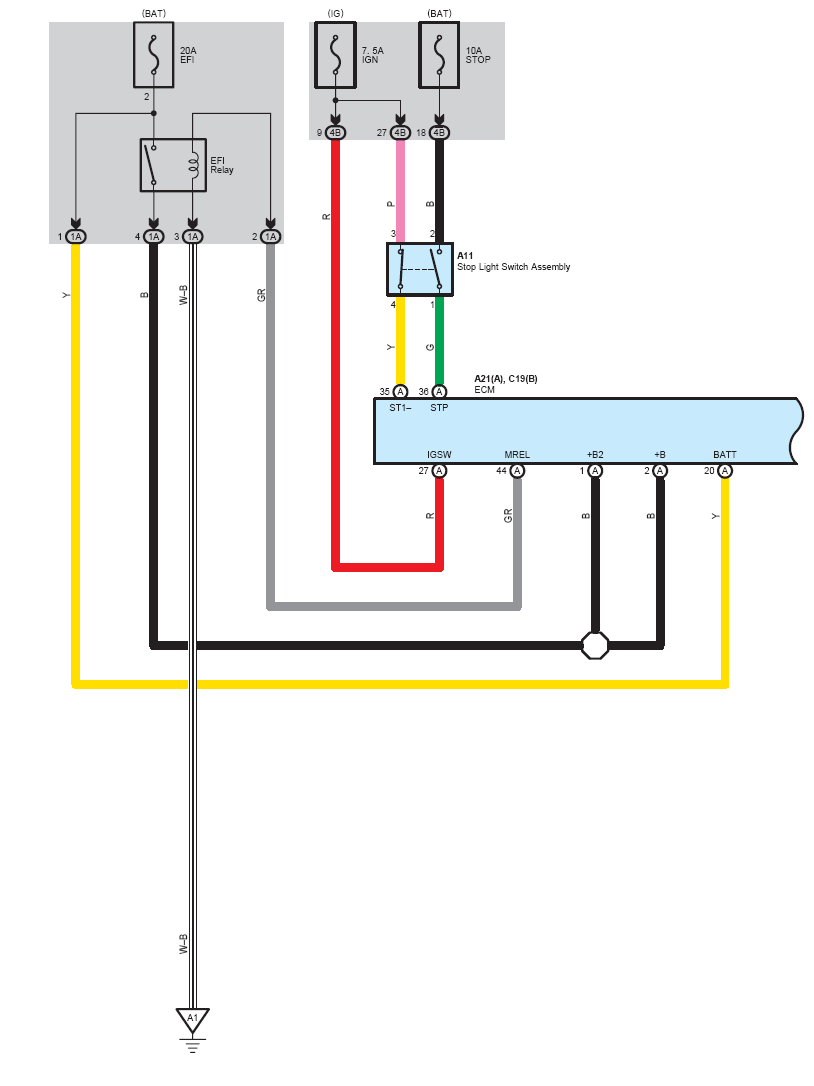

Fig 1: Cruise Control - Circuit Diagram (1 Of 6)
G08777354Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

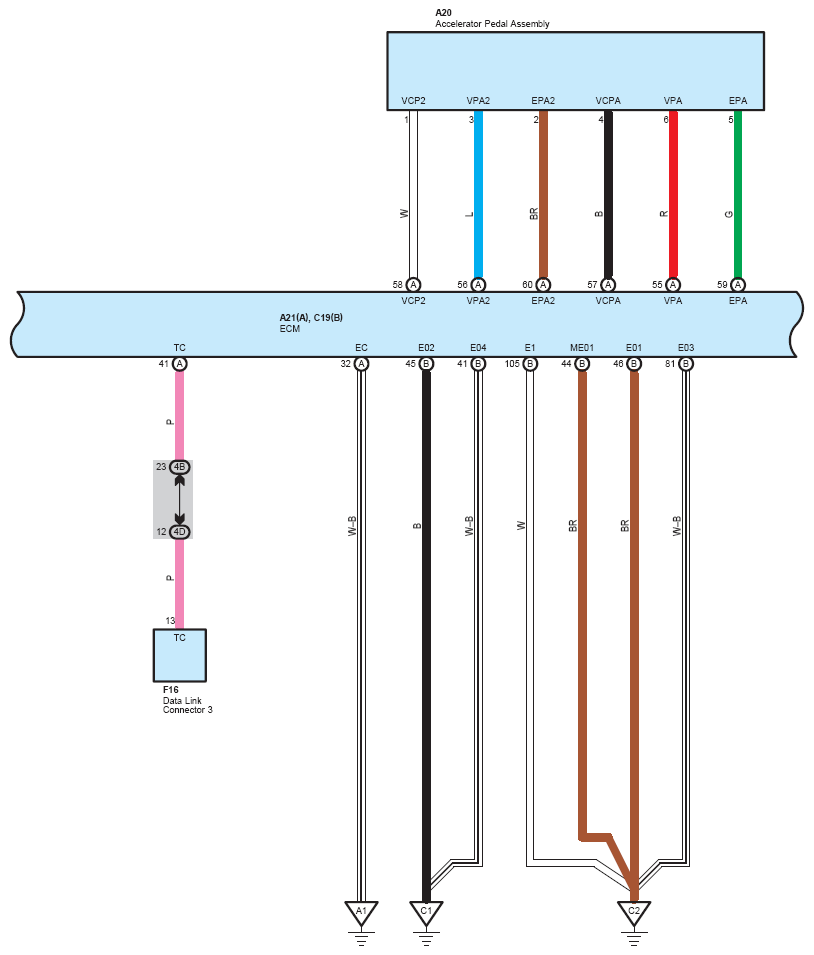

Fig 2: Cruise Control - Circuit Diagram (2 Of 6)
G08777355Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

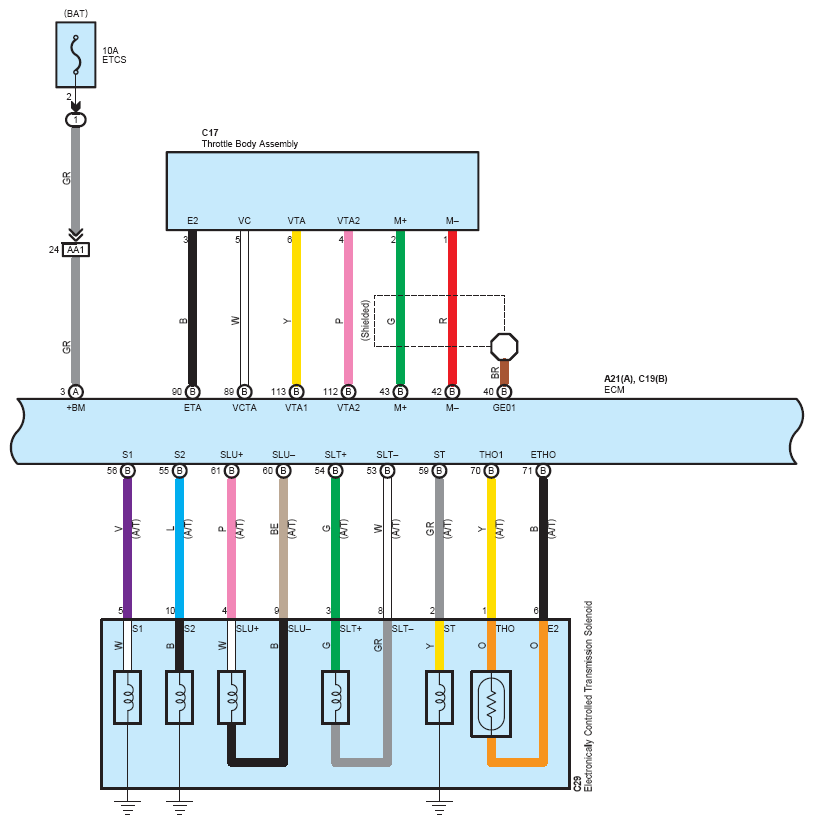

Fig 3: Cruise Control - Circuit Diagram (3 Of 6)
G08777356Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Cruise Control - Circuit Diagram (4 Of 6)
G08777357Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

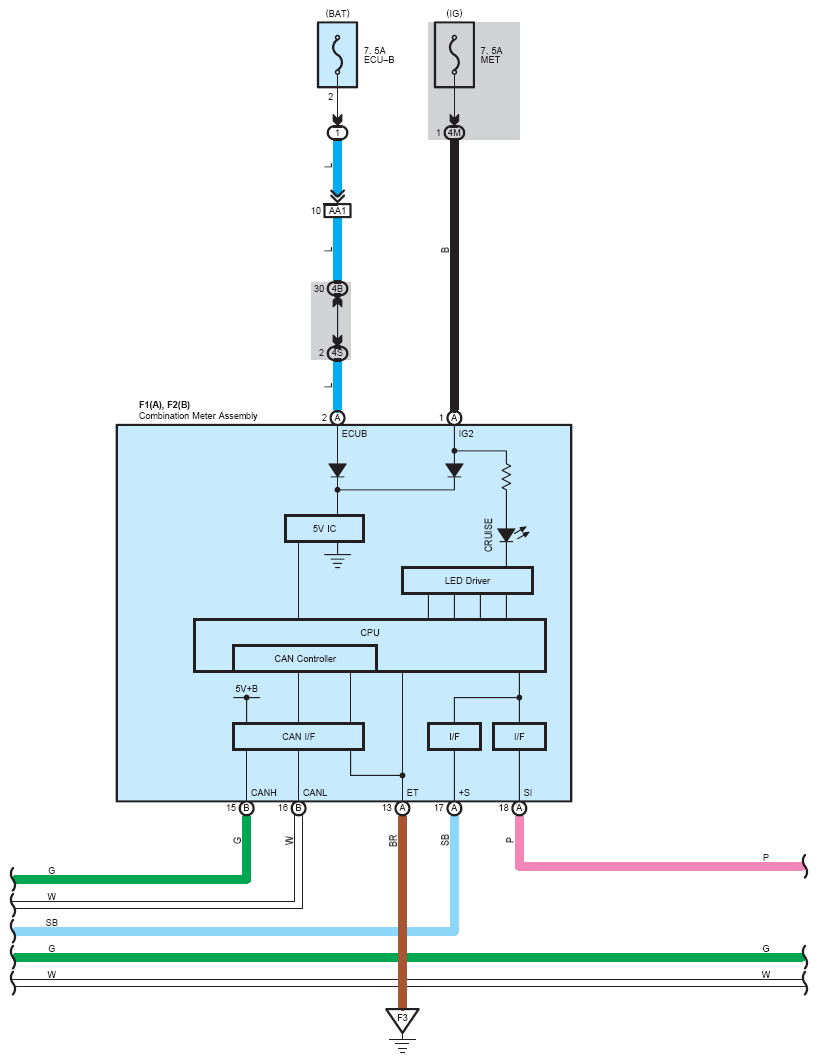

Fig 5: Cruise Control - Circuit Diagram (5 Of 6)
G08777358Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

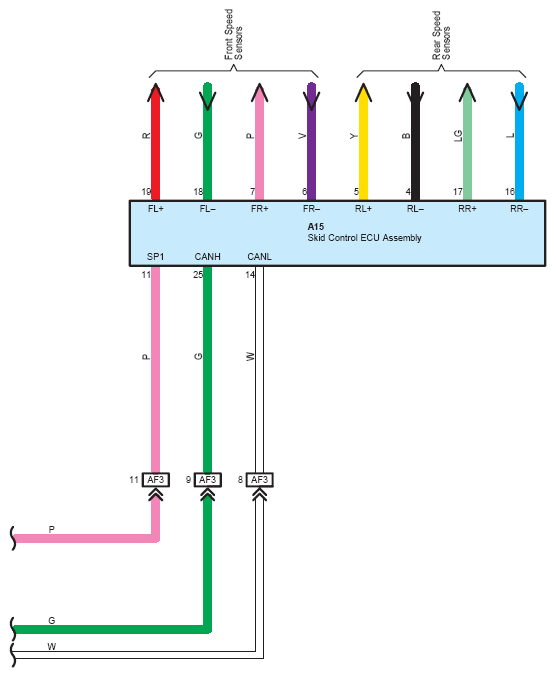

Fig 6: Cruise Control - Circuit Diagram (6 Of 6)
G08777359Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
