Wireless Door Lock Control: Notes

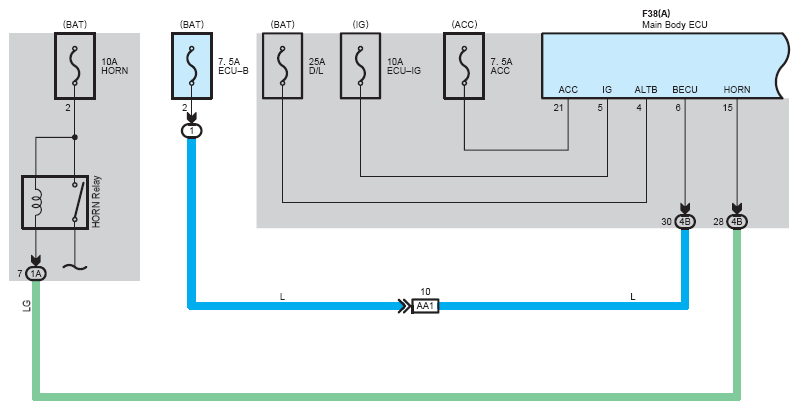

Fig 1: Wireless Door Lock Control - Circuit Diagram (1 Of 4)
G08777347Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

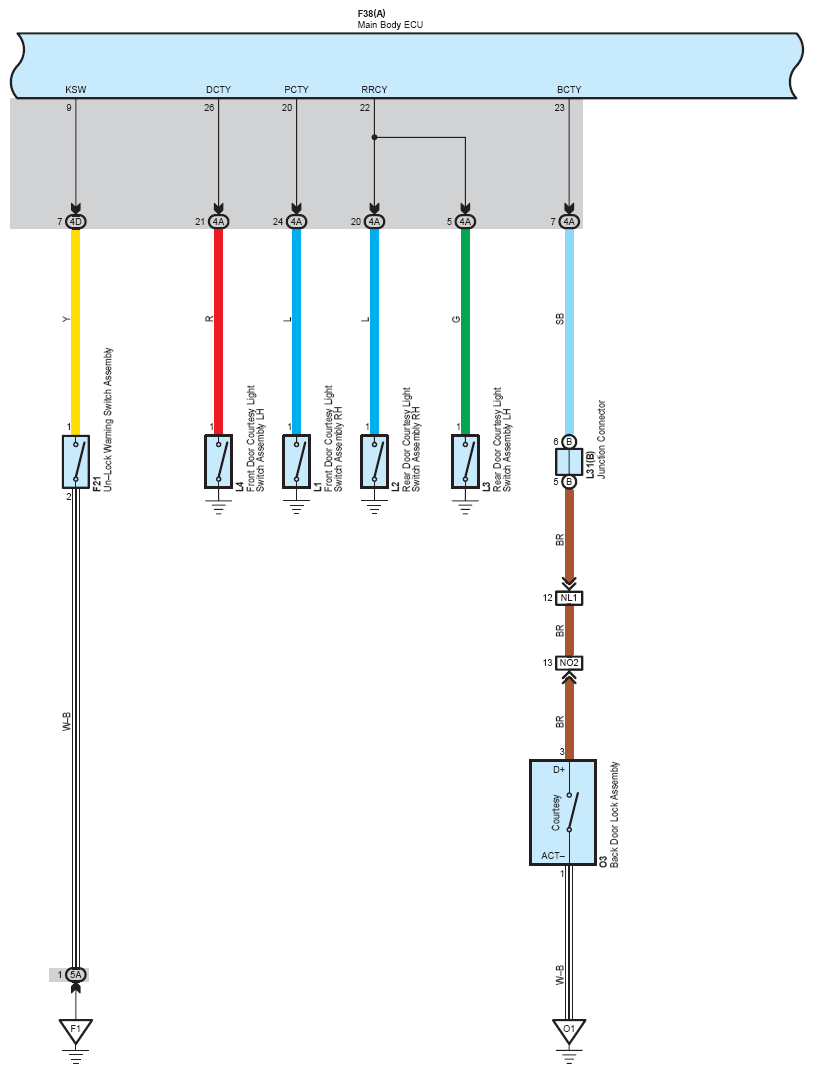

Fig 2: Wireless Door Lock Control - Circuit Diagram (2 Of 4)
G08777348Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Wireless Door Lock Control - Circuit Diagram (3 Of 4)
G08777349Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

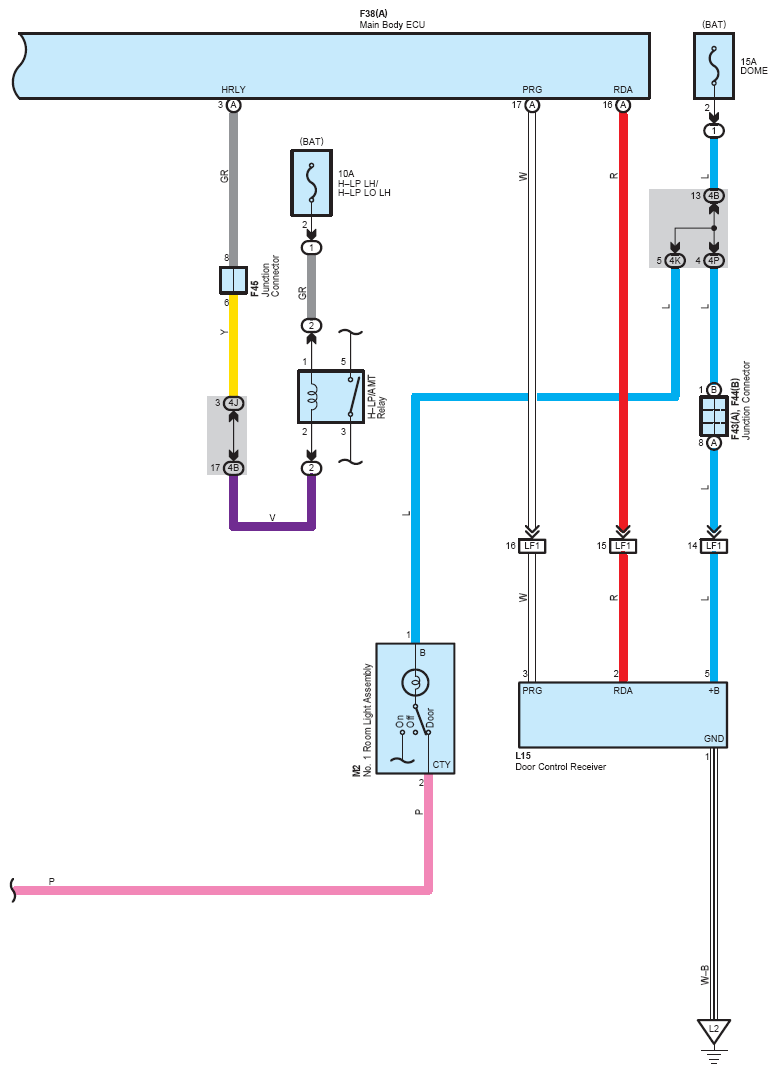

Fig 4: Wireless Door Lock Control - Circuit Diagram (4 Of 4)
G08777350Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
