Components [07/2013 - 12/2013]: Illustration

Fig 1: Identifying ECM Replacement Components (1 Of 2)
GTY387824Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

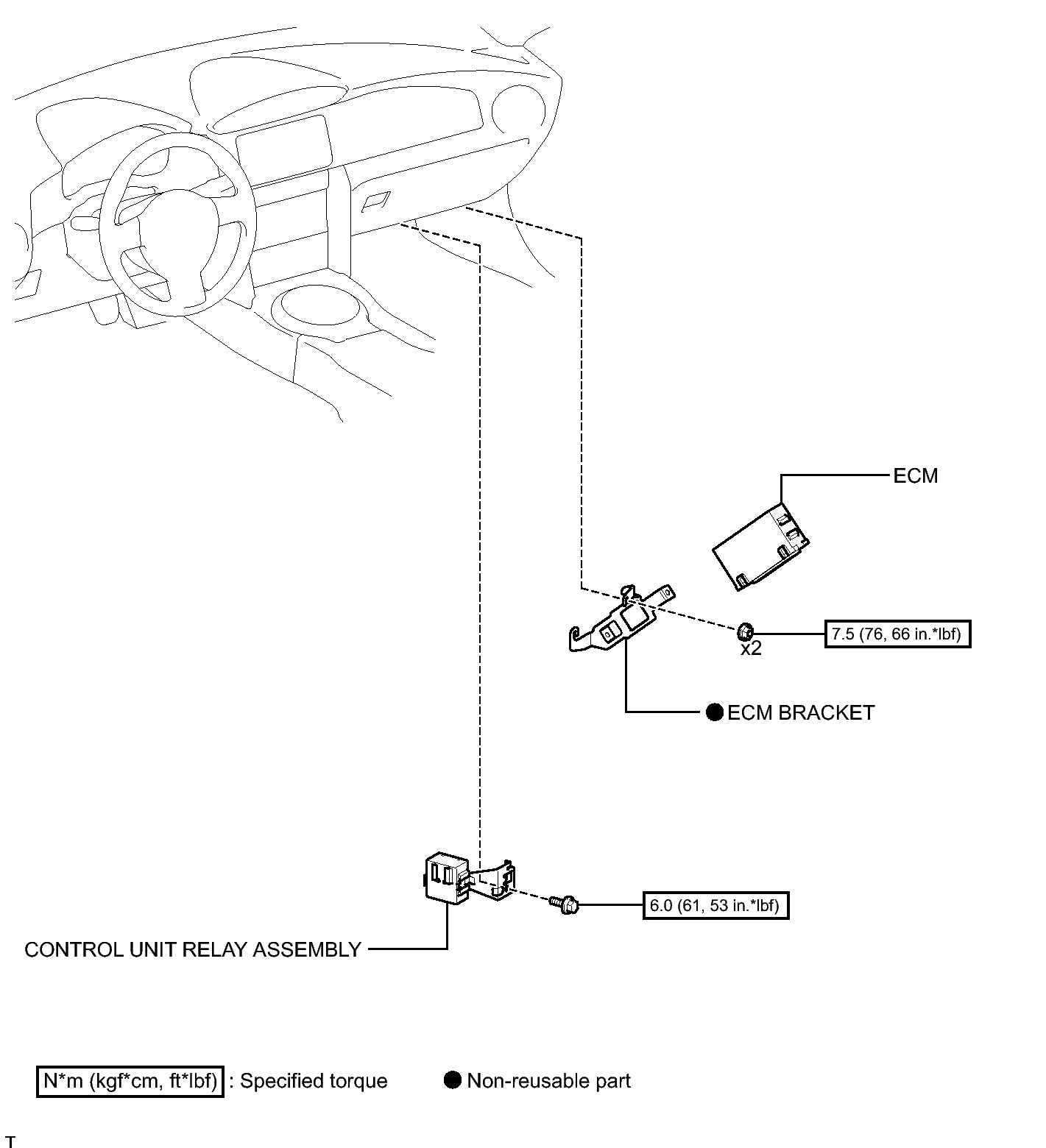

Fig 1: Identifying ECM Replacement Components With Torque Specifications (2 Of 3)
GTY392769Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
