Components [12/2013 - ]: Illustration

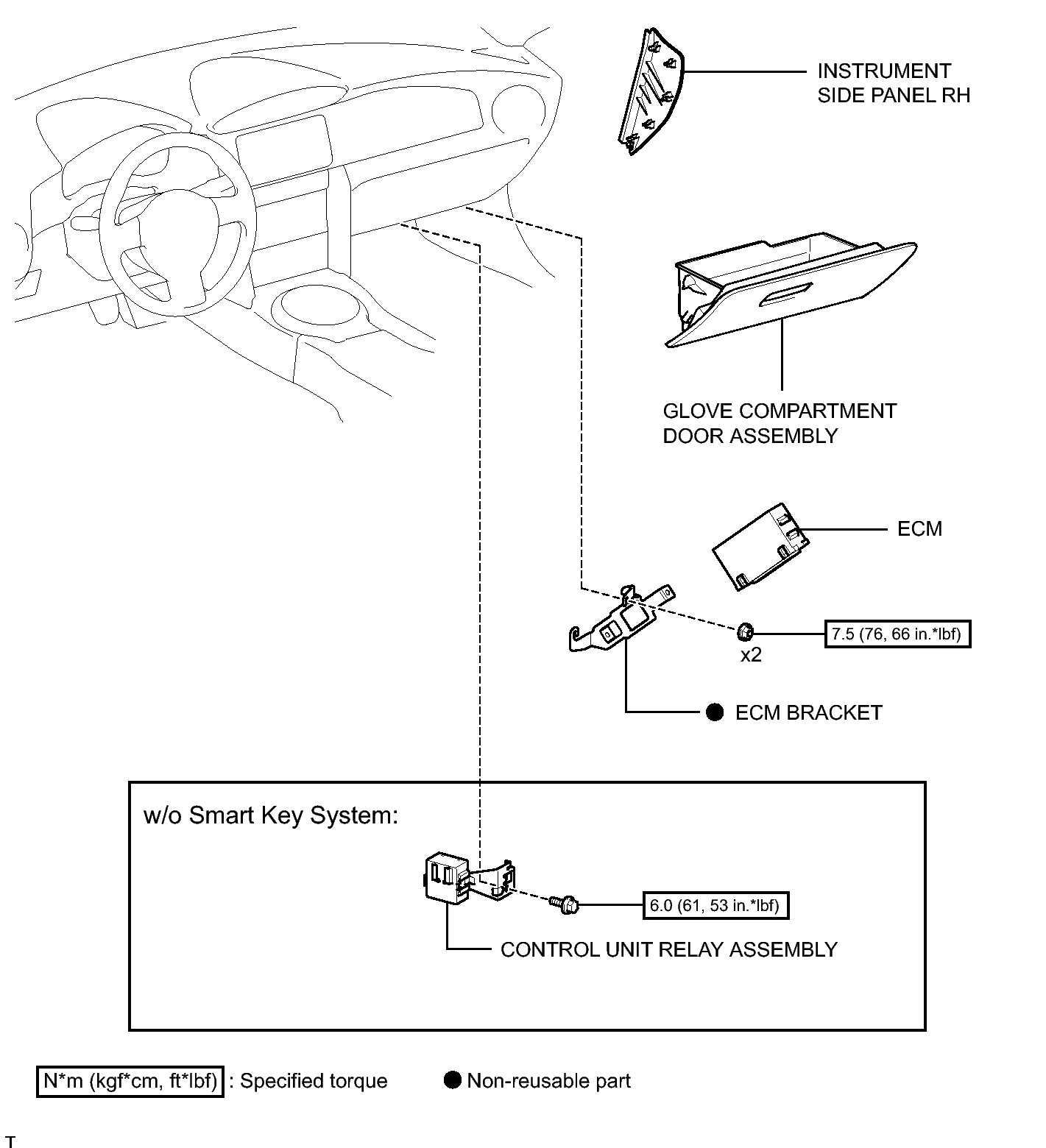

Fig 1: Identifying ECM Replacement Components With Torque Specifications (3 Of 3)
GTY384938Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
