Components Location [05/2014 - ]: Illustration

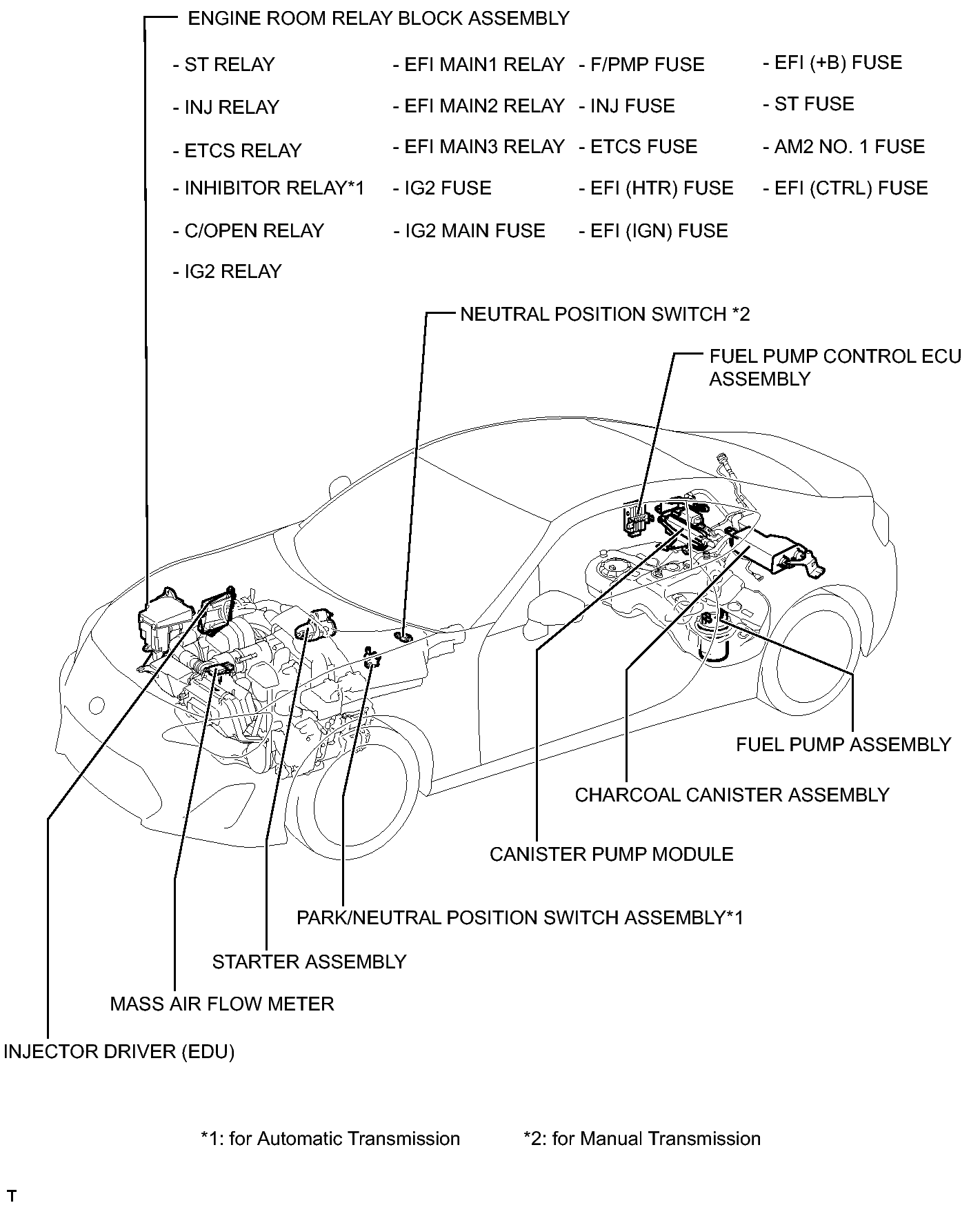

Fig 1: Identifying Engine Control System Components Location (1 Of 4)
GTY471366Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

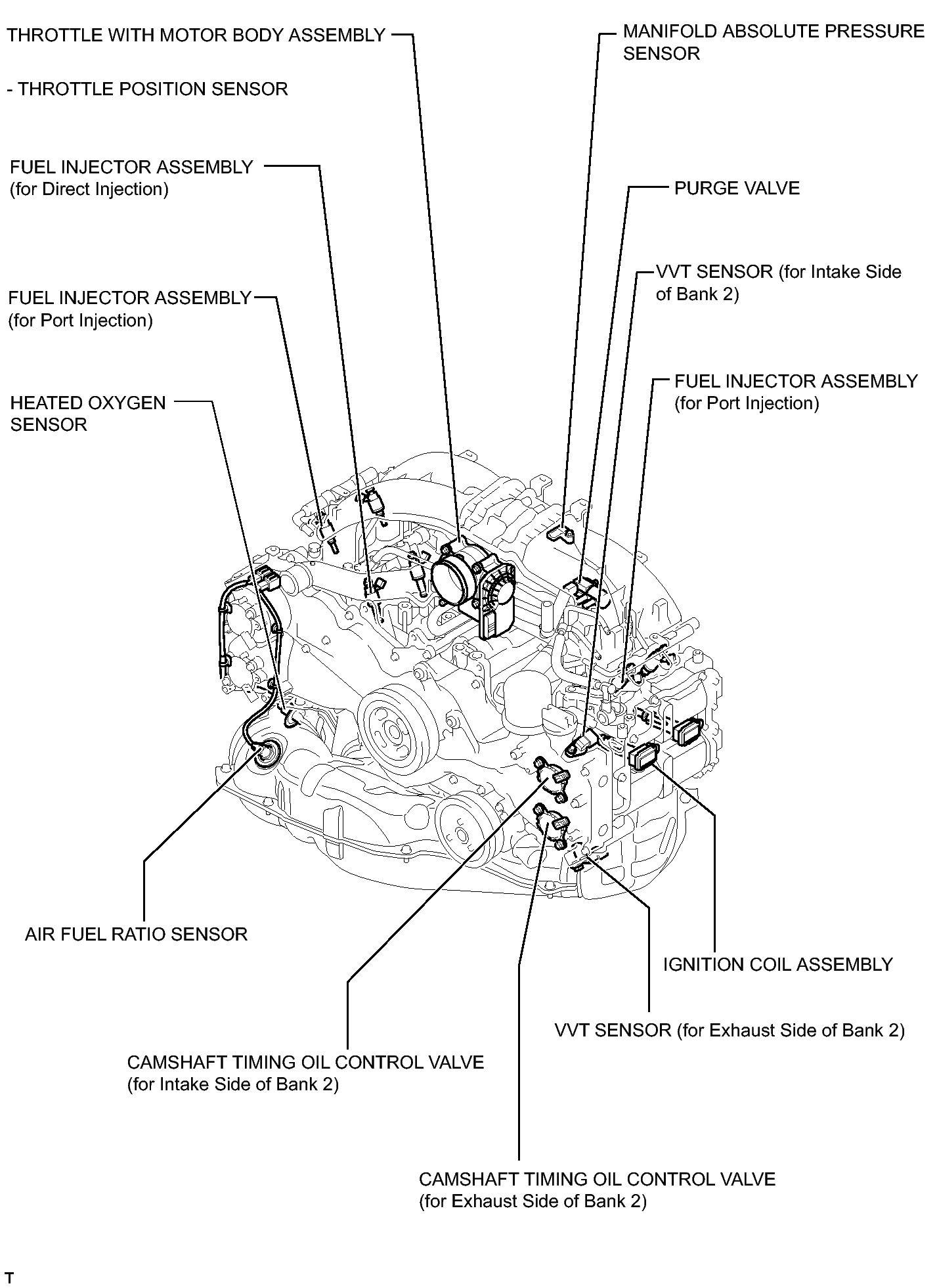

Fig 1: Identifying Engine Control System Components Location (2 Of 4)
GTY471865Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

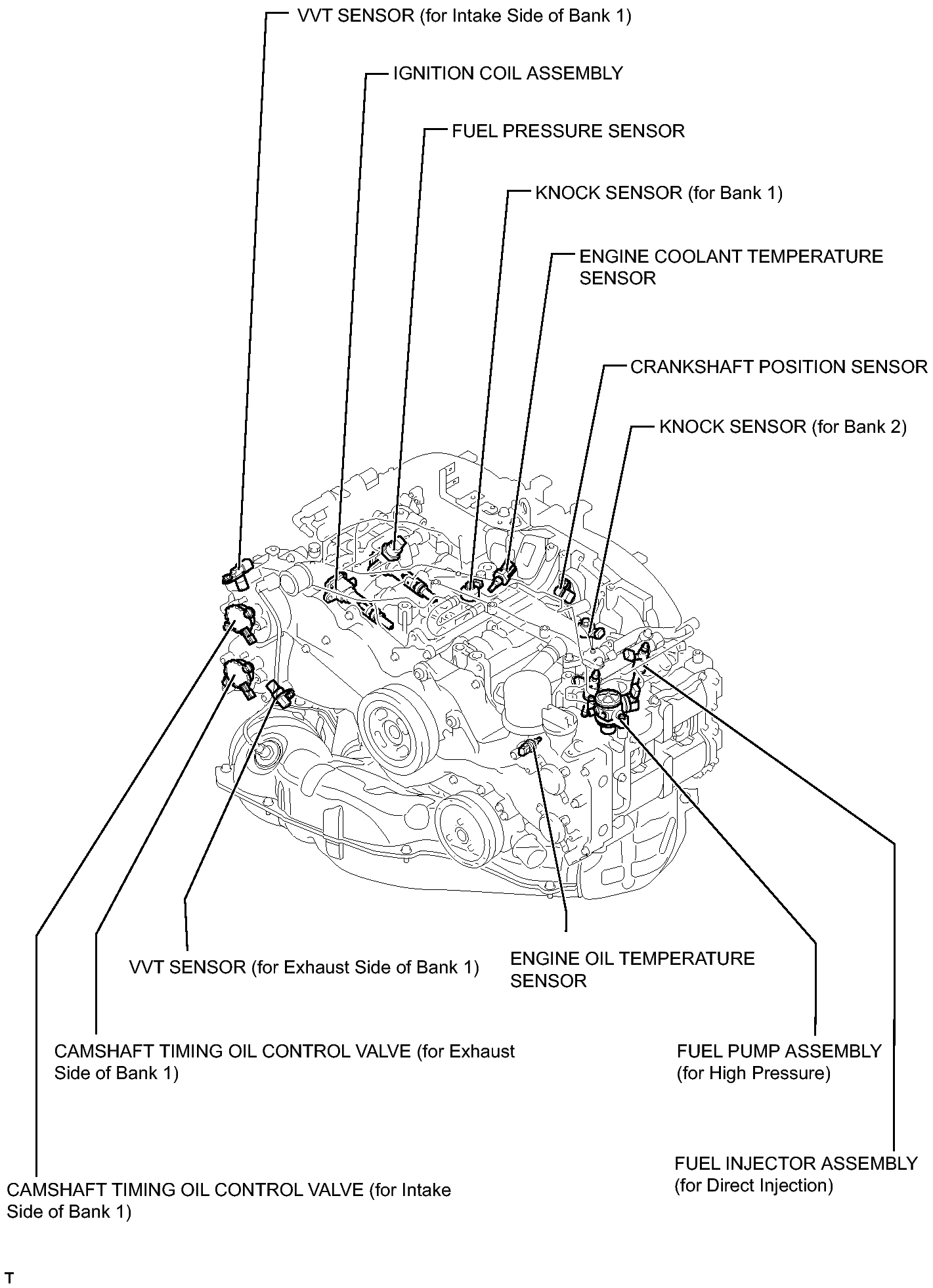

Fig 1: Identifying Engine Control System Components Location (3 Of 4)
GTY471820Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

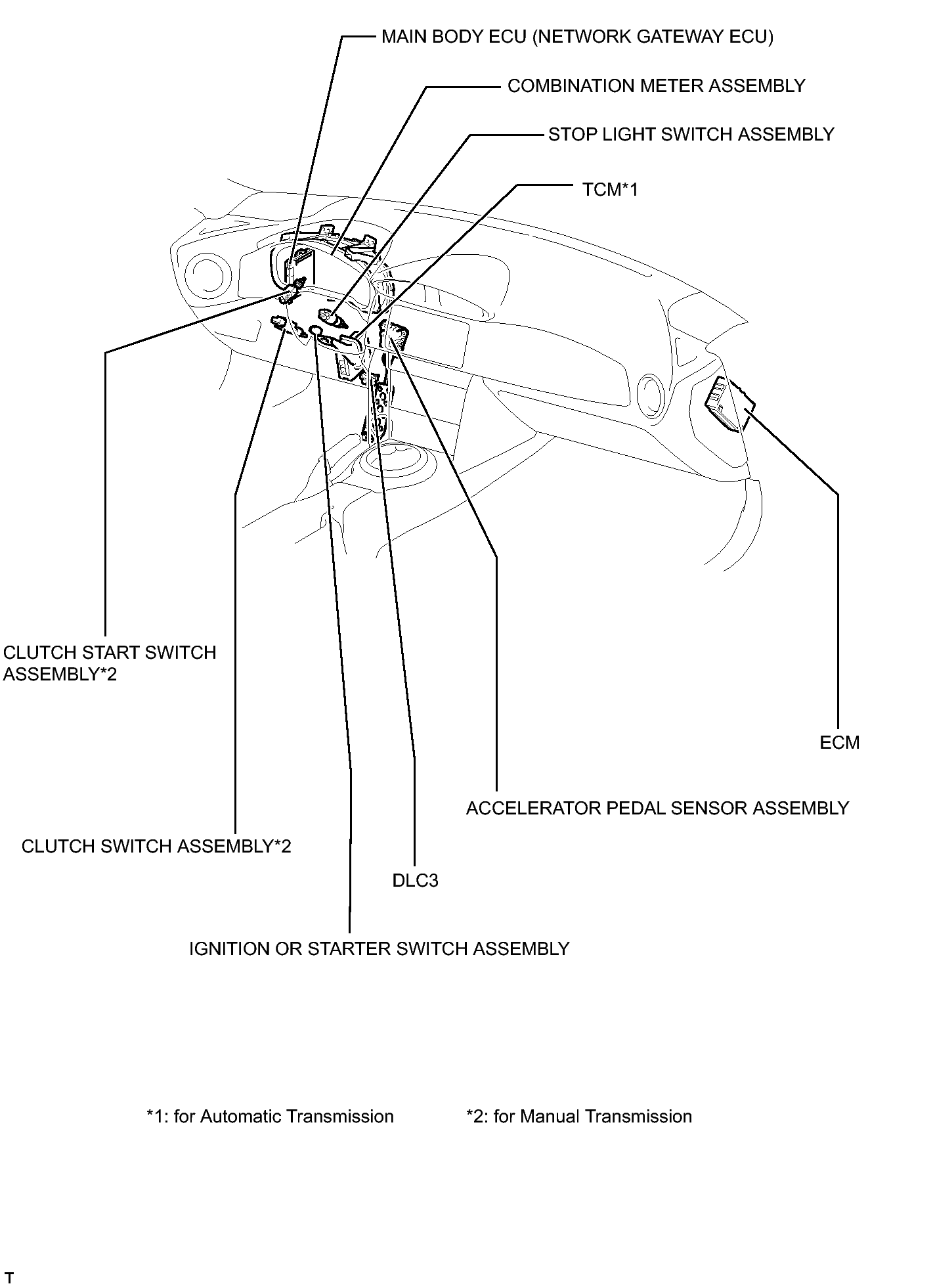

Fig 1: Identifying Engine Control System Components Location (4 Of 4)
GTY421847Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
