Components [05/2014 - ]: Illustration

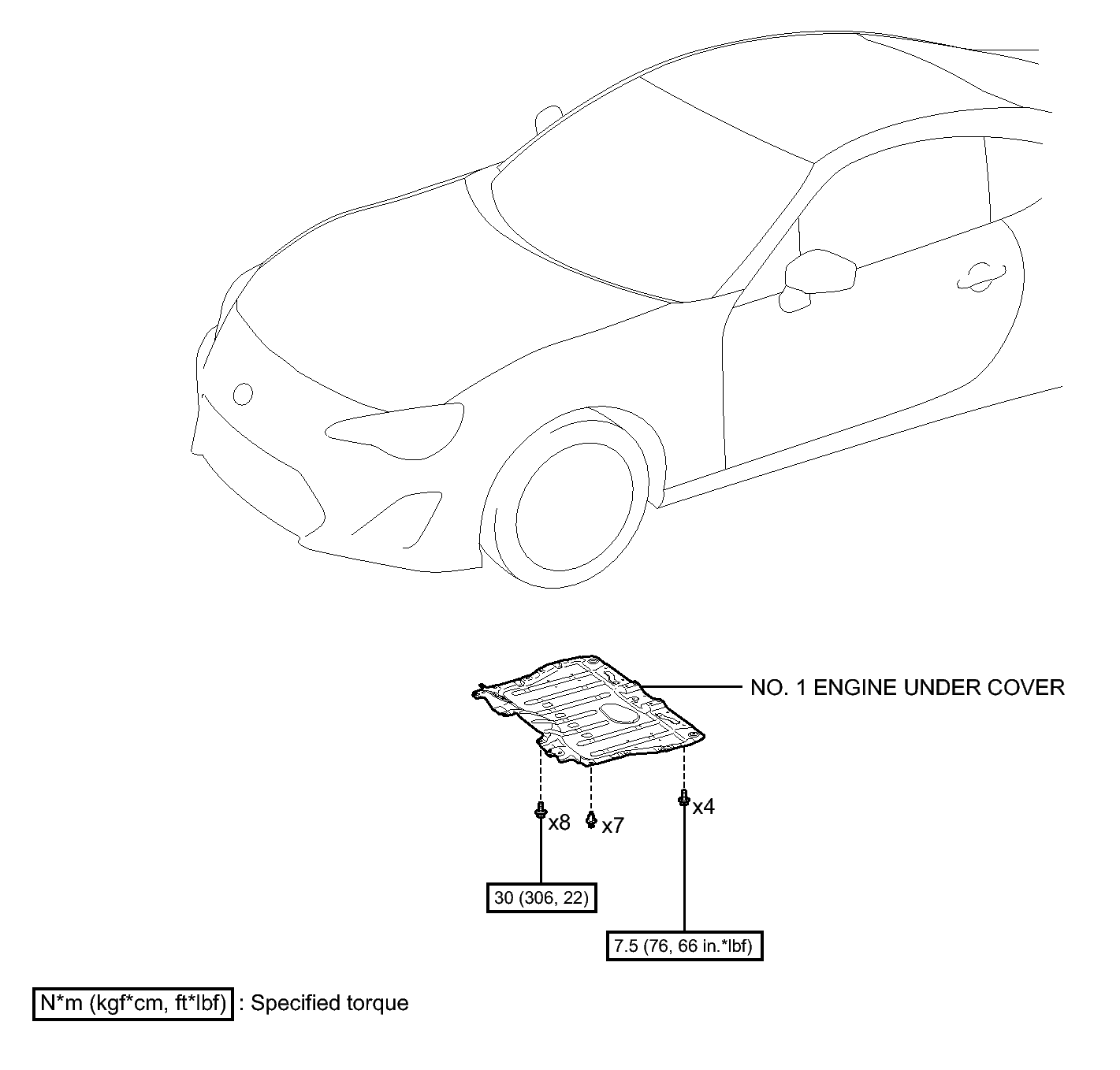

Fig 1: Identifying Camshaft Position Sensor Replacement Components With Torque Specifications (1 Of 2)
GTY388279Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

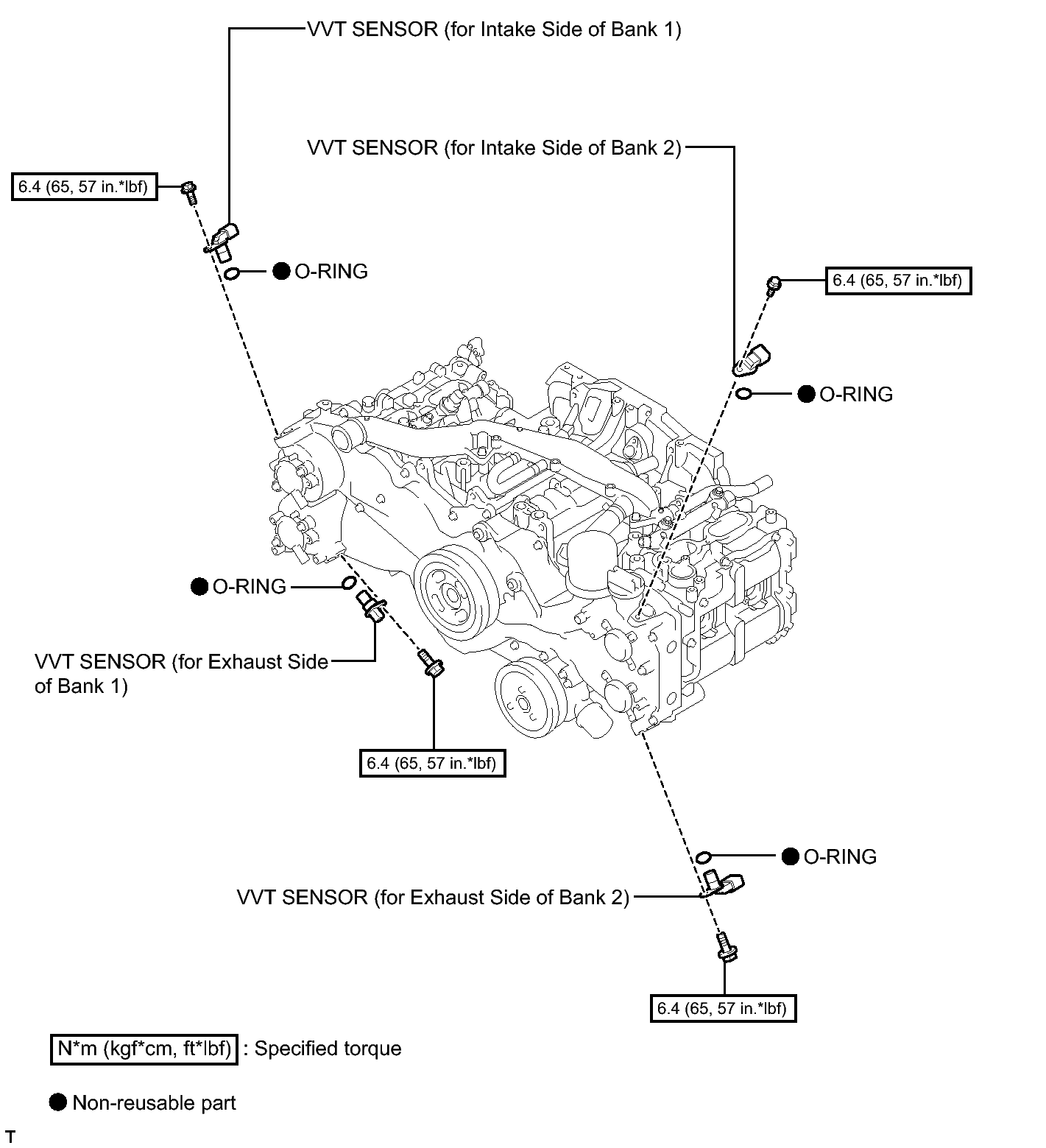

Fig 1: Identifying Camshaft Position Sensor Replacement Components With Torque Specifications (2 Of 2)
GTY385105Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
