Components Location [06/2015 - ]: Illustration

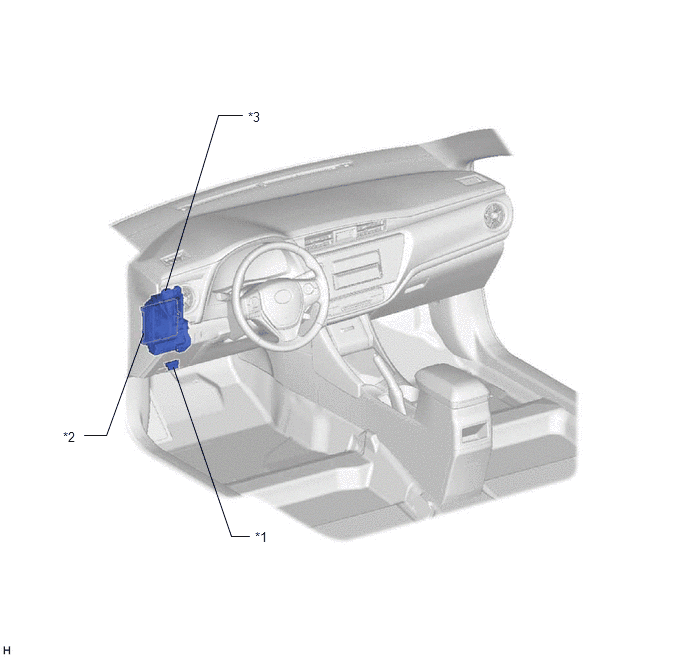

Fig 1: Power Window Control System Components Location (1 Of 2)

GTY484732

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

power window control system components *1	DLC3	*2	MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)
*3	INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - POWER RELAY - DOOR NO. 1 FUSE - DOOR NO. 2 FUSE - DOOR R/L FUSE - DOOR R/R FUSE - POWER RELAY	-	-

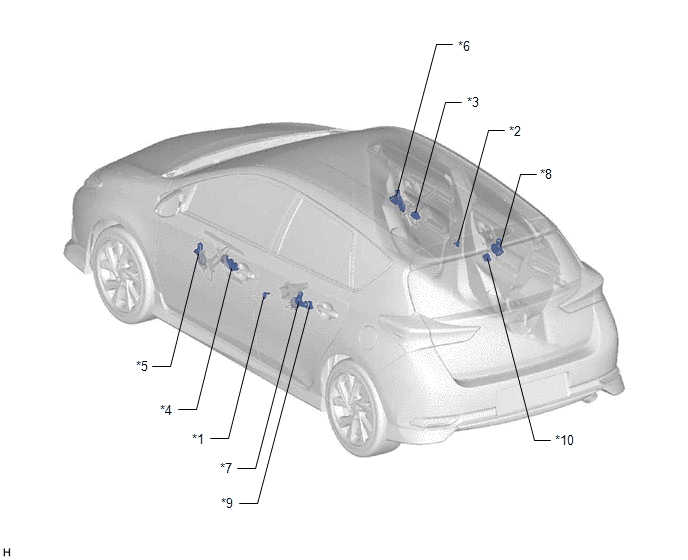

Fig 1: Power Window Control System Components Location (2 Of 2)

GTY484729

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY (for LH)	*2	FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY (for RH)
*3	POWER WINDOW REGULATOR SWITCH ASSEMBLY	*4	POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY
*5	POWER WINDOW REGULATOR MOTOR ASSEMBLY (for Driver Door)	*6	POWER WINDOW REGULATOR MOTOR ASSEMBLY (for Front Passenger Door)
*7	POWER WINDOW REGULATOR MOTOR ASSEMBLY (for Rear LH Door)	*8	POWER WINDOW REGULATOR MOTOR ASSEMBLY (for Rear RH Door)
*9	REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY (for LH Door)	*10	REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY (for RH Door)
