Control Units

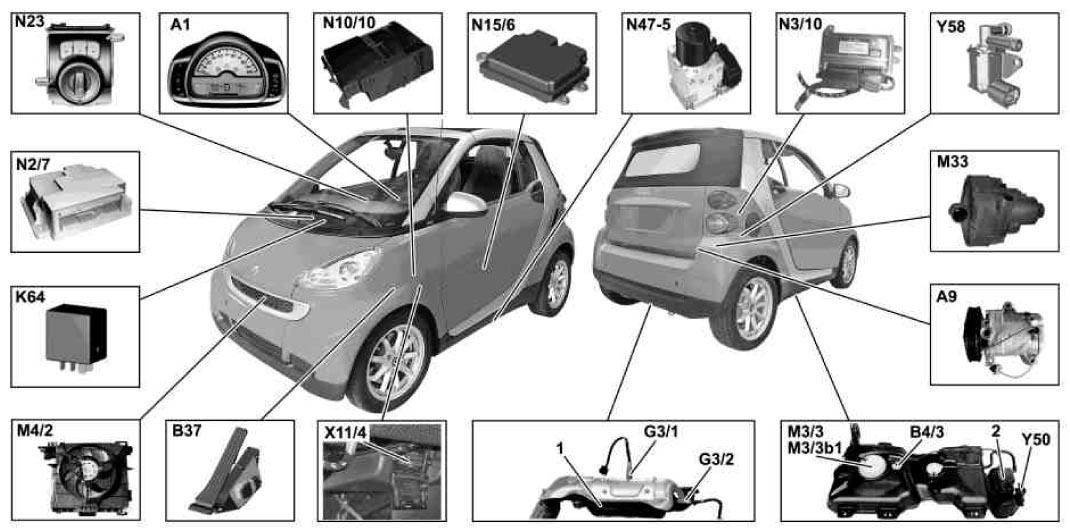

CONTROL UNITS LOCATION
| Component | Location |
|---|---|

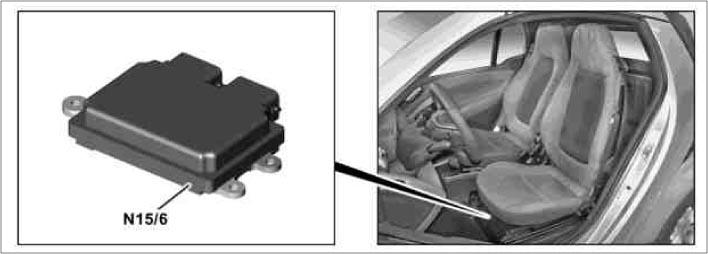

| Automated Manual Transmission Control Unit (N15/6) | Under driver's seat. See Figure. |

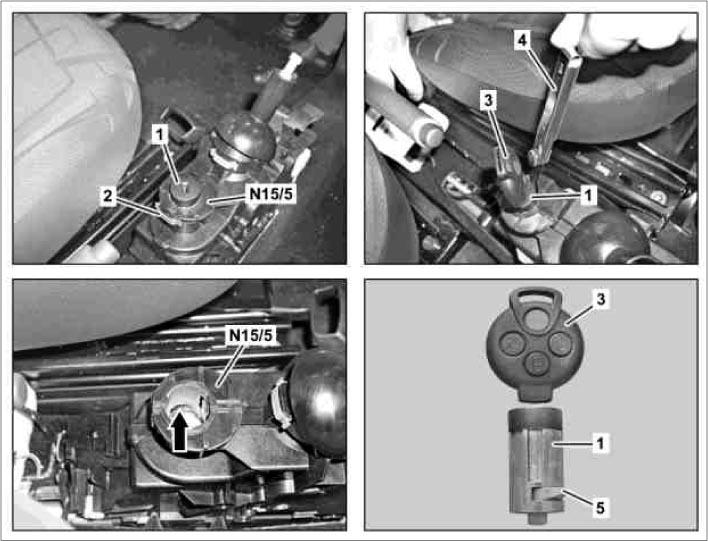

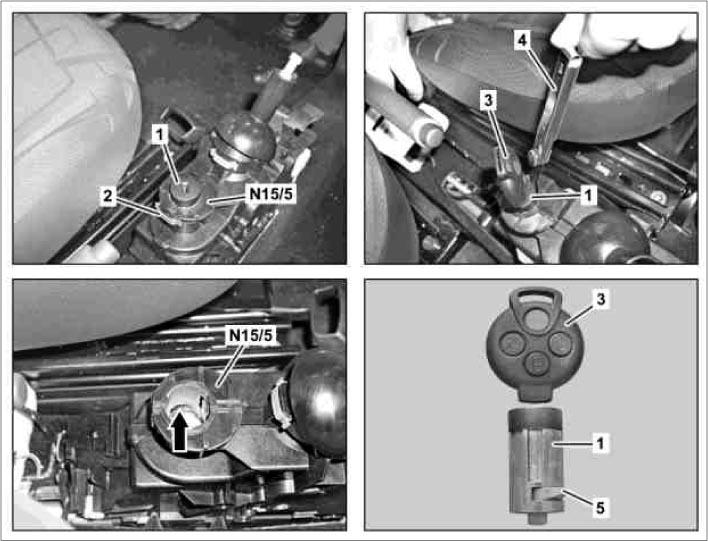

| Electronic Selector Lever Module Control Unit (N15/5) | Under center console. See Figure. |

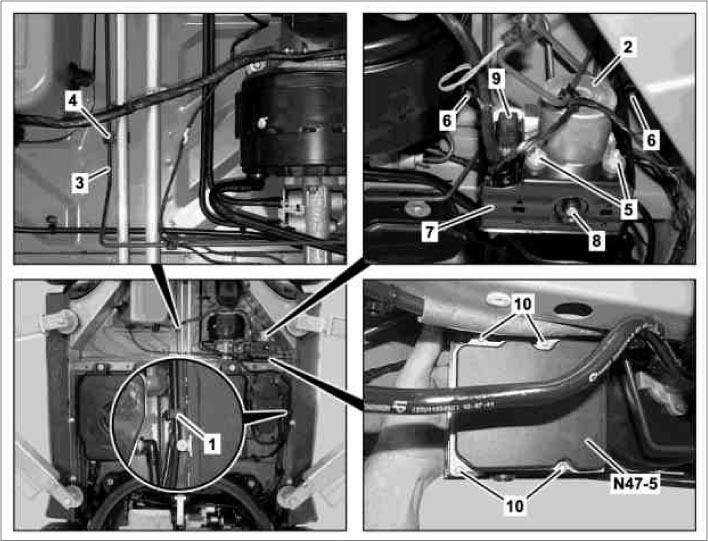

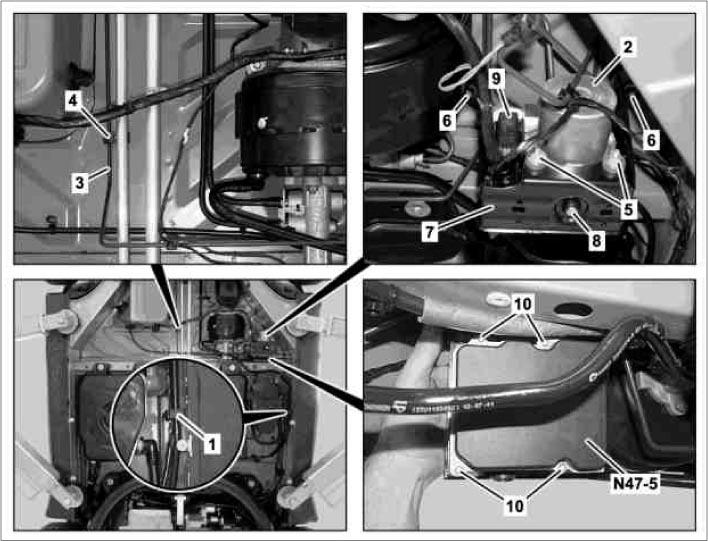

| ESP Control Unit (N47-5) | Left center of vehicle undercarriage. See Figure. |

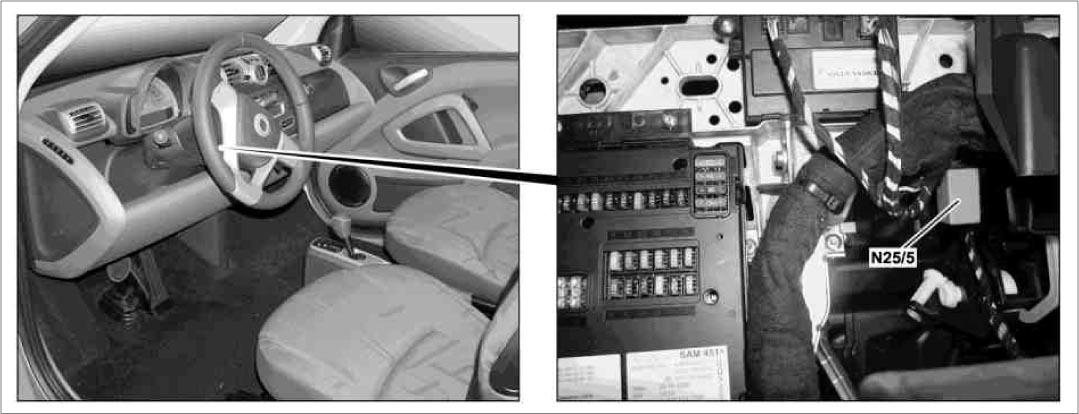

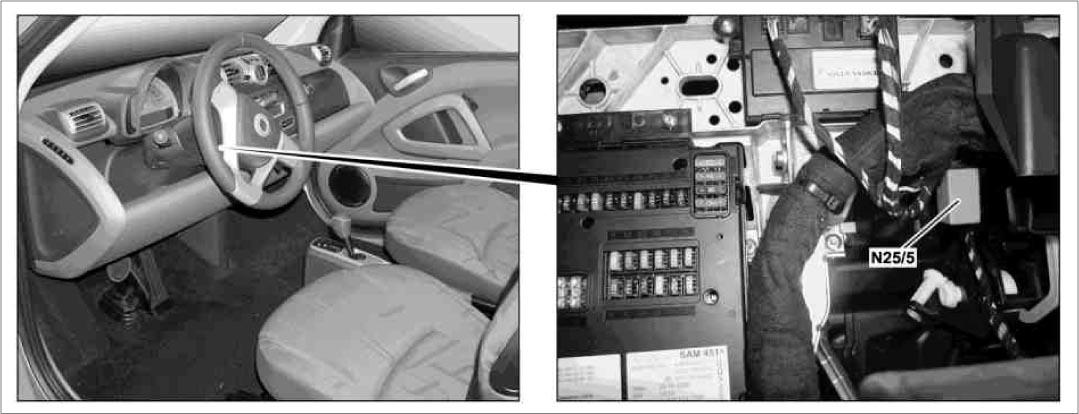

| Front HS (SIH) Control Unit (N25/5) | Left side of dash. See Figure. |
| Heating & Air Conditioning Operating Unit (N23) | Center of dash. See Figure. |

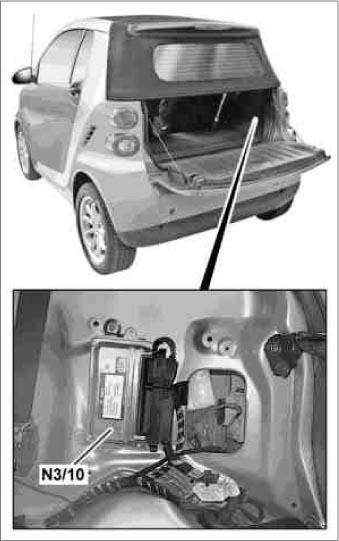

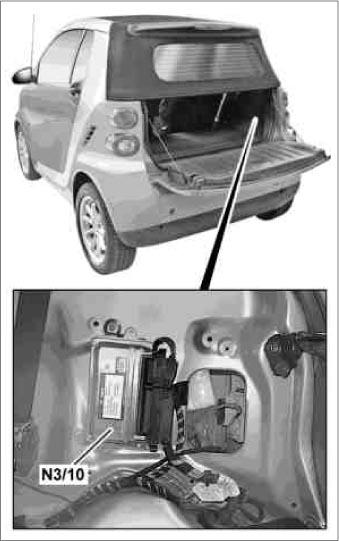

| ME-SFI (ME) Control Unit (N3/10) | Right rear of luggage compartment. See Figure. |

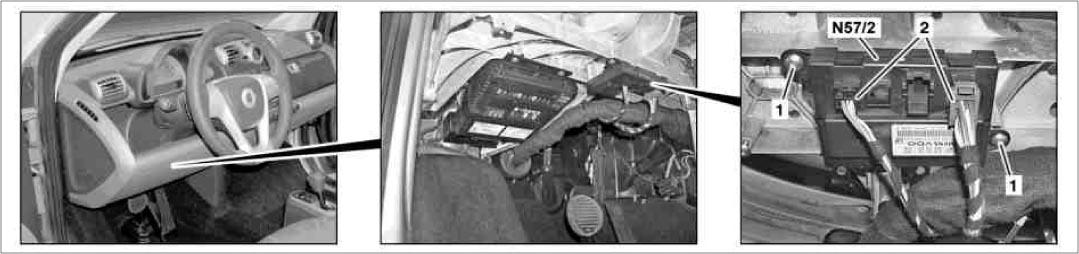

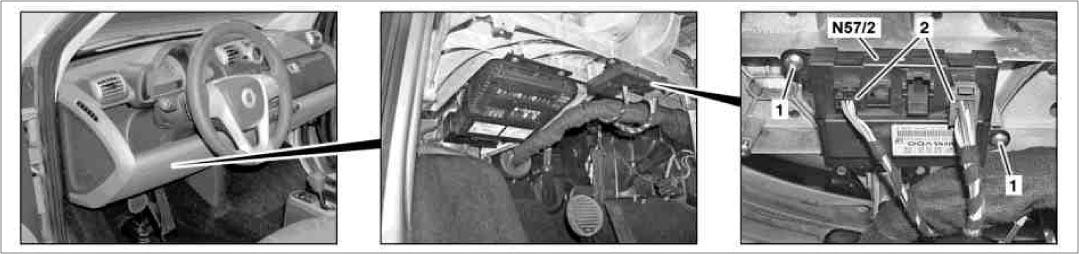

| Power Window Convenience Feature Control Unit (N57/2) | Left side of dash. See Figure. |
| Restraints Systems Control Unit (N2/7) | Center of dash. See Figure. |

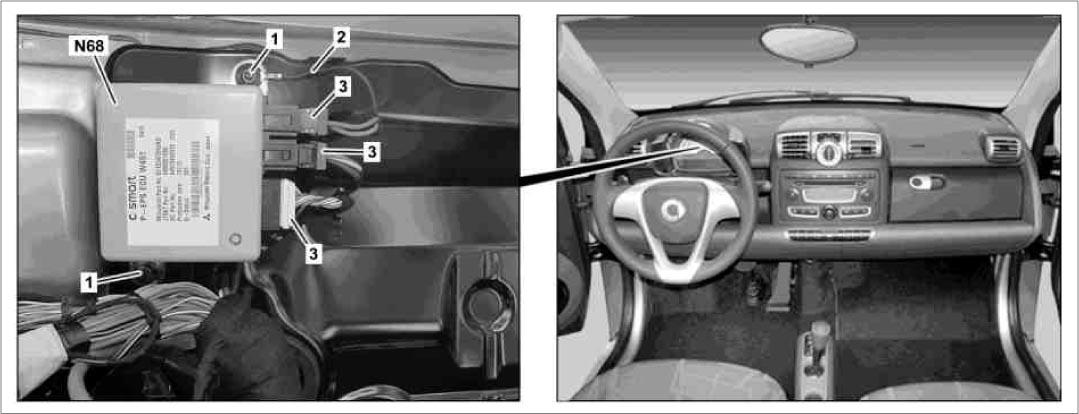

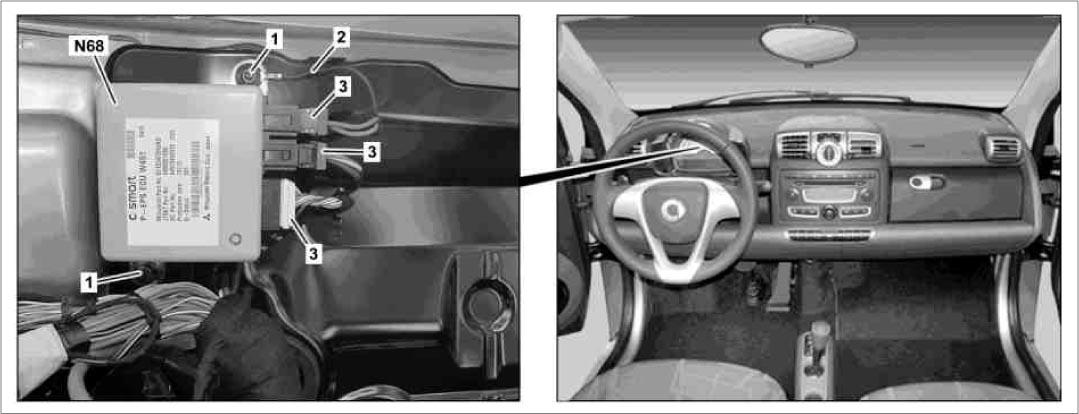

| Steering Assist Control Unit (N68) | Behind instrument cluster. See Figure. |

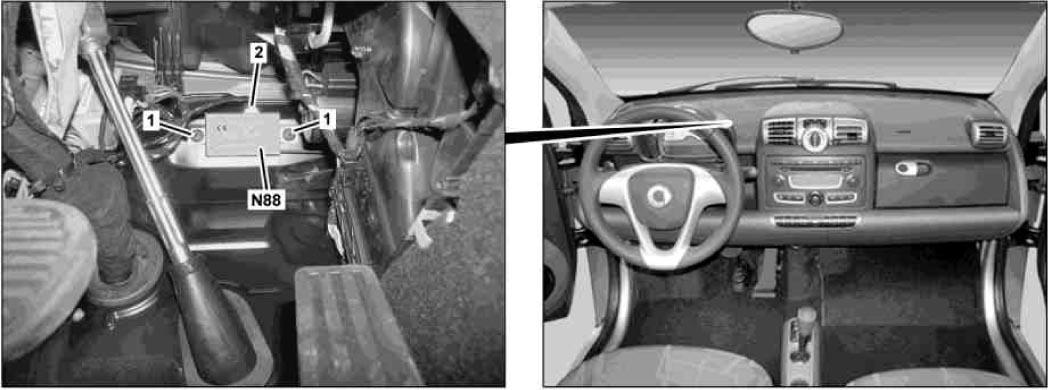

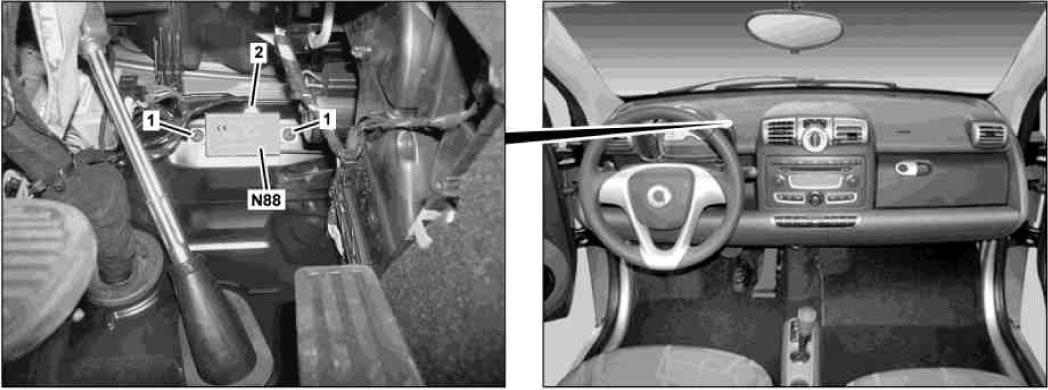

| TPM (RDK) Control Unit (N88) | Left side of dash. See Figure. |
