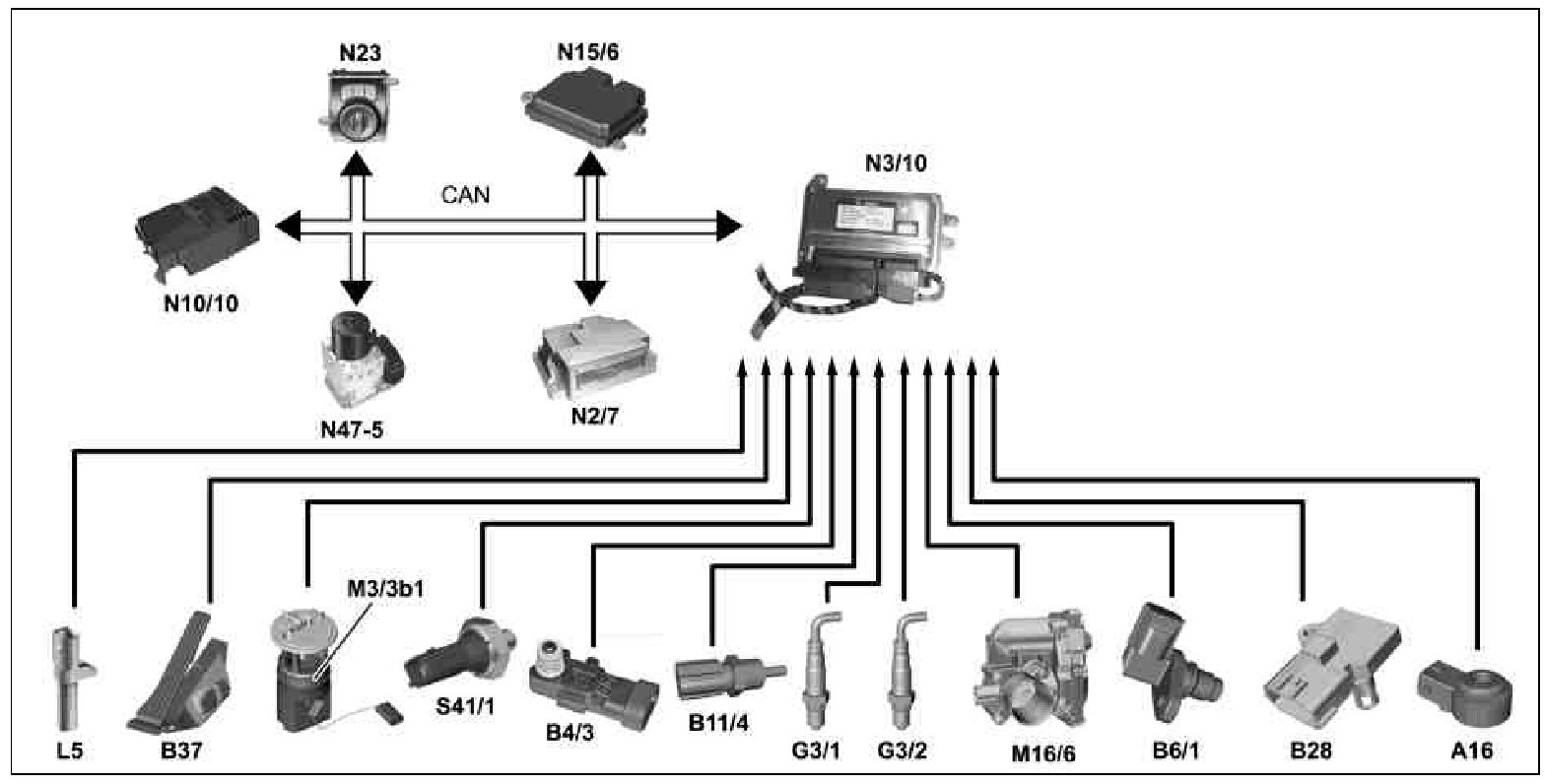

GF07.61-P-0001-06MCU Motor Electronics (ME-SFI) Fuel Injection and Ignition System Control Unit, Input Signals

GF07.61-P-0001-06MCU Motor Electronics (ME-SFI) Fuel Injection And Ignition System Control Unit, Input Signals







A16 Knock sensor
B4/3 Fuel tank pressure sensor
B6/1 Camshaft Hall sensor
B11/4 Coolant temperature sensor
B28 Intake manifold pressure sensor
B37 Accelerator pedal sensor
G3/1 O2 sensor downstream from catalytic converter
G3/2 O2 sensor upstream TWC
L5 Crankshaft position sensor
M3/3b1 Fuel tank sensor
M16/6 Throttle valve actuator
N2/7 Restraint systems control unit
N3/10 ME-SFI [ME] control unit
N10/10 SAM control unit
N15/6 Automated manual transmission control unit
N23 Heater/air conditioning operating unit (for code (I01) Air conditioning Plus)
N47-5 ESP control unit
S41/1 Oil pressure switch
CAN Controller Area Network (data bus/CAN bus) (CAN)
